天然生物质材料的制备、性质与应用（Ⅹ）——高黏稳定的水溶性微生物多糖：黄原胶

doi:10.3969/j.issn.2097-2806.2024.10.004

摘要/Abstract

摘要：

黄原胶是由黄单胞菌属产生的胞外多糖，是由一系列五糖重复单元链接形成的高分子杂多糖聚合物。黄原胶及其衍生物以其优异的稳定性、增稠性、乳化性、悬浮性、流变性、耐酸碱性、耐温性，耐盐性等性能，广泛应用于日用化学品、食品、医药、水处理、石油开采等多个行业领域。本文介绍了黄原胶的结构、性质、生产方法和改性技术，以及黄原胶寡糖的性质、制备和分离纯化方法，并概述了黄原胶及其改性产物的应用情况，提及了当前黄原胶生产中的问题及今后的发展前景。

关键词: 黄原胶, 黄原胶糖, 黄原胶寡糖, 提取, 性质, 应用

Abstract:

Xanthan gum is a kind of extracellular polysaccharides produced by xanthomonas. It is a heteropolysaccharide polymer with high molecular weight formed by a series of five-sugar residues repeating units. Xanthan gum and its derivatives are widely used in various industries such as daily-use chemical industry, food processing industry, pharmaceutical industry, water treatment, and oil exploitation, due to their excellent stability, thickening ability, emulsifying ability, suspensibility, rheological property, acid resistance, base resistance, heat resistance, salt resistance, and other fit properties. In this paper, the chemical structure, the main physicochemical properties, the production methods, and the modification technologies of xanthan gum, as well as the properties, the preparation, separation and purification methods of xanthan gum oligosaccharides are briefly presented. Furthermore, the application status of xanthan gum and its modified products, the current problems in xanthan gum production, and the future prospects for the development of xanthan gum are also mentioned in this paper.

Key words: xanthan gum, xanthan gum sugar, xanthan gum oligosaccharides, extraction, property, application

中图分类号:

TQ658

吕妮雅, 张燕爽, 韩桂梅, 范金石. 天然生物质材料的制备、性质与应用（Ⅹ）——高黏稳定的水溶性微生物多糖：黄原胶[J]. 日用化学工业（中英文）, 2024, 54(10): 1172-1180.

Niya Lv, Yanshuang Zhang, Guimei Han, Jinshi Fan. Preparation, properties and applications of natural biomass materials （Ⅹ） The stable, highly viscous, water-soluble microbial polysaccharides: xanthan gum[J]. China Surfactant Detergent & Cosmetics, 2024, 54(10): 1172-1180.

图/表 6

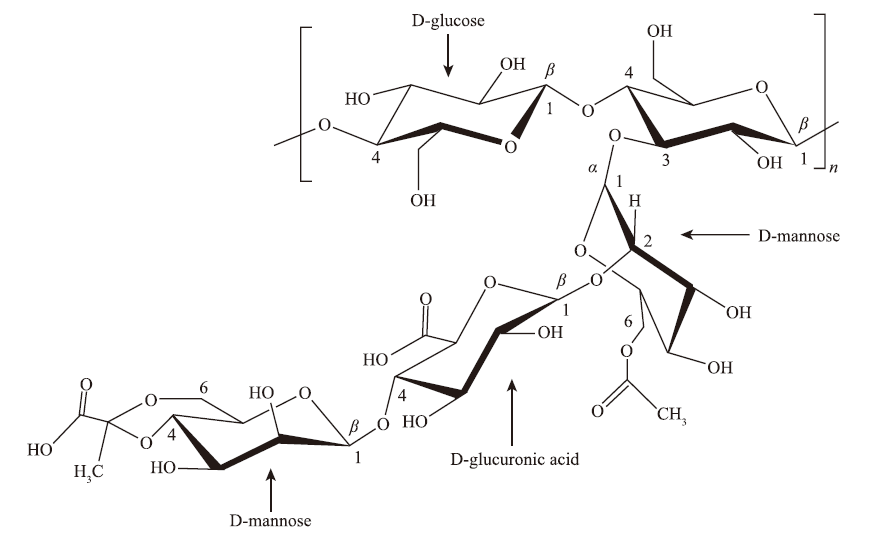

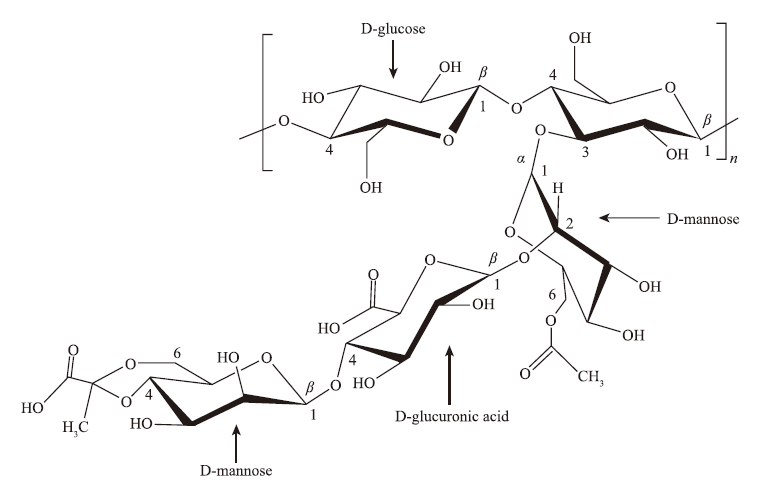

图1

图2

表1

表2

表3

表4

参考文献 60

[1]	Zhao Dajian, Diao Huxin, Liu Rulin. Molecular structure and properties of xanthan gum[J]. Speciality Petrochemicals, 1986 (1) : 7-11.
[2]	Zhang Xuemei, Yan Haiyuan, Zhang Zhongliang, et al. The progress in production and application of xanthan gum[J]. Light Industry Science and Technology, 2022, 38 (3) : 15-19.
[3]	Qiu Jiahui, He Yawen. Advances in applications and research of xanthan gum[J]. Acta Laser Biology Sinica, 2019, 28 (5) : 385-393, 409.
[4]	Guo Rui, Ding Enyong. Structure performance and applications of xanthan gum[J]. China Surfactant Detergent & Cosmetics, 2006, 36 (1) : 42-45.
[5]	Jansson P E, Kenne L, Lindberg B. Structure of the extracellular polysaccharide from xanthomonas campestris[J]. Carbohydrate Research, 1975, 45 (1) : 275-282.
[6]	Wang Qian, Yu Zhimin, Yang Fan, et al. Advances in preparation, separation and characterization of xanthan gum oligosaccharide[J]. Journal of Microbiology, 2024, 44 (3) : 96-112.
[7]	Wang D R, Yu X C, Zhao D J, et al. A study of the molecular weight of xanthan gum[J]. Chemical Jouranal of Chinese Universities, 1990, 11 (7) : 789-791.
[8]	Zhou S H. Conformation transition of xanthan in aqueous solution and its rheological research[D]. Shanghai: Shanghai Jiao Tong University, 2008.
[9]	Nie Linglong, Zhou Rujin, Ning Zhengxiang. Focus on xanthan gum[J]. China Food Additives, 2003 (3) : 82-85.
[10]	Said M, Haq B, Al Shehri D, et al. Modification of xanthan gum for a high-temperature and high-salinity reservoir[J]. Polymers, 2021, 13 (23): 4212.
[11]	Gentile L. Protein-polysaccharide interactions and aggregates in food formulations-sciencedirect[J]. Current Opinion in Colloid & Interface Science, 2020, 48: 18-27.
[12]	Zhao M M, Ye L, Li S X, et al. Study on synergistic interaction and stability of salt tolerance between xanthan gum and other common food gums[J]. Food and Fermentation Industries, 1999, 25 (2) : 12-16, 20.
[13]	Wu L, Xu T T, Han X, et al. Research on high temperaturestability effects of xanthan gum[J]. Drilling Fluid & Completion Fluid, 2011, 28 (6) : 77-80, 97.
[14]	Huang Chengdong, Bai Xuefang, Du Yuguang. Xanthan gum: production, properties and application[J]. Microbiology China, 2005, 32 (2) : 91-98.
[15]	Zhou Shenghua, Huang Long, Zhang Hongbin. Research development on the structure, property and application of xanthan gum[J]. Food Science and Technology, 2008 (7) : 156-160.
[16]	Ji Chuanfu, Wang Lu, Gou Min, et al. The review of biosynthesis and molecular regulation of xanthan gum[J]. China Biotechnology, 2022, 42 (Z1) : 46-57.
[17]	Emilie C, Fanny P, Taco N, et al. Rheology of xanthan solutions as a function of temperature concentration and ionic strength[J]. Carbohydr. Polym., 2010, 82 (4) : 1228-1235.
[18]	Diao H X, Liang F L, Liang X J, et al. Studies on the synergism of intermolecular interaction of xanthan NK-01 and galactomannan[J]. Journal of Nankai University, 2001, 34 (1) : 10-12.
[19]	Zhao Lijuan, Ling Peixue. Overview on production technology of xanthan gum[J]. Food and Drug, 2014, 16 (1) : 55-57.
[20]	Zhu Shengdong, Lei Yunzhou, Tong Haibao, et al. Process conditions of extraction of xanthan gum via ultra-filtration and alcohol-precipitation[J]. The Chinese Journal of Process Engineering, 2004 (6) : 525-530.
[21]	He Haiyan, Qin Yongling, Tang Yuanyuan, et al. Utilization of corncob for the production of xamthan gum and optimized the conditions of alcohols precipitation[J]. Food Science and Technology, 2012, 37 (12) : 256-258, 263.
[22]	Zhang Guoying, Luo Guohua, Qin Caiyun, et al. Production by fermentation and purification of xanthan gum[J]. Modern Chemical Industry, 2000 (12) : 32-34.
[23]	Patel J, Maji B, Moorthy N, et al. Xanthan gum derivatives: review of synthesis, properties and diverse applications[J]. RSC Advances, 2020, 10 (45) : 27103-27136. doi: 10.1039/d0ra04366d pmid: 35515783
[24]	Yoshida T, Takahashi M, Hatakeyama T, et al. Annealing in duced gelation of xanthan/water systems[J]. Polymer, 1998, 39 (5) : 1119-1122.
[25]	Marcotte M, Hoshahili A, Ramaswamy H S. Rheoloical properties of selected hydrocolloids as a function of concentration and temperature[J]. Food Research International, 2001, 34 (8) : 695-703.
[26]	Yang Ting. Construction of tartrary buckwheat protein-xanthan gum complex and its application in pickering emulsion[D]. Chengdu: Chengdu University, 2023.
[27]	Wang Xiaojin. Synthesis and properties of modified xanthan gum[D]. Ji’nan: Shandong University, 2015.
[28]	Mahmoud H A E, Emad S G, Mohamed A G, et al. Xanthan gum-derived materials for applications in environment and eco-friendly materials: a review[J]. Journal of Environmental Chemical Engineering, 2021, 9 (1): 104702.
[29]	Sharma G, Thakur B, Naushad M, et al. Applications of nano composite hydrogels for biomedical engineering and environmental protection[J]. Environmental Chemistry Letters, 2018, 16: 113-146.
[30]	Sara H, Yahoum M M, Lefnaoui S, et al. New alkylated xanthan gum as amphiphilic derivatives: synthesis, physicochemical and rheological studies[J]. Journal of Molecular Structure, 2020, 1207: 127768.
[31]	Roy A, Comesse S, Grisel M, et al. Hydrophobically modified xanthan: an amphiphilic but not associative polymer[J]. Biomacromolecules, 2014, 15 (4) : 1160-1170. doi: 10.1021/bm4017034 pmid: 24547905
[32]	Xu J J, Liu W B, Wu J R, et al. Metabolic profiles of oligosaccha-rides derived from four microbial polysaccharides by faecal in-ocula from type 2 diabetes patients[J]. International Journal of Food Sciences and Nutrition, 2012, 72 (8) : 1083-1094.
[33]	Qin F, Li J A, He X Y, et al. Antibacterial activity of xantho oligosaccharide cleaved from xanthan against pHytopathogenic xanthomonas campestris pv. campestris[J]. Process Biochemistry, 2006, 41 (7) : 1582-1588.
[34]	Xiong X Y, Li M, Xie J, et al. Antioxidant activity of xanthan oligosaccharides prepared by different degradation methods[J]. Carbohydrate Polymers, 2013, 92: 1166-1171. doi: 10.1016/j.carbpol.2012.10.069 pmid: 23399142
[35]	Timell T E. The acid hydrolysis of glycosides: I. general conditions and the effect of the nature of the aglycone[J]. Canadian Journal of Chemistry, 1964, 42: 1456-1472.
[36]	Tait M, Sutherland I. Acid hydrolysis and high-performance liquid chromatography of xanthan[J]. Carbohydrate Polymers, 1990, 13: 133-148.
[37]	Guo Yuanheng, Zhang Lijun, Cao Lili, et al. Recent advances in analytical techniques for monosaccharide composition of plant polysaccharides[J]. Food Science, 2018, 39 (1) : 326-332. doi: 10.7506/spkx1002-6630-201801049
[38]	Li Jingwei. Production and application of microbial polysaccharides[M]. Beijing: China Agricultural Science and Technology Press, 1995.
[39]	Zhang Lijing, Wang Yuanliang, Wang Chuanhua. The application of xanthan gum in food industry[J]. Farm Products Processing, 2020 (11) : 77-79.
[40]	Li Yanan, Sheng Yangchen, Mou Anqiong, et al. Effects of different ionic polysacchrides on corn starch properties[J]. Food and Fermantation Industries, 2024-05-24. doi: 10.13995/j.cnki.11-1802/ts.039439.
[41]	Zhu Junkun, Han Sihai, Liu Jiangxue, et al. Effect of different hydrocollodis on stability of lily cloudy beverage[J]. 2023-12-18. doi: 10.13995/j.cnki.11-1802/ts.037749.
[42]	Feng Xiaoping, Liu Yumei, Wu Tianyuan, et al. Effect of different hydrophilic polysaccharide colloids on the oil of fried chicken nuggets influence of permeation[J]. Science and Technology of Food Industry, 2024, 45 (18) : 112-119.
[43]	Mikac U, Sepe A, Baumgartner S, et al. The influence of high drug loading in xanthan tablets and media with different physiological pH and ionic strength on swelling and release[J]. Mol. Pharm., 2016, 13 (3) : 1147-1157.
[44]	Maiti S, Mukherjee S. Controlled drug delivery attributes of co-polymer micelles and xanthan-O-carboxymethyl hydrogel particles[J]. Int. J. Biol. Macromol., 2014, 70: 37-43. doi: 10.1016/j.ijbiomac.2014.06.015 pmid: 24954271
[45]	Kuo S M, Chang S J, Wang H Y, et al. Evaluation of the ability of xanthan gum/gellan gum/hyaluronan hydrogel membranes to prevent the adhesion of postrepaired tendons[J]. Carbohydr. Polym., 2014, 114: 230-237.
[46]	Kulkarni N, Wakte P, Naik J. Development of floating chitosan-xanthan beads for oral controlled release of glipizide[J]. Int. J. Pharm. Investig., 2015, 5 (2) : 73-80. doi: 10.4103/2230-973X.153381 pmid: 25838991
[47]	Maity S, Sa B. Ca-carboxymethyl xanthan gum mini-matrices: swelling, erosion and their impact on drug release mechanism[J]. Int. J. Biol. Macromol., 2014, 68: 78-85. doi: 10.1016/j.ijbiomac.2014.04.036 pmid: 24768968
[48]	Lungan M A, Popa M, Racovita S, et al. Surface characterization and drug release from porous microparticles based on methacrylic monomers and xanthan[J]. Carbohydr. Polym., 2015, 125: 323-333.
[49]	Groves E, Chaw C S. Incorporation of calcium salts into xanthan gum matrices: hydration, erosion and drug release characteristics[J]. Drug Dev. Ind. Pharm., 2015, 41 (10) : 1608-1616. doi: 10.3109/03639045.2014.976573 pmid: 25371230
[50]	Kocatürk T, Gengnül A, Balica F, et al. Combined eye gel containing sodium hyaluronate and xanthan gum for the treatment of the corneal epithelial defect after pterygium surgery[J]. Clin. Ophthalmol., 2015, 9: 1463-1466.
[51]	Feng Juan. The screening of different ratio polysaccharide gum and the effects on decreasing the serum cholesterol and triglyeride level[D]. Xi’an: Fourth Military Mecical University, 2007.
[52]	Tanya M N, Douglas J M. Combination therapy for the treatment of obesity: US 0270650A1[P]. 2006-11-30.
[53]	Lippert F. Mouthwash composition comprising xanthangum and sodium fluoride: WO 155345A1[P]. 2008-12-24.
[54]	Shigeo S, Sachiyo I. Tooth enamel dissolution inhibitor: US 0274636 A1[P]. 2009-11-05.
[55]	Gertrud K, Shireen U, David U. Novel composition for xerostomia: US 0317703A1[P]. 2008-12-25.
[56]	Pandey S, Mishra S B. Microwave synthesized xanthan gum-g-poly (ethylacrylate): an efficient Pb²⁺ ion binder[J]. Carbohydrate Polymers, 2012, 90 (1) : 370-379.
[57]	Zheng M, Lian F, Xiong Y, et al. The synthesis and characterization of a xanthan gum-acrylamide-trimethylolpropane triglycidyl ether hydrogel[J]. Food Chemistry, 2019, 272 (30) : 574-579.
[58]	Njuguna D G, Schnherr H. Smart and regeneratable xanthan gum hydrogel adsorbents for selective removal of cationic dyes[J]. Journal of Environmental Chemical Engineering, 2022, 10 (3): 107620.
[59]	Li Hui, Li Yujian. Synthesis of xanthan gum/AMPS/bentonite composite water plugging agent for oil field[J]. Journal of Petrochemical Universities, 2011, 24 (6) : 42-45.
[60]	Wang Shangbin, Shu Zhongjun, Wang Junqi, et al. Study on the effect of xanthan gum on the perfourmance of fluorine-free foam extinguish agent[J]. Industrial Safety and Environmental Protection, 2023, 49 (11) : 28-32, 59.

方法	应用范围	优点	缺点
膜分离法	不同分子量寡糖	回收率高，操作简单	易堵塞，不适合分离分子量相近的寡糖
凝胶色谱法	不同分子量寡糖	条件温和，操作简单	色谱填料易被污染，不适宜工业化生产
高效离子交换色谱法	中性和酸性寡糖	灵敏度较高，专一性强	分离条件不稳定，定性能力较差
亲水性色谱法	极性化合物和亲水性化合物	重复性好，样品易浓缩	分离效果受分辨率和载样量的限制
石墨化碳色谱法	强极性、结构相似的物质	可区分结构相似、异构体化合物，pH范围广	对低极性物质保留能力差

原料	w/%	原料	w/%
三甲醛酸丙酸基	0.2	乳酸钠	0.5
缩聚山梨醇	1.0	丙二酸	5.0
香料	适量	红藻多糖	0.8
乙醇	10.0	黄原胶	0.2
甘油	5.0	水	至100

原料	w/%
硬脂酸	1.0
十八醇十六醇混合物	0.8
缩聚山梨醇	1.5
液体石蜡	20.0
二氧化钛	9.0
色素	2.0
卵磷脂	0.3
丙二醇	10.0
红藻多糖	0.6
黄原胶	0.3
香料	适量
三乙醇胺	1.0
水	至100

成分/组别	w/%
成分/组别	配方1	配方2	配方3	配方4
黄原胶	1.0	0.2	0.4	0.5
聚羧乙烯制剂	0.2	0.2	0.2	0.2
三乙醇酸	0.2	1.0	0.15	0.5
芦荟	—	—	0.5	0.5
柠檬酸	—	—	0.15	0.15
柠檬酸三钠	0.2	0.2	—	—
氧化钠	0.5	0.5	—	—
硬脂酰基醚	—	—	1.2	1.2
单硬脂酸	1.2	1.2	—	—
单硬脂酸甘油	—	—	0.5	0.5
单硬脂酸山梨聚糖	1.0	1.0	—	—
丁醇	—	—	0.5	0.5
十八醇十六醇混合物	1.0	1.0	0.6	0.6
液体石蜡	6.0	6.0	—	—
软脂酸异丙酯	3.0	3.0	6.0	6.0
二甲基硅	—	—	3.0	3.0
双丙基乙二醇	5.0	5.0	5.0	5.0
羟基安息香酸	0.2	0.2	0.2	0.2
香料	适量	适量	适量	适量
去离子水	至100	至100	至100	至100
