二氧化硅包载对维生素C稳定性提高的研究

doi:10.3969/j.issn.2097-2806.2024.09.001

摘要/Abstract

摘要：

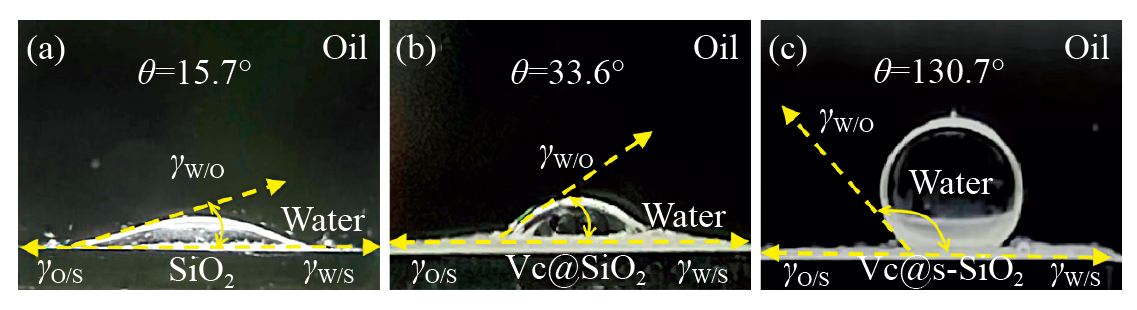

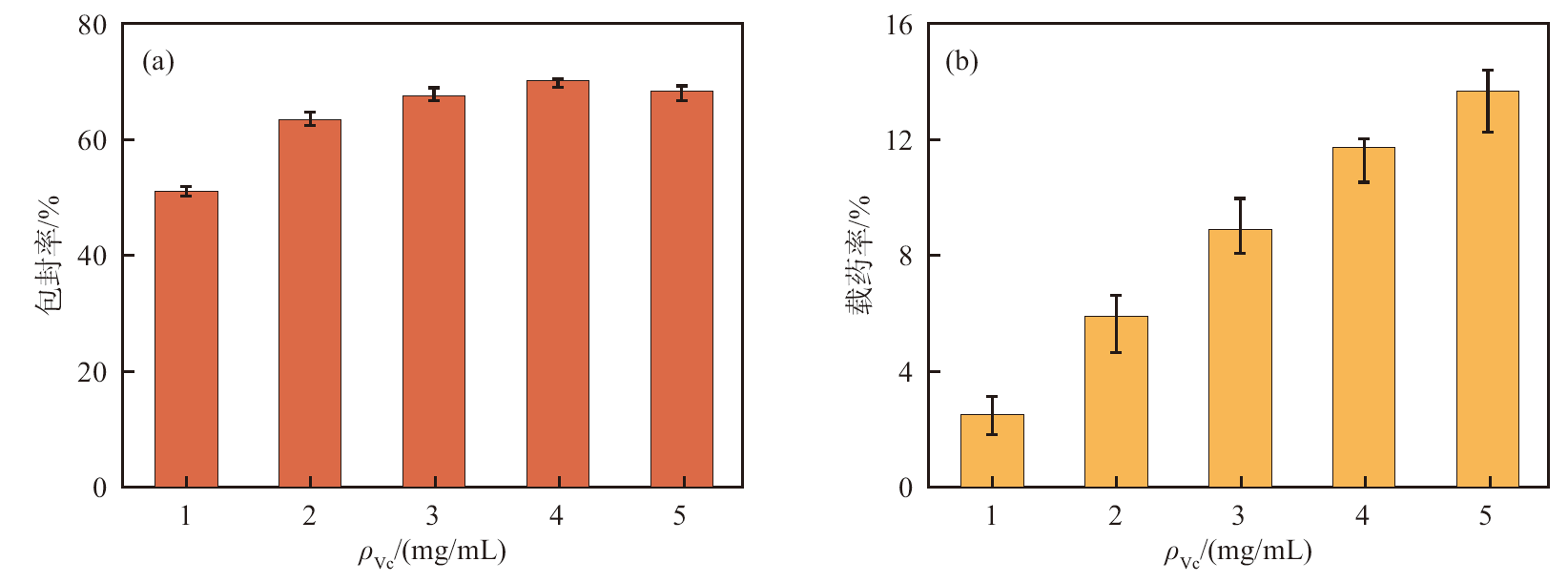

针对化妆护肤用品中亲水活性成分维生素C（Vc）稳定性差的问题，采用二氧化硅负载Vc（Vc@SiO₂）并通过硅烷改性（Vc@s-SiO₂）分散在辛酸/癸酸甘油三酯（GTCC）油相体系中提升其稳定性。实验结果表明：Vc负载于二氧化硅中，包封率为68.2%、载药率为13.6%；改性后Vc@s-SiO₂表面疏水，接触角由33.6°增大为130.7°；分别在紫外光照射和50 ℃下静置时，Vc@s-SiO₂相较于游离Vc能相应提高11.4倍和27.7倍相对抗氧化活性。研究表明二氧化硅负载Vc并分散于GTCC中能够隔绝水和氧等不利因素，降低活性损失，提高Vc的稳定性。

关键词: 生物活性物, 二氧化硅, 维生素C, 硅烷改性, 稳定性

Abstract:

To improve the stability of vitamin C（Vc） in cosmetics, Vc was coated with silica dioxide （Vc@SiO₂）, modified by silane （Vc@s-SiO₂） and dispersed in decanoyl/octanoyl-glycerides （GTCC） oil phase system. The experimental results show that the encapsulation rate and drug loading rate are 68.2% and 13.6%, respectively, when Vc is encapsulated into silica dioxide. After modification, the surface of Vc@s-SiO₂ is hydrophobic and the contact angle increases from 33.6° to 130.7°. When Vc is maintained at 50 ℃ or exposed to ultraviolet light, Vc@s-SiO₂ exhibits an increase in antioxidant activity by 11.4 times and 27.7 times, respectively, compared to free Vc. This study reveals that silica dioxide coated Vc and dispersed in GTCC can isolate the adverse factors such as water oxygen, reduce the activity loss and improve the stability of Vc.

Key words: bioactive substance, silicon dioxide, vitamin C, silane modification, stability

中图分类号:

TQ658

石美玲, 陈娟博, 李皓, 黄员琴, 张启清, 曾飒, 孟涛. 二氧化硅包载对维生素C稳定性提高的研究[J]. 日用化学工业（中英文）, 2024, 54(9): 1015-1022.

Meiling Shi, Juanbo Chen, Hao Li, Yuanqin Huang, Qiqing Zhang, Sa Zeng, Tao Meng. Study on the silicon dioxide encapsulation for the enhancement of vitamin C stability[J]. China Surfactant Detergent & Cosmetics, 2024, 54(9): 1015-1022.

图/表 9

图1

图2

图3

图4

图5

图6

图7

图8

图9

参考文献 19

[1]	Fraga C G, Oteiza P I. Bioactives and human health[J]. Molecular Aspects of Medicine, 2023, 89: 101168.
[2]	Ma Z Y, Yang M K, Foda M F, et al. Polarization of tumor-associated macrophages promoted by vitamin C-loaded liposomes for cancer immunotherapy[J]. ACS Nano., 2022, 16 (10): 17389-17401. doi: 10.1021/acsnano.2c08446 pmid: 36166666
[3]	Amrein K, Oudemans-Van Straaten H M, Berger M M. Vitamin therapy in critically ill patients: Focus on thiamine, vitamin C, and vitamin D[J]. Intensive Care Medicine, 2018, 44 (11): 1940-1944.
[4]	Boo Y C. Ascorbic acid (vitamin C) as a cosmeceutical to increase dermal collagen for skin antiaging purposes: Emerging combination therapies[J]. Antioxidants, 2022, 11 (9): 1663.
[5]	Nishikimi M, Fukuyama R, Minoshima S, et al. Cloning and chromosomal mapping of the human nonfunctional gene for l-gulono-gamma-lactone oxidase, the enzyme for l-ascorbic acid biosynthesis missing in man[J]. Journal of Biological Chemistry, 1994, 269 (18): 13685-13688. pmid: 8175804
[6]	Wang M X, He J, Li S S, et al. Structural basis of vitamin C recognition and transport by mammalian svct1 transporter[J]. Nature Communications, 2023, 14 (1): 1361.
[7]	Huang X, Tu R, Song H B, et al. Gelatin-egcg-high methoxyl pectin ternary complex stabilized W₁/O/W₂ double emulsions loaded with vitamin C: Formation, structure, stability, in vitro gastrointestinal digestion[J]. International Journal of Biological Macromolecules, 2022, 216: 891-905.
[8]	Yan B, Davachi S M, Ravanfar R, et al. Improvement of vitamin C stability in vitamin gummies by encapsulation in casein gel[J]. Food Hydrocolloids, 2021, 113: 106414.
[9]	Chanphai P, Tajmir-Riahi H A. Conjugation of vitamin C with serum proteins: A potential application for vitamin delivery[J]. International Journal of Biological Macromolecules, 2019, 137: 966-972. doi: S0141-8130(19)33974-1 pmid: 31295486
[10]	Hu S H, Ding Z, Zhang G, et al. Fabrication and spray-drying microencapsulation of vitamin c-loaded W₁/O/W₂ emulsions: Influence of gel polymers in the internal water phase on encapsulation efficiency, reconstituted stability, and controlled release properties[J]. Lwt Science and Technology, 2022, 170: 114113.
[11]	Caritá A C, Fonseca-Santos B, Shultz J D, et al. Vitamin C: One compound, several uses. Advances for delivery, efficiency and stability[J]. Nanomedicine: Nanotechnology, Biology and Medicine, 2020, 24: 102117.
[12]	Maqsoudlou A, Assadpour E, Mohebodini H, et al. Improving the efficiency of natural antioxidant compounds via different nanocarriers[J]. Advances in Colloid and Interface Science, 2020, 278: 102122.
[13]	Maqsoudlou A, Assadpour E, Mohebodini H, et al. The influence of nanodelivery systems on the antioxidant activity of natural bioactive compounds[J]. Critical Reviews in Food Science and Nutrition, 2020, 62 (12): 3208-3231.
[14]	Geng M G, Feng X M, Wu X X, et al. Encapsulating vitamins C and E using food-grade soy protein isolate and pectin particles as carrier: Insights on the vitamin additive antioxidant effects[J]. Food Chemistry, 2023, 418: 135955.
[15]	Huang Juan, Jiang Pingfu, Xie Wenjing, et al. Multiple emulsions in calcium alginate microgels as a delivery system for the encapsulation of different polar nutrients: Preparation and in vitro characterization[J]. China Surfactant Detergent & Cosmetics, 2021, 51 (9): 865-873.
[16]	Liu Xin, Luo Zhigang, Li Xiaolin. Preparation of vitamin C/β-carotene composite liposomes with their surfaces modified by sodium alginate-chitosan[J]. Modern Food Science and Technology, 2020, 36 (11): 163-169.
[17]	Oh J Y, Yang G, Choi E, et al. Mesoporous silica nanoparticle-supported nanocarriers with enhanced drug loading, encapsulation stability, and targeting efficiency[J]. Biomaterials Science, 2022, 10 (6): 1448-1455. doi: 10.1039/d2bm00010e pmid: 35229845
[18]	Zeng Qiao, Wei Chengbo, Han Guofeng, et al. Optimization of the extraction process of total flavonoids from mulberry leaves Fu brick tea and their antioxidant activities[J]. Food Science and Technology, 2018, 43 (6): 221-230.
[19]	Zhang Wenjun, Li Xiang, Zhang Guofeng, et al. Preparation of resveratrol nano-delivery system based on mesoporous silica[J]. Journal of Synthetic Crystals, 2021, 50 (12): 2323-2331.
