Fe3O4基核壳纳米结构材料的制备及顺磁性研究

doi:10.3969/j.issn.2097-2806.2024.03.008

摘要/Abstract

摘要：

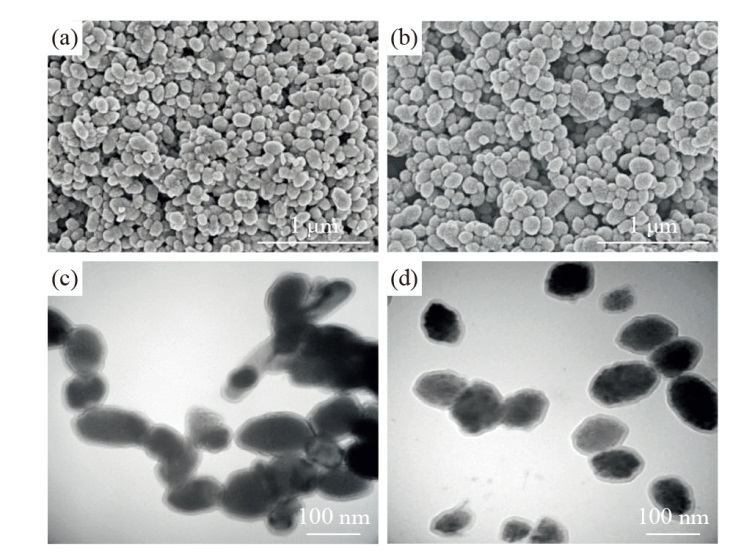

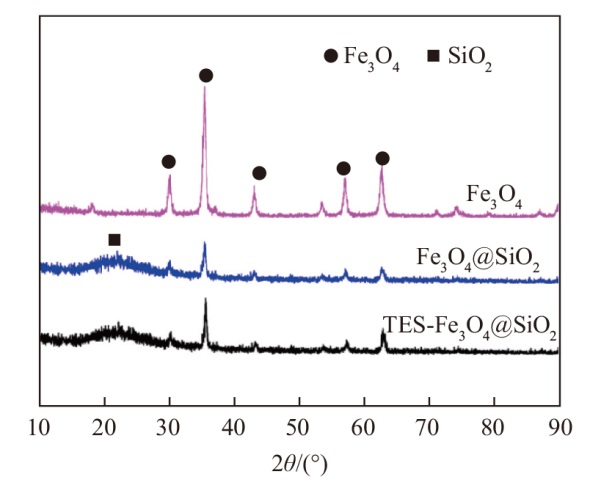

以Fe₃O₄为磁核，SiO₂为外壳，制备了Fe₃O₄@SiO₂核壳纳米结构材料，使用三乙氧基硅烷对Fe₃O₄@SiO₂进行表面亲水改性，研究了亲水改性对Fe₃O₄@SiO₂顺磁性能和催化性能的影响。结果表明：立方相结构的Fe₃O₄是核壳材料中主要的晶体相，表面的SiO₂为非晶态，表面亲水处理后未改变Fe₃O₄@SiO₂的晶格结构，Fe₃O₄@SiO₂为80~110 nm的不规则颗粒状，SiO₂包覆在Fe₃O₄外部，亲水处理后改善了颗粒的分布均匀性。亲水处理的Fe₃O₄@SiO₂的饱和磁化强度降低至20.31 emu/g，具有超顺磁性。以含Cd²⁺的金属废水为吸附降解对象，表面亲水处理后的Fe₃O₄@SiO₂去除率提高至94.2%，二级动力学模型更适合于Fe₃O₄@SiO₂对Cd²⁺的吸附，模型的相关系数为0.994 3，拟合效果更好，表明了Fe₃O₄@SiO₂对Cd²⁺的吸附速率受化学吸附的影响较大。

关键词: 四氧化三铁（Fe₃O₄）, 二氧化硅（SiO₂）, 核壳结构, 顺磁性能, 镉离子, 吸附

Abstract:

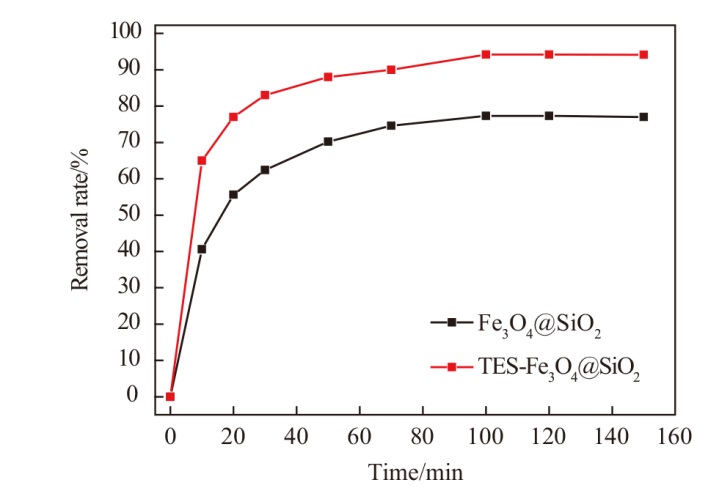

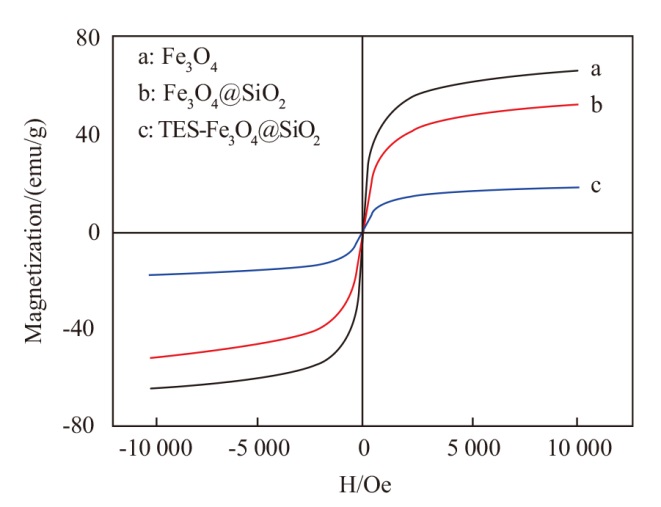

Fe₃O₄@SiO₂ core-shell nanostructured materials were prepared with Fe₃O₄ as magnetic core and SiO₂ as shell. Surface hydrophilic modification of Fe₃O₄@SiO₂ was carried out with triethoxysilane. The effects of hydrophilic modification on its paramagnetism and catalytic properties were studied. The results showed that Fe₃O₄ with cubic structure was the main crystal phase in the core-shell materials. The SiO₂ at surface was amorphous, and the crystal structure of Fe₃O₄@SiO₂ remained unchanged after surface hydrophilic modification. The Fe₃O₄@SiO₂ material was irregular particles of 80-110 nm, in which the Fe₃O₄ was coated with SiO₂. The saturated magnetization of the Fe₃O₄@SiO₂ after hydrophilic treatment was reduced to 20.31 emu/g, indicative of superparamagnetism. This nanomaterial was applied to the wastewater containing Cd²⁺ for adsorption and degradation, where the removal rate was increased to 94.2%. The second-order kinetic model was more suitable for the adsorption of Cd²⁺ with Fe₃O₄@SiO₂, and the correlation coefficient of the model was 0.994 3, showing good fitting. The results showed that the adsorption rate of Cd²⁺ by Fe₃O₄@SiO₂ was greatly affected by chemisorption.

Key words: Fe₃O₄, SiO₂, core-shell structure, paramagnetic performance, cadmium ion, adsorption

中图分类号:

TQ032

胡可云. Fe₃O₄基核壳纳米结构材料的制备及顺磁性研究[J]. 日用化学工业（中英文）, 2024, 54(3): 298-304.

Keyun Hu. Preparation and paramagnetic study of Fe₃O₄-based core-shell nanostructured materials[J]. China Surfactant Detergent & Cosmetics, 2024, 54(3): 298-304.

图/表 12

图1

图2

图3

图4

图5

图6

表1

图7

图8

图9

图10

表2

参考文献 19

[1]	Shi Daxin, Zhang Huanhuan, Gao Xia, et al. Progress in the preparation and catalytic application of core-shell structured nanocomposites[J]. Fine Chemicals, 2023, 40 (1) : 33-43.
[2]	Qian X, Wang X, Gao X, et al. Effects of GO@CS core-shell nanomaterials loading positions on the properties of thin film nanocomposite membranes[J]. Journal of Membrane Science, 2021, 624: 119102. doi: 10.1016/j.memsci.2021.119102
[3]	Cao Ke, Si Chenxi, Zhang Haiyan, et al. Based on nanomaterials Fe₃O₄@C Electrochemical sensors with core-shell structure and their sensitivity detection to bisphenol A[J]. Instrument Technology and Sensors, 2021 (11) : 28-32.
[4]	Mallick S, Singh K R, Nayak V, et al. Potentialities of core@shell nanomaterials for biosensor technologies[J]. Materials Letters, 2022, 306: 130912. doi: 10.1016/j.matlet.2021.130912
[5]	Chen Hao, Jiao Chaonan, et al. Construction and catalytic performance of multifunctional core-shell structure nanoreactors[J]. Chemical Progress, 2022, 34 (9) : 1911-1934.
[6]	Singh P, Gupta B K, Prasad N K, et al. Novel facets of multifunctional Ag@Fe₃O₄ core-shell nanoparticles for multimodal imaging applications[J]. Journal of Applied Physics, 2018, 124 (7).
[7]	Wang L, Zeng H. Fe₃O₄@MoS₂ Core-shell magnetism nanocomposite for water remediation through highly efficient and selective removal of Hg(Ⅱ) ions[J]. Chemistry Letters, 2018, 47 (12) : 1515-1518. doi: 10.1246/cl.180793
[8]	Guo Shaobo, Liang Yanli, Ji Xiaohui, et al. Preparation, catalytic and antibacterial properties of nano core-shell Ag@Fe₃O₄composite materials[J]. Journal of Composite Materials, 2021, 38 (3) : 816-823.
[9]	Chen R, Sun Y, Huo B, et al. Development of Fe₃O₄@Au nanoparticles coupled to Au@Ag core-shell nanoparticles for the sensitive detection of zearalenone[J]. Analytica Chimica Acta, 2021, 1180: 338888. doi: 10.1016/j.aca.2021.338888
[10]	Ma D, Su Y, Tian T, et al. Multichannel room-temperature gas sensors based on magnetic-field-aligned 3D Fe₃O₄@SiO₂@reduced graphene oxide spheres[J]. ACS Applied Materials & Interfaces, 2020, 12 (33) : 37418-37426.
[11]	Wan Qiuyue, Su Pengxin, Huo Tingting, et al. Adsorption mechanism of ammonia nitrogen by core-shell Fe₃O₄@SiO₂@mSiO₂ nanocomposites[J]. New Chemical Materials, 2019, 49 (S1) : 166-171.
[12]	Zong Yan, Li Zhaoxin, Xing Hongna. Preparation and electromagnetic wave absorption characteristics of carbon coated hollow Fe₃O₄ nanospheres[J]. Applied Chemical Engineering, 2017, 46 (10) : 1876-1879, 1887.
[13]	Li Xiaojie, Ma Chang, Ma Canliang, et al. Fe₃O₄@C preparation and electrochemical properties of nanocore-shell microspheres[J]. Carbon Technology, 2018, 37 (2) : 23-26, 36.
[14]	Li Nan, Dai Hongyan. Fe₃O₄@SiO₂ Preparation of core-shell magnetic nanomaterials and their adsorption of Cu (Ⅱ)[J]. Functional Materials, 2021, 52 (8) : 8151-8155.
[15]	Gao Pingqiang, Zhang Yan, Wen Xiaoqing, et al. Core shell structure Fe₃O₄@TiO₂ preparation and performance characterization of magnetic nanocomposites[J]. Applied Chemistry, 2017, 46 (3) : 413-416.
[16]	Niu Yitao, Bao Guoqing, Wu Chunxin, et al. Preparation of functional nanocomposites Fe₃O₄@SiO₂-APTMS and its adsorption of Pb(Ⅱ)[J]. Chinese Journal of Composite Materials, 2019, 40 (6) : 3350-3365.
[17]	Chu Xu, Ding Lili, Song Huibo, et al. Preparation of SiO₂-NH₂/Fe₃O₄ and advanced treatment of pharmaceutical wastewater[J]. Chemical Industry Environmental Protection, 2016, 36 (3) : 293-298.
[18]	Huang Xiang, Yang Yanting. Study on catalytic properties of Fe₃O₄@SiO₂@C/Cu nanomaterials prepared by annealing under different gas atmospheres[J]. Journal of China Jiliang University, 2019, 34 (2) : 250-258.
[19]	Sajid M, Shuja S, Rong H, et al. Size-controlled synthesis of Fe₃O₄ and Fe₃O₄@SiO₂ nanoparticles and their superparamagnetic properties tailoring[J]. Progress in Natural Science: Materials International, 2023, 33 (1) : 116-119. doi: 10.1016/j.pnsc.2022.08.003

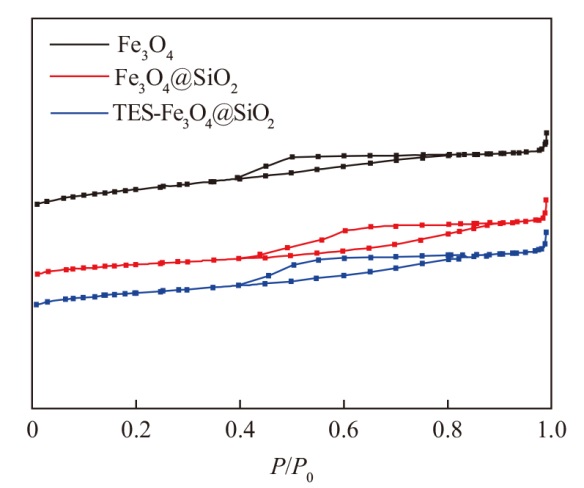

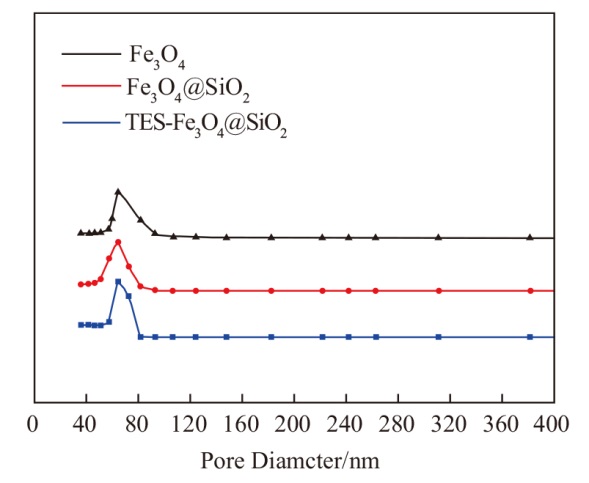

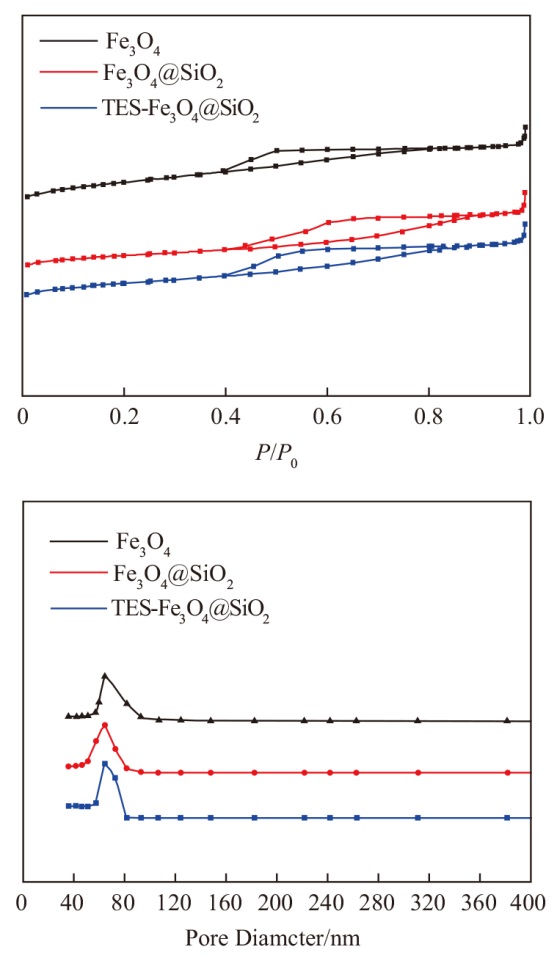

试样	BET surface area/ （m²/g）	Pore volume/（cm³/g）	Average BJH pore diameter/nm
Fe₃O₄	84	0.175	60.5
Fe₃O₄@SiO₂	121	0.247	63.0
TES-Fe₃O₄@SiO₂	138	0.182	63.5

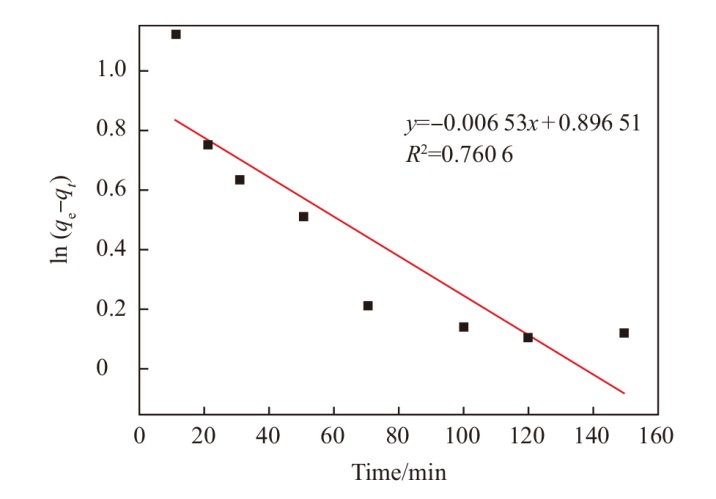

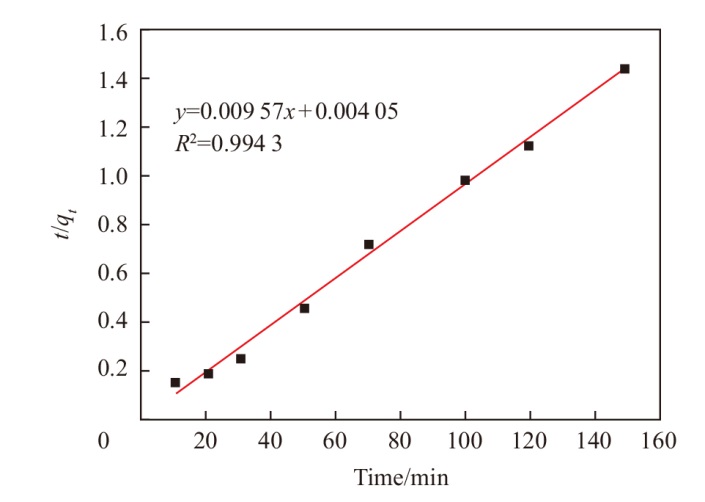

q_e^exp/（mg/g）	一级动力学				二级动力学
q_e^exp/（mg/g）	K₁/min^-1	q_e^cal/（mg/g）	R²		K₂/（g·（mg·min））	q_e^cal/（mg/g）	R²
9.082	0.041 58	8.852	0.760 6		0.021 81	9.250	0.994 3
