十六烷基三甲基溴化铵-珍珠粉相互作用及其稳定乳液的双重相转变

doi:10.3969/j.issn.1001-1803.2022.05.002

摘要/Abstract

摘要：

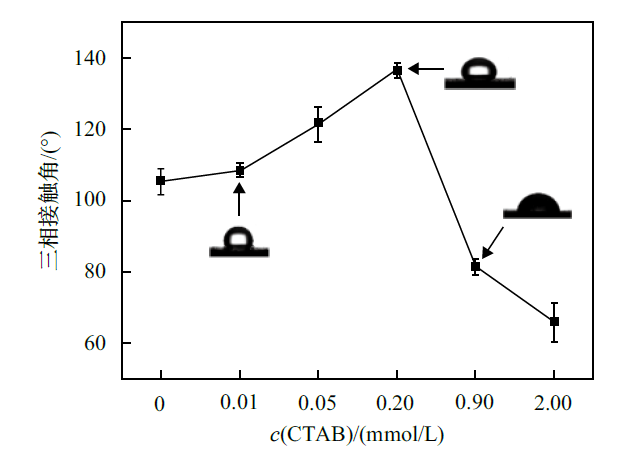

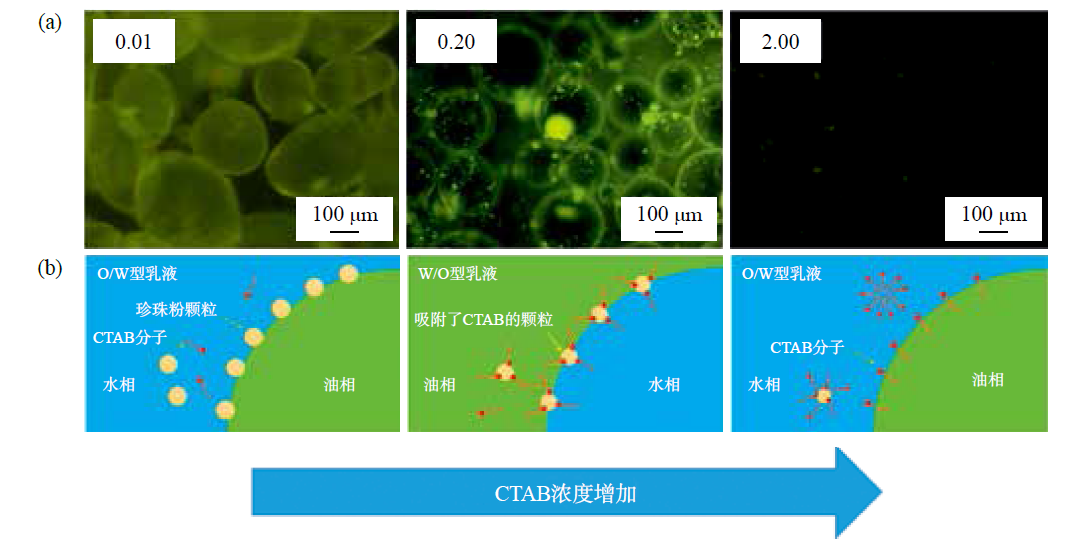

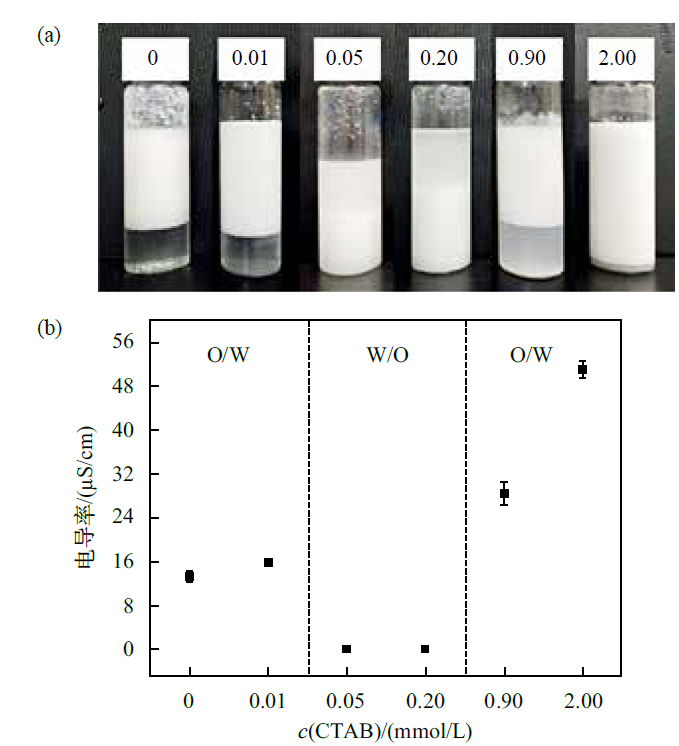

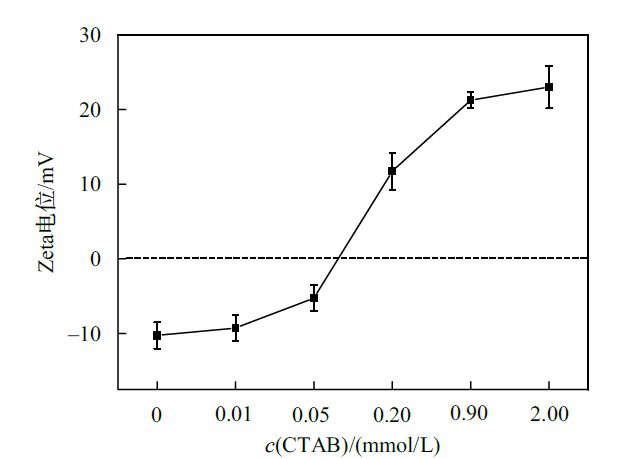

系统研究了阳离子表面活性剂十六烷基三甲基溴化铵（CTAB）对生物质颗粒珍珠粉制备Pickering乳液的类型、微观结构的影响,同时解析了CTAB/珍珠粉稳定乳液从O/W型到W/O型再到O/W型的双重相转变现象。通过分散性观察、Zeta电位的测定、三相接触角和珍珠粉的荧光标记等手段深入剖析了CTAB与珍珠粉颗粒之间的相互影响。结果表明,在未添加CTAB和CTAB浓度较低时（0.01 mmol/L）时,珍珠粉能单独形成O/W型的Pickering乳液,乳化粒子为非球形且有一定聚结。当CTAB的浓度增加到0.05和0.20 mmol/L时,CTAB在珍珠粉表面吸附增强了颗粒的疏水性,润湿性的变化导致乳液类型从O/W型转变到W/O型,此时乳液的微观结构为球形,且尺寸分布较窄。随着CTAB浓度的进一步增加到0.90 mmol/L,CTAB在油水界面上取代吸附的珍珠粉颗粒,荧光显微镜观察验证了此时形成的O/W型乳液是由过量的CTAB来稳定。即通过简单地增加阳离子表面活性剂CTAB的浓度,就能实现乳液从O/W型到W/O型,再到O/W型的双重相转变。

关键词: 十六烷基三甲基溴化铵, 珍珠粉, 吸附, Pickering乳液, 双重相转变

Abstract:

The effect of cationic surfactant cetyltrimethyl ammonium bromide （CTAB） on the type and microstructure of Pickering emulsions prepared with biomass-based pearl powder were systematically studied. The double phase inversion from O/W type to W/O type and then to O/W type of emulsions stabilized by CTAB/pearl powder was analyzed. The interaction between CTAB and pearl powder particles was analyzed by dispersion observation, Zeta potential determination, the three-phase contact angles characterization and fluorescent labeling of pearl powder. The results show that pearl powder can stabilize O/W Pickering emulsions when CTAB is not added or the concentration of CTAB is low （0.01 mmol/L）, and the emulsion droplets are not spherical and have coalescence. When the concentration of CTAB increases to 0.05 mmol/L and 0.20 mmol/L, the adsorption of CTAB on the surface of pearl powder enhances the hydrophobicity of the particles, and the change of wettability leads to the phase inversion of the emulsion from O/W type to W/O type. At the same time, the microstructure of the emulsions is spherical and the size distribution is narrow. As the concentration of CTAB increases to 0.90 mmol/L, CTAB replaces the pearl powder particles at the oil-water interface. Fluorescence microscope observation verifies that the O/W emulsion formed is stabilized by excessive CTAB. That is, by simply increasing the concentration of CTAB, the emulsion can realize the double phase inversion from O/W type to W/O type, and then to O/W type.

Key words: cetyltrimethyl ammonium bromide, pearl powder, adsorption, Pickering emulsions, double phase inversion

中图分类号:

TQ423

张倩洁,沈兴亮,盛涛涛,张婉萍,许建营. 十六烷基三甲基溴化铵-珍珠粉相互作用及其稳定乳液的双重相转变[J]. 日用化学工业, 2022, 52(5): 468-475.

Zhang Qianjie,Shen Xingliang,Sheng Taotao,Zhang Wanping,Xu Jianying. The interaction of cetyltrimethyl ammonium bromide-pearl powder and its stabilization of the double phase inversion in emulsions[J]. China Surfactant Detergent & Cosmetics, 2022, 52(5): 468-475.

图/表 8

图1

图2

图3

图4

图5

图6

图7

图8

参考文献 21

[1]	Mavaddat M, Baharamian A, Riahi S, et al. Phase behavior evaluation of sodium stearate emulsion system: stability tests in chemical EOR[C]// Abu Dhabi International Petroleum Exhibition and Conference. Society of Petroleum Engineers, 2015.
[2]	Binks B P, Isa L, Tyowua A T. Direct measurement of contact angles of silica particles in relation to double inversion of Pickering emulsions[J]. Langmuir, 2013, 29 (16): 4923-4927. doi: 10.1021/la4006899
[3]	Cui Z G, Shi K Z, Cui Y Z, et al. Double phase inversion of emulsions stabilized by a mixture of CaCO₃ nanoparticles and sodium dodecyl sulphate[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2008, 329 (1-2): 67-74. doi: 10.1016/j.colsurfa.2008.06.049
[4]	Binks B P, Rodrigues J A. Influence of surfactant structure on the double inversion of emulsions in the presence of nanoparticles[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2009, 345 (1): 195-201. doi: 10.1016/j.colsurfa.2009.05.001
[5]	Lam S, Velikov K P, Velev O D. Pickering stabilization of foams and emulsions with particles of biological origin[J]. Current Opinion in Colloid & Interface Science, 2014, 19 (5): 490-500. doi: 10.1016/j.cocis.2014.07.003
[6]	Zhang Y, Xie L P, Meng Q X, et al. A novel matrix protein family participating in the prismatic layer framework formation of pearl oyster[J]. Biochemical and Biophysical Research Communications, 2006, 344 (3): 735-740. pmid: 16630535
[7]	Shao D Z, Wang C K, Hwang H J, et al. Comparison of hydration, tyrosinase resistance, and antioxidant activation in three kinds of pearl powders[J]. Journal of Cosmetic Science. 2010, 61 (2): 133-145.
[8]	Gu Ming, Song Q, Wang B, et al. Comparison of physical parameters and amino acid content of superfine pearl powder from different manufacturers[J]. Chinese Traditional Patent Medicine, 2010, 32 (1): 139-140.
[9]	Zhang Q J, Shen X L, Chang S N, et al. Effect of oil properties on the formation and stability of Pickering emulsions stabilized by ultrafifine pearl powder[J]. Journal of Molecular Liquids, 2021, 338: 116645. doi: 10.1016/j.molliq.2021.116645
[10]	Zhang Q J, Shen X L, Zhang W P. Study on the influence factors of Pickering emulsions stabilized by ultrafine pearl powder[J]. China Surfactant Detergent & Cosmetics, 2021, 51 (1): 1-9.
[11]	Zhang Q J, Shen X L, Zhang D M, et al. Fabrication and characterization of novel high internal Pickering emulsions stabilized solely by ultrafine pearl powder[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2021, 624: 126797. doi: 10.1016/j.colsurfa.2021.126797
[12]	Zhang R, Yang L, Tu R, et al. Emulsion phase inversion from oil-in-water (1) to water-in-oil to oil-in-water (2) induced by in situ surface activation of CaCO₃nanoparticles via adsorption of sodium stearate[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2015, 477 (20): 55-62. doi: 10.1016/j.colsurfa.2015.03.043
[13]	Binks B P, Rodrigues J A. Double inversion of emulsions by using nanoparticles and a di-chain surfactant[J]. Angewandte Chemie, 2007, 119 (28): 5485-5488. doi: 10.1002/ange.200700880
[14]	Tiwari S, Mall C, Solanki P P. CMC studies of CTAB, SLS & Tween 80 by spectral and conductivity methodology to explore its potential in photogalvanic cell[J]. Surfaces and Interfaces, 2020, 18: 100427. doi: 10.1016/j.surfin.2019.100427
[15]	Ravera F, Dziza K, Santini E, et al. Emulsification and emulsion stability: The role of the interfacial properties[J]. Advances in Colloid and Interface Science, 2020, 288 (18) : 102344. doi: 10.1016/j.cis.2020.102344
[16]	Binks B P, Rodrigues J A. Synergistic interaction in emulsions stabilized by a mixture of silica nanoparticles and cationic surfactant[J]. Langmuir, 2007, 23 (7): 3626-3636. doi: 10.1021/la0634600
[17]	Binks B P, Yin D Z. Pickering emulsions stabilized by hydrophilic nanoparticles: in situ surface modification by oil[J]. Soft Matter, 2016, 12 (32): 6858-6867. doi: 10.1039/C6SM01214K
[18]	Xu M D, Jiang J Z, Pei X M, et al. Novel oil-in-water emulsions stabilised by ionic surfactant and similarly charged nanoparticles at very low concentrations[J]. Angewandte Chemie, 130 (26): 7864-7868. doi: 10.1002/ange.201802266
[19]	Binks B P, Rodrigues J A. Enhanced stabilization of emulsions due to surfactant-induced nanoparticle flocculation[J]. Langmuir, 2007, 23 (14): 7436-7439. doi: 10.1021/la700597k
[20]	Wang J, Yang F, Li C, et al. Double phase inversion of emulsions containing layered double hydroxide particles induced by adsorption of sodium dodecyl sulfate[J]. Langmuir, 2008, 24 (18): 10054-10061. doi: 10.1021/la8001527 pmid: 18698856
[21]	Frelichowska J, Bolzinger M A, Chevalier Y. Pickering emulsions with bare silica[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2009, 343 (1-3): 70-74. doi: 10.1016/j.colsurfa.2009.01.031
