多孔氮化硼材料的制备及其吸附性能研究

doi:10.3969/j.issn.2097-2806.2024.03.005

摘要/Abstract

摘要：

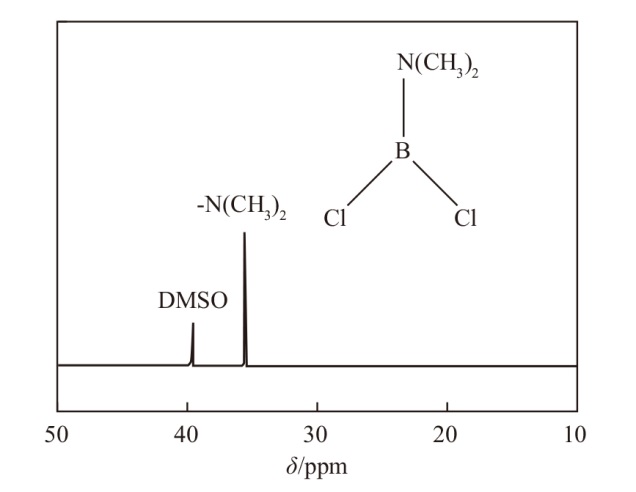

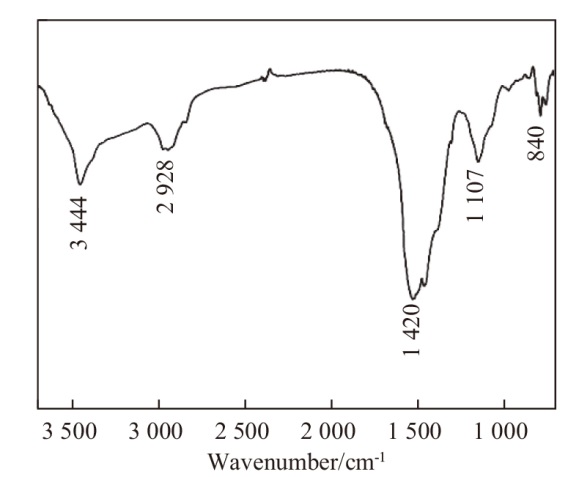

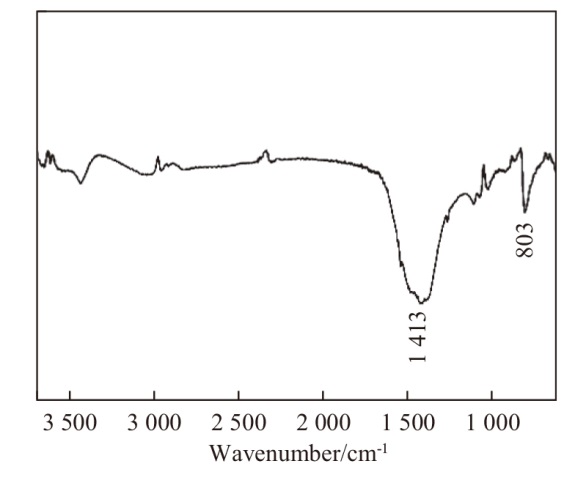

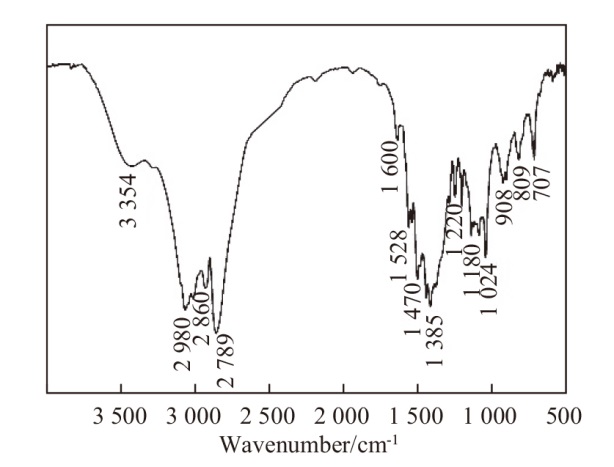

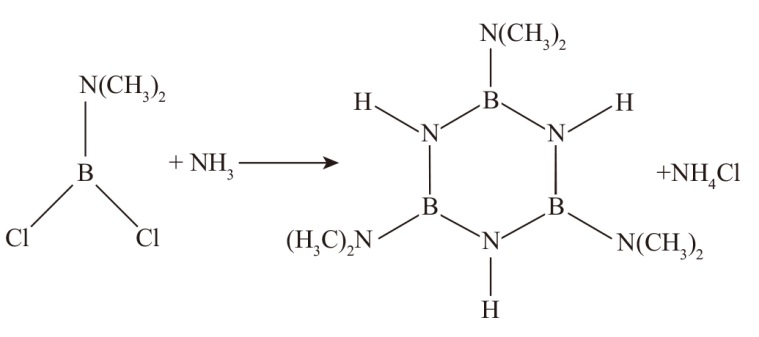

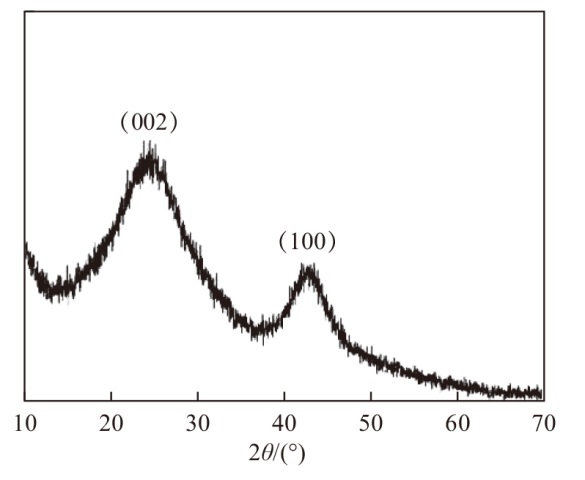

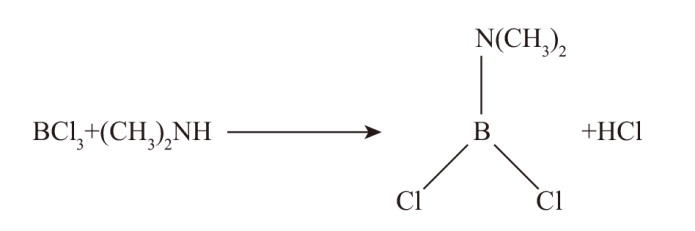

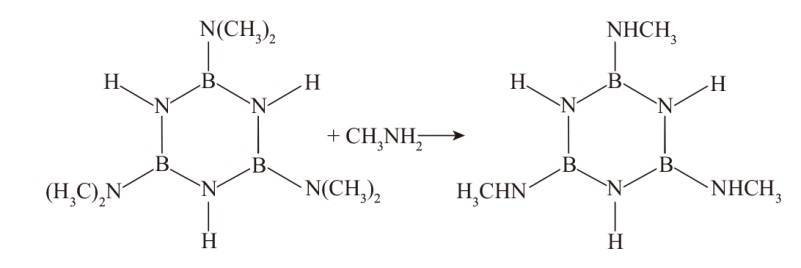

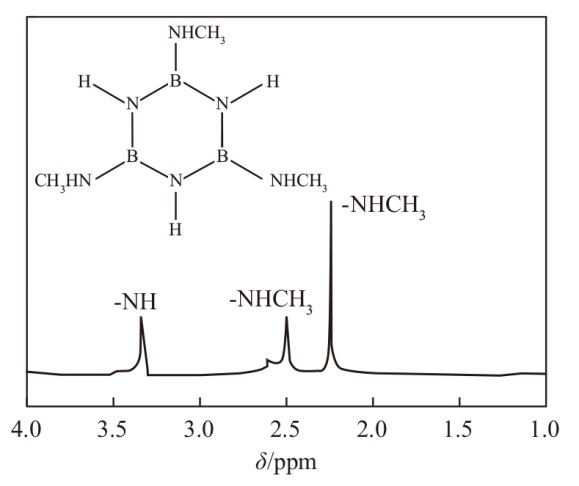

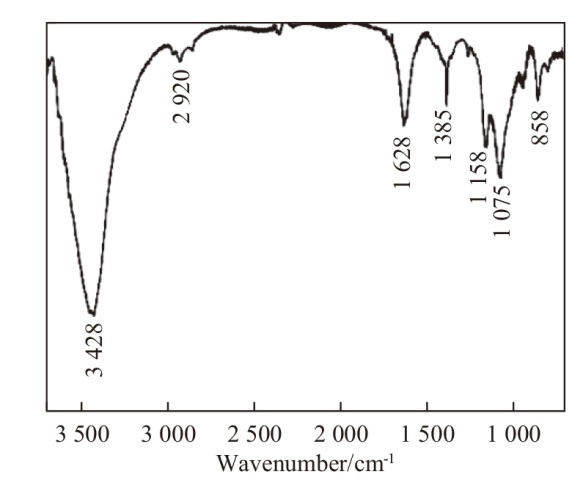

以二甲胺、三氯化硼、氨气和甲胺为原料，通过多步反应得到氮化硼前驱体三（甲胺基）环硼氮烷，经高温烧结后得到多孔氮化硼材料。通过FTIR、NMR对氮化硼前驱体中间体二氯（二甲胺基）硼烷和三（二甲胺基）环硼氮烷以及前驱体三（甲胺基）环硼氮烷的结构进行表征。利用XRD和SEM对多孔氮化硼结构和形貌进行表征。结果表明：通过反应合成前驱体中间物，最终能够合成出含碳量较低的氮化硼前驱体三（甲胺基）环硼氮烷。研究了多孔氮化硼材料对重金属离子的吸附能力，确定了多孔氮化硼材料对各种金属离子的吸附能力。研究发现：利用前驱体中间物制备出的多孔氮化硼具有较高的比表面积，吸附性能优异，能够有效的去除掉溶液中的重金属离子。使用有机前驱体法制备氮化硼弥补了无机制备中元素分布不均，易吸潮，易粉化的缺点。

关键词: 多孔氮化硼, 前驱体, 吸附特性, 重金属离子

Abstract:

By using the precursor conversion method, one-dimensional boron nitride fibers, two-dimensional boron nitride films and coatings, and three-dimensional boron nitride composite materials have been prepared, which cannot be prepared by traditional preparation methods. Dimethylamine, boron trichloride, ammonia and methylamine were used as raw materials to obtain the boron nitride precursor tri（methylamino） borazine by multi-step reaction, and the boron nitride porous materials were obtained by high temperature sintering. The structures of the intermediates dichlorodimethylamino borane and tri（dimethylamine） borazine and the precursor tri（methylamino） borazine were characterized by FTIR and NMR. The porous boron nitride structures and morphologies were characterized by XRD and SEM. The results show that tri（methylamino） borazine with low carbon content can be synthesized through the synthesis of precursor intermediates. The adsorption capacity of porous boron nitride materials for various metal ions was determined by investigating the adsorption capacity of porous boron nitride materials for metal ions. The results show that the porous boron nitride prepared by using precursor intermediates has high specific surface area and excellent adsorption performance, which can effectively remove the metal ions from the solution and provide new ideas for the preparation of boron nitride adsorption materials. This method solves the problems of low industrialization yield and high difficulty. The use of organic precursor method to prepare boron nitride compensates for the shortcomings of uneven element distribution, easy moisture absorption, and easy pulverization in inorganic preparation, providing new ideas for the preparation of adsorbents.

Key words: porous boron nitride, precursor, adsorption characteristics, metal ion

中图分类号:

TB332

段玉婷, 赵樱淼, 沈绥, 卢振西, 梁兵, 龙佳朋. 多孔氮化硼材料的制备及其吸附性能研究[J]. 日用化学工业（中英文）, 2024, 54(3): 273-281.

Yuting Duan, Yingmiao Zhao, Sui Shen, Zhenxi Lu, Bing Liang, Jiapeng Long. Preparation and adsorption properties of porous boron nitride materials[J]. China Surfactant Detergent & Cosmetics, 2024, 54(3): 273-281.

图/表 20

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

图13

图14

表1

图15

图16

图17

图18

表2

参考文献 24

[1]	Zhou Liu, Liu Nan, Wang Li. Development of boron amino acids and carboranes in boron neutron capture agents[J]. Chemical Research and Application, 2023, 35 (2) : 233-241.
[2]	Zhang Sisi, Yuan Lan, Bian Wen. Progresson synthesis and application of new porous materials[J]. Industrial Catalysis, 2023, 31 (1) : 22-28. doi: 10.3969/j.issn.1008-1143.2023.01.004
[3]	Nie Xiangdao. Preparation of boron nitride nanosheets and study of their thermal conductivity[D]. Wuxi: Jiangnan University, 2022.
[4]	Liu Xin, Yan Jun, Huang Zirui, et al. Progress in thermal conductivities of boron nitride nanotube/polymer nanocomposites[J]. Journal of Functional Materials, 2023, 54 (1) : 1050-1057. doi: 10.3969/j.issn.1001-9731.2023.01.008
[5]	Li Guo, Li Chang, Sun Changjiu, et al. Preparation and mechanical properties of covalently functionalized BN nanosheets/LDPE composites[J]. Journal of Qingdao University of Science and Technology (Natural Science Edition), 2022, 43 (2) : 65-71.
[6]	Liu Zhenqiang, Wang Yun, Li Ruitao, et al. Research progress of nano-boron nitride reinforced metal matrix compositesp[J]. Journal of Netshape Forming Engineering, 2022, 14 (9) : 119-130.
[7]	Sun Xuhui, Wu Jiang, Zuo Yang, et al. Preparation of NH₂-MIL-53(Fe) metal organic framework material and study on its adsorption to 2, 6-dichloro-1, 4-benzoquinone in water[J]. Modern Chemical Industry, 2023, 43 (2) : 80-85.
[8]	Dong Chun, Yang Zhi, He Da, et al. Research progress on the adsorption behavior of heavy metals by microplastics in water environment[J]. Applied Chemical Industry, 2023, 52 (3) : 838-843.
[9]	Li Ya, Gong Guanqun, Zhang Yingjie, et al. Application of porous carbon materials in water pollution treatment[J]. Applied Chemical Industry, 2023, 52 (2) : 524-528.
[10]	Lin Yinxuan, Yu Jiao, Wu Lingling. The status and ecological effects of antibiotics and heavy metals combined pollution: A review[J]. Applied Chemical Industry, 2023, 52 (2) : 504-510.
[11]	Chao Y, Zhang J, Li H, et al. Synthesis of boron nitride nanosheets with N-defects for efficient tetracycline antibiotics adsorptive removal[J]. Chemical Engineering Journal, 2020, 387: 124138. doi: 10.1016/j.cej.2020.124138
[12]	Zhang Zhen, Yu Bing, Cong Hailin. Application of porous materials in adsorption of organic pollutants in water[J]. Modern Chemical Research, 2023 (2) : 88-90.
[13]	Wang Yong, Wu Haofeng, Jin Yan, et al. Fe-doped boron nitride for adsorption of oxytetracycline in pharmaceutical wastewater[J]. Energy Environmental Protection, 2023, 37 (5) : 47-56.
[14]	Cai Jing, Yuan Songdong, Chen Shiqiang, et al. Adsorption of chlorobenzene to boron nitride with high specific surface area[J]. Journal of Wuhan University of Technology, 2014, 36 (12) : 19-21.
[15]	Yang Yanshuai. Molecular simulation study on gas asorption and diffusion in boron nitride nanotubes[D]. Beijing: Beijing University of Chemical Technology, 2016.
[16]	Li J, Xiao X, Xu X, et al. Activated boron nitride as an effective adsorbent for metal ions and organic pollutants[J]. Scientific Reports, 2013, 3 (1) : 1-7.
[17]	Watanabe H, Narisada M, Nakagawa T, et al. Infrared absorptions of borazole derivatives[J]. Spectrochimica Acta, 1960, 16 (1-2) : 78-86. doi: 10.1016/0371-1951(60)80073-2
[18]	Xie Jinlun. Progress in organic structure analysis[J]. Yunnan Chemical Technology, 1985 (2) : 49-51.
[19]	Beachley O T, Durkin T R. Use of a substituent effect in borazine chemistry for the synthesis of 2, 4-dichloroborazine[J]. Inorganic Chemistry, 1974, 13 (7) : 1768-1770. doi: 10.1021/ic50137a048
[20]	Toury B, Miele P, Cornu D, et al. Boron nitride fibers prepared from symmetric and asymmetric alkylaminoborazines[J]. Advanced Functional Materials, 2002, 12 (3) : 228-234. doi: 10.1002/1616-3028(200203)12:3<228::AID-ADFM228>3.0.CO;2-U
[21]	Toury B, Bernard S, Cornu D, et al. High-performance boron nitride fibers obtained from asymmetric alkylaminoborazine[J]. Journal of Materials Chemistry, 2003, 13 (2) : 274-279. doi: 10.1039/b207476a
[22]	Beachley Jr O T. Syntheses and identifications of the ortho and para isomers of some unsymmetrically substituted borazines[J]. Journal of the American Chemical Society, 1972, 94 (12) : 4223-4227. doi: 10.1021/ja00767a031
[23]	Kimura Y, Kubo Y, Hayashi N. High-performance boron-nitride fibers from poly (borazine) preceramics[J]. Composites Science and Technology, 1994, 51 (2) : 173-179. doi: 10.1016/0266-3538(94)90188-0
[24]	Duriez C, Framery E, Toury B, et al. Boron nitride thin fibres obtained from a new copolymer borazine-tri (methylamino) borazine precursor[J]. Journal of Organometallic Chemistry, 2002, 657 (1-2) : 107-114. doi: 10.1016/S0022-328X(02)01588-7

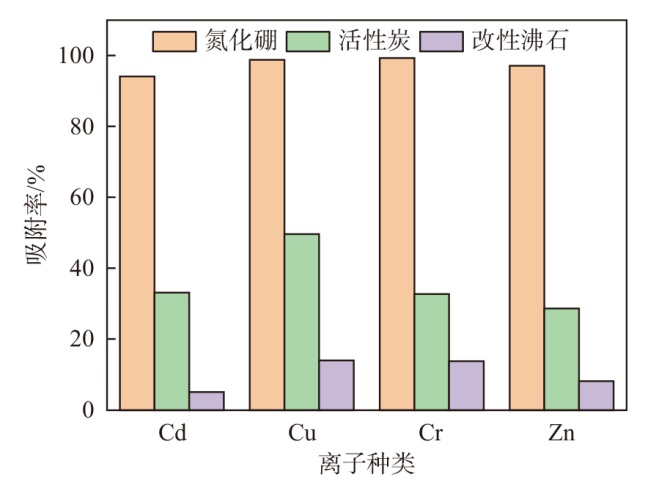

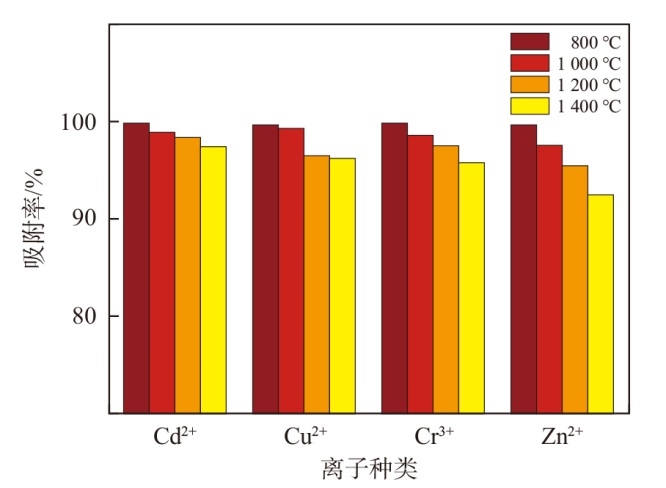

离子类型	q_e/（mg/g）
离子类型	多孔氮化硼	活性炭	改性沸石
Cd²⁺	287.29	24.32	8.33
Cu²⁺	103.26	18.27	7.03
Cr³⁺	83.02	18.82	8.15
Zn²⁺	135.73	22.93	9.47

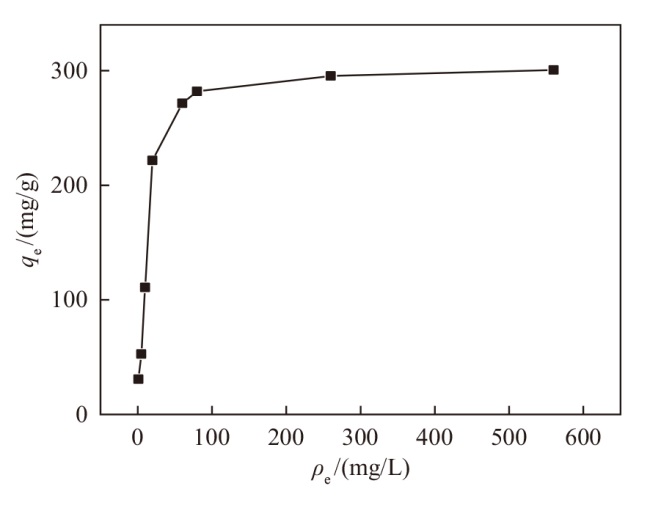

	Langmuir				Freundlich
	q_e/（mg/g）	K_L	R²		K_F	1/n	R²
Cu²⁺	295.62	0.293	0.978 8		68.03	0.258	0.833 9
