超声辐射碳酸钾催化Knoevenagel反应及4H-色烯的合成

曾育才,刘小玲,杨素珍,郭丽曼

  1. 嘉应学院 化学与环境学院,广东 梅州 514015
  • 收稿日期:2018-04-16 修回日期:2018-12-29 出版日期:2019-01-20 发布日期:2019-03-06
  • 作者简介:曾育才(1961-),男,副教授,电话:13823838401,E-mail: mzzyc@jyu.edu.cn
  • 基金资助:
    嘉应学院自然科研基金资助项目(2014KJY04)

Knoevenagel condensation and the synthesis of 4H-chromene derivatives catalyzed by K2CO3 under ultrasound irradiation

ZENG Yu-cai,LIU Xiao-ling,YANG Su-zhen,GUO Li-man

  1. College of Chemistry and Environment, Jiaying College, Meizhou, Guangdong 514015, China
  • Received:2018-04-16 Revised:2018-12-29 Online:2019-01-20 Published:2019-03-06

摘要:

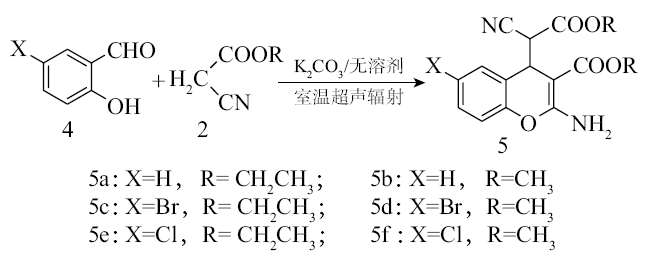

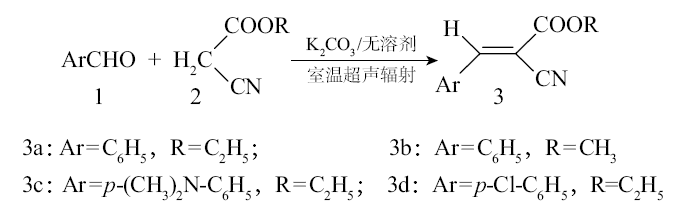

在超声辐射下,无溶剂K2CO3催化芳醛与氰基乙酸酯发生Knoevenagel反应合成4种2-氰基肉桂酸酯和6种4H-色烯衍生物。实验结果表明:当苯甲醛与氰基乙酸甲酯用量各为10 mmol,无水碳酸钾用量为1 mmol,超声功率为150 W,室温下反应30 min以94.6%高产率得到2-氰基肉桂酸甲酯;推电子基的4-取代苯甲醛与氰基乙酸酯的缩合产率明显下降。当水杨醛用量为10 mmol,氰基乙酸乙酯用量为22.5 mmol,无水碳酸钾用量为0.1 mmol,超声功率为250 W,30 ℃下反应20 min以91%产率得到4H-色烯衍生物;推电子基的5-取代水杨醛则不能反应。产物结构通过熔点测定、IR和 1H NMR进行表征。

关键词: 个人护理用品添加剂, 超声辐射, Knoevenagel反应, 2-氰基肉桂酸酯, 4H-色烯衍生物

Abstract:

Four 2-cyano-cinnamates and six 4H-chromene derivatives were synthesized from aromatic aldehydes with cyanoacetates via solvent-free Knoevenagel condensation using K2CO3 as catalyst under ultrasound irradiation. The experimental results indicate that the yield of methyl 2-cyano-cinnamate is up to 94.6% after reaction for 30 min at room temperature under ultrasonic power of 150 W when the dosages of benzaldehyde, methyl cyanoacetate and K2CO3 are 10, 10 and 1 mmol, respectively. However, for the 4-substituted benzaldehyde with electron-donating groups, the yields of condensation with cyanoacetate significantly decrease in the same condition. In contrast, the yield of 4H-chromene derivative is up to 91% after reaction for 20 min at 30 ℃ under ultrasonic power of 250 W when the amounts of salicylaldehyde, ethyl cyanoacetate and K2CO3 are 10, 22.5 and 0.1 mmol, respectively. However, 5-substituted salicylaldehyde with electron-donating groups can’t react with cyanoacetate. The products were characterized by mp, IR and 1H NMR.

Key words: additives for personal care products, ultrasound irradiation, Knoevenagel condensation, 2-cyano-cinnamate, 4H-chromene derivative

中图分类号:

  • TQ658
