益智精油O/W型微乳液的制备及其性能研究

doi:10.3969/j.issn.2097-2806.2024.10.007

摘要/Abstract

摘要：

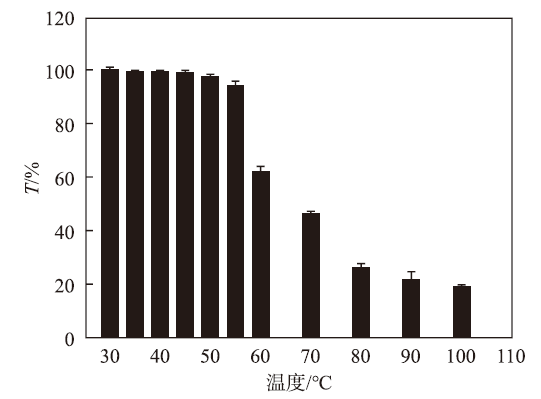

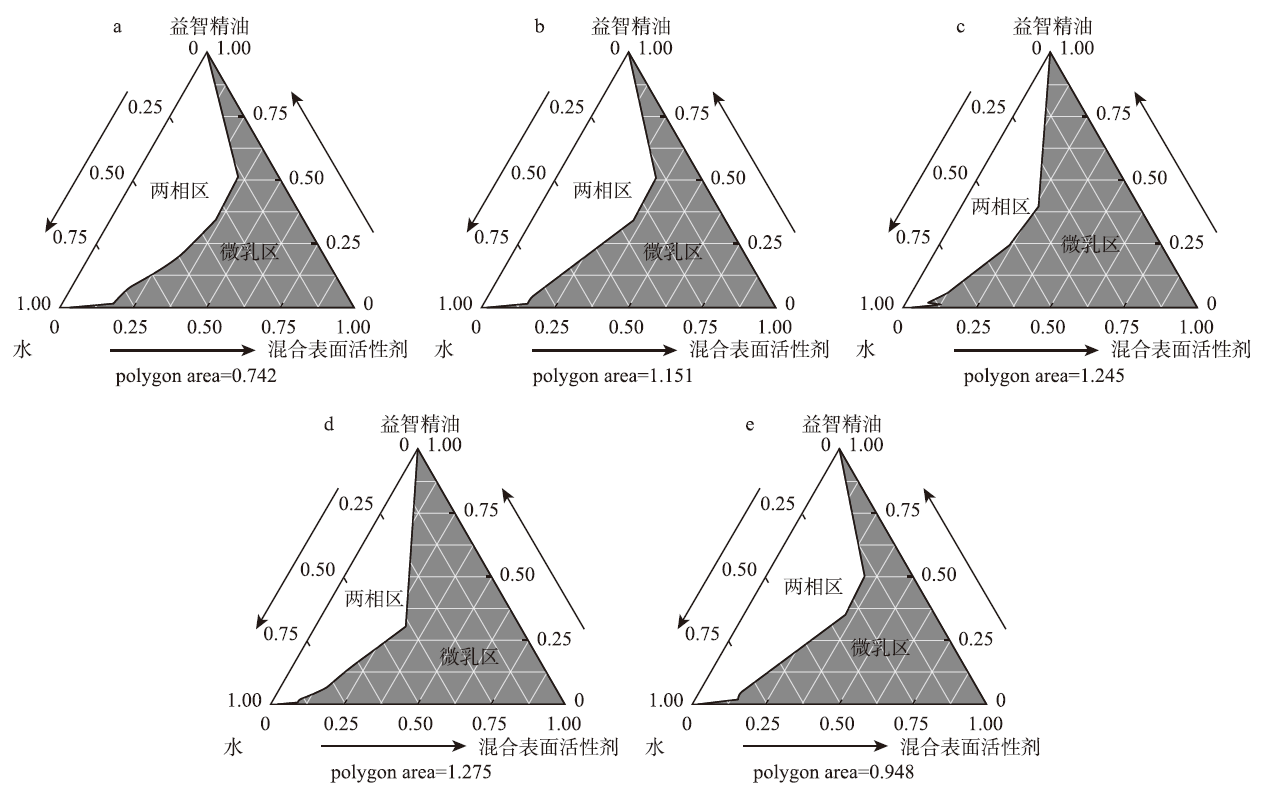

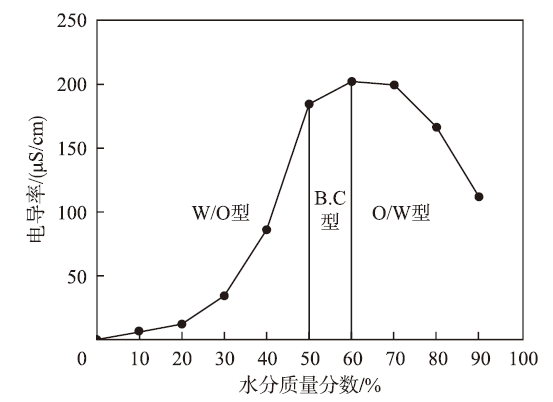

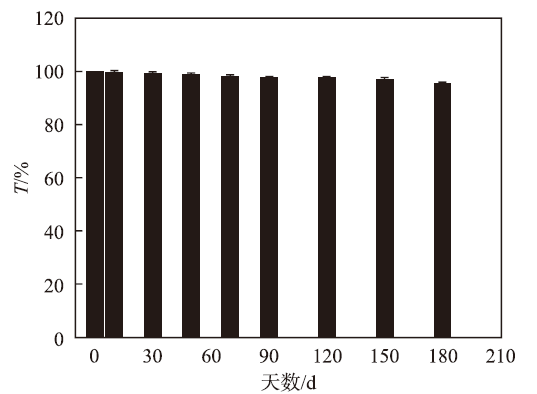

益智（Alpinia oxyphylla Miq.）提取物是一种天然的化妆品原料，可作为植物功能油使用。为了获得稳定的益智精油（AOEO）水包油型（O/W型）微乳液，本研究通过拟三元相图法构建含AOEO的O/W型微乳液，考察表面活性剂、助表面活性剂、K_m（表面活性剂与助表面活性剂的质量比）以及其不同组分及比例对微乳液面积的影响，并测定微乳液的粒径、形貌、电导率、水溶性及稳定性等指标，探讨其表征与理化性能。结果得到益智精油O/W型微乳液的较优配方为：m（蓖麻油聚氧乙烯醚40（EL-40）） ∶m（1,2-丙二醇） ∶m（AOEO）=10.5∶3.5∶6，水相的过渡点为60%（质量分数），平均粒径为（26.580±0.133） nm，多分散指数（PDI）为0.226±0.010，在透射电子显微镜（TEM）与数码生物显微镜（DBM）下微乳液呈球形或类球形，规整，无黏边，并具有良好的水溶性、离心稳定性、热稳定性及低温贮藏稳定性。结果表明以微乳液为载体可实现益智精油的纳米包覆，为益智精油在日化领域的开发与应用提供参考。

关键词: 益智精油, 微乳液, 拟三元相图, 蓖麻油聚氧乙烯醚, O/W型

Abstract:

Alpinia oxyphylla Miq. extract is a kind of natural cosmetic raw material, which can be used as plant functional oil. In order to obtain a stable O/W microemulsion of Alpinia oxyphylla Miq. essential oil（AOEO）, the O/W microemulsion containing AOEO was constructed by pseudo ternary phase diagram method. The effects of surfactants, cosurfactants, K_m （mass ratio of surfactant to cosurfactant）, and their different components and ratios on the area of the microemulsion were investigated. The particle size, morphology, conductivity, water solubility and stability of the microemulsion were measured, and its characterization and physicochemical properties were discussed. The results show that the optimal formula of O/W microemulsion of AOEO is obtained as follows: m（castor oil polyoxyethylene ether 40 （EL-40）） ∶m（1,2-propylene glycol） ∶m（AOEO）=10.5∶3.5∶6, the transition point of O/W microemulsion is 60% （mass fraction）. The average particle size of the O/W microemulsion is （26.580±0.133） nm, the polydispersion index （PDI） is 0.226±0.010, and the microemulsion is slightly spherical or quasi-spherical, regular, and without adhering edges under transmission electron microscopy （TEM） and digital biological microscopy （DBM）. The microemulsion has good water solubility, centrifugal stability, thermal stability and low temperature storage stability. The results show that the nano-coating of AOEO can be realized by using microemulsion as carrier, which provides reference for the development and application of AOEO in daily chemical field.

Key words: Alpinia oxyphylla Miq. essential oil, microemulsion, pseudo ternary phase diagram, castor oil polyoxyethylene ether, O/W

中图分类号:

TQ658

谢小丽, 胡璇, 黄英, 王凯, 王丹, 于福来. 益智精油O/W型微乳液的制备及其性能研究[J]. 日用化学工业（中英文）, 2024, 54(10): 1201-1210.

Xiaoli Xie, Xuan Hu, Ying Huang, Kai Wang, Dan Wang, Fulai Yu. Preparation and properties of O/W microemulsion of Alpinia oxyphylla Miq. essential oil[J]. China Surfactant Detergent & Cosmetics, 2024, 54(10): 1201-1210.

图/表 13

表1

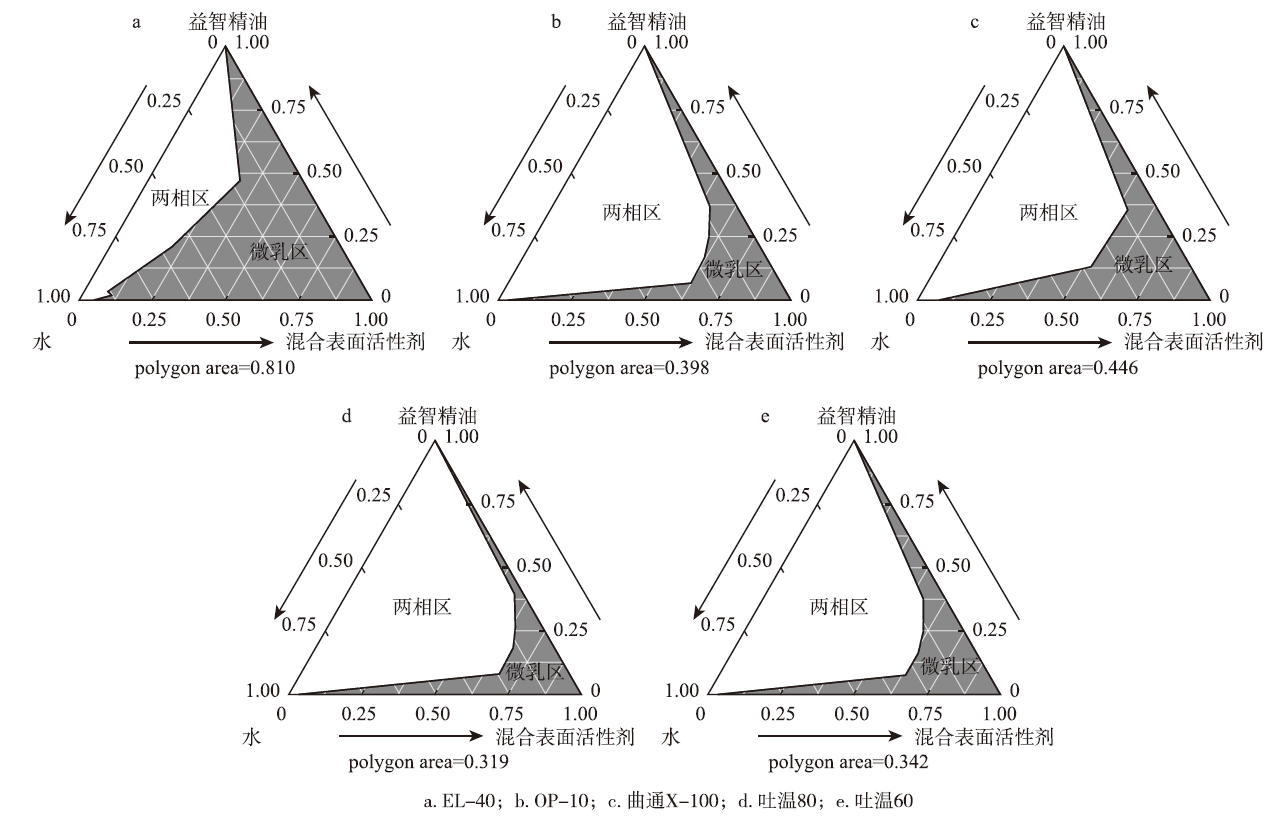

图1

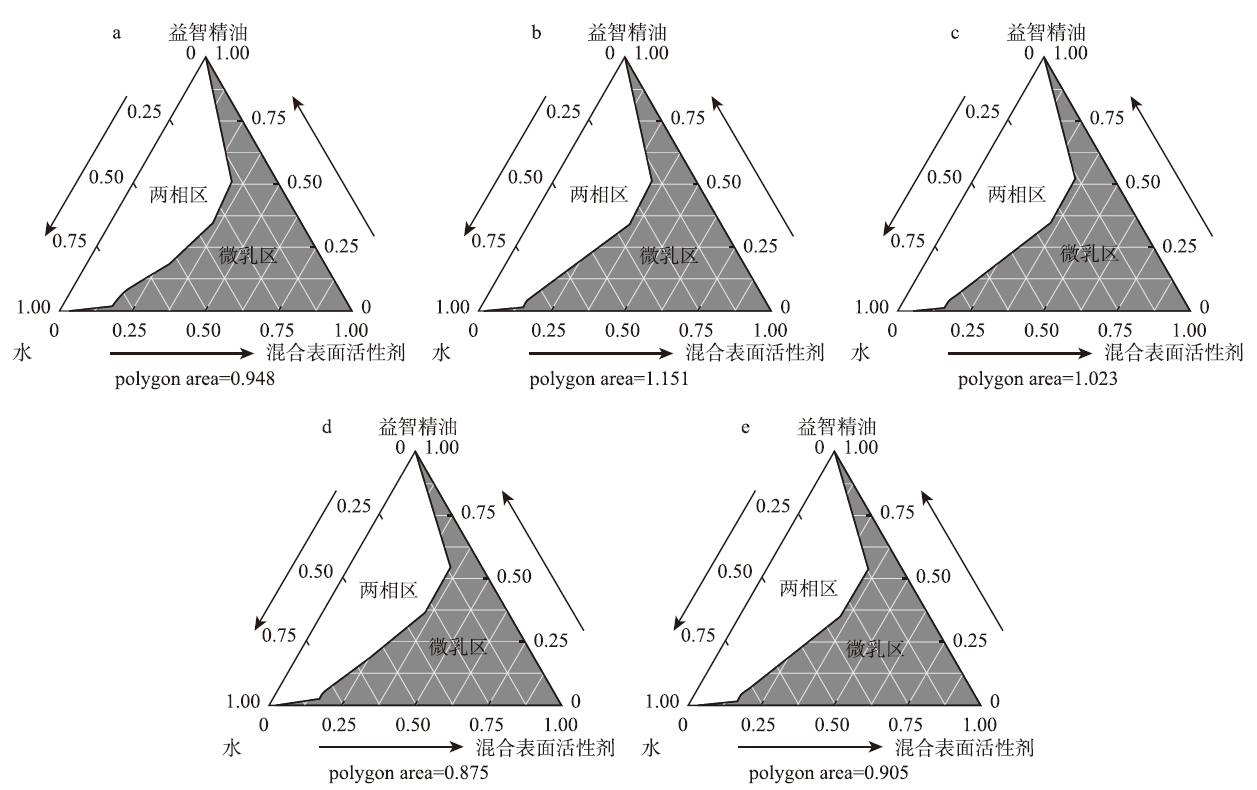

图2

图3

图4

表2

图5

图6

图7

图8

表3

图9

图10

参考文献 27

[1]	National Pharmacopoeia Commission. Pharmacopoeia of the people’s republic of China[M]. Beijing: China Medical Science and Technology Press, 2020: 303-304.
[2]	Gao Binmiao, Wei Na, Wang Yong, et al. Current situation and analysis of comprehensive utilization of waste from Alpinia oxyphylla[J]. Lishizhen Medicine and Materia Medica Research, 2015, 26 (6) : 1473-1475.
[3]	Zheng Shasha, Sun Jianbo. Plant resources of aromatic essential oils and their application progress in cosmetics[J]. China Cosmetics Review, 2023 (1) : 110-115.
[4]	Lin Canjie, Gan Caihong, Huang Lan, et al. Study on the anti-corrosion effect of natural plant essential oils in cosmetics[J]. Guangdong Chemical Industry, 2022, 49 (23) : 106-108.
[5]	Wang Yi Fei. Hainan wild Alpinia oxyphylla volatile oil metabolites and related gene mining[D]. Beijing: Central University for Nationalities, 2022.
[6]	Ji Minghui, Liu Hong, Shu Huoming, et al. Study on the preparing technology of includion complex of volatile oil of Alpinia oxyphlla with β-cyclodestrin by rubbing[J]. Journal of Hainan Normal University (Natural Science), 2008 (1) : 52-55.
[7]	Tang Kaiwen, Liu Yameng, Tao Yingtai, et al. Research progress of microemulsion system to stabilize volatile oil of traditional Chinese medicine[J]. West China Journal of Pharmaceutical Sciences, 2023, 38 (1) : 113-116.
[8]	Wu Hongyan, Sun Changbao, Li Donglin, et al. Progress in preparation of food grade microemulsions and freeze-dried preparations[J]. The Food Industry, 2016, 37 (1) : 260-263.
[9]	Hou Ning. Study on the solubilization performance and phase behavior of halogenated hydrocarbons in imidazole surfactant mixed microemulsion system[D]. Jinan: Shandong Normal University, 2016.
[10]	Zhang Tianqi, Han Bing, Zheng Ye, et al. Preparation, characterization and antioxidant activity of fennel essential oil microemulsion[J]. Food and Fermentation Industries, 2023, 49 (11) : 199-206. doi: 10.13995/j.cnki.11-1802/ts.031820
[11]	Ma Qiumin, Zhong Qixin. Incorporation of soybean oil improves the dilutability of essential oil microemulsions[J]. Food Research International, 2015, 71: 118-125.
[12]	Liu Xinsheng. Study on chemical composition and biological activity of volatile oil from sunflower tray and preparation of nanoemulsion[D]. Changchun: Jilin University, 2021.
[13]	Tang Youjun, Lu Xiaoxiang, Shi Junjiu, et al. Study on the formulation and physicochemical properties of citrus essential oil microemulsion system[J]. Food and Fermentation Industries, 2021, 47 (13) : 167-173. doi: 10.13995/j.cnki.11-1802/ts.025909
[14]	Wu Hongyan, Sun Changbao, Liu Ning, et al. Microstructure of evening primrose oil microemulsion system[J]. Journal of Northeast Agricultural University, 2014, 45 (5) : 44-51.
[15]	Cheng Chen, Si Hongyan, Wang Zongdeng, et al. Preparation and properties of O/W Litsea cubeba essential oil microemulsion[J]. Chemistry and Industry of Forest Products, 2021, 41 (1) : 67-76.
[16]	Qiang Mengjie, Lu Xiaoxiang. Characterization and stability of Artemisia argyi essential oil microemulsion[J]. Food and Fermentation Industries, 2020, 46 (23) : 86-91. doi: 10.13995/j.cnki.11-1802/ts.024948
[17]	Yan Song, Huang Qiming, Qin Cunli, et al. Experimental study of wetting-seepage effect of microemulsion for the coal seam water injection[J]. Journal of Molecular Liquids, 2021: 336.
[18]	Khadije A, Amin M M, Zhian S, et al. The role of oil phase in the stability and physicochemical properties of oil-in-water emulsions in the presence of gum tragacanth[J]. Journal of the American Oil Chemists’ Society, 2019, 96 (7) : 795-803.
[19]	Wang Jun. preparation and application of microemulsion[M]. Beijing: China Textile Press, 2011: 56.
[20]	Luo Weibin, Cao Yanjian, Wu Ewen, et al. Antioxidant activity of Mesona Chinensis Benth. essential oil microemulsion and its anti-proliferative activities against A375 cells[J]. Food Science, 2022, 43 (9) : 1-9.
[21]	Dan Y, Liyan S, Ying S, et al. Formulation and evaluation of a α-linolenic acid and vitamin E succinate microemulsion with low surfactant content and free of co-surfactant for use as a nutritional supplement[J]. Food Chemistry, 2021, 364: 130433.
[22]	He Xingfen, Chen Jie, Li Yanhua, et al. Preparation of water-in-oil (W/O) cinnamaldehyde microemulsion loaded with epsilon-polylysine and its antibacterial properties[J]. Food Bioscience, 2022: 46.
[23]	Wu Yue, Jin Risheng, Yuan Chuanxun. Preparation and properties of nicotinamide microemulsion based on camellia oleifera seed oil as oil phase[J]. Flavour Fragrance Cosmetics, 2022 (2) : 29-36.
[24]	Vikas A, Rashmin P, Mrunali P, et al. Design and evaluation of microemulsion-based efinaconazole formulations for targeted treatment of onychomycosis through transungual route: Ex vivo and nail clipping studies[J]. Colloids and Surfaces B: Biointerfaces, 2021, 201: 111652.
[25]	Wang N, Wang J, Li Y, et al. Reverse microemulsion prepared by AOT/CTAB/SDS/Tween80 for extraction of tea residues protein[J]. Journal of Molecular Liquids, 2020, 320: 1-9.
[26]	Devi R B, Marina S, M R A, et al. Development and evaluation of a novel microemulsion of dexamethasone and tobramycin for topical ocular administration[J]. Journal of Pharmaceutical Sciences, 2018, 34 (4) : 312-324.
[27]	Chen Fuliang, Wang Yi, Zheng Feineng, et al. Research on low temperature stability of microemulsions[J]. Acta Physico-Chimica Sinica, 2002 (7) : 661-664.

表面活性剂	HLB值	乳液外观
司盘80	4.3	分层
吐温80	15	不分层
吐温60	14.5	不分层
吐温20	16.5	分层
OP-10	14.5	不分层
EL-40	13~14	不分层
APG0810	15~16	分层
曲通X-100	14.5	不分层

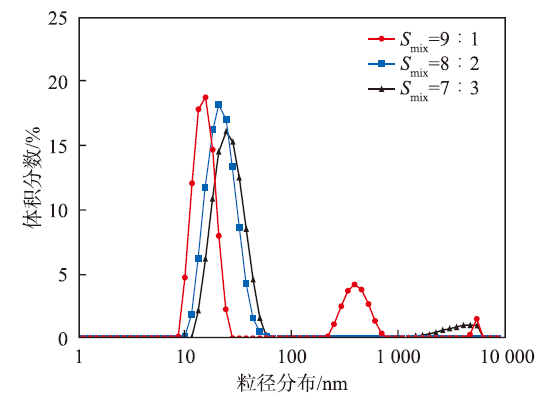

S_mix	平均粒径/nm	PDI	外观
9∶1	32.87±2.70^c	0.272±0.005^c	澄清透明，久置1年不分层
8∶2	21.17±0.55^a	0.09±0.03^a	澄清透明，久置1年不分层
7∶3	26.580±0.133^ab	0.226±0.010^b	澄清透明，久置1年不分层

离心速率/ （r/min）	益智精油微乳液
离心速率/ （r/min）	透光率%	形态变化
2 000	99.52	黄色澄清透明、无分层或浑浊
4 000	98.86	黄色澄清透明、无分层或浑浊
6 000	97.31	黄色澄清透明、无分层或浑浊
8 000	95.86	黄色澄清透明、无分层或浑浊
10 000	95.17	黄色澄清透明、无分层或浑浊
