日用化学工业 ›› 2022, Vol. 52 ›› Issue (8): 797-804.doi: 10.3969/j.issn.1001-1803.2022.08.001
• 基础研究 • 下一篇
王俊霞1,刘建华1,陆小猛1,孙永强2,胡志勇1,朱海林1,*()
收稿日期:
2021-12-21
修回日期:
2022-07-25
出版日期:
2022-08-22
发布日期:
2022-08-24
通讯作者:
朱海林
基金资助:
Wang Junxia1,Liu Jianhua1,Lu Xiaomeng1,Sun Yongqiang2,Hu Zhiyong1,Zhu Hailin1,*()
Received:
2021-12-21
Revised:
2022-07-25
Online:
2022-08-22
Published:
2022-08-24
Contact:
Hailin Zhu
摘要:

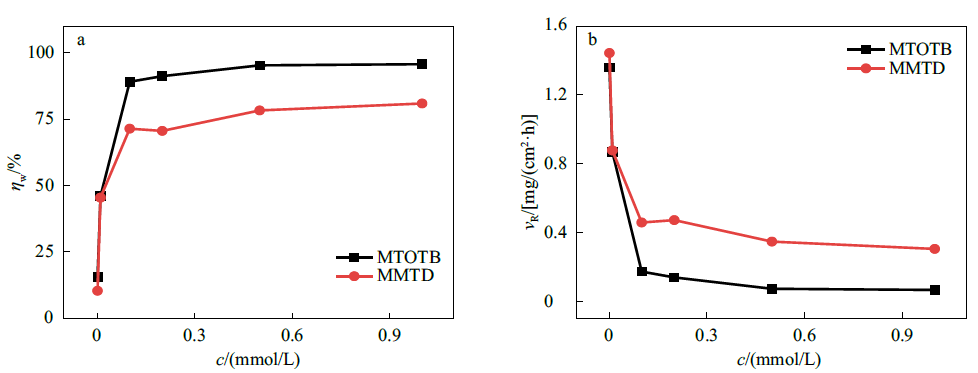

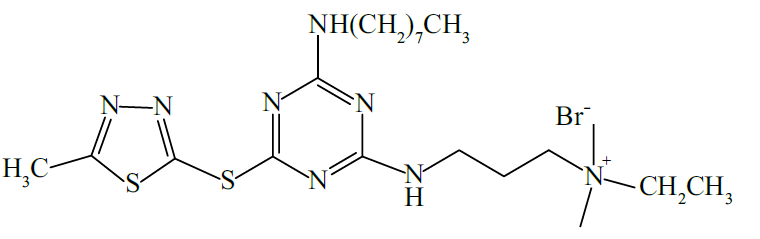

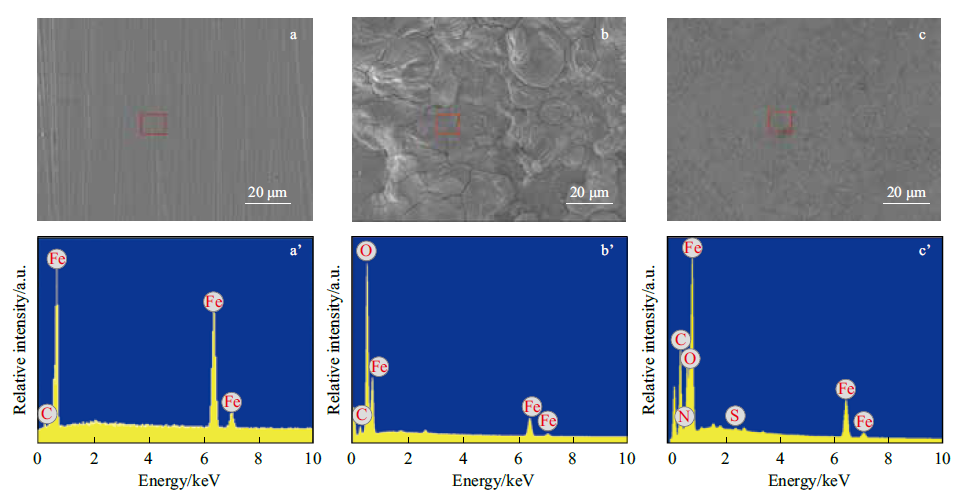

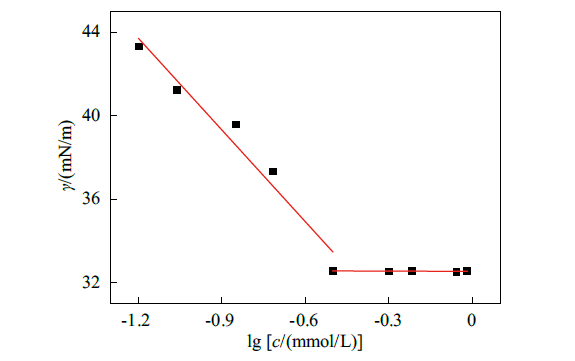

通过表面张力法研究一种含噻二唑季铵盐表面活性剂(MTOTB)在1 mol/L HCl溶液中的表面活性;通过电化学测试、静态失重和表面形貌分析研究MTOTB及相应的2-巯基-5-甲基-1,3,4-噻二唑(MMTD)在1 mol/L HCl溶液中对Q235碳钢的缓蚀性能。结果表明,MTOTB在1 mol/L HCl溶液中的临界胶束浓度为0.36 mmol/L;当添加浓度为0.5 mmol/L时,MTOTB对在1 mol/L HCl溶液中浸泡48 h碳钢片的缓蚀率可达95.34%,同样条件下,MMTD对碳钢的缓蚀率为78.34%,说明MTOTB对碳钢的腐蚀抑制效率显著优于MMTD。SEM-EDS表明,MTOTB可以吸附在碳钢表面,有效抑制碳钢片的腐蚀。
中图分类号:
王俊霞,刘建华,陆小猛,孙永强,胡志勇,朱海林. 含噻二唑季铵盐表面活性剂对Q235钢的缓蚀性能[J]. 日用化学工业, 2022, 52(8): 797-804.
Wang Junxia,Liu Jianhua,Lu Xiaomeng,Sun Yongqiang,Hu Zhiyong,Zhu Hailin. Corrosion inhibition effect of a quaternary ammonium surfactant containing thiadiazole on Q235 steel[J]. China Surfactant Detergent & Cosmetics, 2022, 52(8): 797-804.

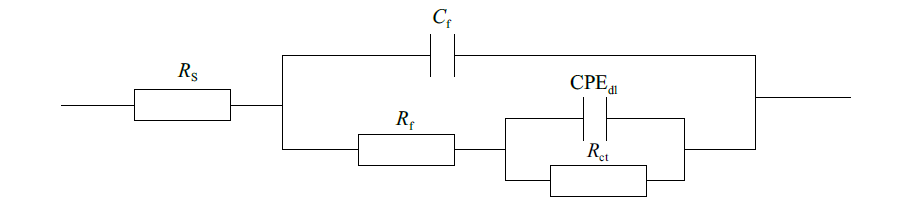

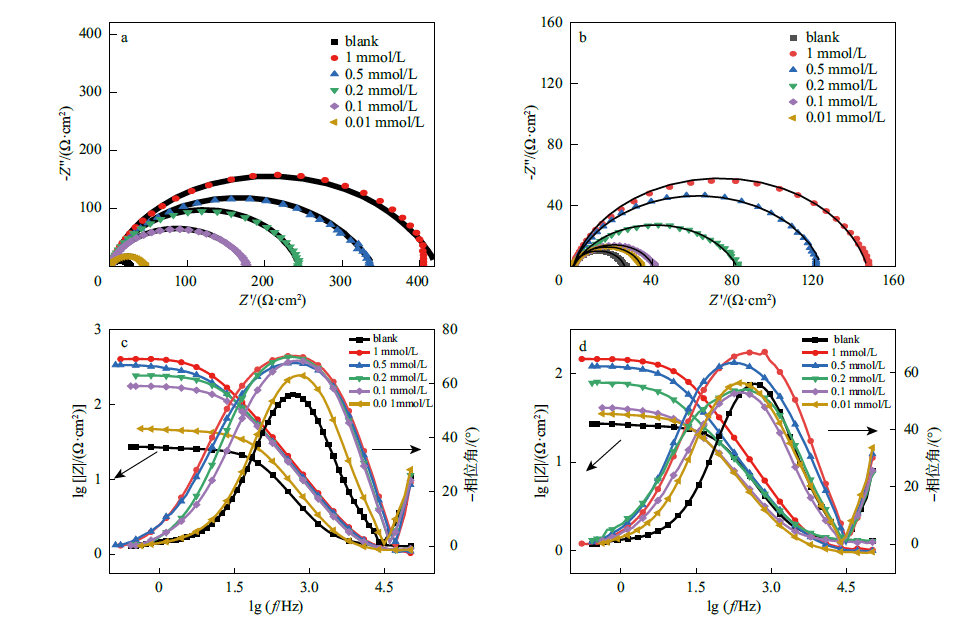

表 2
电化学阻抗谱拟合数据"
c/ (mmol/L) | Rs/ (Ω·cm2) | Cf / (μF/cm2) | Rf / (Ω·cm2) | Cdl/ (μF/cm2) | Rct/ (Ω·cm2) | Rp/ (Ω·cm2) | ηeis/% | |
---|---|---|---|---|---|---|---|---|
MTOTB | 0 | 1.366 | 49.23 | 4.79 | 79.28 | 20.41 | 25.20 | — |
0.01 | 1.221 | 33.70 | 11.57 | 29.56 | 33.12 | 44.69 | 43.61 | |
0.1 | 1.251 | 18.43 | 15.16 | 16.62 | 162.00 | 177.16 | 85.76 | |
0.2 | 1.234 | 18.33 | 18.97 | 16.52 | 225.40 | 244.37 | 89.69 | |
0.5 | 1.213 | 15.46 | 11.54 | 28.50 | 328.10 | 339.64 | 92.58 | |
1.0 | 1.218 | 14.46 | 14.43 | 25.46 | 407.80 | 422.23 | 94.03 | |
MMTD | 0.01 | 0.010 | 0.59 | 1.00 | 16.50 | 33.81 | 34.81 | 27.61 |
0.1 | 0.020 | 0.35 | 1.23 | 19.58 | 39.38 | 40.61 | 37.95 | |
0.2 | 0.010 | 0.24 | 1.26 | 16.28 | 80.62 | 81.88 | 69.92 | |
0.5 | 0.010 | 0.44 | 1.04 | 9.61 | 123.00 | 124.04 | 79.68 | |
1.0 | 0.057 | 0.37 | 1.00 | 5.56 | 145.20 | 146.20 | 82.76 |

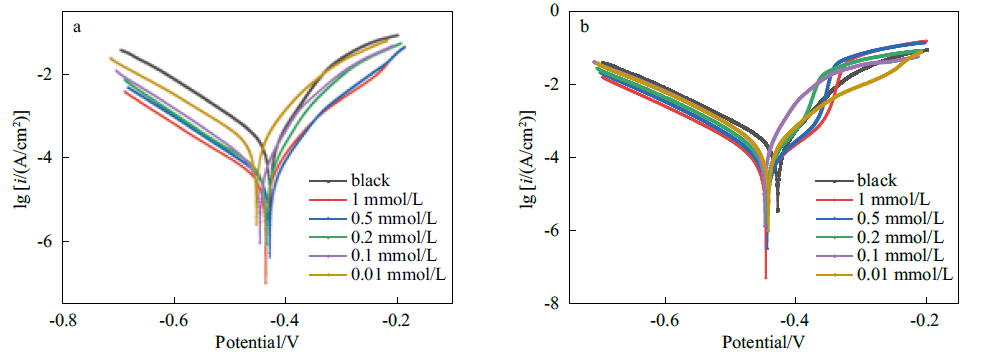

表 3
动电位极化曲线拟合数据"
c/(mmol/L) | Ecorr/V | icorr / (μA/cm2) | ba/ (V/dec) | bc/ (V/dec) | ηp/% | |
---|---|---|---|---|---|---|
MTOTB | 0 | -0.428 | 338.32 | 0.079 | -0.131 | — |
0.01 | -0.451 | 207.11 | 0.087 | -0.152 | 38.78% | |
0.1 | -0.446 | 72.81 | 0.074 | -0.129 | 78.48% | |
0.2 | -0.433 | 37.51 | 0.058 | -0.122 | 88.91% | |
0.5 | -0.431 | 26.44 | 0.054 | -0.117 | 92.18% | |
1.0 | -0.435 | 23.00 | 0.046 | -0.114 | 93.20% | |
MMTD | 0.01 | -0.442 | 283.12 | 0.058 9 | 0.089 9 | 16.32% |
0.1 | -0.448 | 200.16 | 0.059 5 | 0.093 7 | 40.84% | |
0.2 | -0.445 | 156.18 | 0.068 8 | 0.108 2 | 53.84% | |
0.5 | -0.444 | 72.60 | 0.088 4 | 0.135 | 78.54% | |
1.0 | -0.446 | 48.12 | 0.095 5 | 0.122 | 85.78% |
