琥珀酸酯磺酸盐物化特性及其与甜菜碱复配体系界面性能

doi:10.3969/j.issn.2097-2806.2023.09.001

摘要/Abstract

摘要：

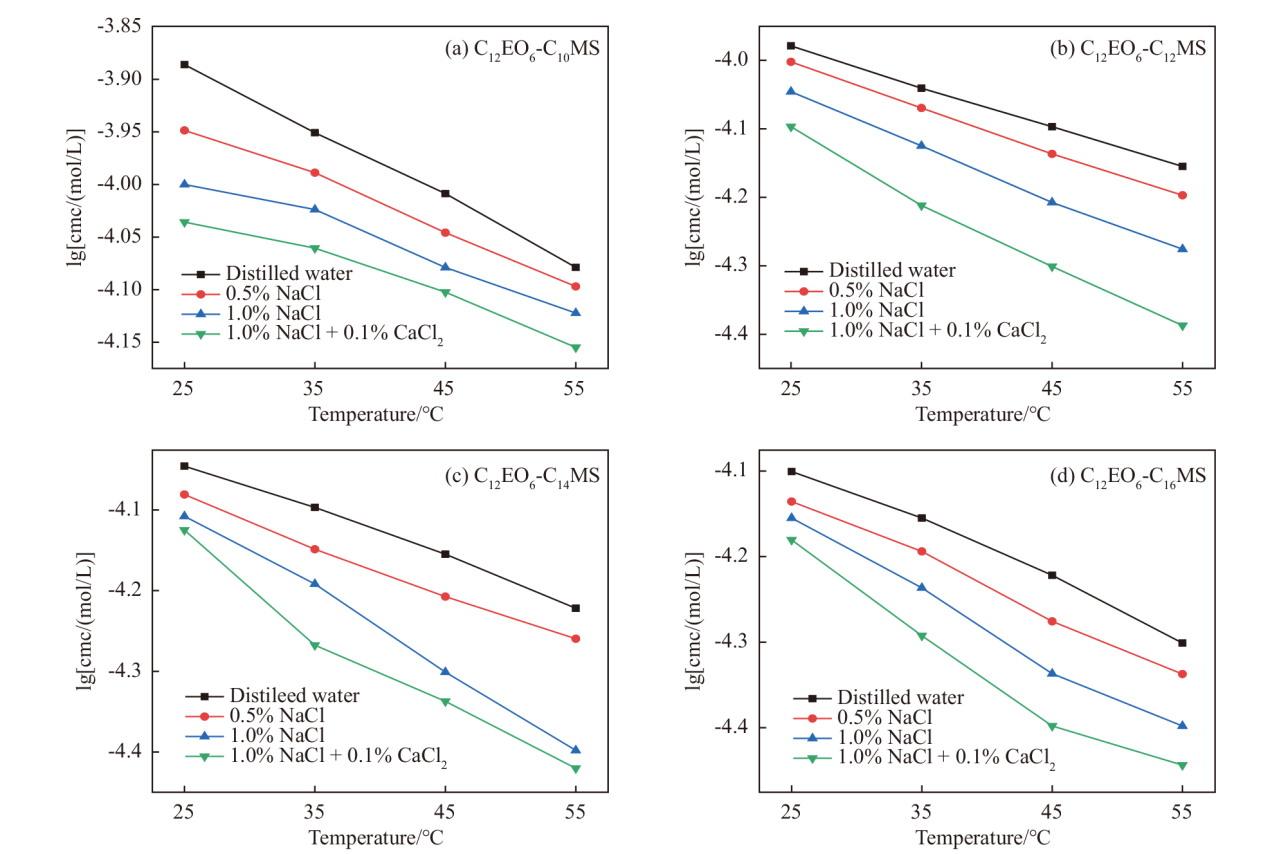

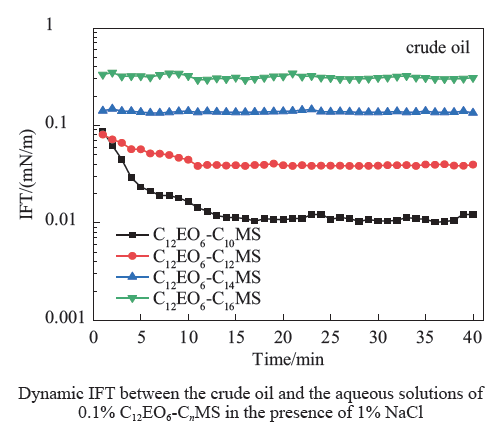

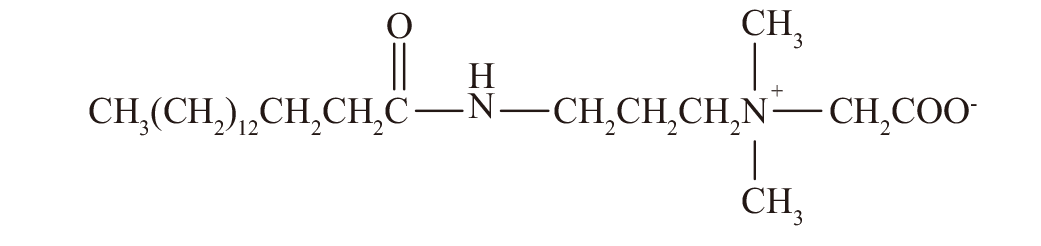

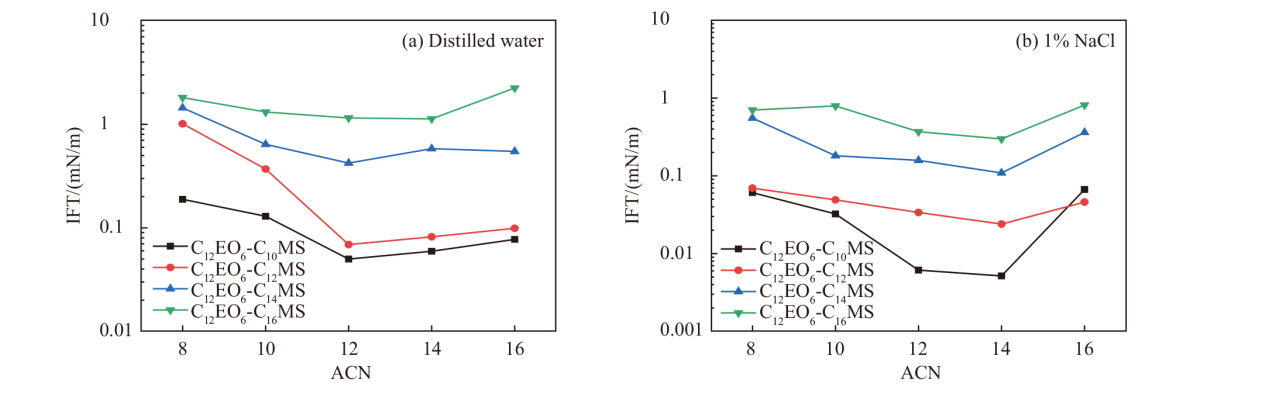

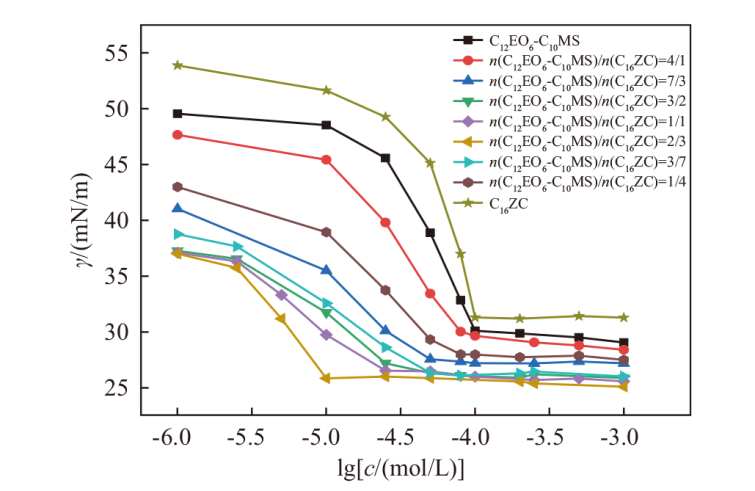

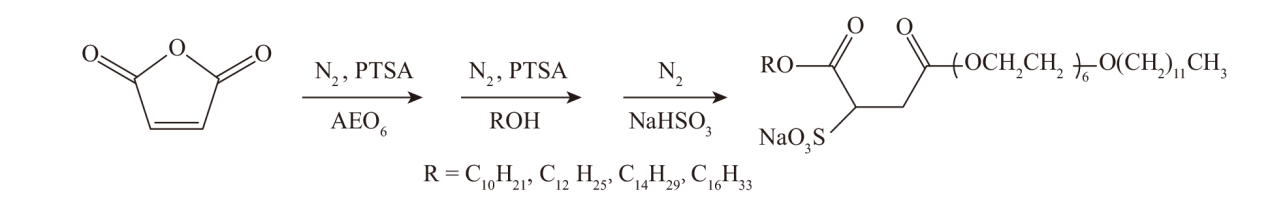

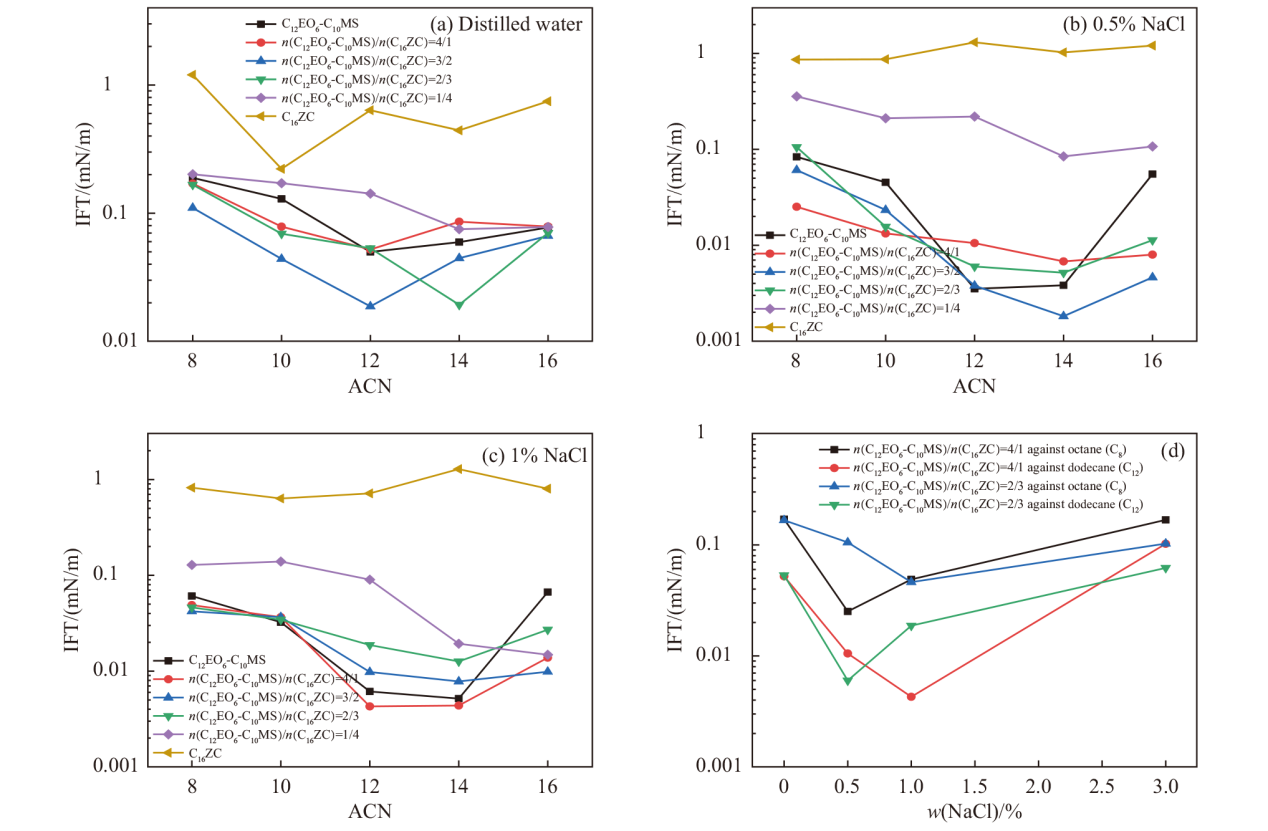

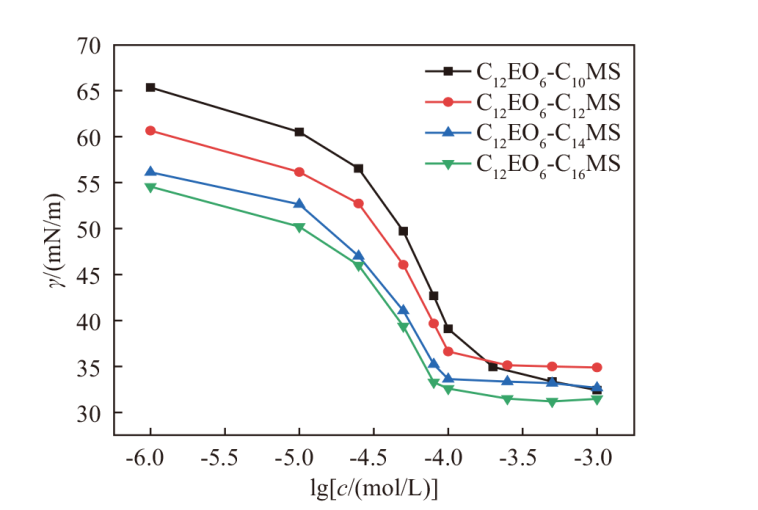

为满足低渗油藏注低矿化水开采原油的需要，研究了系列琥珀酸异酯磺酸盐表面活性剂（C₁₂EO₆-C_nMS，n=10，12，14和16）的泡沫特性以及溶液的表/界面活性，并研究了C₁₂EO₆-C_nMS与甜菜碱表面活性剂混合物的界面性能，得到了表面活性剂体系的最小烷烃碳数（N_min）。实验结果表明，C₁₂EO₆-C_nMS表面活性剂具有低泡性。C₁₂EO₆-C_nMS表面活性剂的临界胶束浓度（cmc）随着其脂肪醇碳链长度的增加而减小。同时，无机盐的加入使得C₁₂EO₆-C_nMS表面活性剂的cmc进一步降低，并且其降低程度随着无机盐浓度的增加而增大。脂肪醇碳链长度为10的C₁₂EO₆-C₁₀MS表面活性剂与羧基甜菜碱（C₁₆ZC）所形成的复配体系具有降低cmc的协同作用。C₁₂EO₆-C_nMS与烷烃间的界面张力（IFT）随着表面活性剂的脂肪醇碳链长度的增加而增加。对表面活性剂与系列正构烷烃的界面张力扫描，得到了琥珀酸异酯磺酸盐表面活性剂最小烷烃碳数，并且N_min随着无机盐的加入而增加。当加入质量分数为0.5%~1% NaCl时，C₁₂EO₆-C₁₀MS和C₁₂EO₆-C₁₂MS的N_min为12~14。同样地，C₁₂EO₆-C₁₀MS和C₁₆ZC的复配体系具有降低界面张力的协同作用，当两者的摩尔比为4/1，3/2和2/3时，在0.5%~1% NaCl介质中复配体系的IFT值可与十二烷、十四烷和十六烷达到超低或低界面张力值（10^-3~10^-2 mN/m），该复配体系适用于EACN为12~16的原油的开采。

关键词: 琥珀酸异酯磺酸盐, 甜菜碱表面活性剂, 表/界面张力, 烷烃碳数, 提高采收率

Abstract:

To enhance oil recovery in low-permeability reservoirs through the injection of low-mineralized water, the foaming behavior, surface tension and interfacial tension of a series of ethoxylated sulfosuccinate surfactants （C₁₂EO₆-C_nMS, n=10, 12, 14 and 16） were investigated. The interfacial properties of mixtures of C₁₂EO₆-C_nMS and a betaine surfactant were also studied, and the minimum alkane carbon number （N_min） of the mixed system was obtained. The experimental results showed that C₁₂EO₆-C_nMS exhibited low-foaming properties. The critical micelle concentration （cmc） of the surfactants decreased when the carbon chain length of the fatty alcohol （n） attached to ester group was increased. The addition of inorganic salts could reduce the cmc of C₁₂EO₆-C_nMS, and the more inorganic salt, the more reduction of cmc. The mixed system of C₁₂EO₆-C₁₀MS （in which the fatty alcohol carbon chain length was C₁₀） and the betaine surfactant C₁₆ZC displayed synergistic effect, exhibiting smaller cmc. The interfacial tension （IFT） between C₁₂EO₆-C_nMS and n-alkanes increased as the carbon chain length （n） of the surfactants increased. The scanning of IFT values between C₁₂EO₆-C_nMS and a series of n-alkanes was operated to determine the minimum alkane carbon number （N_min） for the surfactant. Notably, the N_min value increased with the addition of inorganic salts. In the presence of 0.5%-1% NaCl, the N_min values for C₁₂EO₆-C₁₀MS and C₁₂EO₆-C₁₂MS are 12-14. As for surfactant mixtures, in the presence of 0.5%-1% NaCl, when the molar ratios of C₁₂EO₆-C₁₀MS to C₁₆ZC are 4/1, 3/2 and 2/3, the mixtures exhibited synergistic effect in reducing interfacial tension, achieving ultra-low to low IFT values （10^-3-10^-2 mN/m） against dodecane, tetradecane and cetane. It makes the system suitable for enhanced oil recovery （EOR） of crude oil with equivalent alkane carbon number （EACN） of 12-16.

Key words: sulfonated maleic diester, betaine surfactant, surface/interfacial tension, alkane carbon number, enhanced oil recovery

中图分类号:

TQ423

常世腾, 蔡小军, 郑延成, 刘雪瑾, 易晓, 蒋筑阳. 琥珀酸酯磺酸盐物化特性及其与甜菜碱复配体系界面性能[J]. 日用化学工业（中英文）, 2023, 53(9): 989-998.

Chang Shiteng, Cai Xiaojun, Zheng Yancheng, Liu Xuejin, Yi Xiao, Jiang Zhuyang. Physicochemical properties of ethoxylated sulfosuccinate surfactants and their interfacial properties when mixed with a betaine surfactant[J]. China Surfactant Detergent & Cosmetics, 2023, 53(9): 989-998.

图/表 10

参考文献 36

[1]	Sui Zhihui, Lin Guanfa, Zhu Youyi, et al. Prospect of preparation and application of surfactant in EOR[J]. China Surfactant Detergent & Cosmetics, 2003, 33 (2) : 105-109.
[2]	Ye Zhongbin. The principle of enhancement recovery[M]. Beijing: Petroleum Industry Press, 2000: 2-5.
[3]	Tang Hongjiao, Hou Jirui, Zhao Fenglan, et al. Application progress of nonionic and anionic- nonionic surfactants used in oil field[J]. Oilfield Chemistry, 2011, 28 (1) : 115-118.
[4]	Guo Liwei, Zhou Chuanchen, Zhang Jing, et al. Development and performance evaluation of anionic nonionic surfactant for oil displacement[J]. Contemporary Chemical Industry, 2022, 51 (11) : 2583-2587.
[5]	Hua Ping, Zhang Haijun, Zhang Yuejun. Synthesis and properties of sodium hexanyl alkyl polyoxyethene (5) ethersulfosuccinate[J]. Detergent & Cosmetics, 2003, 33 (4) : 219-221.
[6]	Chen Hong. Study on the synthesis and properties of disodium sulfosuccinate of mono tridecanol polyoxyethylene (5) ether[J]. Shandong Chemical Industry, 2001, 30 (2) : 1-3.
[7]	Hua Ping, Li Jianhua, Dai Baojiang. Synthesis and properties of sodium lauryl polyoxyethene (5) octyl sulfosuccinate[J]. Chemical Reagents, 2007, 29 (8) : 459-462.
[8]	Hua Ping. Study on sodium hexyl alkyl polyoxyethene (9) ether sulfosuccinate[J]. Applied Chemical Industry, 2003, 32 (5) : 39-42.
[9]	Hua Ping, Dai Baojiang, Wu Donghui, et al. Synthesis and properties of sodium lauryl polyoxyethene (9) octyl sulfosuccinate[J]. Fine Chemicals, 2007, 24 (10) : 956-960.
[10]	Ge Hong, Zhang Shengli, Li Heping, et al. Study on the synthesis and properties of disodium sulfosuccinate of lauryl alcohol polyoxythylene (9) ether[J]. Speciality Petrochemicals, 1999 (2) : 3-5.
[11]	Li Na, Zhang Guicai, Ge Jijiang, et al. Adsorption behavior of betaine-type surfactant on quartz sand[J]. Energy & Fuels, 2011, 25 (10) : 4430-4437. doi: 10.1021/ef200616b
[12]	Dai Caili, Zhao Jianhui, Yan Lipeng, et al. Adsorption behavior of cocamidopropyl betaine under conditions of high temperature and high salinity[J]. Journal of Applied Polymer Science, 2014, 131 (12).
[13]	McLachlan A A, Marangoni D G. Interactions between zwitterionic and conventional anionic and cationic surfactants[J]. Journal of Colloid and Interface Science, 2006, 295 (1) : 243-248. pmid: 16213512
[14]	Muñoz M, Rodríguez A, Graciani M M, et al. Conductometric, surface tension, and kinetic studies in mixed SDS-Tween 20 and SDS-SB3-12 micellar solutions[J]. Langmuir, 2004, 20 (25) : 10858-10867. pmid: 15568834
[15]	Liu Q, Dong M, Ma S, et al. Surfactant enhanced alkaline flooding for Western Canadian heavy oil recovery[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2007, 293 (1-3) : 63-71. doi: 10.1016/j.colsurfa.2006.07.013
[16]	Cai Hongyan, Zheng Yancheng, Wang Hongzhuang, et al. Synthesis and physiochemical properties of poly (ethylene glycol)-octanol sulfosuccinates[J]. Journal of Molecular Liquids, 2018, 265: 556-564. doi: 10.1016/j.molliq.2018.05.139
[17]	Hua Ping, Li Jianhua, Zhang Yuejun. Effects of adduct numbers of ethylene oxide (EO) in lauryl polyoxyethylene (LEO_n) on synthetic conditions of sodium lauryl polyoxyethene(n)-hexyl mixed sulfosuccinate[J]. Speciality Petrochemicals, 2005, 3: 18-21.
[18]	Liu Yu, Zheng Yancheng, Han Hexiang, et al. Synthesis and properties of carboxybetaine and sulfobetaine surfactants[J]. China Surfactant Detergent & Cosmetics, 2015, 45 (12) : 680-684.
[19]	Zhen Lili, Huang Dan, Li Rong, et al. Synthesis of polyoxyethylene (n) stearyl ether sodium sulfosuccinate by ultrasonic-microwave Co-irradiation technology[J]. Current Microwave Chemistry, 2016, 3 (1) : 31-37. doi: 10.2174/2213335602666150522221257
[20]	Shi Laishun, Ji Tong, Gong Xuedi, et al. Synthesis and surface properties of amide-based amphoteric surfactants with different hydrophobic carbon chain length[J]. Journal of the Iranian Chemical Society, 2022, 19 (3) : 847-860. doi: 10.1007/s13738-021-02347-0
[21]	Song L, Cong Y, Wang M, et al. Incorporation of disodium alkyl polyoxyethylene ether sulfosuccinate inside styrene droplets: Mechanism and its application for preparation of multihollow polymer spheres[J]. Journal of Colloid and Interface Science, 2008, 322 (1) : 231-236. doi: 10.1016/j.jcis.2008.01.057 pmid: 18359492
[22]	Al-Sabagh A M, Zakaa M M, Noor El-Din M R. The Interfacial tension and alkane carbon number (n_min) of alkyl benzene sulfonates in relation to enhanced oil recovery. Part I: effect of surfactant molecular weight/temperature and electrolyte on n_min[J]. Journal of Dispersion Science and Technology, 2009, 30 (8) : 1237-1246. doi: 10.1080/01932690802544899
[23]	Cao Y, Zhao R, Zhang L, et al. Effect of electrolyte and temperature on interfacial tensions of alkylbenzene sulfonate solutions[J]. Energy & Fuels, 2012, 26 (4) : 2175-2181. doi: 10.1021/ef201982s
[24]	Aubry J M, Ontiveros J F, Salager J L, et al. Use of the normalized hydrophilic-lipophilic-deviation (HLDN) equation for determining the equivalent alkane carbon number (EACN) of oils and the preferred alkane carbon number (PACN) of nonionic surfactants by the fish-tail method (FTM)[J]. Advances in Colloid and Interface Science, 2020, 276: 102099. doi: 10.1016/j.cis.2019.102099
[25]	Cayias J L, Schechter R S, Wade W H. The utilization of petroleum sulfonates for producing low interfacial tensions between hydrocarbons and water[J]. Journal of Colloid and Interface Science, 1977, 59 (1) : 31-38. doi: 10.1016/0021-9797(77)90335-6
[26]	Zhao Shuai, Zhou Zhaohui, Shangguan Yangnan, et al. Effect of bivalent cations on the interfacial tensions of extended anionic surfactant solutions[J]. Journal of Molecular Liquids, 2022, 349: 118162. doi: 10.1016/j.molliq.2021.118162
[27]	Tichelkamp T, Vu Y, Nourani M, et al. Interfacial tension between low salinity solutions of sulfonate surfactants and crude and model oils[J]. Energy & Fuels, 2014, 28 (4) : 2408-2414. doi: 10.1021/ef4024959
[28]	Cai Hongyan, Luo Wenli, Zheng Yancheng, et al. Thermodynamic parameters and interfacial properties of poly (ethylene glycol)‐octyl sulfosuccinates[J]. Journal of Surfactants and Detergents, 2021, 24 (5) : 749-760. doi: 10.1002/jsde.v24.5
[29]	Wan Wei, Zhao Jian, Harwell J H, et al. Characterization of crude oil equivalent alkane carbon number (EACN) for surfactant flooding design[J]. Journal of Dispersion Science and Technology, 2016, 37 (2) : 280-287. doi: 10.1080/01932691.2014.950739
[30]	Liu Miao, Fang Hongbo, Jin Zhiqiang, et al. Interfacial tensions of ethoxylated fatty acid methyl ester solutions against crude oil[J]. Journal of Surfactants and Detergents, 2017, 20: 961-967. doi: 10.1007/s11743-017-1973-5
[31]	Liu Rui, Du Daijun, Pu Wanfen, et al. Enhanced oil recovery potential of alkyl alcohol polyoxyethylene ether sulfonate surfactants in high-temperature and high-salinity reservoirs[J]. Energy & Fuels, 2018, 32 (12) : 12128-12140. doi: 10.1021/acs.energyfuels.8b02653
[32]	Pei Haihua, Shan Jingling, Zhang Guicai, et al. Selection of optimum surfactant formulations with ultralow interfacial tension for improving the oil washing efficiency[J]. ACS Omega, 2021, 6 (37) : 23952-23959. doi: 10.1021/acsomega.1c02930 pmid: 34568674
[33]	Gu Y, Zhou M, Wang X, et al. Preparation and performance evaluation of sulfate-quaternary ammonium Gemini surfactant[J]. Journal of Molecular Liquids, 2021, 343: 117665. doi: 10.1016/j.molliq.2021.117665
[34]	Zhou Z H, Zhang Q, Liu Y, et al. Effect of fatty acids on interfacial tensions of novel sulfobetaines solutions[J]. Energy & Fuels, 2014, 28 (2) : 1020-1027. doi: 10.1021/ef402416j
[35]	Liu J, Liu Z, Yuan T, et al. Synthesis and properties of zwitterionic Gemini surfactants for enhancing oil recovery[J]. Journal of Molecular Liquids, 2020, 311: 113179. doi: 10.1016/j.molliq.2020.113179
[36]	Zhang Lu, Luo Lan, Zhao Sui, et al. Effect of hydrophobic-lipophilic ability of surfactant on dynamic interfacial tensions[J]. Chinese Journal of Chemical Physics, 2001, 17(l): 62-65.

Surfactants	cmc/ （mmol/L）	γ_cmc/ （mN/m）	Foam height/cm
Surfactants	cmc/ （mmol/L）	γ_cmc/ （mN/m）	H₀	H₅
C₁₂EO₆-C₁₀MS	0.125	35.64	3.4	3.2
C₁₂EO₆-C₁₂MS	0.105	34.53	3.2	2.9
C₁₂EO₆-C₁₄MS	0.090	33.89	3.1	2.8
C₁₂EO₆-C₁₆MS	0.079	32.78	2.8	2.5

Molar ratios	N_min			IFT_mincorresponding to N_min/（mN/m）
Molar ratios	0% NaCl	0.5% NaCl	1% NaCl	0% NaCl	0.5% NaCl	1% NaCl
1/0	12	12	14	0.049 9	0.003 5	0.005 2
4/1	12	14	14	0.052 1	0.006 8	0.004 4
3/2	12	14	14	0.018 8	0.001 8	0.007 8
2/3	14	14	14	0.019 3	0.005 2	0.012 6
1/4	14	14	16	0.075 1	0.084 4	0.014 8
