日用化学工业(中英文) ›› 2023, Vol. 53 ›› Issue (7): 742-747.doi: 10.3969/j.issn.2097-2806.2023.07.002

• 基础研究 • 上一篇    下一篇

含萘酰亚胺和烷基疏水基的新型表面活性剂合成及性能

邢环宇1,贾丽华1,*(),赵振龙1,杨瑞1,郭祥峰1,2,*()

  1. 1.齐齐哈尔大学 化学与化学工程学院,黑龙江 齐齐哈尔 161006
    2.广东石油化工学院 化学学院,广东 茂名 525000
  • 收稿日期:2022-10-03 修回日期:2023-06-25 出版日期:2023-07-22 发布日期:2023-07-25
  • 基金资助:
    国家自然科学基金(21176125);黑龙江省属本科高校基本科研业务费(145109102)

Synthesis and properties of novel surfactants containing naphthalimide and alkyl segments

Xing Huanyu1,Jia Lihua1,*(),Zhao Zhenlong1,Yang Rui1,Guo Xiangfeng1,2,*()

  1. 1. College of Chemistry and Chemical Engineering, Qiqihar University, Qiqihar, Heilongjiang 161006, China
    2. College of Chemistry, Guangdong Institute of Petrochemical Technology, Maoming, Guangdong 525000, China
  • Received:2022-10-03 Revised:2023-06-25 Online:2023-07-22 Published:2023-07-25
  • Contact: *E-mail: jlh29@163.com (Lihua Jia); xfguo@163.com (Xiangfeng Guo).

摘要:

为获得高效多功能表面活性剂,设计并合成了一系列萘酰亚胺和长链烷基为疏水基的新型季铵盐阳离子表面活性剂(CnNDA,n=10,12,14,16代表长链烷基链长),并利用红外光谱(FT-IR)、核磁氢谱(1H NMR)、核磁碳谱(13C NMR)和质谱(HRMS)对其结构进行了表征。研究了CnNDA的表面活性、胶束性质、泡沫及抗菌性能。结果表明,CnNDA具有优异的表面活性和泡沫性能。当疏水烷基链长碳数从10增加到16,其cmc值从1.01降至0.026 mmol/L;0.10 g/L的C14NDA水溶液的泡沫半衰期可达16 h。同时CnNDA具有良好的抗菌活性,C16NDA对大肠杆菌和金黄色葡萄球菌的最低杀菌质量浓度分别为3.0和1.2 μg/mL。另外,1H NMR和荧光光谱研究表明,CnNDA能够形成分子间氢键,且萘酰亚胺基团间形成了π-π堆积。CnNDA的优异性能与上述分子间的相互作用密切相关。该类表面活性剂在杀菌和泡沫等领域具有潜在的应用前景。

关键词: 新型表面活性剂, 萘酰亚胺, 表面活性, 泡沫, 抗菌

Abstract:

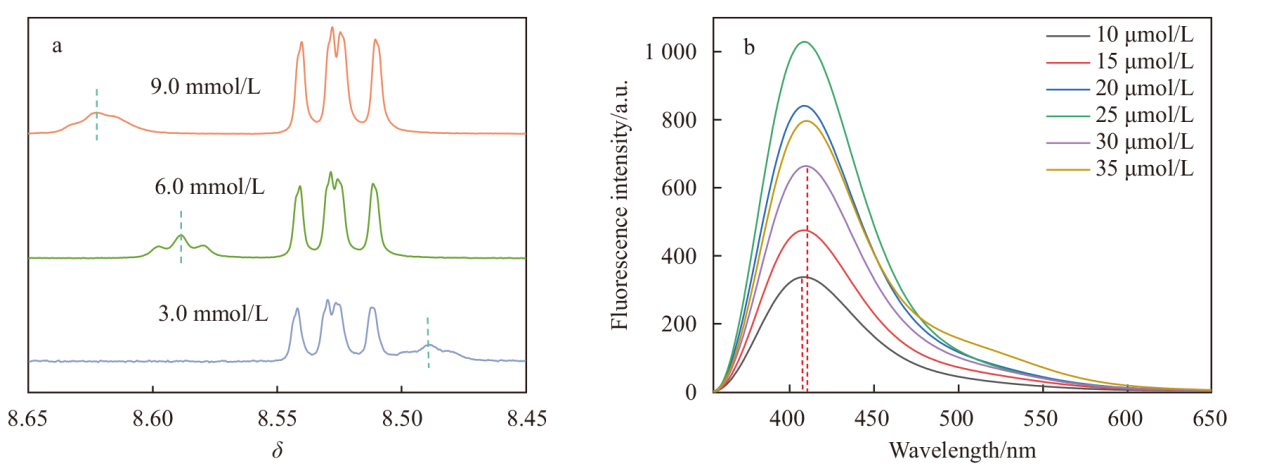

A series of novel cationic quaternary ammonium surfactants (CnNDA, n=10, 12, 14 and 16) were designed and synthesized, whose structure had both naphthalimide and long hydrocarbon chain as hydrophobic moieties. Their structures were characterized by FT-IR, 1H NMR, 13C NMR and ESI-MS, and all the synthesized compounds were target products. The surface activity, micellization behavior, foaming ability, foam stability and antibacterial properties were tested. The results showed that, CnNDA showed excellent surface activity and foaming properties. When the carbon number of hydrocarbon chain was increased from 10 to16, the cmc decreased from 1.01 to 0.026 mmol/L; the foam volume of 10 mL aqueous solution of 0.10 g/L C14NDA was 28 mL at 0 min and 26.5 mL at 5 min, and the half-life was 16 h. In addition, CnNDA showed excellent antibacterial activities against E. coli and S. aureus, and the minimum bactericidal mass concentrations for C16NDA were 3.0 and 1.2 μg/mL, respectively. The results of 1H NMR of C12NDA in DMSO-d6 revealed that, the chemical shift of amide proton shifted to the low field by 0.13 with the concentration increased from 3.0 mmol/L to 9.0 mmol/L, indicative of the formation of hydrogen bond by the amido groups. From the fluorescence spectra of different concentrations of C16NDA, it could be found that the fluorescence intensity was decreased and the emission peak was red-shifted by 2 nm when the concentration exceeded cmc, indicative of the π-π stacking between naphthalimide segments. The excellent properties of CnNDA were mainly attributed to the hydrophobic interactions from naphthalimide segments and long alkyl chains, π-π stacking of the adjacent naphthalimide segments, hydrogen bonding of amides groups, and electrostatic interactions. Therefore, they might have potential applications in foam and bactericidal fields.

Key words: novel surfactant, naphthalimide, surface activity, foaming, antibacterial

中图分类号:

  • TQ423
