氧化锌纳米复合抗菌材料的制备及性能研究

doi:10.3969/j.issn.2097-2806.2023.09.008

摘要/Abstract

摘要：

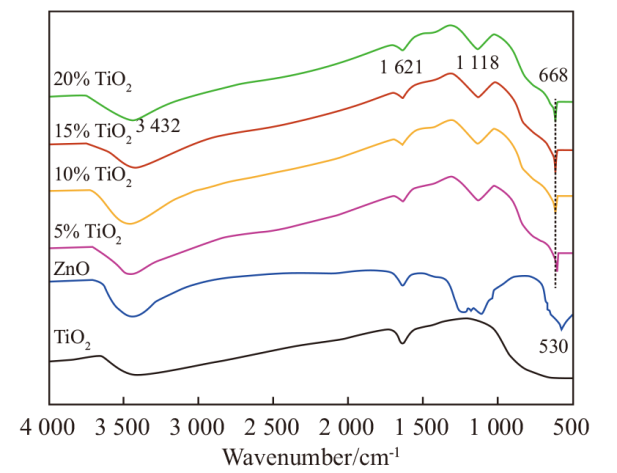

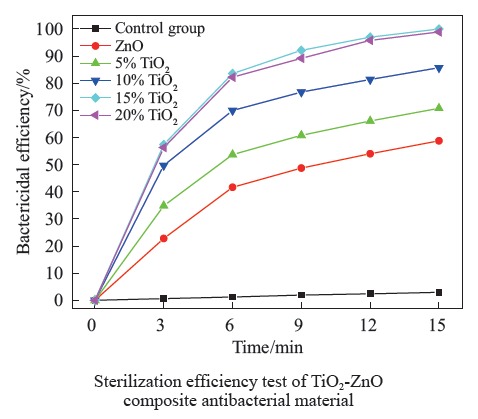

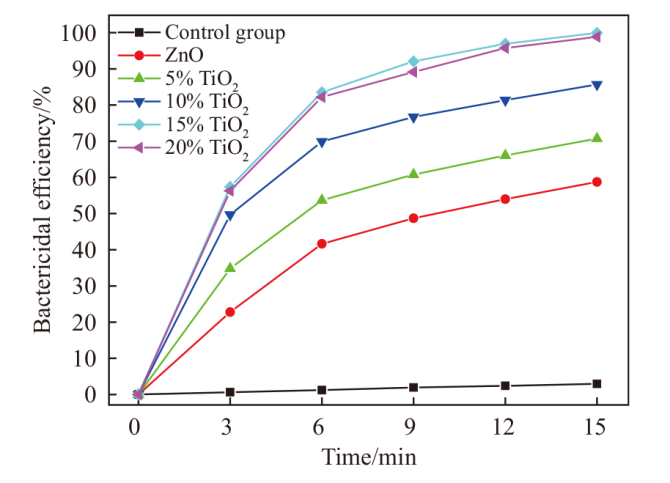

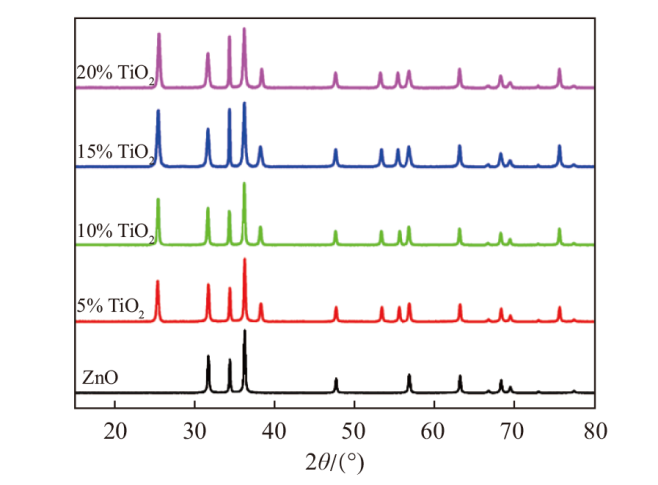

氧化锌作为一种光催化抗菌材料，因成本低和安全性较高而备受关注。本文通过超声-煅烧法制备了一系列掺杂不同TiO₂摩尔分数（0%，5%，10%，15%，20%）的TiO₂-ZnO复合抗菌材料，研究了该复合抗菌材料的晶格结构、微观形貌和光谱性能，并以ATCC 25922大肠杆菌为受试菌株，分析了TiO₂-ZnO的抗菌性能和反应过程。结果表明：TiO₂-ZnO复合材料是由六方纤锌矿ZnO和锐钛矿型TiO₂组成，TiO₂的添加生成了Zn-O-Ti新键，TiO₂颗粒连续均匀地分布在ZnO表面，ZnO的尺寸为2~3 μm。测试大肠杆菌培养12 h的菌落情况，表明了纯ZnO的抗菌能力较弱，随着TiO₂添加量的增加，菌落数量减少，TiO₂-ZnO的抗菌能力逐渐提高，TiO₂-ZnO （TiO₂掺杂摩尔分数15%）复合抗菌材料的抗菌能力最强。光催化反应下，15 min时TiO₂-ZnO的灭菌效率达到100%，TiO₂-ZnO在光照下快速破坏了大肠杆菌的细胞膜，使大肠杆菌发生严重变形，细胞质流出，进而杀死细菌，TiO₂的添加对ZnO抗菌材料的灭菌能力提升显著。

关键词: 氧化锌, 二氧化钛, 复合材料, 抗菌性能, 光催化, 大肠杆菌

Abstract:

Zinc oxide, as a photocatalytic antibacterial material, has attracted much attention due to its low cost and high safety. In this paper, a series of TiO₂-ZnO composite antibacterial materials with different TiO₂ mole doping （0%, 5%, 10%, 15%, 20%） were prepared by ultrasonic calcination method. The results show that TiO₂-ZnO composite is composed of hexagonal wurtzite ZnO and anatase TiO₂. The addition of TiO₂ generates new Zn-O-Ti bonds. TiO₂ particles are continuously and evenly distributed on the surface of ZnO, and the size of ZnO is 2-3 μm. The colony of Escherichia coli （E. coli） cultured for 12 h shows that the antibacterial ability of pure ZnO is weak. With the increase of TiO₂ addition, the number of colonies decreases, and the antibacterial ability of TiO₂-ZnO gradually increases. The antibacterial ability of TiO₂ ZnO composite antibacterial material with TiO₂ doping mole ratio of 15% is the strongest. Under the photocatalytic reaction, the sterilization efficiency of TiO₂-ZnO doped with 15% mole ratio of TiO₂ reaches 100% in 15 min. TiO₂-ZnO rapidly destroy the cell membrane of Escherichia coli under the light, causing serious deformation of Escherichia coli and the outflow of cytoplasm, thus killing bacteria. The addition of TiO₂ significantly improves the sterilization ability of ZnO antibacterial materials.

Key words: ZnO, TiO₂, compound material, antibacterial performance, photocatalysis, Escherichia coli

中图分类号:

O643.32

常香玲, 柴菲. 氧化锌纳米复合抗菌材料的制备及性能研究[J]. 日用化学工业（中英文）, 2023, 53(9): 1051-1056.

Chang Xiangling, Chai Fei. Preparation and performance study of zinc oxide nanocomposite antibacterial materials[J]. China Surfactant Detergent & Cosmetics, 2023, 53(9): 1051-1056.

图/表 6

图 1

图 2

图 3

图 4

图 5

图 6

参考文献 19

[1]	Ma Zhanqiang, Guo Wei, Zhang Kaiyue, et al. Preparation and photocatalytic antibacterial properties of Bi₅O₇I[J]. Chemical Research and Application, 2023, 35 (2) : 407-413.
[2]	Jia Xueying, Wang Yi. Preparation and photocatalytic and antibacterial properties of TiO₂ nanorod composite fabrics[J]. Modern Textile Technology, 2022, 30 (3) : 136-142.
[3]	Li Yuan, Han Lingjue, Wang Yue, et al. Progress in the application of photocatalytic antibacterial agents in medical antibiotics[J]. China Materials Progress, 2023, 42 (2) : 144-154.
[4]	Kn A, Au B, Msc A, et al. Ag/CeO₂ nanostructured materials for enhanced photocatalytic and antibacterial applications-ScienceDirect[J]. Ceramics International, 2019, 45 (16) : 20509-20517. doi: 10.1016/j.ceramint.2019.07.030
[5]	Zhang J Q, Chen Y J, Wang F H, et al. Adsorption performance of bentonite for tetracycline hydrochloride[J]. Journal of Environmental Engineering, 2016, 10 (9) : 4808-4814.
[6]	Karunakaran C, Rajeswari V, Gomathisankar P. Enhanced photocatalytic and antibacterial activities of sol-gel synthesized ZnO and Ag-ZnO[J]. Materials Science in Semiconductor Processing, 2011, 14 (2) : 133-138. doi: 10.1016/j.mssp.2011.01.017
[7]	Qu Z, Liu P, Yang X, et al. Microstructure and characteristic of BiVO₄ prepared under different pH values: photocatalytic efficiency and antibacterial activity[J]. Materials, 2016, 9 (3): 129. doi: 10.3390/ma9030129
[8]	Zheng Xudong, Yu Tao, Wang Xiaopeng, et al. Photocatalytic and antibacterial properties of W₁₈O₄₉ nanostructures rich in oxygen vacancies[J]. Journal of Henan University of Science and Technology (Natural Science Edition), 2021, 42 (5) : 93-97, 104.
[9]	Cheng Cheng, Shi Chengyou, Zhang Manying. Study on the photocatalytic and antibacterial properties of mesoporous SiO₂ supported TiO₂[J]. New Chemical Materials, 2020, 48 (8) : 208-212, 218.
[10]	Yc A, Xt A, Xin G A, et al. Antimicrobial property and photocatalytic antibacterial mechanism of the TiO₂ -doped SiO₂ hybrid materials under ultraviolet-light irradiation and visible-light irradiation[J]. Ceramics International, 2019, 45 (12) : 15505-15513. doi: 10.1016/j.ceramint.2019.05.054
[11]	Xie Feng, Guo Jianfeng, Wang Haitao, et al. Preparation and catalytic and antibacterial properties of ZnO/CdS/Ag composite photocatalysts[J]. Journal of Materials Research, 2023, 37 (1) : 10-20.
[12]	Jing Hua, Ji Lili, Zhou Yarui, et al. Green synthesis of ZnO nanoparticles from Spartina alterniflora and their photocatalytic and antibacterial properties[J]. Journal of South China Normal University (Natural Science Edition), 2022, 54 (2) : 24-29.
[13]	Zhao Yanru, Ma Jianzhong, Liu Junli. Research progress on visible light responsive ZnO based nanocomposite photocatalytic materials[J]. Materials Engineering, 2017, 45 (6) : 129-137.
[14]	Lin Huaxiang, Zhou Tanghua, Lin Qianying, et al. Preparation and photocatalytic antibacterial properties of TiO₂-ZnO films on medical PVC surfaces[J]. Surface Technology, 2017, 46 (4) : 46-50.
[15]	Fan Weihua, Li Wen, Zhang Yue, et al. The effect of coupling agents on the properties of PP/nano-TiO₂ nanocomposite antibacterial materials[J]. Engineering Plastics Application, 2018, 46 (9) : 122-126, 130.
[16]	Qin Tang, Sun Honghao. Preparation, anti discoloration and antibacterial properties of Ag⁺/TiO₂/SiO₂ nanocomposites[J]. New Chemical Materials, 2019, 47 (9) : 122-126.
[17]	Li Xia, Zhang Zhonglai, Zhou Jun, et al. Preparation and properties of Ce/ZnO nanocomposite antibacterial agents[J]. New Chemical Materials, 2015, 43 (2) : 65-68.
[18]	Pan Qin, Guo Xiaoling, Cao Chenhua, et al. Preparation and characterization of silver nitrogen co doped nano TiO₂ photocatalytic antibacterial agent[J]. Shanghai Textile Technology, 2021, 49 (4) : 55-58.
[19]	Daou I, Zegaoui O, Elghazouani A. Physicochemical and photocatalytic properties of the ZnO particles synthesized by two different methods using three different precursors[J]. Comptes Rendus Chimie, 2017, 20 (1) : 47-54. doi: 10.1016/j.crci.2016.04.003
