CaCO3纳米晶体稳定非水相泡沫实验研究

doi:10.3969/j.issn.2097-2806.2023.06.005

摘要/Abstract

摘要：

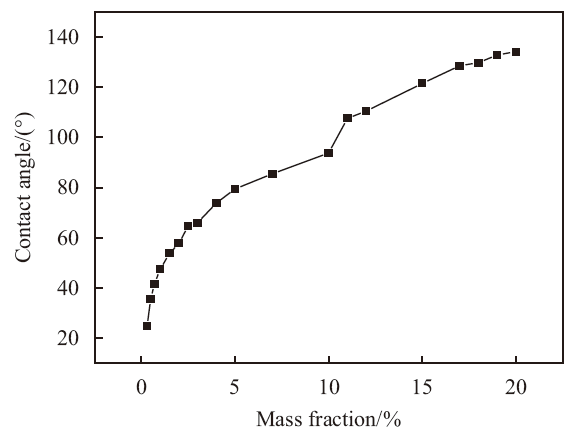

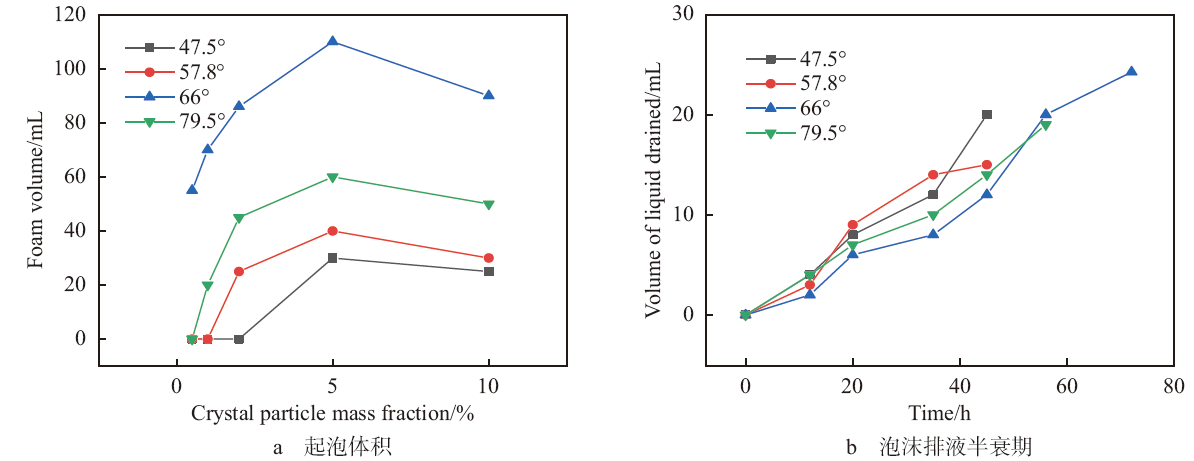

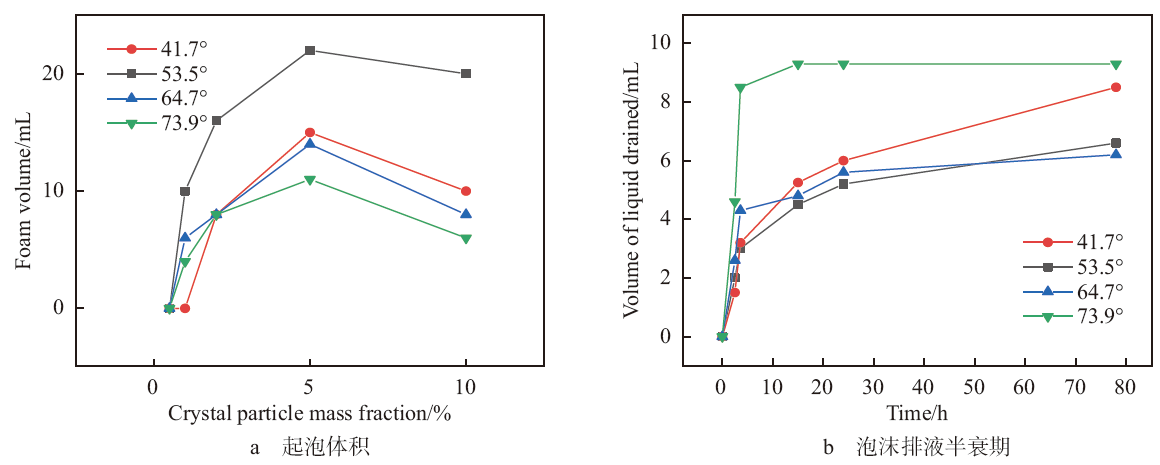

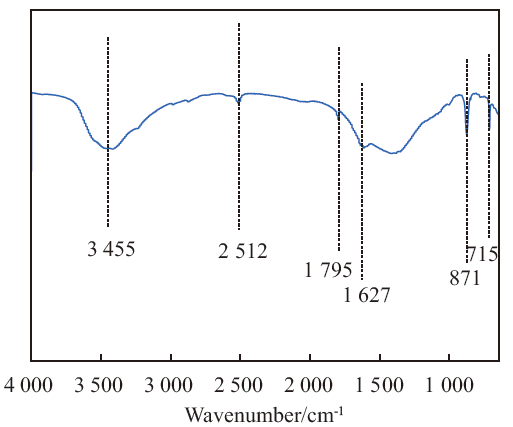

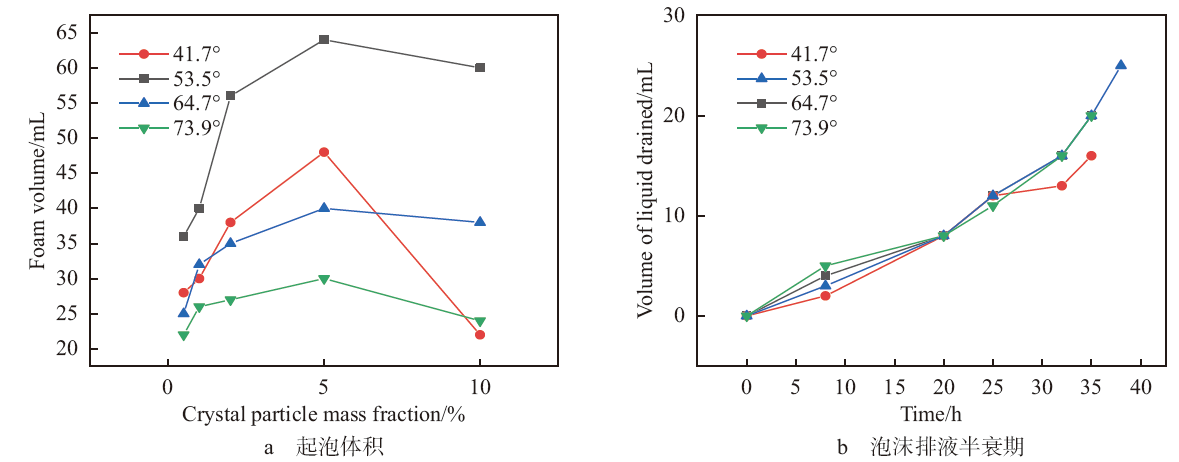

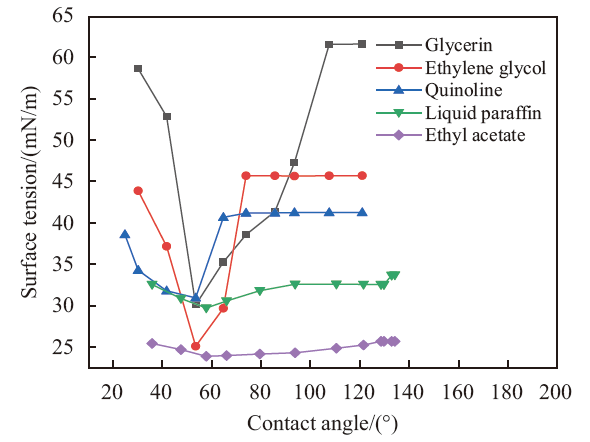

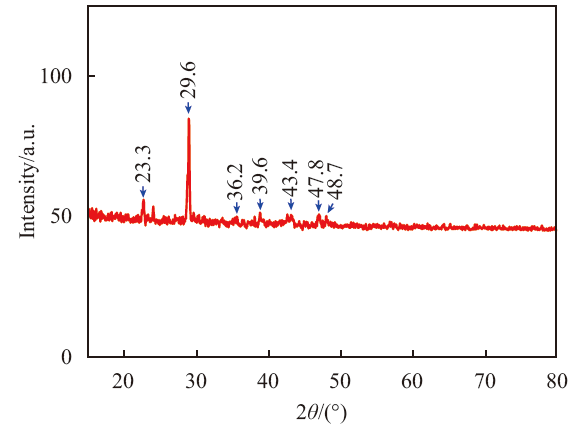

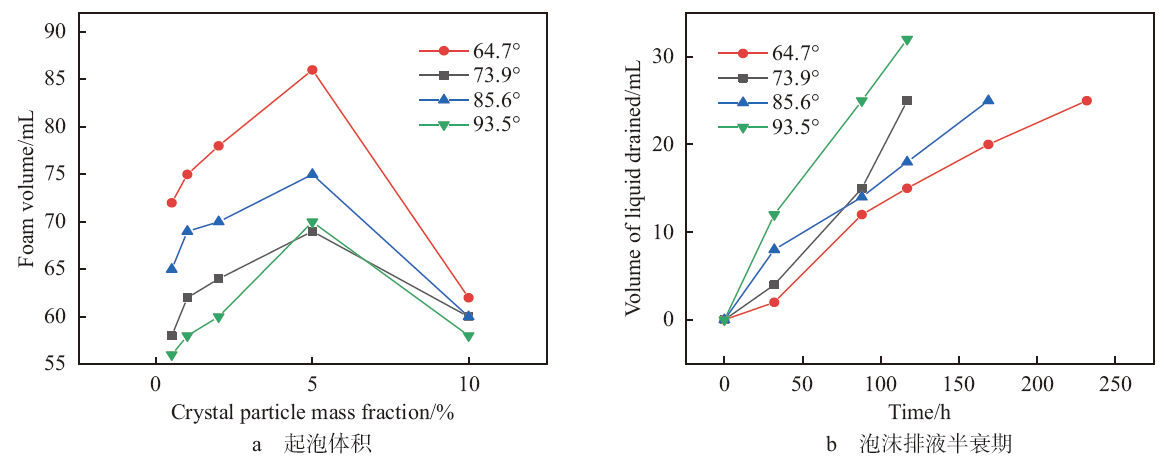

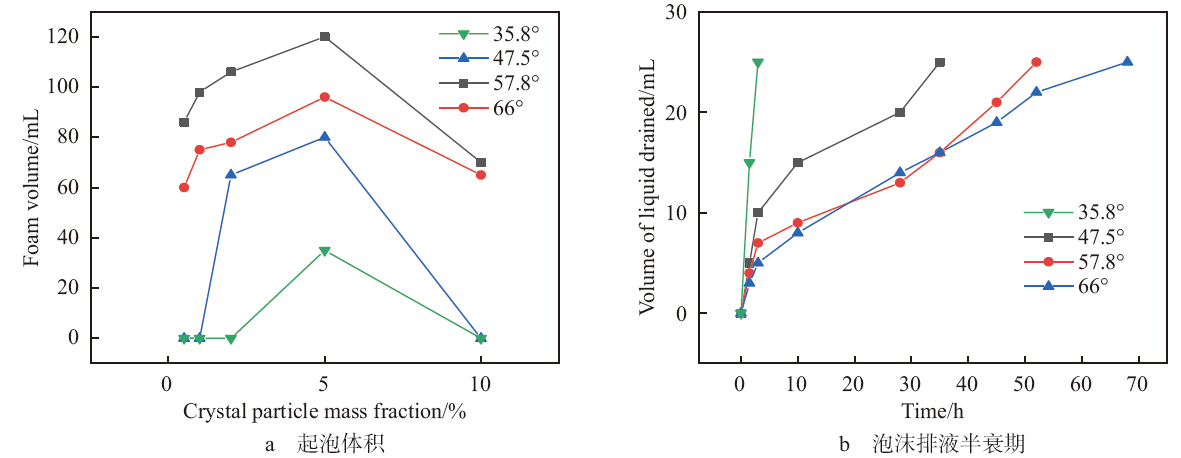

非水相泡沫在油田开发、功能材料、食品工业和日化等领域有着广泛的应用，对非水相泡沫性能的调控在相关行业的发展中发挥着重要的影响。然而，由于非水相溶剂具有的低界面张力和低介电常数，导致其发泡难度较大。为解决非水相溶剂发泡困难的问题，文章通过制备CaCO₃纳米晶体，并经TEM，FT-IR及XRD等对晶体颗粒进行了表征，采用1H，1H，2H，2H-全氟癸基三乙氧基硅烷对CaCO₃纳米晶体的润湿性进行了调控，研究CaCO₃纳米晶体对非水相溶剂发泡性能的影响。研究发现：随CaCO₃纳米晶体质量分数的增加，不同接触角的CaCO₃纳米晶体所产生的泡沫体积呈现先增后减的趋势，当晶体质量分数为5%时，非水相溶剂发泡性能最佳，泡沫体积最高可达到120 mL；非水相泡沫的稳定性随CaCO₃纳米晶体接触角的增加呈现先增强后减弱的趋势，当接触角范围在47.5°~73.9°时，非水相泡沫的稳定性最佳，排液半衰期最高可达到100 h。

关键词: 泡沫, CaCO₃纳米晶体, 润湿性, 发泡性能

Abstract:

Non-aqueous foams are widely used in fields such as oilfield development, functional materials, food industry and daily chemicals. The regulation of the properties of non-aqueous foams plays an important role in the development of related industries. Due to the low interfacial tension and low dielectric constant of non-aqueous solvents, foaming is difficult. Therefore, in this work, to solve the problems in non-aqueous solvent foaming, CaCO₃ nanocrystals were prepared. The crystal particles were characterized by TEM, FT-IR and XRD. 1H, 1H, 2H, 2H-perfluorodecyl triethoxy silane was used to regulate the wettability of CaCO₃ nanocrystals. The effects of CaCO₃ nanocrystals on the foaming performance of non-aqueous solvents were studied. It was found that, with the increase of mass fraction of CaCO₃ nanocrystals, the foam volume produced by CaCO₃ nanocrystals with different contact angles first increased and then decreased. When the crystal mass fraction was 5%, the foaming performance of non-aqueous solvent was the best, and the foam volume could reach 120 mL. The stability of the non-aqueous foam first increased and then decreased with the increase of the contact angle of CaCO₃ nanocrystals. When the contact angle was in the range from 47.5° to 73.9°, the stability of the non-aqueous foam was the best, and the draining half-life was up to 100 h.

Key words: foam, CaCO₃ nanocrystal, wettability, foaming performance

中图分类号:

O648.24

张佩亮, 燕永利, 吕博, 曹玉霞, 吴春生, 贺炳成. CaCO₃纳米晶体稳定非水相泡沫实验研究[J]. 日用化学工业（中英文）, 2023, 53(6): 642-648.

Zhang Peiliang, Yan Yongli, Lv Bo, Cao Yuxia, Wu Chunsheng, He Bingcheng. Experimental study on non-aqueous foams stabilized by CaCO₃ nanocrystals[J]. China Surfactant Detergent & Cosmetics, 2023, 53(6): 642-648.

图/表 11

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

参考文献 33

[1]	Mendoza L, Hossain L, Downey E, et al. Carboxylated nanocellulose foams as superabsorbents[J]. Journal of Colloid and Interface Science, 2019, 538: 433-439. doi: S0021-9797(18)31434-6 pmid: 30530081
[2]	Li X, Zheng M, Li R, et al. Preparation, microstructure, properties and foaming mechanism of a foamed ceramics with high closed porosity[J]. Ceramics International, 2019, 45 (9) : 11982-11988. doi: 10.1016/j.ceramint.2019.03.091
[3]	Yang Z, Zhao X, Ding Y, et al. Structure and mechanical stability of epoxy modified polyurethane foam under heat and stress[J]. Journal of Macromolecular Science, Part B, 2019, 58 (1) : 113-127. doi: 10.1080/00222348.2018.1547864
[4]	Ramirez B J, Gupta V. High tear strength polyurea foams with low compression set and shrinkage properties at elevated temperatures[J]. International Journal of Mechanical Sciences, 2019, 150: 29-34. doi: 10.1016/j.ijmecsci.2018.10.014
[5]	Kim B S, Choi J, Park Y S, et al. Semi-Rigid polyurethane foam and polymethylsilsesquioxane aerogel composite for thermal insulation and sound absorption[J]. Macromolecular Research, 2022, 30 (4) : 245-253. doi: 10.1007/s13233-022-0026-8
[6]	Saremnejad F, Mohebbi M, Koocheki A. Practical application of nonaqueous foam in the preparation of a novel aerated reduced-fat sauce[J]. Food and Bioproducts Processing, 2020, 119 (11) : 216-225. doi: 10.1016/j.fbp.2019.11.004
[7]	Emami H, Ayatizadeh Tanha A, Khaksar Manshad A, et al. Experimental investigation of foam flooding using anionic and nonionic surfactants: a screening scenario to assess the effects of salinity and pH on foam stability and foam height[J]. ACS Omega, 2022, 7 (17) : 14832-14847. doi: 10.1021/acsomega.2c00314 pmid: 35557679
[8]	Zhang Hong, Zhang Xinchun, Ying Xingli. Effect of reservoir permeability on oil recovery using air foam flooding: a case study on ganguyi oilfield[J]. Petroleum Science and Technology, 2022, 40 (9) : 1138-1153. doi: 10.1080/10916466.2021.2014864
[9]	Saeibehrouzi A, Khosravi M, Rostami B. Steps and challenges in empirical foam modeling for enhanced oil recovery[J]. Natural Resources Research, 2020, 29 (5) : 3363-3384. doi: 10.1007/s11053-020-09624-4
[10]	Syed A H, Idris A K, Mohshim D F, et al. Influence of lauryl betaine on aqueous solution stability, foamability and foam stability[J]. Journal of Petroleum Exploration and Production Technology, 2019, 9 (4) : 2659-2665. doi: 10.1007/s13202-019-0652-7
[11]	Boos J, Drenckhan W, Stubenrauch C. Protocol for studying aqueous foams stabilized by surfactant mixtures[J]. Journal of Surfactants and Detergents, 2013, 16 (1) : 1-12. doi: 10.1007/s11743-012-1416-2
[12]	Dong X, Sun D, Zhang H, et al. Effect of liquid paraffin on the stability of aqueous foam in the presence and absence of electrolytes[J]. Colloid and Polymer Science, 2010, 288 (12) : 1271-1280. doi: 10.1007/s00396-010-2253-3
[13]	Stocco A, Rio E, Binks B P, et al. Aqueous foams stabilized solely by particles[J]. Soft Matter, 2011, 7 (4) : 1260-1267. doi: 10.1039/c0sm01290d
[14]	Martinez A C, Rio E, Delon G, et al. On the origin of the remarkable stability of aqueous foams stabilised by nanoparticles: link with microscopic surface properties[J]. Soft Matter, 2008, 4 (7) : 1531-1535. doi: 10.1039/b804177f pmid: 32907121
[15]	Rio E, Drenckhan W, Salonen A, et al. Unusually stable liquid foams[J]. Advances in Colloid & Interface Science, 2014, 205 (5) : 74-86.
[16]	Li S, Wang Q, Li Z. Stability and flow properties of oil-based foam generated by CO₂[J]. SPE Journal, 2020, 25 (1) : 416-431. doi: 10.2118/199339-PA
[17]	Zuo L, Zhang Q, Sun C, et al. Molecular dynamics simulation and experiment on the microscopic mechanism of the effect of wax crystals on the burst and drainage of foams[J]. Sustainability, 2022, 14 (11) : 6778. doi: 10.3390/su14116778
[18]	Friberg S E, Blute I, Stenius P. Foam stability in a glycerol system[J]. Journal of Colloid & Interface Science, 2008, 127 (2) : 573-582.
[19]	Binks B P, Garvey E J, Vieira J. Whipped oil stabilised by surfactant crystals[J]. Chemical Science, 2016, 7 (4) : 2621-2632. doi: 10.1039/c6sc00046k pmid: 28660034
[20]	Binks B P, Anais R, Kirkland M. Oil foams stabilised solely by particles[J]. Soft Matter, 2011, 356 (2) : 1445-1451.
[21]	Adil I, Maini B. Role of asphaltenes in foamy oil flow[J]. Journal of Canadian Petroleum Technology, 2007, 46 (4) : 18-23.
[22]	Friberg S E. Foams from non-aqueous systems[J]. Current Opinion in Colloid & Interface Science, 2010, 15 (5) : 359-364. doi: 10.1016/j.cocis.2010.05.011
[23]	Fameau A L, Binks B P. Aqueous and oil foams stabilized by surfactant crystals: new concepts and perspectives[J]. Langmuir, 2021, 37 (15) : 4411-4418. doi: 10.1021/acs.langmuir.1c00410
[24]	Ma X, Zhang X, Yang L, et al. Tunable construction of multi-shelled hollow carbonate nanospheres and their potential applications[J]. Nanoscale, 2016, 8 (16) : 8687-8695. doi: 10.1039/c6nr00866f pmid: 27049523
[25]	El-Midany A A, Mahmoud H M, Ibrahim S S. Nano-CaCO₃ for repair of historic joint mortar[J]. Iranian Journal of Science and Technology, Transactions of Civil Engineering, 2021, 45 (4) : 2517-2523. doi: 10.1007/s40996-021-00747-z
[26]	Boyjoo Y, Pareek V K, Liu J. Synthesis of micro and nano-sized calcium carbonate particles and their applications[J]. Journal of Materials Chemistry A, 2014, 2 (35) : 14270-14288. doi: 10.1039/C4TA02070G
[27]	Guo X, Li X, Chan L, et al. Edible CaCO₃ nanoparticles stabilized pickering emulsion as calcium-fortified formulation[J]. Journal of Nanobiotechnology, 2021, 19 (1) : 1-16. doi: 10.1186/s12951-020-00755-7
[28]	Stupp S I, Braun P V. Molecular manipulation of microstructures: biomaterials, ceramics, and semiconductors[J]. Science, 1997, 277 (5330) : 1242-1248. pmid: 9271562
[29]	Aulia M P, Rizki R, Aprilia S, et al. Effect of addition elephant grass cellulose and CaCO₃ oyster shell waste as bioplastic composites[J]. Molekul, 2022, 17 (2) : 281-291. doi: 10.20884/1.jm.2022.17.2.6410
[30]	Xing B, Zhang C, Liu Q, et al. Green synthesis of porous graphitic carbons from coal tar pitch templated by nano-CaCO₃ for high-performance lithium-ion batteries[J]. Journal of Alloys and Compounds, 2019, 795: 91-102. doi: 10.1016/j.jallcom.2019.04.300
[31]	Zhu Y, Yang Z, Dong Z, et al. CaCO₃-Assisted preparation of pH-responsive immune-modulating nanoparticles for augmented chemo-immunotherapy[J]. Nano-Micro Letters, 2021, 13 (1) : 1-18. doi: 10.1007/s40820-020-00525-y
[32]	Yang T, Wu Y, Yue X, et al. Biomimetic synthesis of vaterite CaCO₃ microspheres under threonine for preparation of pH-responsive antibacterial biofilm[J]. Journal of Materials Research, 2020, 35 (18) : 2427-2440. doi: 10.1557/jmr.2020.178
[33]	Bybee K. Oil-based drill-in fluids for horizontal gravel-packed south african wells[J]. Journal of Petroleum Technology, 2000, 52 (11) : 46-47.
