非离子-阴离子Bola型表面活性剂和纳米SiO2颗粒协同稳定的双重响应型O/W乳状液

doi:10.3969/j.issn.2097-2806.2024.01.001

摘要/Abstract

摘要：

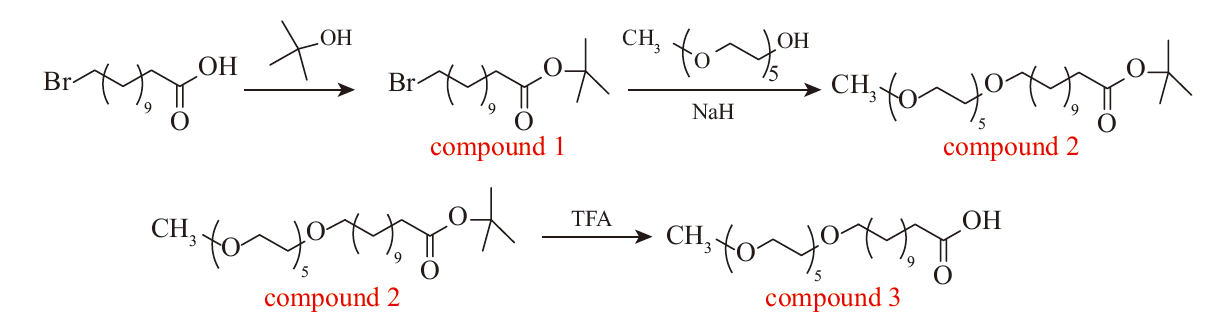

合成了一种非离子-阴离子Bola型智能表面活性剂，通过pH-响应可以在非离子型CH₃O （EO） ₅-R₁₁-COOH （pHKa=6.6）和Bola型CH₃O （EO） ₅-R₁₁-COONa （pH>pKa）之间转换。单独使用时，非离子型和Bola型分别表现为不良乳化剂和优良乳化剂。与纳米SiO₂颗粒复配使用时，非离子型能与SiO₂颗粒协同稳定O/W（正癸烷）型Pickering乳状液，其中表面活性剂通过氢键作用吸附到颗粒表面产生原位疏水化作用，提高了颗粒的表面活性，并且这种Pickering乳状液具有pH-和温度-双重响应性，能够通过改变pH或者温度使乳状液在稳定和破乳之间实现多次转换。另一方面，Bola型CH₃O（EO） ₅-R₁₁-COONa能够与纳米SiO₂颗粒协同稳定分散液包油（oil-in-dispersion）乳状液，该乳状液具有良好的耐温性，但对调节pH时产生的盐较为敏感。然而与破乳后能完全返回水相便于回收再利用的同系物CH₃O（EO） ₇-R₁₁-COOH相比，具有较短EO链的CH₃O（EO） ₅-R₁₁-COOH无论处于非离子型还是Bola型状态仍具有相当的油溶性，破乳后不能完全返回水相，表明EO数大小对这类新型智能表面活性剂的性能有显著的影响。

关键词: 非离子-阴离子Bola型表面活性剂, 纳米SiO₂颗粒, Pickering乳状液, pH-响应, 温度-响应

Abstract:

A smart nonionic-anionic Bola surfactant was synthesized which could be switched between nonionic form CH₃O （EO） ₅-R₁₁-COOH （pHKa=6.6） and Bola form CH₃O（EO） ₅-R₁₁-COONa （pH>pKa） as triggered by pH. Individually, the nonionic/Bola forms behaved as poor/good emulsifiers, respectively. When the nonionic form was mixed with silica nanoparticles, they could co-stabilize n-decane-in-water Pickering emulsions, where the silica nanoparticles were hydrophobized in situ to be surface-active by adsorption of the surfactant via hydrogen bonding. The Pickering emulsions could be switched between stable and unstable statuses many times as triggered by either pH or temperature. On the other hand, the Bola form could co-stabilize oil-in-dispersion emulsions with silica nanoparticles, which were resistant to heating but were sensitive to the salt formed during pH alternation. However, in contrast to the CH₃（EO） ₇-R₁₁-COONa which could completely transfer to aqueous phase after demulsification, its analogue with shorter EO chain, i.e., CH₃（EO） ₅-R₁₁-COONa, was still partially oil-soluble either in nonionic form or in bola form, suggesting a significant effect of EO number on the performance of these novel smart surfactants.

Key words: nonionic-anionic Bola surfactant, silica nanoparticle, Pickering emulsion, pH-responsive, temperature-responsive

中图分类号:

TQ423

刘佩, 潘婷, 裴晓梅, 宋冰蕾, 蒋建中, 崔正刚, Bernard P. Binks. 非离子-阴离子Bola型表面活性剂和纳米SiO₂颗粒协同稳定的双重响应型O/W乳状液[J]. 日用化学工业（中英文）, 2024, 54(1): 1-15.

Pei Liu, Ting Pan, Xiaomei Pei, Binglei Song, Jianzhong Jiang, Zhenggang Cui, Bernard P. Binks. Dual-responsive oil-in-water emulsions co-stabilized by a nonionic-anionic Bola surfactant and silica nanoparticles[J]. China Surfactant Detergent & Cosmetics, 2024, 54(1): 1-15.

图/表 21

参考文献 48

[1]	Tang J T, Quinlan P J, Tam K C. Stimuli-responsive Pickering emulsions: Recent advances and potential applications[J]. Soft Matter, 2015, 11: 3512-3529. doi: 10.1039/c5sm00247h pmid: 25864383
[2]	Malcolm A S, Dexter A F, Middelberg A P J. Foaming properties of a peptide designed to form stimuli-responsive interfacial films[J]. Soft Matter, 2006, 2: 1057-1066. doi: 10.1039/b609960b pmid: 32680208
[3]	Balasuriya T S, Dagastine R R. Interaction forces between bubbles in the presence of novel responsive peptide surfactants[J]. Langmuir, 2012, 28: 17230-17237. doi: 10.1021/la304351a pmid: 23181754
[4]	Dexter A F, Malcolm A S, Middelberg A P J. Reversible active switching of the mechanical properties of a peptide film at a fluid-fluid interface[J]. Nat. Mater., 2006, 5: 502-506. pmid: 16715085
[5]	Liu Y, Jessop P G, Cunningham M C, et al. Switchable surfactants[J]. Science, 2006, 313: 958-960. pmid: 16917059
[6]	Zhang Y, Feng Y, Wang J, et al. CO₂-Switchable wormlike micelles[J]. Chem. Commun., 2013, 49: 4902-4904. doi: 10.1039/c3cc41059e
[7]	Jiang J Z, Zhu Y, Cui Z G, et al. Switchable Pickering emulsions stabilized by silica nanoparticles hydrophobized in situ with a switchable surfactant[J]. Angew. Chem. Int. Ed., 2013, 52: 12373-12376. doi: 10.1002/anie.v52.47
[8]	Saji T, Hoshino K, Aoyagui S. Reversible formation and disruption of micelles by control of the redox state of the head group[J]. J. Am. Chem. Soc., 1985, 107: 6865-6868. doi: 10.1021/ja00310a020
[9]	Aydogan N, Abbott N L. Comparison of the surface activity and bulk aggregation of ferrocenyl surfactants with cationic and anionic headgroups[J]. Langmuir, 2001, 17: 5703-5706. doi: 10.1021/la010178e
[10]	Schmittel M, Lal M, Graf K, et al. N,N′-dimethyl-2, 3-dialkylpyrazinium salts as redox-switchable surfactants? Redox, spectral, EPR and surfactant properties[J]. Chem. Commun., 2005, 41: 5650-5652.
[11]	Kang H C, Lee B M, Yoon J, et al. Synthesis and surface-active properties of new photosensitive surfactants containing the azobenzene group[J]. J. Colloid Interface Sci., 2000, 231: 255-264. doi: 10.1006/jcis.2000.7158
[12]	Eastoe J, Dominguez M S, Wyatt P, et al. Properties of a stilbene-containing gemini photosurfactant: light-triggered changes in surface tension and aggregation[J]. Langmuir, 2002, 18: 7837-7844. doi: 10.1021/la0257384
[13]	Chevallier E, Monteux C, Lequeux F, et al. Photofoams: Remote control of foam destabilization by exposure to light using an azobenzene surfactant[J]. Langmuir, 2012, 28: 2308-2312. doi: 10.1021/la204200z pmid: 22280317
[14]	Li J, Zhao M, Zhou H, et al. Photo-induced transformation of wormlike micelles to spherical micelles in aqueous solution[J]. Soft Matter, 2012, 8: 7858-7864. doi: 10.1039/c2sm25218j
[15]	Raghavan S R, Edlund H, Kaler E W. Cloud-point phenomena in wormlike micellar systems containing cationic surfactant and salt[J]. Langmuir, 2002, 18: 1056-1064. doi: 10.1021/la011148e
[16]	Aathimanikandan S V, Savariar E N, Thayumanavan S. Temperature-sensitive dendritic micelles[J]. J. Am. Chem. Soc., 2005, 127: 14922-14929. pmid: 16231948
[17]	Yang Z J, Wei J J, Sobolev Y I, et al. Systems of mechanized and reactive droplets powered by multi-responsive surfactants[J]. Nature, 2018, 553: 313-318. doi: 10.1038/nature25137
[18]	Liang C, Harjani J R, Robert T, et al. Use of CO₂-triggered switchable surfactants for the stabilization of oil-in-water emulsions[J]. Energy Fuels, 2012, 26: 488-494. doi: 10.1021/ef200701g
[19]	Fameau A L, Saint-Jalmes A, Cousin F, et al. Smart foams: switching reversibly between ultrastable and unstable foams[J]. Angew. Chem. Int. Ed., 2011, 50: 8264-8268. doi: 10.1002/anie.v50.36
[20]	Becher P. Encyclopedia of Emulsion Technology[M]. New York: Marcel Dekker, 1983.
[21]	Rosen M J, Kunjappu J T. Surfactants and Interfacial Phenomena (4th edition)[M]. Hoboken: John Wiley & Sons, 2012.
[22]	Israelachvili J N. Intermolecular and surface forces[M]. London: Academic Press, 1992.
[23]	Binks B P. Particles as surfactants—similarities and differences[J]. Curr. Opin. Colloid Interface Sci., 2002, 7: 21-41. doi: 10.1016/S1359-0294(02)00008-0
[24]	Aveyard R, Binks B P, Clint J H. Emulsions stabilised solely by colloidal particles[J]. Adv. Colloid Interface Sci., 2003, 100-102: 503-546. doi: 10.1016/S0001-8686(02)00069-6
[25]	Binks B P, Horozov T S. Colloid particles at liquid interfaces[M]. London: Cambridge University Press, 2006, Chapter 1.
[26]	Xu M D, Jiang J Z, Pei X M, et al. Novel oil-in-water emulsions stabilized by ionic surfactant and similarly charged nanoparticles at very low concentrations[J]. Angew. Chem. Int. Ed., 2018, 130: 7864-7868. doi: 10.1002/ange.v130.26
[27]	Xu M D, Xu L F, Lin Q, et al. Switchable oil-in-water emulsions stabilized by like-charged surfactants and particles at very low concentrations[J]. Langmuir, 2019, 35: 4058-4067. doi: 10.1021/acs.langmuir.8b04159 pmid: 30807183
[28]	Lin Q, Xu M D, Cui Z G, et al. Structure and stabilization mechanism of diesel oil-in-water emulsions stabilized solely by either positively or negatively charged nanoparticles[J]. Colloids Surf. A, 2019, 573: 30-39. doi: 10.1016/j.colsurfa.2019.04.046
[29]	Ravera F, Ferrari M, Liggieri L, et al. Liquid-liquid interfacial properties of mixed nanoparticle-surfactant systems[J]. Colloids Surf. A, 2008, 323: 99-108. doi: 10.1016/j.colsurfa.2007.10.017
[30]	Jiang J Z, Ma Y X, Cui Z G, et al. Pickering emulsions responsive to CO₂/N₂ and light dual stimuli at ambient temperature[J]. Langmuir, 2016, 32: 8868-8675.
[31]	Xu M D, Zhang W Q, Pei X M, et al. CO₂/N₂ triggered switchable Pickering emulsions stabilized by alumina nanoparticles in combination with a conventional anionic surfactant[J]. RSC Adv., 2017, 7: 29742-29751. doi: 10.1039/C7RA03722H
[32]	Liu K H, Jiang J Z, Cui Z G, et al. pH-Responsive Pickering emulsions stabilized by silica nanoparticles in combination with a conventional zwitterionic surfactant[J]. Langmuir, 2017, 33: 2296-2305. doi: 10.1021/acs.langmuir.6b04459 pmid: 28191963
[33]	Zhu Y, Jiang J Z, Liu K H, et al. Switchable Pickering emulsions stabilized by silica nanoparticles hydrophobized in situ with a conventional cationic surfactant[J]. Langmuir, 2015, 31: 3301-3307. doi: 10.1021/acs.langmuir.5b00295
[34]	Zhu Y, Fu T, Liu K H, et al. Thermo-responsive Pickering emulsions stabilized by silica nanoparticles in combination with alkyl polyoxyethylene ether nonionic surfactant[J]. Langmuir, 2017, 33: 5724-5733. doi: 10.1021/acs.langmuir.7b00273
[35]	Akartuna I, Studart A R, Tervoort E, et al. Stabilization of oil-in-water emulsions by colloidal particles modified with short amphiphiles[J]. Langmuir, 2008, 24: 7161-7168. doi: 10.1021/la800478g pmid: 18547079
[36]	Wei Y, Tong Z, Dai L, et al. Novel colloidal particles and natural small molecular surfactants co-stabilized Pickering emulsions with hierarchical interfacial structure: Enhanced stability and controllable lipolysis[J]. J. Colloid Interface Sci., 2020, 563: 291-307. doi: 10.1016/j.jcis.2019.12.085
[37]	Lan Q, Yang F, Zhang S, et al. Synergistic effect of silica nanoparticles and cetyltrimethyl ammonium bromide on the stabilization of O/W emulsions[J]. Colloids Surf. A, 2007, 302: 126-135. doi: 10.1016/j.colsurfa.2007.02.010
[38]	Yu S J, Zhang H J, Jiang J Z, et al. Pickering emulsions of alumina nanoparticles and Bola-type selenium surfactant yield a fully recyclable aqueous phase[J]. Green Chem., 2020, 22: 5470-5475 doi: 10.1039/D0GC02016H
[39]	Pei X M, Zhang S, Zhang W Q, et al. Behavior of smart surfactants in stabilizing pH-responsive emulsions[J]. Angew. Chem. Int. Ed., 2021, 60: 5235-5239. doi: 10.1002/anie.202013443 pmid: 33258181
[40]	Liu P, Wu J H, Pei X M, et al. Recyclable surfactant containing dynamic covalent bond and relevant smart emulsions[J]. Green Chem., 2022, 24: 7612-7621. doi: 10.1039/D2GC01977A
[41]	Liu P, Zhang S, Pei X M, et al. Recyclable and re-usable smart surfactant for stabilization of various multi-responsive emulsions alone or with nanoparticles[J]. Soft Matter, 2022, 18: 849-858. doi: 10.1039/d1sm01660a pmid: 34982810
[42]	Liu P, Pei X M, Cui Z G, et al. Recyclable nonionic-anionic bola surfactant as a stabilizer of size-controllable and pH-responsive Pickering emulsions[J]. Langmuir, 2023, 39: 841-850. doi: 10.1021/acs.langmuir.2c02924 pmid: 36603129
[43]	Attwood D, Florence A T. Surfactant systems, their chemistry, pharmacy and biology[M]. Chapman and Hall, 1983: 473.
[44]	Cui Z G, Yang L L, Cui Y Z, et al. Effects of surfactant structure on the phase inversion of emulsions stabilized by mixtures of silica nanoparticles and cationic surfactant[J]. Langmuir, 2010, 26: 4717-4724. doi: 10.1021/la903589e pmid: 19950938
[45]	Cummins P G, Penfold J, Staples E. Nature of the adsorption of the nonionic surfactant pentaethylene glycol monododecyl ether on a ludox silica sol[J]. J. Phys. Chem., 1992, 96: 8092-8094. doi: 10.1021/j100199a049
[46]	Zeng X, Osseo-Asare K. Partitioning behavior of silica in the PEG/dextran/H₂O aqueous biphasic system[J]. Colloids and Surfaces A, 2003, 226: 45-54. doi: 10.1016/S0927-7757(03)00354-6
[47]	Zhang L, Zhang G C, Ge J J, et al. pH- and thermo-responsive Pickering emulsion stabilized by silica nanoparticles and conventional nonionic copolymer surfactants[J]. J. Colloid Interface Sci., 2022, 616: 129-140. doi: 10.1016/j.jcis.2022.02.067
[48]	Zhang R, Somasundaran P. Advances in adsorption of surfactants and their mixtures at solid/solution interfaces[J]. Adv. Colloid Interface. Sci., 2006, 123-126: 213-229. doi: 10.1016/j.cis.2006.07.004

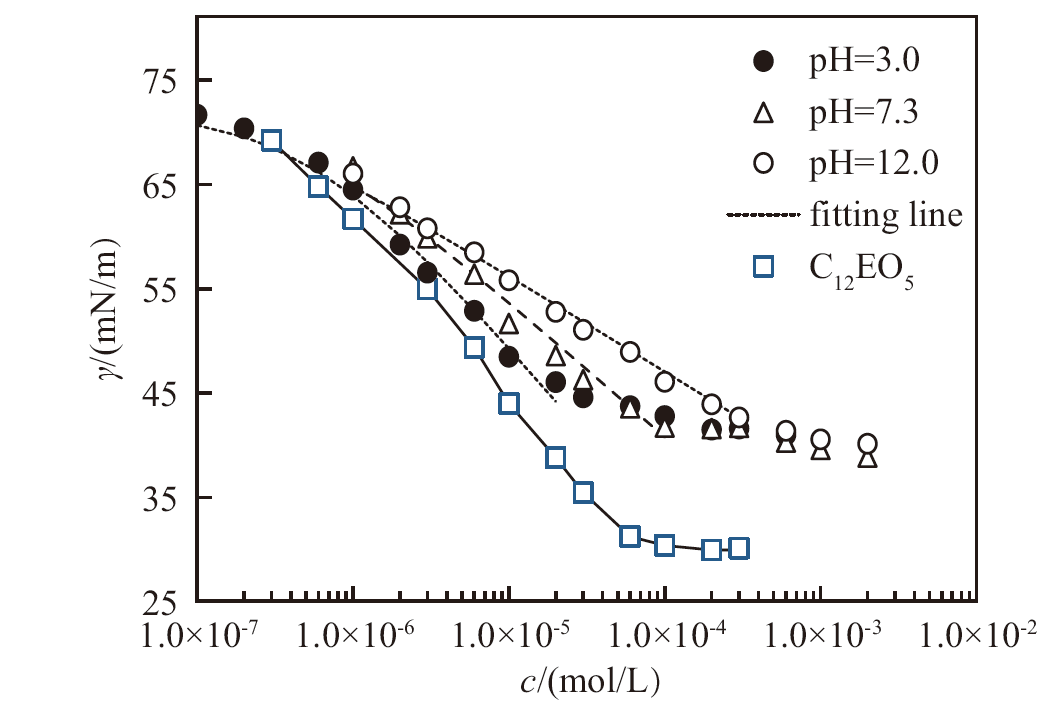

Surfactant	cmc/（mmol/L）	γ_cmc/（mN/m）	Γ_max/（10^-10 mol/cm²）	A_min/（nm²/molec）
CH₃O（EO） ₅-R₁₁-COOH （pH=3.0）	0.032	41.4	2.65	0.63
CH₃O（EO） ₅-R₁₁-COONa （pH=7.3）	0.075	42.0	2.25	0.74
CH₃O（EO） ₅-R₁₁-COONa （pH=12.0）	0.350	41.5	1.70	1.01
C₁₂EO₅^[34]	0.060	30.4	3.42	0.49
