改性尖晶石催化盐酸四环素降解性能及机理研究

doi:10.3969/j.issn.2097-2806.2025.04.009

摘要/Abstract

摘要：

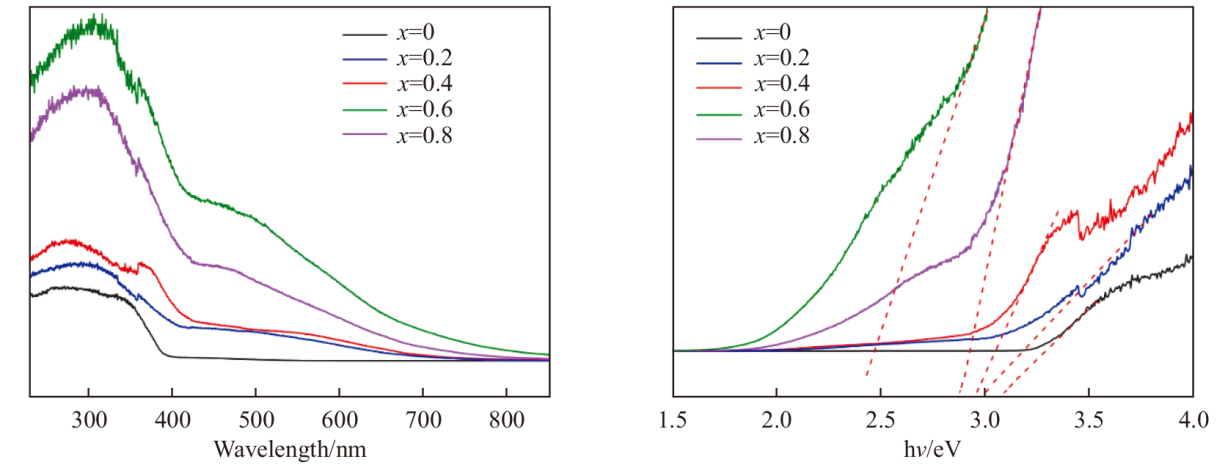

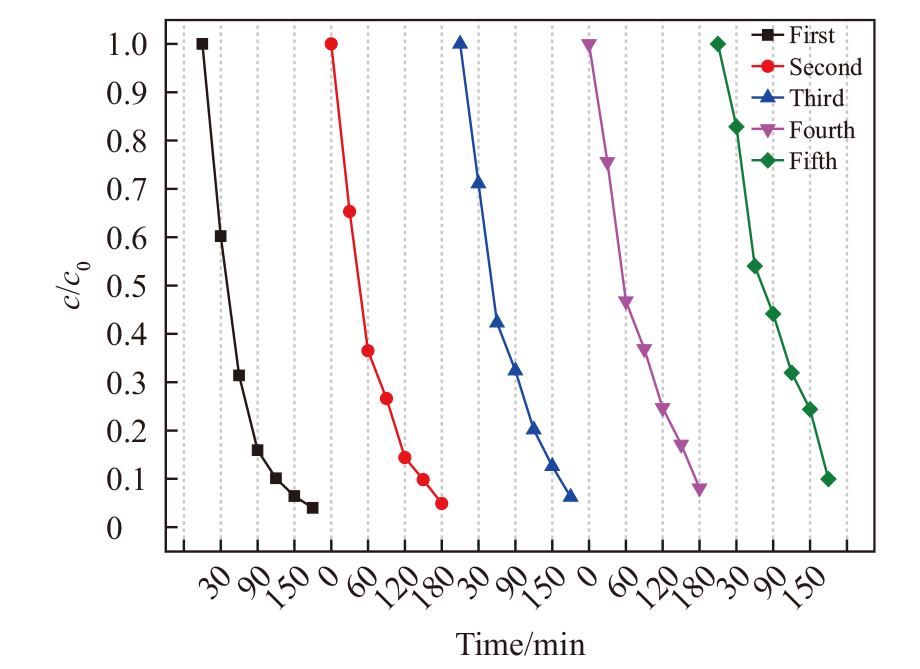

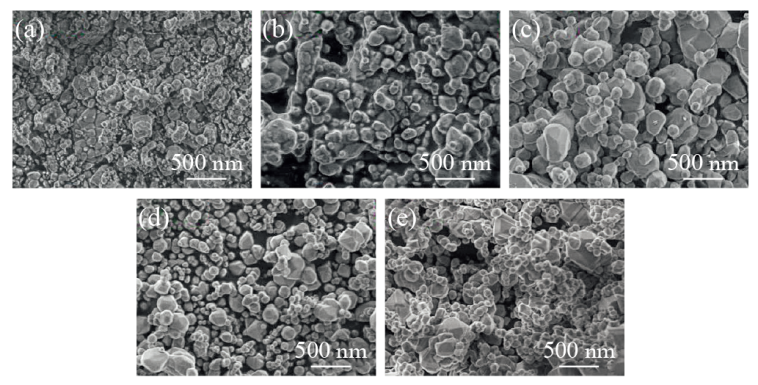

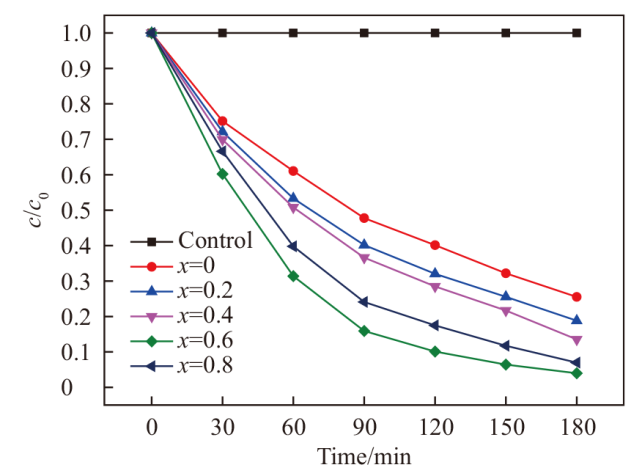

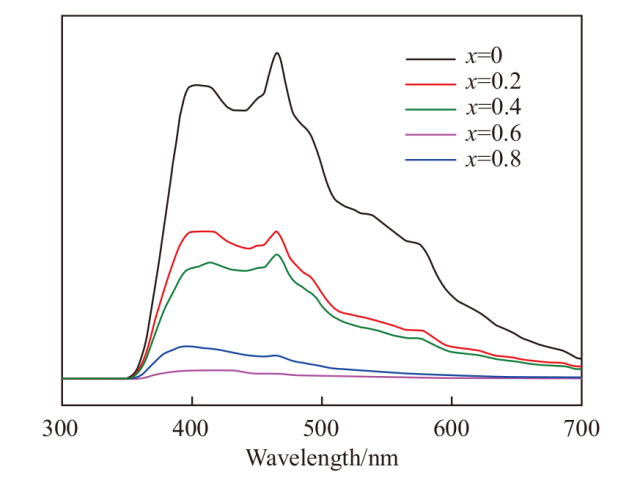

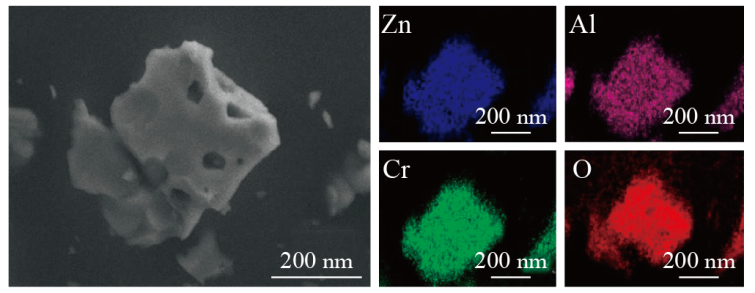

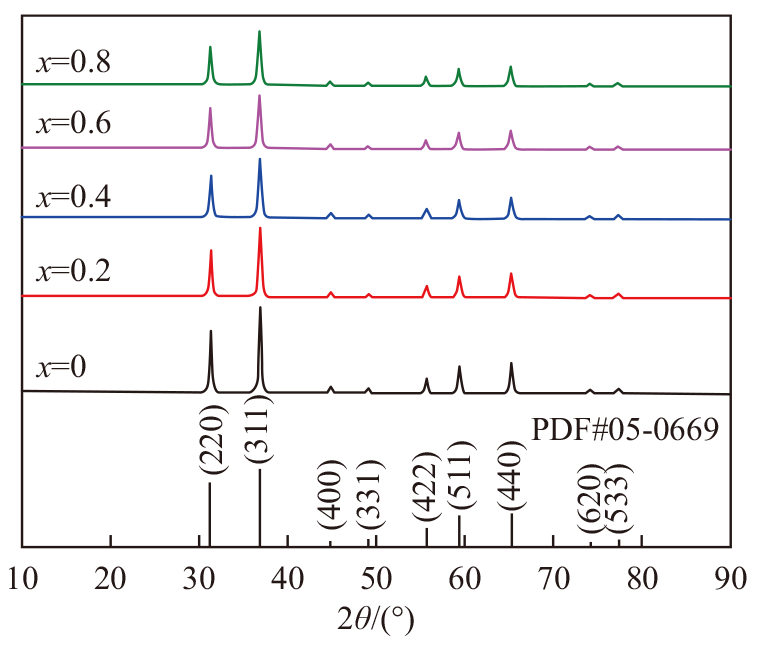

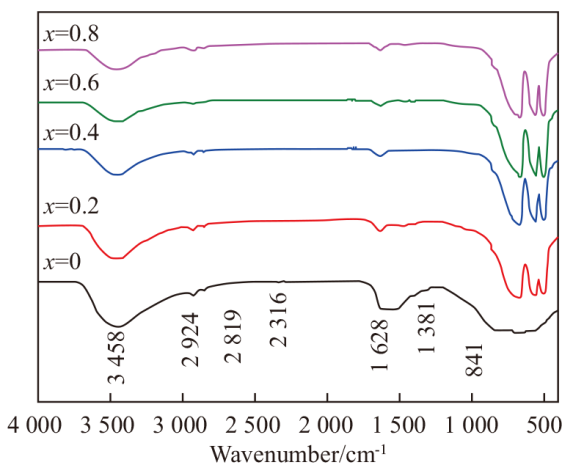

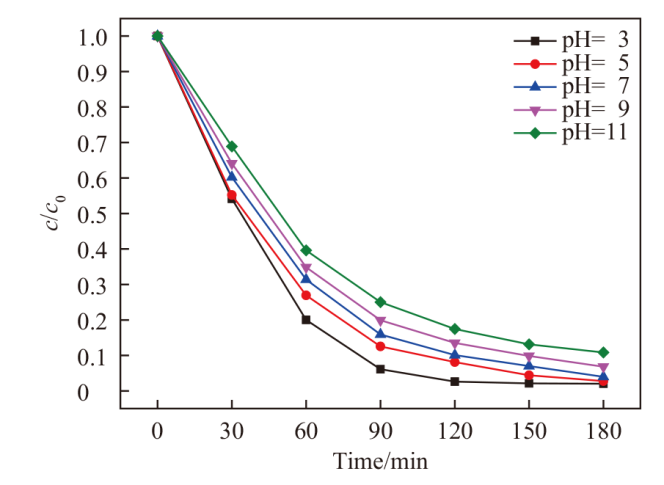

尖晶石光催化剂具有环境友好性和优异的稳定性，在光催化降解抗生素废水方面有着广阔的应用潜力。本研究用水热法制备了铬（Cr）掺杂的ZnAl₂O₄尖晶石光催化剂，通过XRD、SEM、EDS、FTIR、PL等手段表征了该催化剂的物相结构、微观形貌、光谱性能，以盐酸四环素为降解对象，通过氙灯照射探究了Cr掺杂ZnAl₂O₄尖晶石光催化剂的催化性能。研究结果表明：水热法制备的ZnAl₂O₄尖晶石属于正尖晶石结构，ZnAl₂O₄的形貌为180~400 nm的不规则的块体，具有多孔结构，Cr掺杂后没有改变ZnAl₂O₄的晶格结构，并且Cr均匀分布在ZnAl₂O₄中。Cr掺杂到ZnAl₂O₄后降低了带隙宽度，Zn_0.4Cr_0.6Al₂O₄试样的带隙宽度最小仅2.87 eV，光致发光强度显著降低。试样在光照180 min时对盐酸四环素的降解率最高为96.02%，在pH 3的酸性条件下降解率增大至97.95%，该试样循环试验5次后降解率保持在90%以上，具有优异的重复使用性能。

关键词: ZnAl₂O₄尖晶石, Cr掺杂, 盐酸四环素, 光催化, 重复使用

Abstract:

Spinel photocatalysts have environmental friendliness and excellent stability, which have broad application potential in the photocatalytic degradation of antibiotic wastewater. In this work, Cr-doped ZnAl₂O₄ spinel photocatalyst was prepared by hydrothermal method. The crystal structure, microstructure and spectral properties of the catalyst were characterized by XRD, SEM, EDS, FTIR and PL. Tetracycline hydrochloride was used as the degradation object. The catalytic performance of Cr-doped ZnAl₂O₄ spinel photocatalyst was investigated under xenon lamp irradiation. The results showed that the ZnAl₂O₄ spinel prepared by hydrothermal method was of normal spinel structure. The morphology of ZnAl₂O₄ was irregular blocks of 180-400 nm with porous structure. The lattice structure of ZnAl₂O₄ was not changed after Cr doping, and Cr was uniformly distributed in ZnAl₂O_4.The band gap width of Zn_0.4Cr_0.6Al₂O₄was only 2.87 eV, and the photoluminescence intensity of Zn_0.4Cr_0.6Al₂O₄ was significantly reduced. The highest percentage of degradation of tetracycline hydrochloride catalyzed by Zn_0.4Cr_0.6Al₂O₄ samples at 180 min irradiation was 96.02%, and the degradation percentage was increased to 97.95% at pH 3.The degradation percentage could still maintain above 90% after 5 cycles of testing, indicative of excellent reusability.

Key words: ZnAl₂O₄ spinel, Cr doping, tetracycline hydrochloride, photocatalysis, reuse

中图分类号:

O643.3

岑凤, 李俊. 改性尖晶石催化盐酸四环素降解性能及机理研究[J]. 日用化学工业（中英文）, 2025, 55(4): 472-480.

Feng Cen, Jun Li. Study on the catalytic degradation of tetracycline hydrochloride by modified spinel and its mechanism[J]. China Surfactant Detergent & Cosmetics, 2025, 55(4): 472-480.

图/表 12

图1

表1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

参考文献 23

[1]	杨帆, 邹伟欣, 董林. 尖晶石CuBi₂O₄和ZnAlBiO₄铋系光催化剂的制备及可见光催化降解乙醛废气[J]. 环境化学, 2023, 42(9): 2961-2968.
[2]	Ming G, Zheng H, Quanbao H. Application of spinel ferrite-based advanced oxidation processes in organic wastewater treatment[J]. Progress in Chemistry, 2021, 33(9): 1648.
[3]	黄仕元, 邓简, 王国华, 等. 尖晶石及其改性材料活化过硫酸盐的研究进展[J]. 应用化工, 2022, 51(10): 2979-2984.
[4]	Tangcharoen T, T-Thienprasert J, Kongmark C. Development of magnetic recyclable spinel photocatalysts with enhanced sunlight-driven degradation of industrial dyes[J]. Journal of the American Ceramic Society, 2021, 104(7): 3695-3714.
[5]	陈丹丹, 李燕, 王爱国. 尖晶石型铁氧体异质结的构建及用于有机污染物光催化降解的研究进展[J]. 材料导报, 2023, 37(16): 39-48.
[6]	刘会娟, 王剑波, 徐燕峰, 等. 尖晶石型纳米CoAl₂O₄粉体的制备及其光催化还原CO₂制甲酸[J]. 化工新型材料, 2014, 42(12): 133-135, 142.
[7]	Arunkumar M, Samson N A. One pot facile chemical synthesis of Mn doped ZnAl₂O₄ nanostructured spinel materials for efficient photocatalytic degradation of malachite green dye under visible light irradiation[J]. Inorganic and Nano-Metal Chemistry, 2023, 53(12): 1316-1328.
[8]	Malik A Q, Singh H, Kumar A, et al. An overview on magnetic separable spinel as a promising materials for photocatalysis and waste water treatment[J]. ES Energy & Environment, 2022, 19(2):744.
[9]	李友凤, 易睿, 方程, 等. CeO₂/MMT纳米复合材料的制备及其可见光催化氧化性能研究[J]. 水处理技术, 2024, 50(9): 80-84, 97. doi: 10.16796/j.cnki.1000-3770.2024.09.014
[10]	Putra A T S P. An improved method for high photocatalytic performance of ZnAl₂O₄ spinel derived from layered double hydroxide precursor[J]. SN Applied Sciences, 2020, 2(5): 842.
[11]	张荣斌, 李莉, 蔡建信, 等. 尖晶石表面结构与催化性能的研究进展[J]. 江西师范大学学报(自然科学版), 2019, 43(6): 565-575.
[12]	奚锐, 原金海, 邹名明, 等. 镍锰铁氧体的制备及其光催化性能研究[J]. 功能材料, 2018, 49(10): 10016-10019. doi: 10.3969/j.issn.1001-9731.2018.10.004
[13]	Srinatha N, Reddy S S, Gurushantha K, et al. Exploring the impact of Sm³⁺ doping on the structural, optical, and photocatalytic properties of ZnAl₂O₄ spinels[J]. Ceramics International, 2024, 50(20): 37742-37753.
[14]	Sommer S, Bøjesen E D, Reardon H, et al. Atomic scale design of spinel ZnAl₂O₄ nanocrystal synthesis[J]. Crystal Growth & Design, 2020, 20(3): 1789-1799.
[15]	张丽, 粱青满, 戴超华, 等. 磷酸修饰ZnO/ZnAl₂O₄纳米复合球状光催化剂及其活性[J]. 中国有色金属学报, 2018, 28(7): 1335-1342.
[16]	张婷婷, 陈家喜, 刘景弟, 等. 含锌尖晶石型ZnM₂O₄(M=Cr, Al, Fe)催化剂上二氯甲烷高效催化燃烧[J]. 分子催化, 2016, 30(5): 454-461.
[17]	亓淑艳, 丁嘉宝, 司梦瑶, 等. Cr掺杂对尖晶石型CoFe_2-_xCr_xO₄的结构及光催化性能的影响[J]. 材料导报, 2012, 26(14): 33-35.
[18]	薛珲, 朱兰瑾. 尖晶石型ZnGa₂O₄纳米晶的制备及光催化性能[J]. 武汉理工大学学报, 2010, 32(23): 22-26.
[19]	刘昶时. 更精确地利用光谱自然确定禁带宽度[J]. 光电工程, 2011, 38(4): 48-53.
[20]	马成国, 亓淑艳, 李双, 等. 尖晶石型铁氧体Co_1-_xZn_xFe₂O₄的制备及其光催化性能研究[J]. 材料导报, 2012, 26(S2): 220-222.
[21]	Tangcharoen T, T-Thienprasert J, Kongmark C. Photocatalytic performance of Fe-substituted ZnAl₂O₄ powders under sunlight irradiation on degradation of industrial dyes[J]. International Journal of Applied Ceramic Technology, 2021, 18(4): 1125-1143. doi: 10.1111/ijac.13765
[22]	Huang S P, Wei Z Q, Wu X J, et al. Optical properties of Cr doped ZnAl₂O₄ nanoparticles with Spinel structure synthesized by hydrothermal method[J]. Materials Research Express, 2020, 7(1): 015025.
[23]	王盈盈, 余静, 曾红杰, 等. 磁性吸附剂CeO₂/MZFS去除水中盐酸四环素[J]. 环境科学学报, 2020, 40(9): 3250-3258.

样品	2θ/（°）	a=b=c/nm	V/nm³	D/nm
x=0	36.88	0.809 6	0.530 65	242
x=0.2	36.89	0.809 2	0.529 87	206
x=0.4	36.86	0.808 3	0.528 10	215
x=0.6	36.82	0.807 5	0.526 54	218
x=0.8	36.78	0.807 6	0.526 73	221
