防晒类化妆品中二氧化钛纳米颗粒的筛查方法研究

doi:10.3969/j.issn.2097-2806.2025.04.004

摘要/Abstract

摘要：

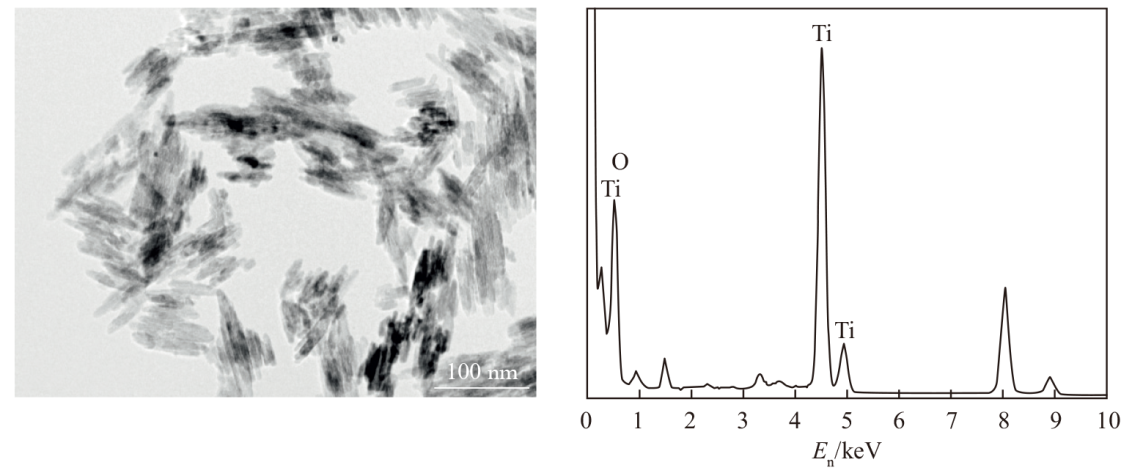

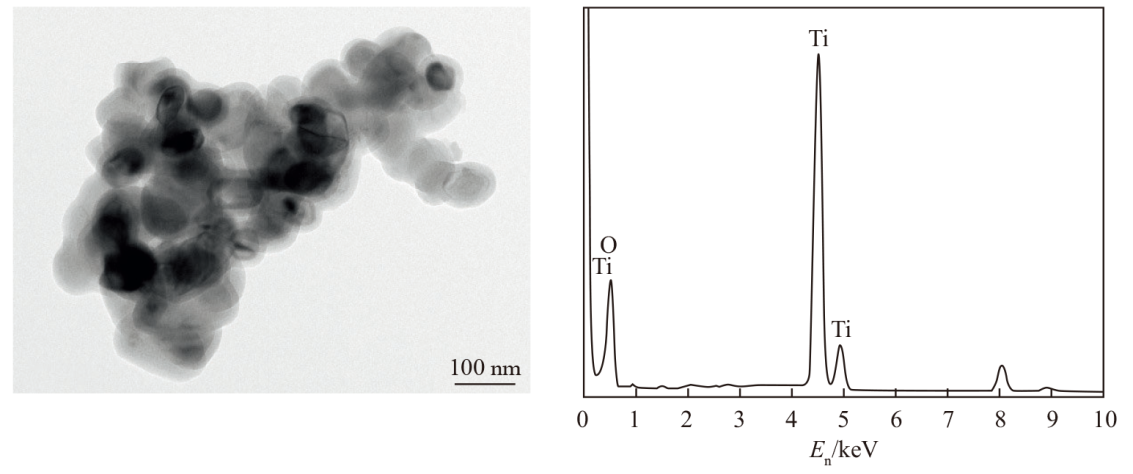

建立了单颗粒电感耦合等离子体质谱快速筛查防晒类化妆品中二氧化钛纳米颗粒的检测方法，并采用高分辨透射电子显微镜联用能谱技术对其中纳米二氧化钛晶型进行了表征。以0.1% Triton X-100为萃取剂超声辅助提取化妆品中二氧化钛纳米颗粒，在时间分辨分析模式下采集脉冲信号，通过对采集的数据进行计算从而获得颗粒粒径大小及分布情况。结果表明：颗粒尺寸的检测限不仅受到待测元素同位素背景信号的影响，也与所采用的计算方法密切相关。不同的粒径检测限结果对被识别为颗粒的尺寸大小及数量浓度均有显著影响，直接关系到化妆品产品的合规性判定及安全性评价。防晒类化妆品中二氧化钛纳米颗粒快速筛查方法，为含纳米级材料化妆品的合规性和安全性考察提供了可供探讨的空间和途径。

关键词: 单颗粒电感耦合等离子体质谱法, 纳米二氧化钛, 背景阈值, 防晒类化妆品

Abstract:

A method was developed for the determination of particle size and distribution of titanium dioxide nanoparticles in sunscreen using single particle-inductively coupled plasma-mass spectrometry （spICP-MS）. The titanium dioxide nanoparticles were characterized by high resolution transmission electron microscopy （HRTEM） and energy dispersive spectroscopy （EDS）. 0.1% Triton X-100 was employed as an extractant for ultrasound-assisted extraction of titanium dioxide nanoparticles in cosmetics. The data were acquired in pulse signal mode, and the particle size and distribution were determined through calculation. The experimental results demonstrate that the lower limit of particle size detection is influenced not only by the background signal of the isotope to be detected but also by the cosmetic matrix. Different background thresholds significantly affect both the lower limit of particle size detection and the number of identified particles, thereby directly impacting compliance and safety considerations for cosmetics. This method enables rapid screening of titanium dioxide nanoparticles in sunscreen cosmetics while simultaneously determining and characterizing their particle size and distribution, providing a framework for discussing compliance and safety investigations regarding nanoparticle-containing cosmetics.

Key words: single particle inductively coupled plasma mass spectrometry （spICP-MS）, titanium dioxide nanoparticle （TiO₂-NP）, threshold criterion, sunscreen

中图分类号:

O657.63

李硕, 代静, 李庆武, 李莉. 防晒类化妆品中二氧化钛纳米颗粒的筛查方法研究[J]. 日用化学工业（中英文）, 2025, 55(4): 430-436.

Shuo Li, Jing Dai, Qingwu Li, Li Li. Research on screening methods for TiO₂ nanoparticles in sunscreen cosmetics[J]. China Surfactant Detergent & Cosmetics, 2025, 55(4): 430-436.

图/表 8

图1

图2

图3

图4

图5

表1

图6

图7

参考文献 31

[1]	Lee J. Development of quantitative structure activity relationships (QSARs) for predicting the aggregation of TiO₂ nanoparticles under favorable conditions [J]. Heliyon, 2024, 10(7): e27966.
[2]	Muhamad S, A Rahman R, Abu Samah N, et al. Analysis on the presence of nanosized titanium dioxide (TiO₂) and zinc oxide (ZnO) in compact powder[J]. Materials Today: Proceedings, 2022, 110(C): 115-120.
[3]	Dai Yue, Dong Huijuan, Sun Luxuan, et al. Life cycle environmental impact assessment of titanium dioxide production in China[J]. Environmental Impact Assessment Review, 2024, 105: 107412.
[4]	D’Errico J N, Doherty C, Reyes George J J, et al. Maternal, placental, and fetal distribution of titanium after repeated titanium dioxide nanoparticle inhalation through pregnancy[J]. Placenta, 2022, 121: 99-108. doi: 10.1016/j.placenta.2022.03.008 pmid: 35305398
[5]	Vaudagna M V, Aiassa V, Marcotti A, et al. Titanium dioxide nanoparticles in sunscreens and skin photo-damage. Development, synthesis and characterization of a novel biocompatible alternative based on their in vitro and in vivo study[J]. Journal of Photochemistry and Photobiology, 2023, 15: 100173.
[6]	Bruer G G, Creutzenberg O, Janssen P, et al. Enhanced study design for acute inhalation studies with hydrophobic surface-treated particles to determine toxicological effects including suffocation[J]. Toxicology Letters, 2024, 399(1): 31-48.
[7]	European Union. Regulation (EC) No 1223/2009 of the European Parliament and of the Council of 30 November 2009 on cosmetic products (recast) (Text with EEA relevance)[EB/OL]. (2009-11-30)[2024-04-14]. https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=celex%3A32009R1223.
[8]	Scientific Committee on Consumer Safety (SCCS). Guidance on the safety assessment of nanomaterials in cosmetics, 30-31 October 2019, SCCS/1611/19[EB/OL]. (2009-10-31)[2024-04-14]. https://health.ec.europa.eu/publications/guidance-safety-assessment-nanomaterials-cosmetics_en.
[9]	Scientific Committee on Consumer Safety (SCCS). Guidance on the safety assessment of nanomaterials in cosmetics, 2nd revision,6 June 2023, SCCS/1655/23[EB/OL]. (2023-06-06)[2024-04-14]. https://health.ec.europa.eu/publications/sccs-guidance-safety-assessment-nanomaterials-cosmetics-2nd-revision_en.
[10]	National Medical Products Administration. Announcement of the National Medical Products Administration on issuing the provisions on the management of registration and archival of new raw materials for cosmetics (Announcement No. 31 [2021] of the National Medical Products Administration)[EB/OL]. (2021-02-26)[2024-04-14]. https://www.nmpa.gov.cn/xxgk/fgwj/xzhgfxwj/20210304140454159.html.
[11]	State Administration for Market Regulation, Standardization Administration of the People’s Republic of China. Nanotechnologies-size distribution and concentration measurement of inorganic nanoparticles in aqueous phases in nanotechnology by single particle inductively coupled plasma mass spectrometry: GB/T 42732—2023[S]. Beijing: Standards Press of China, 2023.
[12]	Scientific Committee on Consumer Safety (SCCS). Scientific advice on titanium dioxide (TiO₂), CAS/EC numbers 13463-67-7/236-675-5, 1317-70-0/215-280-1, 1317-80-2/215-282-2, preliminary version of 4 December 2023, SCCS/1661/23[EB/OL]. (2023-12-04)[2024-04-14]. https://health.ec.europa.eu/publications/scientific-advice-titanium-dioxide-tio2-casec-numbers-13463-67-7236-675-5-1317-70-0215-280-1-1317-80_en. 2023.
[13]	National Institutes for Food and Drug Control. Notice of National Institutes for Food and Drug Control on two technical documents including guidelines for submission of cosmetic safety assessment materials (draft) for public consultation[EB/OL]. (2024-03-29)[2024-04-14]. https://www.nifdc.org.cn/directory/web/nifdc/xxgk/ggtzh/tongzhi/202403291909331015750.html.
[14]	China Food and Drug Administration. Safety and technical standards for cosmetics (2015 edition)[S]. Beijing: People’s Medical Publishing House, 2018.
[15]	Zhou Dongxu, Ji Zhaoxia, Jiang Xingmao, et al. Influence of material properties on TiO₂ nanoparticle agglomeration[J]. PLoS One, 2013, 8(11): e81239.
[16]	Iswarya V, Palanivel A, Chandrasekaran N, et al. Toxic effect of different types of titanium dioxide nanoparticles on Ceriodaphnia dubia in a freshwater system[J]. Environmental Science and Pollution Research, 2019, 26(12): 11998-12013. doi: 10.1007/s11356-019-04652-x
[17]	Lee S, Bi X Y, Reed R B, et al. Nanoparticle size detection limits by single particle ICP-MS for 40 elements[J]. Environmental Science and Technology, 2014, 48(17): 10291-10300. doi: 10.1021/es502422v pmid: 25122540
[18]	Gondikas A, von der Kammer F, Reed R B, et al. Release of TiO₂ nanoparticles from sunscreens into surface waters: a one-year survey at the old Danube recreational lake[J]. Environmental Science and Technology, 2014, 48(10): 5415-5422. doi: 10.1021/es405596y pmid: 24689731
[19]	Grasso A, Ferrante M, Zuccarello P, et al. Chemical characterization and quantification of titanium dioxide nanoparticles (TiO₂-NPs) in seafood by single-particle ICP-MS: assessment of dietary exposure[J]. International Journal of Environmental Research and Public Health, 2020, 17(24): 9547.
[20]	Loeschner K, Johnson M E, Montoro Bustos A R. Application of single particle ICP-MS for the determination of inorganic nanoparticles in food additives and food: a short review[J]. Nanomaterials, 2023, 13(18): 2547.
[21]	Hebert D, Nelson J, Diehl B N, et al. Single-particle ICP-MS/MS application for routine screening of nanoparticles present in powder-based facial cosmetics[J]. Nanomaterials, 2023, 13(19): 2681.
[22]	Temerdashev Z A, Galitskaya O A, Bolshov M A. A novel method for the background signal correction in SP-ICP-MS analysis of the sizes of titanium dioxide nanoparticles in cosmetic samples[J]. Molecules, 2022, 27(22): 7748.
[23]	De la Calle I, Menta M, Klein M, et al. Screening of TiO₂ and Au nanoparticles in cosmetics and determination of elemental impurities by multiple techniques (DLS, SP-ICP-MS, ICP-MS and ICP-OES)[J]. Talanta, 2017, 171: 291-306.
[24]	Mackevica A, Olsson M E, Hansen S F. Silver nanoparticle release from commercially available plastic food containers into food simulants[J]. Journal of Nanoparticle Research, 2016, 18: 5.
[25]	Witzler M, Küllmer F, Hirtz A, et al. Validation of gold and silver nanoparticle analysis in fruit juices by single-particle ICP-MS without sample pretreatment[J]. Journal of Agricultural and Food Chemistry, 2016, 64(20): 4165-4170. doi: 10.1021/acs.jafc.6b01248 pmid: 27132879
[26]	Pace H E, Rogers N J, Jarolimek C, et al. Single particle inductively coupled plasma-mass spectrometry: a performance evaluation and method comparison in the determination of nanoparticle size[J]. Environmental Science and Technology, 2012, 46(22): 12272-12280. doi: 10.1021/es301787d pmid: 22780106
[27]	Mitrano D M, Lesher E K, Bednar A, et al. Detecting nanoparticulate silver using single-particle inductively coupled plasma-mass spectrometry[J]. Environmental Toxicology and Chemistry, 2012, 31(1): 115-121. doi: 10.1002/etc.719 pmid: 22012920
[28]	Dan Yongbo, Ma Xingmao, Zhang Weilan, et al. Single particle ICP-MS method development for the determination of plant uptake and accumulation of CeO₂ nanoparticles[J]. Analytical and Bioanalytical Chemistry, 2016, 408(19): 5157-5167. doi: 10.1007/s00216-016-9565-1 pmid: 27129977
[29]	Pace H E, Rogers N J, Jarolimek C, et al. Determining transport efficiency for the purpose of counting and sizing nanoparticles via single particle inductively coupled plasma mass spectrometry[J]. Analytical Chemistry, 2011, 83(24): 9361-9369. doi: 10.1021/ac201952t pmid: 22074486
[30]	National Medical Products Administration. Announcement of the National Medical Products Administration on issuing the rules and catalogues for the classification of cosmetics (Announcement No. 49 [2021] of the National Medical Products Administration)[EB/OL]. (2021-04-08)[2024-04-14]. https://www.nmpa.gov.cn/xxgk/fgwj/xzhgfxwj/20210409160151122.html.
[31]	Aznar R, Barahona F, Geiss O, et al. Quantification and size characterisation of silver nanoparticles in environmental aqueous samples and consumer products by single particle-ICPMS[J]. Talanta, 2017, 175: 200-208. doi: S0039-9140(17)30769-5 pmid: 28841979

阈值	检测限/nm	平均值/nm	中位值/nm	颗粒浓度（颗粒个数×10⁹/g）
3σ	63	71	67	3.6
4σ	70	80	75	1.3
5σ	76	90	82	0.56
7σ	85	106	100	0.22
