氧化白藜芦醇自微乳的制备、表征及美白活性的研究

doi:10.3969/j.issn.2097-2806.2025.04.007

摘要/Abstract

摘要：

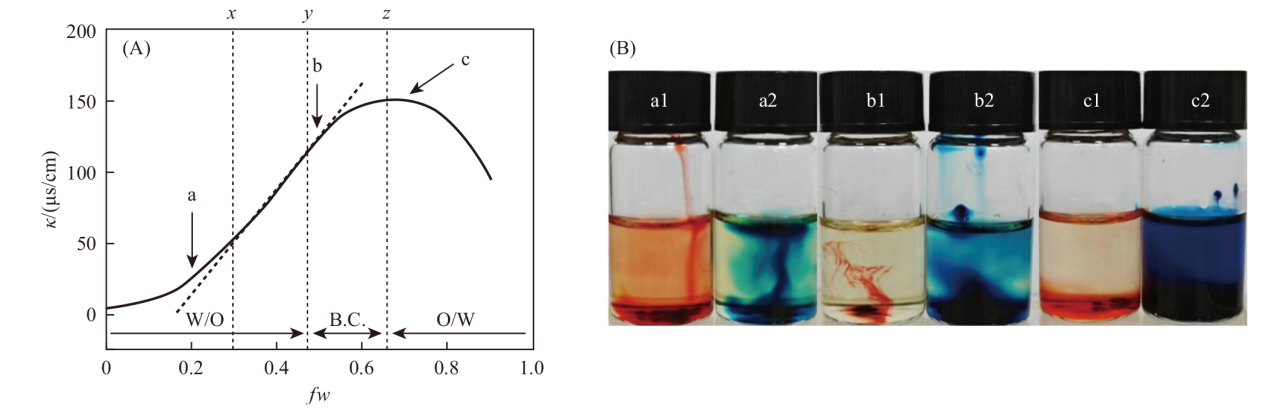

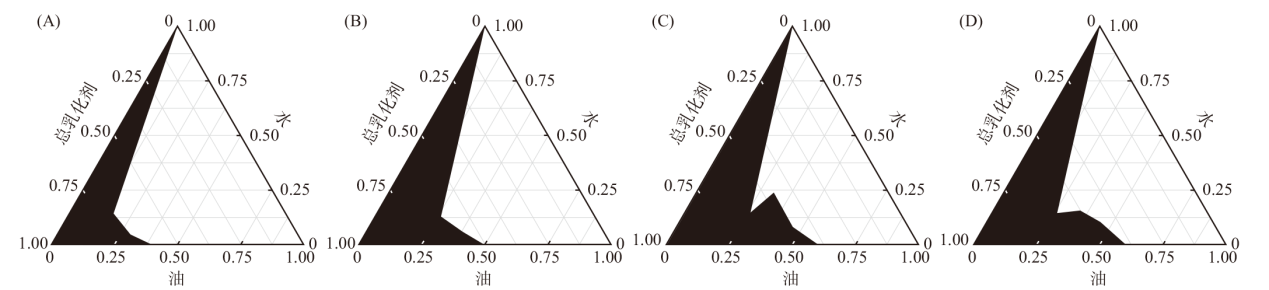

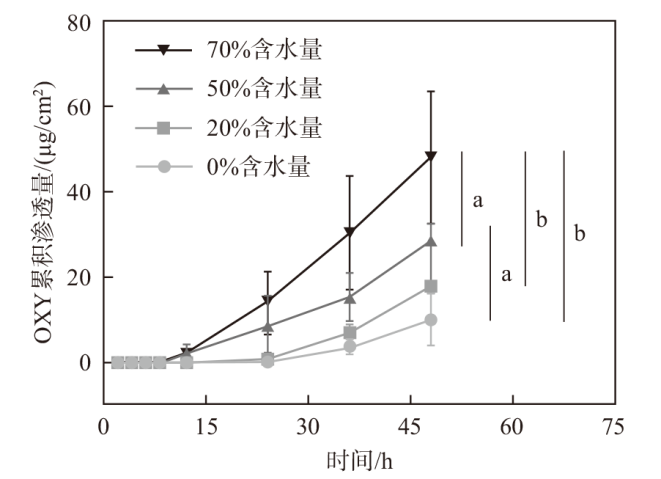

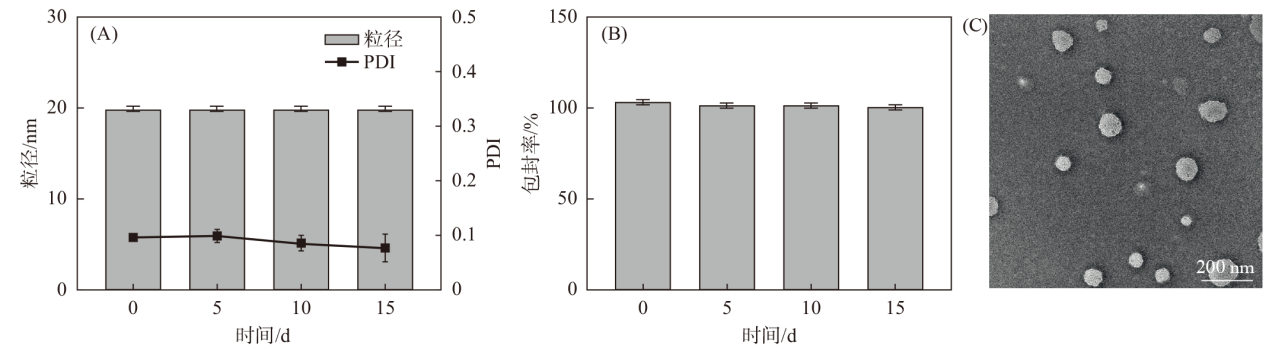

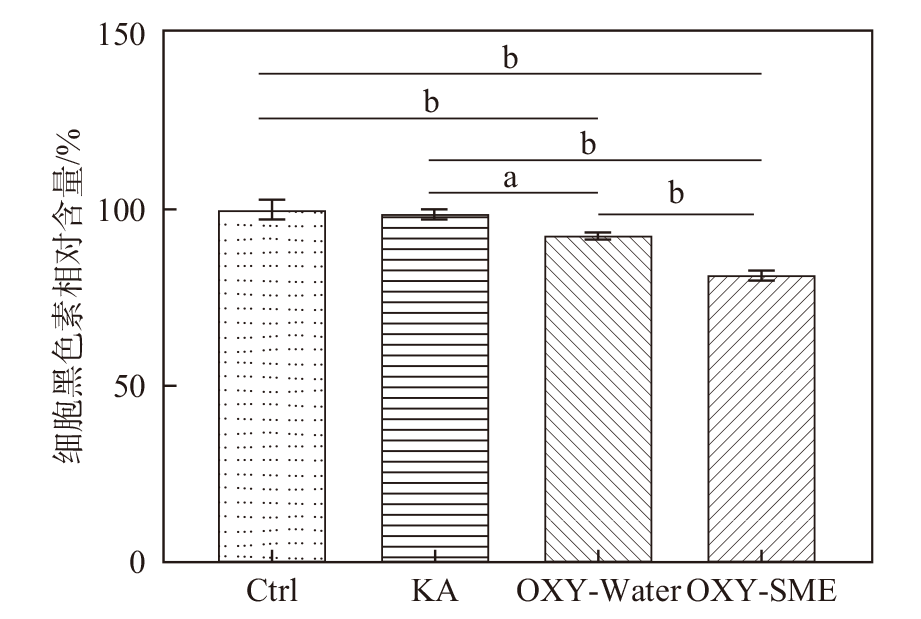

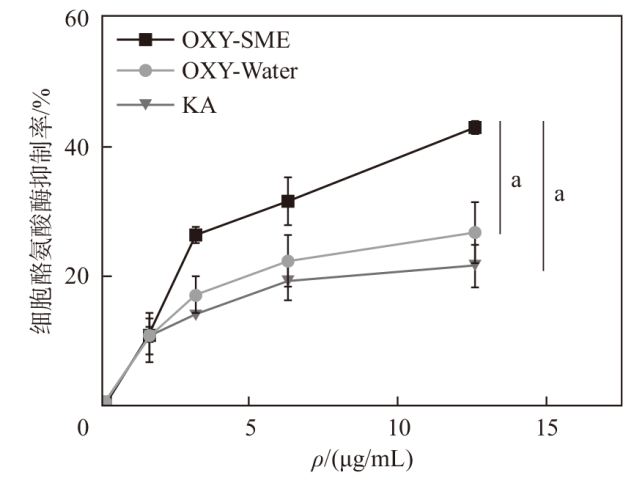

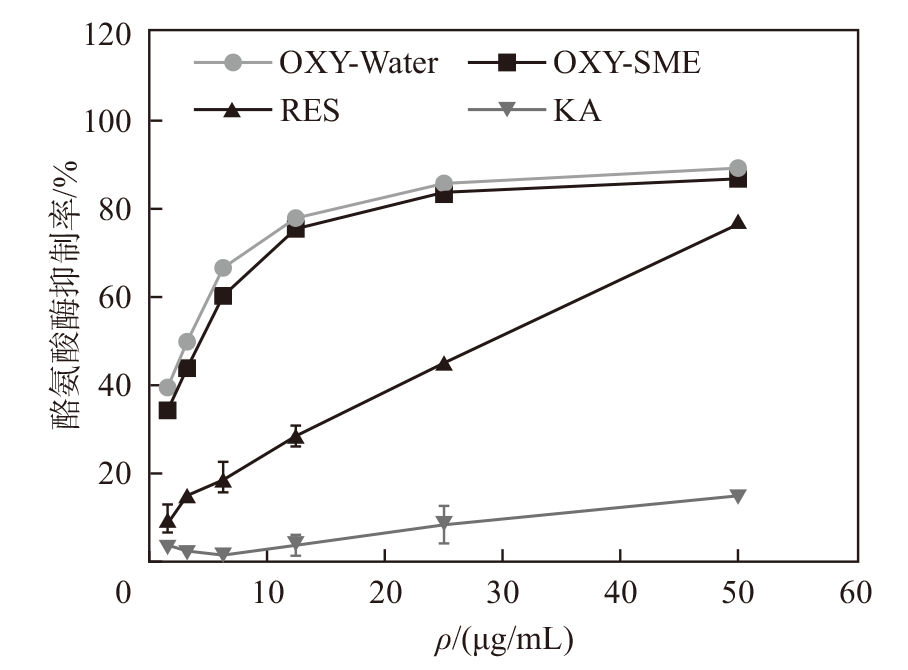

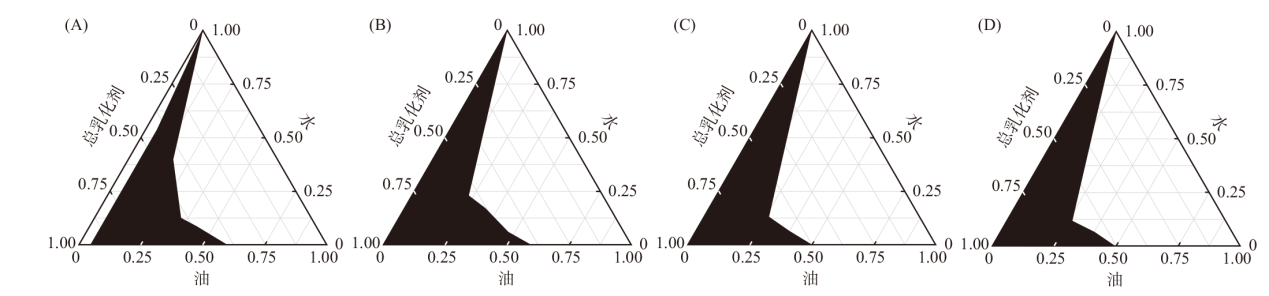

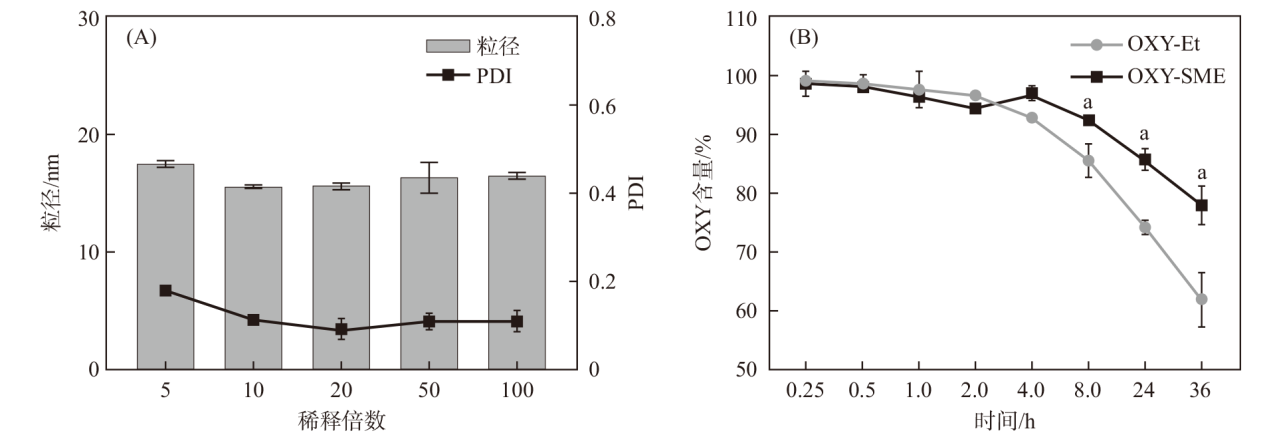

以聚氧乙烯蓖麻油和辛酸癸酸聚乙二醇甘油酯为复合乳化剂制备可高效荷载氧化白藜芦醇（OXY）的自微乳递送系统（OXY-SME），表征其制剂特性，并评价其稳定性、体外透皮效果和美白活性。通过伪三元相图及乳液的粒径和多分散指数（PDI），明确了空白自微乳（SME）的制备处方和OXY的最适载药量。在最适载药量为4%时，OXY-SME的粒径为（18.69±0.29） nm，PDI为0.181±0.017，包封率为99.87%±1.50%，且乳滴呈类球形，并可将OXY的水中溶解度提高约62倍。通过含水量-电导率拟合曲线和染色法，明确了OXY-SME的乳液类型与含水量的关系。通过测定粒径、PDI和OXY含量等评价了OXY-SME在不同条件下的稳定性，结果表明OXY-SME具有良好的贮存稳定性和稀释稳定性，且能有效延缓光照引起的OXY含量下降。利用SD大鼠腹部皮肤考察了OXY-SME的含水量对OXY皮肤渗透的影响，结果表明在含水量为70%即OXY-SME为O/W型时，OXY的48 h皮肤累积渗透量最高。通过测定体外蘑菇酪氨酸酶及B16-F10细胞内酪氨酸酶活性和黑色素含量评价了OXY-SME的美白活性，结果表明OXY-SME对细胞内酪氨酸酶活性和黑色素生成的抑制作用均要强于OXY水溶液组和阳性对照曲酸（KA）组，OXY-SME具有提高OXY细胞内美白活性的作用。

关键词: 氧化白藜芦醇, 自微乳递送系统, 溶解度, 稳定性, 体外皮肤渗透, 美白活性

Abstract:

A self-microemulsifying drug delivery system （OXY-SME） was developed using Cremophor^® EL and Labrasol^® as composite emulsifiers to efficiently load oxyresveratrol （OXY）, and its formulation characteristics, stability, in vitro skin permeation, and whitening activity were evaluated. Through the pseudo-ternary phase diagram and testing the particle size and polydispersity index （PDI） of the emulsion, the formulation for the preparation of blank self-microemulsion （SME） and the optimal drug loading of OXY were determined. At the optimal drug loading of 4%, the particle size of OXY-SME was （18.69±0.29） nm, with a PDI of 0.181±0.017 and an encapsulation efficiency of 99.87%±1.50%. The emulsion droplets were spherical, and the solubility of OXY in water was increased by approximately 62 times. The relationship between emulsion type and water content of OXY-SME was clarified using water content-conductivity fitting curves and staining methods. The stability of OXY-SME under various conditions was evaluated by measuring particle size, PDI, and OXY content. The results indicate that OXY-SME exhibits good storage stability and dilution stability, and effectively delays the decrease in OXY content caused by light exposure. The effect of water content on OXY skin permeation was investigated using the abdominal skin of SD rats, and the results show that the highest cumulative skin permeation of OXY over 48 hours is observed at a water content of 70%, indicating an oil-in-water （O/W） type emulsion. The whitening activity of OXY-SME was evaluated by measuring the activity of mushroom tyrosinase and intracellular tyrosinase in B16-F10 cells, as well as melanin content. OXY-SME exhibits stronger inhibitory effects on intracellular tyrosinase activity and melanin production compared to OXY aqueous solution and kojic acid （KA） as a positive control, demonstrating that OXY-SME enhances intracellular whitening activity of OXY.

Key words: oxyresveratrol, self-microemulsion delivery system, solubility, stability, in vitro skin penetration, whitening activity

中图分类号:

TQ658

苗开元, 欧阳泽垚, 赵新颖, 杨晓婧, 陈欣妍, 石召华. 氧化白藜芦醇自微乳的制备、表征及美白活性的研究[J]. 日用化学工业（中英文）, 2025, 55(4): 453-463.

Kaiyuan Miao, Zeyao Ouyang, Xinying Zhao, Xiaojing Yang, Xinyan Chen, Zhaohua Shi. Preparation, characterization, and whitening activity research of oxyresveratrol-loaded self-microemulsion[J]. China Surfactant Detergent & Cosmetics, 2025, 55(4): 453-463.

图/表 15

表1

图1

图2

表2

图3

表3

表4

图4

图5

图6

图7

图8

图9

图10

图11

参考文献 28

[1]	石径, 姜燕飞, 赵春月. 白藜芦醇延缓皮肤衰老的作用功效及应用研究进展[J]. 轻工学报, 2024, 39(3): 119-126.
[2]	Park J, Park J H, Suh H J, et al. Effects of resveratrol, oxyresveratrol, and their acetylated derivatives on cellular melanogenesis[J]. Arch. Dermatol. Res., 2014, 306(5): 475-487.
[3]	Likhitwitayawuid K. Stilbenes with tyrosinase inhibitory activity[J]. Current Science, 2008: 44-52.
[4]	Park K T, Kim J K, Lim Y H. Evaluation on skin irritation and sensitization of oxyresveratrol and oxyresveratrol-3-O-glucoside produced by biotransformation of Morus alba extract[J]. Korean Journal of Food Science and Technology, 2012, 44(2): 525-529.
[5]	靳佳慧, 马静, 刘征辉, 等. 氧化白藜芦醇溶解性、油水分配系数和胶束制备及其透皮性能的研究[J]. 时珍国医国药, 2019, 30(7): 1615-1618.
[6]	喻艳, 向伟, 刘俊池, 等. 3种二苯乙烯类化合物的稳定性研究[J]. 食品工业科技, 2016, 37(2): 148-151, 155.
[7]	Dokania S, Joshi A K. Self-microemulsifying drug delivery system (SMEDDS)-challenges and road ahead[J]. Drug Deliv, 2015, 22(6): 675-690.
[8]	刘筱雅, 江昌照, 高文彦, 等. 微乳和基于微乳的经皮给药制剂的研究进展[J]. 中国医药工业杂志, 2020, 51(4): 442-449.
[9]	Li Z, Huang J, Zhang Y, et al. Study on the transdermal penetration mechanism of ibuprofen nanoemulsions[J]. Drug Development and Industrial Pharmacy, 2019, 45(3): 465-473. doi: 10.1080/03639045.2018.1546317 pmid: 30444443
[10]	Subongkot T, Sirirak T. Development and skin penetration pathway evaluation of microemulsions for enhancing the dermal delivery of celecoxib[J]. Colloids and Surfaces B: Biointerfaces, 2020, 193: 111103.
[11]	Abd-Elsalam W H, El-Zahaby S A, Al-Mahallawi A M. Formulation and in vivo assessment of terconazole-loaded polymeric mixed micelles enriched with Cremophor EL as dual functioning mediator for augmenting physical stability and skin delivery[J]. Drug Delivery, 2018, 25(1): 484-492. doi: 10.1080/10717544.2018.1436098 pmid: 29411650
[12]	Kim K T, Kim M H, Park J H, et al. Microemulsion-based hydrogels for enhancing epidermal/dermal deposition of topically administered 20(S)-protopanaxadiol: in vitro and in vivo evaluation studies[J]. Journal of Ginseng Research, 2018, 42(4): 512-523. doi: 10.1016/j.jgr.2017.07.005 pmid: 30337812
[13]	Gupta R, Badhe Y, Rai B, et al. Molecular mechanism of the skin permeation enhancing effect of ethanol: a molecular dynamics study[J]. RSC Advances, 2020, 10(21): 12234-12248. doi: 10.1039/d0ra01692f pmid: 35497613
[14]	张璐茜, 朱睿, 孙懿, 等. 基于TPGS的紫杉醇自微乳的制备及其评价[J]. 中国医院药学杂志, 2023, 43(9): 977-982. doi: 10.13286/j.1001-5213.2023.09.07
[15]	Rosso A, Almouazen E, Pontes J, et al. Supersaturable self-microemulsifying delivery systems: an approach to enhance oral bioavailability of benzimidazole anticancer drugs[J]. Drug Delivery and Translational Research, 2021, 11(2): 675-691. doi: 10.1007/s13346-021-00904-x pmid: 33738676
[16]	钟文嘉, 黄益穗, 刘灼波. 基于含水量-电导率拟合曲线模型优化丹参酮提取物微乳的研究[J]. 中国药学杂志, 2024, 59(3): 256-262. doi: 10.11669/cpj.2024.03.009
[17]	杨晓婧, 陈赤清, 苗开元, 等. 寡聚透明质酸修饰的鞣花酸脂质体的制备及体外透皮效果和美白活性的研究[J]. 世界科学技术-中医药现代化, 2023, 25(12): 3856-3865.
[18]	Li J, Lin Z, Tang X, et al. Oxyresveratrol extracted from Artocarpus heterophyllus Lam. inhibits tyrosinase and age pigments in vitro and in vivo[J]. Food Funct, 2020, 11(7): 6595-6607.
[19]	Ait-touchente Z, Zine N, Jaffrezic-renault N, et al. Exploring the versatility of microemulsions in cutaneous drug delivery: opportunities and challenges[J]. Nanomaterials, 2023, 13(10): 1688.
[20]	He J, Zhu Q, Dong X, et al. Oxyresveratrol and ascorbic acid O/W microemulsion: Preparation, characterization, anti-isomerization and potential application as antibrowning agent on fresh-cut lotus root slices[J]. Food Chemistry, 2017, 214: 269-276. doi: S0308-8146(16)31117-7 pmid: 27507475
[21]	Laguёs M, Sauterey C. Percolation transition in water in oil microemulsions. Electrical conductivity measurements[J]. The Journal of Physical Chemistry, 1980, 84(26): 3503-3508.
[22]	韩冰, 郑野, 徐嘉, 等. 微乳体系的制备及其稳定性研究进展[J]. 食品与发酵工业, 2020, 46(24): 284-291. doi: 10.13995/j.cnki.11-1802/ts.025670
[23]	Egito E S T, Amaral-Machado L, Alencar E N, et al. Microemulsion systems: from the design and architecture to the building of a new delivery system for multiple-route drug delivery[J]. Drug Delivery and Translational Research, 2021, 11(5): 2108-2133. doi: 10.1007/s13346-020-00872-8 pmid: 33164165
[24]	Zainuddin N, Ahmad I, Zulfakar M H, et al. Cetyltrimethylammonium bromide-nanocrystalline cellulose (CTAB-NCC) based microemulsions for enhancement of topical delivery of curcumin[J]. Carbohydrate Polymers, 2021, 254: 117401.
[25]	Baroli B. Penetration of nanoparticles and nanomaterials in the skin: fiction or reality?[J]. Journal of Pharmaceutical Sciences, 2010, 99(1): 21-50. doi: 10.1002/jps.21817 pmid: 19670463
[26]	董懿, 康馨月, 王春生. 哺乳动物黑色素生物合成及其调控机制研究进展[J]. 生命科学, 2022, 34(8): 990-1000.
[27]	Li J, Guo H, Ji W, et al. Detection of tyrosinase activity and inhibitor validation based on N-GQDs fluorescence sensor[J]. Journal of Fluorescence, 2024: 1-12.
[28]	Ande N S, Sonone B K, Bakal L R, et al. Role of surfactant and co-surfactant in microemulsion: a review[J]. Research Journal of Pharmacy and Technology, 2022, 15(10): 4829-4834.

K_m	m（Labrasol^®）:m（Cremophor^® EL）	m（油相）:m（总乳化剂）	Size/nm	PDI
2:1	1:1	1:9	217.7±4.62	0.276±0.013
2:1	1:1	2:8	17.65±0.49	0.137±0.005
2:1	1:2	1:9	14.69±0.23	0.072±0.002
2:1	1:2	2:8	23.72±0.80	0.214±0.009
2:1	1:3	1:9	15.20±0.56	0.087±0.003
2:1	1:3	2:8	51.28±1.59	0.567±0.136

K_m	m（Labrasol^®）:m（Cremophor^® EL）	m（油相）:m（总乳化剂）	Size/nm	PDI
1:1	1:2	1:9	17.00±0.22	0.137±0.04
2:1	1:2	1:9	14.69±0.16	0.072±0.02
2:1	1:2	2:8	23.72±0.68	0.214±0.09
3:1	1:2	1:9	13.87±0.22	0.123±0.02
3:1	1:2	2:8	17.38±0.56	0.164±0.04
4:1	1:2	1:9	13.28±0.13	0.195±0.08
4:1	1:2	2:8	17.15±0.25	0.159±0.02

OXY投药量/mg	粒径/nm	PDI	包封率/%	载药量/%
5	17.73±0.39	0.140±0.015	99.43±1.43	0.99±0.01
10	17.35±0.19	0.111±0.012	99.61±1.92	1.99±0.03
15	17.64±0.84	0.109±0.021	101.42±2.46	3.04±0.07
20	18.69±0.29	0.181±0.017	99.87±1.50	3.99±0.06
25	26.74±0.70	0.354±0.011	102.44±0.78	5.12±0.03
30	467.06±29.60	0.695±0.021	101.69±1.76	6.10±0.10
