超高效液相色谱-串联质谱法测定化妆品中36种兴奋剂

doi:10.3969/j.issn.2097-2806.2024.03.016

摘要/Abstract

摘要：

利用超高效液相色谱-串联质谱仪（UPLC-MS/MS），建立了一种同时测定化妆品中蛋白同化制剂、β2激动剂、糖皮质激素、刺激剂、大麻酚类等36种兴奋剂的检测方法。化妆品样品经甲醇超声提取后，以0.1%乙酸水溶液和甲醇-乙腈混合溶液（体积比1∶9）作为流动相，使用Waters ACQUITY UPLC BEH C18色谱柱（3.0 mm×150 mm，1.7 μm）进行梯度分离。目标物在电喷雾正负离子模式下，以多反应监测（MRM）方式进行测定，用外标法定量。结果表明，在1.0~20 ng/mL的质量浓度范围内，36种兴奋剂组分的线性关系良好（r>0.995），检出限为1.0~3.0 μg/kg，定量限为3.3~9.9 μg/kg。3种基质样品在低、中、高3个加标水平下的平均回收率为80.6%~115.3%，相对标准偏差为0.5%~12.9% （n=5）。该方法前处理操作简便，快速，灵敏度高，结果准确，适用于常见化妆品中多类兴奋剂组分的快速检测。

关键词: 超高效液相色谱-串联质谱法, 兴奋剂, 化妆品

Abstract:

An ultra performance liquid chromatography-tandem mass spectrometric （UPLC-MS/MS） method was developed for the simultaneous determination of 36 stimulants including anabolic agents, β2 agonists, glucocorticoids, irritants, and cannabinoids in cosmetics. In this study, pretreatment operation and instruments parameters were also optimized. Cosmetic samples were ultrasonically extracted by methanol, and then the separation of 36 stimulants was carried out on a Waters ACQUITY UPLC BEH C18 column （3.0 mm×150 mm, 1.7 μm） by gradient elution, using 0.1% acetic acid solution and methanol-acetonitrile （1∶9, by volume） as the mobile phase. The 36 target compounds were analyzed in positive and negative electrospray ionization mode under multiple reaction monitoring （MRM） mode. Meanwhile, the analytes were quantified by external standard method, and the linear regression analysis data show that there are good linear relationships for 36 target compounds in the mass concentration range of 1.0-20 ng/mL, with their correlation coefficients （r） greater than 0.995. The limits of detection （LOD） and limits of quantitation （LOQ） of the method are in the ranges of 1.0-3.0 μg/kg and 3.3-9.9 μg/kg, respectively. The recoveries for 36 target compounds in three kinds of matrix samples at three spiked levels are between 80.6% and 115.3%, with the relative standard deviations （RSD） of 0.5%-12.9% （n=5）. The method is simple, rapid, high sensitivity, accurate and suitable for the rapid detection of many stimulants in cosmetics.

Key words: ultra performance liquid chromatography-tandem mass spectrometry, stimulant, cosmetics

中图分类号:

TQ658

徐炜, 邹坡, 李长于, 杨铭, 鹿燕, 李慧良. 超高效液相色谱-串联质谱法测定化妆品中36种兴奋剂[J]. 日用化学工业（中英文）, 2024, 54(3): 360-368.

Wei Xu, Po Zou, Changyu Li, Ming Yang, Yan Lu, Huiliang Li. Determination of 36 stimulants in cosmetics by ultra performance liquid chromatography-tandem mass spectrometry[J]. China Surfactant Detergent & Cosmetics, 2024, 54(3): 360-368.

图/表 7

表1

36种兴奋剂的保留时间及质谱参数"

序号	化合物名称	保留时间/min	电离方式	母离子（m/z）	子离子（m/z）	去簇电压/V	碰撞电压/V
1	沙丁胺醇（Salbutamol）	5.86	ESI+	240.2	148.2^*/166.2	78	26/19
2	丙卡特罗（Procaterol）	6.42	ESI+	291.2	273.3^*/231.1	81	21/29
3	去甲乌药碱（Higenamine）	6.74	ESI+	272.1	107.0^*/255.1	50	31/20
4	麻黄碱（Ephedrine）	7.27	ESI+	166.0	117.0^*/148.3	84	26/17
5	左去氧麻黄碱（Levmetamfetamine）	8.61	ESI+	150.1	91.1^*/119.1	70	23/17
6	士的宁（Strychnine）	8.83	ESI+	335.2	184.2^*/156.2	90	50/60
7	克仑特罗（Clenbuterol）	10.75	ESI+	277.0	203.0^*/132.0	51	23/37
8	妥洛特罗（Tulobuterol）	10.79	ESI+	228.0	154.0^*/119.0	85	23/39
9	海洛因（Heroin）	11.09	ESI+	370.2	268.2^*/165.0	90	38/60
10	可卡因（Cocaine）	11.69	ESI+	304.2	182.3^*/150.1	60	28/35
11	泼尼松（Prednisone）	14.03	ESI+	359.2	147.2^*/341.2	80	35/15
12	泼尼松龙（Prednisolone）	14.07	ESI+	371.2	343.2^*/147.2	80	14/34
13	氢化可的松（Hydrocortisone）	14.24	ESI+	373.2	121.1^*/105.0	80	31/68
14	可的松（Cortisone）	14.28	ESI+	371.2	163.2^*/121.1	80	34/47
15	甲基泼尼松龙（Methylprednisolone）	15.58	ESI+	375.2	339.2^*/161.2	66	14/28
16	倍他米松（Betamethasone）	15.70	ESI+	393.2	355.2^*/337.3	80	15/19
17	地塞米松（Dexamethasone）	15.84	ESI+	393.2	373.4^*/355.2	80	15/15
18	倍氯米松（Beclomethasone）	16.17	ESI+	409.2	391.2^*/279.3	80	15/29
19	氟甲睾酮（Fluoxymesterone）	16.21	ESI+	337.2	241.2^*/131.2	160	35/42
20	群勃龙（Trenbolone）	16.46	ESI+	271.2	253.2^*/199.2	80	26/32
21	曲安奈德（Triamcinolone acetonide）	16.48	ESI+	435.2	339.2^*/397.2	80	15/15
22	氟尼缩松（Flunisolide）	16.69	ESI+	435.2	339.1^*/321.1	80	18/19
23	地夫可特（Deflazacort）	17.78	ESI+	442.3	124.1^*/142.1	80	65/45
24	美雄酮（Metandienone）	17.81	ESI+	301.2	121.1^*/149.2	100	28/23
25	沙美特罗（Salmeterol）	17.82	ESI+	416.2	398.2^*/380.1	100	20/26
26	睾酮（Testosterone）	18.34	ESI+	289.2	97.1^*/109.0	113	29/30
27	孕三烯酮（Gestrinone）	18.97	ESI+	309.1	241.1^*/199.2	120	29/43
28	布地奈德（Budesonide）	19.03	ESI+	431.2	413.2^*/147.1	80	15/42
29	甲睾酮（Methyltestosterone）	19.28	ESI+	303.2	108.9^*/97.0	110	30/29
30	螺内酯（Spironolactone）	19.70	ESI+	341.2	107.2^*/91.0	120	45/79
31	坎利酮（Canrenone）	19.87	ESI+	341.2	107.2^*/91.0	120	45/79
32	雄酮（Androsterone）	22.10	ESI+	291.2	273.3^*/255.0	70	13/21
33	大麻二酚（Cannabidiol）	29.06	ESI-	313.1	245.1^*/179.1	-100	-30/-25
34	环索奈德（Ciclesonide）	30.88	ESI+	541.2	323.2^*/147.0	80	23/35
35	大麻酚（Cannabinol）	30.97	ESI-	309.1	279.1^*/222.1	-120	-40/-55
36	Δ⁹-四氢大麻酚（Δ⁹-tetrahydrocannabinol）	31.90	ESI-	313.1	245.1^*/191.1	-130	-34/-34

表1

图1

图2

图3

表2

36种兴奋剂的线性回归方程、相关系数、检出限和定量限"

序号	化合物名称	线性方程	r	检出限/（μg/kg）	定量限/（μg/kg）
1	沙丁胺醇	y=182 701 x+34 609.0	0.999 0	1.0	3.3
2	丙卡特罗	y=65 487 x+13 728.5	0.998 9	2.8	9.3
3	去甲乌药碱	y=15 446 x-5 724.6	0.999 8	1.0	3.3
4	麻黄碱	y=30 735 x+8 600.2	0.998 7	1.0	3.3
5	左去氧麻黄碱	y=361 921 x+94 797.6	0.998 1	1.0	3.3
6	士的宁	y=46 669 x+10 620.5	0.999 6	1.0	3.3
7	克仑特罗	y=312 267 x+61 973.0	0.998 4	1.0	3.3
8	妥洛特罗	y=346 559 x+74 408.5	0.999 2	1.0	3.3
9	海洛因	y=28 115 x+3 889.7	0.999 9	1.1	3.6
10	可卡因	y=534 736 x+102 549.0	0.999 5	1.7	5.7
11	泼尼松	y=22 469 x+5 151.9	0.998 3	1.0	3.4
12	泼尼松龙	y=112 145 x+25 809.5	0.999 0	2.0	6.7
13	氢化可的松	y=31 039 x+6 999.1	0.999 2	2.0	6.5
14	可的松	y=46 518 x+12 035.4	0.999 3	2.1	7.0
15	甲基泼尼松龙	y=51 899 x+8 369.7	0.999 8	1.4	4.8
16	倍他米松	y=55 382 x+9 860.9	0.999 0	1.0	3.3
17	地塞米松	y=86 958 x+17 910.5	0.998 4	1.0	3.3
18	倍氯米松	y=147 290 x+38 076.2	0.998 9	1.0	3.3
19	氟甲睾酮	y=24 862 x+6 182.6	0.999 2	1.0	3.4
20	群勃龙	y=83 150 x+26 785.4	0.996 9	1.0	3.3
21	曲安奈德	y=26 502 x+7 257.9	0.996 9	1.0	3.3
22	氟尼缩松	y=47 515 x+10 044.9	0.998 1	1.0	3.3
23	地夫可特	y=20 043 x+5 025.8	0.999 5	1.0	3.3
24	美雄酮	y=172 129 x+46 234.9	0.998 9	1.0	3.3
25	沙美特罗	y=258 896 x+28 276.8	0.999 0	1.0	3.3
26	睾酮	y=138 465 x+21 686.9	0.999 1	1.0	3.3
27	孕三烯酮	y=82 263 x+18 661.3	0.998 3	1.0	3.3
28	布地奈德	y=98 681 x+28 670.2	0.998 0	2.9	9.7
29	甲睾酮	y=65 812 x+15 059.5	0.998 1	1.7	5.5
30	螺内酯	y=24 197 x+5 817.9	0.999 5	2.9	9.7
31	坎利酮	y=43 612 x+6 307.8	0.999 8	1.0	3.3
32	雄酮	y=52 912 x+12 100.1	0.998 9	3.0	9.9
33	大麻二酚	y=85 066 x+1 469.1	0.998 5	1.0	3.3
34	环索奈德	y=38 549 x+12 054.4	0.996 6	2.5	8.3
35	大麻酚	y=86 412 x+11 753.7	0.996 8	1.0	3.3
36	Δ⁹-四氢大麻酚	y=9 957 x+1 878.3	0.995 6	1.0	3.3

表2

表3

36种兴奋剂的回收率和精密度（n=5）"

序号	化合物名称	水剂		膏霜		蜡基
序号	化合物名称	回收率/%	RSD/%	回收率/%	RSD/%	回收率/%	RSD/%
1	沙丁胺醇	86.3~100.0	0.9~8.9	83.8~85.6	1.5~2.0	84.6~92.6	0.9~2.4
2	丙卡特罗	86.5~101.1	0.7~7.8	86.8~95.6	2.8~6.3	85.1~93.9	2.9~4.4
3	去甲乌药碱	83.6~103.4	3.0~12.9	81.3~88.1	4.2~12.5	80.9~88.9	2.9~3.4
4	麻黄碱	88.7~98.9	1.6~8.2	85.3~89.1	0.5~2.8	89.5~95.2	1.0~1.8
5	左去氧麻黄碱	96.1~101.2	2.1~3.2	84.6~105.0	1.4~3.7	93.5~100.3	0.9~2.0
6	士的宁	87.7~100.4	1.7~8.9	86.7~95.0	1.2~3.2	91.1~105.7	0.8~3.1
7	克仑特罗	100.9~106.1	1.3~4.4	84.3~89.5	1.1~2.6	92.1~98.8	1.1~1.7
8	妥洛特罗	99.0~102.4	1.1~3.6	81.3~86.0	1.8~3.1	92.5~99.2	0.8~2.0
9	海洛因	88.8~95.2	1.1~3.9	86.5~95.2	0.9~4.1	86.4~102.6	1.8~5.7
10	可卡因	95.4~101.4	1.2~4.9	86.6~90.2	0.7~2.2	95.5~99.7	0.5~1.7
11	泼尼松	94.3~104.1	1.3~3.6	86.7~110.5	2.3~3.6	94.3~105.6	2.5~4.7
12	泼尼松龙	94.8~102.1	1.6~4.6	85.3~104.7	1.5~2.3	94.8~98.4	1.7~2.7
13	氢化可的松	94.3~104.6	3.4~6.4	86.9~106.1	2.2~3.2	93.1~93.6	1.8~3.7
14	可的松	94.8~101.7	1.8~3.7	90.4~105.9	0.9~3.8	89.6~102.2	3.3~3.6
15	甲基泼尼松龙	93.2~100.6	2.4~4.6	87.0~109.7	1.1~2.9	93.1~99.6	1.5~2.3
16	倍他米松	97.0~99.7	1.6~3.0	83.8~111.6	1.6~4.6	92.8~101.6	1.2~2.3
17	地塞米松	92.9~100.1	2.4~3.5	83.5~104.8	1.2~4.3	94.6~98.8	1.6~2.3
18	倍氯米松	94.7~98.9	1.2~3.3	86.5~109.3	1.7~2.7	92.7~101.9	0.7~2.5
19	氟甲睾酮	87.3~100.2	3.8~4.6	87.6~102.4	3.9~8.1	93.1~96.6	2.2~4.5
20	群勃龙	93.8~103.9	1.4~2.5	86.0~106.0	2.1~4.8	95.9~98.7	1.1~2.8
21	曲安奈德	96.2~106.3	2.8~3.0	88.9~111.9	2.5~5.6	94.8~103.9	0.5~4.2
22	氟尼缩松	97.1~104.7	2.6~4.6	82.8~108.8	2.8~4.9	88.1~97.4	2.0~4.7
23	地夫可特	91.6~95.7	3.6~4.8	86.5~103.9	3.5~7.1	90.7~97.6	1.7~3.4
24	美雄酮	88.5~102.5	1.4~4.0	86.6~111.3	2.6~3.9	91.5~97.0	1.8~2.9
25	沙美特罗	95.1~102.8	0.7~5.9	90.2~107.3	2.1~3.4	93.1~100.9	1.5~2.1
26	睾酮	91.8~100.2	2.0~2.6	90.0~111.7	1.6~2.7	93.5~98.1	1.8~2.9
27	孕三烯酮	93.9~103.5	1.9~4.0	82.6~90.1	2.4~4.9	94.8~98.2	2.3~3.2
28	布地奈德	88.7~101.5	1.4~4.0	83.5~96.1	2.3~4.2	91.4~100.1	2.2~3.7
29	甲睾酮	89.4~99.3	3.2~5.2	89.7~106.5	3.3~5.0	92.9~101.5	3.7~5.9
30	螺内酯	90.3~98.8	1.7~6.1	103.5-114.4	2.1~7.5	85.6~95.2	4.0~5.6
31	坎利酮	90.2~104.3	1.2~4.0	94.6~100.6	1.6~2.7	88.1~96.9	3.7~5.2
32	雄酮	94.1~114.7	1.9~5.7	103.6~111.3	3.2~10.6	80.9~87.4	3.9~5.1
33	大麻二酚	80.6~99.3	2.9~5.0	90.1~113.9	1.3~5.5	93.1~96.8	1.7~2.7
34	环索奈德	100.0~101.7	2.2~4.8	88.9~100.5	2.5~7.3	92.2~102.5	1.5~3.0
35	大麻酚	86.4~106.4	3.0~8.7	97.4~115.3	2.9~11.7	84.3~95.6	2.4~5.7
36	Δ⁹-四氢大麻酚	90.9~102.6	4.7~9.2	94.0~114.1	3.6~10.6	88.1~98.4	2.4~6.8

表3

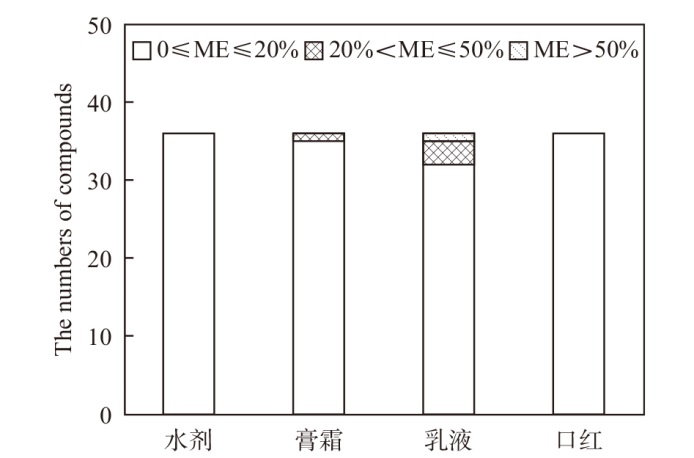

图4

参考文献 23

[1]	Shi Jian, Tan Bi. Research status of stimulant pollution in food[J]. Journal of Food Safety and Quality, 2022, 13 (7) : 2217-2223.
[2]	Darke S, Torok M, Duflou J. Sudden or unnatural deaths involving anabolic-androgenic steroids[J]. Journal of Forensic Science, 2014, 59 (4) : 1025-1028. doi: 10.1111/jfo.2014.59.issue-4
[3]	Sjöqvist F, Garle M, Rane A. Use of doping agents, particularly anabolic steroids, in sports and society[J]. Lancet, 2008, 371 (9627) : 1872-1882. doi: 10.1016/S0140-6736(08)60801-6 pmid: 18514731
[4]	Baron D A, Martin D M, Magd S A. Doping in sports and its spread to at-risk populations: an international review[J]. World Psychiatry, 2007, 6 (2) : 118-123.
[5]	Lachenmeier D W, Diel P. A warning against the negligent use of cannabidiol in professional and amateur athletes[J]. Sports, 2019, 7 (12) : 251. doi: 10.3390/sports7120251
[6]	Kambhampati A, Star S. Playing true? A critique of the 2021 WADA code[J]. The International Sports Law Journal, 2021, 21 (4) : 223-242. doi: 10.1007/s40318-021-00193-z
[7]	Thevis M, Kuuranne T, Fedoruk M, et al. Sports drug testing and the athletes’ exposome[J]. Drug Testing and Analysis, 2021, 13 (11-12) : 1814-1821. doi: 10.1002/dta.3187 pmid: 34694748
[8]	Nissen‐Meyer J, Skotland T, Boye E. Are doping tests in sports trustworthy? Athletes suffer from insufficiently defined criteria for doping tests[J]. EMBO Reports, 2022, 23 (3) : e54431. doi: 10.15252/embr.202154431
[9]	Fiori J, Andrisano V. LC-MS method for the simultaneous determination of six glucocorticoids in pharmaceutical formulations and counterfeit cosmetic products[J]. Journal of Pharmaceutical and Biomedical Analysis, 2014, 91: 185-192. doi: 10.1016/j.jpba.2013.12.026 pmid: 24463045
[10]	Li Jinrui, Ma Qiang, Meng Xianshuang, et al. Simultaneous determination of 15 prohibited androgens in anti-acne cosmetics by ultra performance liquid chromatography-tandem mass spectrometry[J]. Journal of Instrumental Analysis, 2015, 34 (1) : 43-49.
[11]	Lyo Qiongfang, Peng Ming, Liang Huiming, et al. Simultaneous determination of 63 kinds of hormones in cosmetics by UPLC-MS/MS[J]. Analytical Instrumentation, 2021 (5) : 24-29.
[12]	Yang Piaopiao, Liu hong, Li Lixia. Detection of 76 glucocorticoids in cosmetics by automatic solid-phase extraction and LC/MS/MS[J]. China Surfactant Detergent & Cosmetics, 2021, 51 (5) : 468-476.
[13]	Lyo Xiaohui, Luo Huitai, Huang Xiaolan, et al. Determination of 31 alkaloids in essential oil cosmetics by high performance liquid chromatography-tandem mass spectrometry[J]. Journal of Instrumental Analysis, 2020, 39 (4) : 441-448.
[14]	Lyo Xiaohui, Luo Huitai, Huang Xiaolan, et al. Determination of nine banned alkaloids in cosmetics by high performance liquid chromatography-tandem mass spectrometry[J]. Journal of Chinese Mass Spectrometry Society, 2021, 42 (1) : 73-82. doi: 10.7538/zpxb.2019.0054
[15]	Li Jun, Zhu Xuewen, Wan Huihua, et al. Progress on chemical constituents and analytical methods of cannabinoids in cannabis sativa[J]. Chinese Traditional and Herbal Drugs, 2020, 51 (24) : 6414-6425.
[16]	Li Shuo, Wang Haiyan, et al. Determination of cannabidiol in cosmetics by ultra-performance liquid chromatography-tandem mass spectrometry[J]. China Surfactant Detergent & Cosmetics, 2021, 51 (2) : 166-170.
[17]	Chen Dandan, Peng Xingsheng, Zheng Rong. Study on the quality of cosmetics based on the content of cannabidiol and Δ⁹-tetrahydrocannabinol[J]. Journal of Pharmaceutical Analysis, 2022, 42 (2) : 346-351.
[18]	Lu Li, Feng Youlong, et al. Determination of 15 caine-type prohibited ingredients in cosmetics by solid phase extraction-high performance liquid chromatography[J]. China Surfactant Detergent & Cosmetics, 2021, 51 (8) : 795-801.
[19]	Cao Hairong, Li Dan, Xue Xiaokang, et al. Determination of seven prohibited substances residues in cosmetics by ultra performance liquid chromatography-triple quadrupole mass spectrometry (UPLC-MS/MS)[J]. Chemical Research and Application, 2019, 31 (7) : 1387-1393.
[20]	Yang Mang, He Sirui, Zhang Dan, et al. Study on determination of higenamine in Chinese medicinal materials by LC-MS/MS[J]. China Measurement & Test, 2018, 44 (3) : 61-65.
[21]	Wang Han, Tang Yizhu, Zhao Xiaoya, et al. Determination of higenamine in Chinese herbal medicine,condiments, and topical medicine by QuEChERS combined with liquid chromatography-tandem mass spectrometry[J]. Chinese Journal of Chromatography, 2019, 37 (10) : 1036-1041. doi: 10.3724/SP.J.1123.2019.01055
[22]	Wang Liqi, He Limin, Zeng Zhenling, et al. Progress in matrix effect of veterinary drug residue analysis by high-performance liquid chromatography tandem mass spectrometry[J]. Journal of Chinese Mass Spectrometry Society, 2011, 32 (6) : 321-332.
[23]	Matuszewski B K, Constanzer M L, Chavez-Eng C M. Strategies for the assessment of matrix effect in quantitative bioanalytical methods based on HPLC-MS/MS[J]. Analytical Chemistry, 2003, 75 (13) : 3019-3030. doi: 10.1021/ac020361s pmid: 12964746
