顶空-气相色谱法测定化妆品中甲基丙烯酸甲酯含量

doi:10.3969/j.issn.1001-1803.2020.08.012

摘要/Abstract

摘要：

建立了化妆品中甲基丙烯酸甲酯的顶空-气相色谱测定方法。样品经丙酮溶解后,采用顶空-气相色谱-氢火焰离子化检测器检测,以外标法定量。方法检出限为6 mg/kg,定量限为20 mg/kg。甲基丙烯酸甲酯在10~500 mg/L范围内线性关系良好,相关系数r为0.999 7,在水基类、粉类、霜乳类、油类化妆品中的平均回收率为98.2%~103.0%,相对标准偏差为2.8%~7.6％。方法前处理简单,灵敏度高,经过8家检测机构的验证,准确可靠,可满足水基类、粉类、霜乳类以及油类化妆品中甲基丙烯酸甲酯的检测要求。

关键词: 化妆品, 甲基丙烯酸甲酯, 顶空-气相色谱

Abstract:

A new method was developed for the determination of methyl methacrylate （MMA） in cosmetics by headspace gas chromatography （HS-GC）. After being dissolved in acetone, the samples were determined by headspace gas chromatography-hydrogen flame ionization detector （HS-GC-FID） and quantified by external standard method. The LOD and LOQ of method were 6 and 20 mg/kg, respectively. There existed a good linearity for the MMA in the mass concentration range of 10~500 mg/L, with the correlation coefficient of 0.999 7. The average recoveries of MMA in the cosmetics （water-based, powder, emulsion, oiliness） were in the ranges of 98.2%~103.0% with their RSDs of 2.8%~7.6％. The optimized method is accurate, rapid and sensitive with simple pretreatment. It has been validated by eight testing institutions , and is suitable for the determination of MMA in cosmetics （water-based, powder, emulsion, oiliness）.

Key words: cosmetics, methyl methacrylate, headspace gas chromatography

中图分类号:

TQ658

郑国灿,陈江,王晶,彭光宇. 顶空-气相色谱法测定化妆品中甲基丙烯酸甲酯含量[J]. 日用化学工业, 2020, 50(8): 576-580.

ZHENG Guo-can,CHEN Jiang,WANG Jing,PENG Guang-yu. Determination of methyl methacrylate in cosmetics by headspace gas chromatography[J]. China Surfactant Detergent & Cosmetics, 2020, 50(8): 576-580.

图/表 5

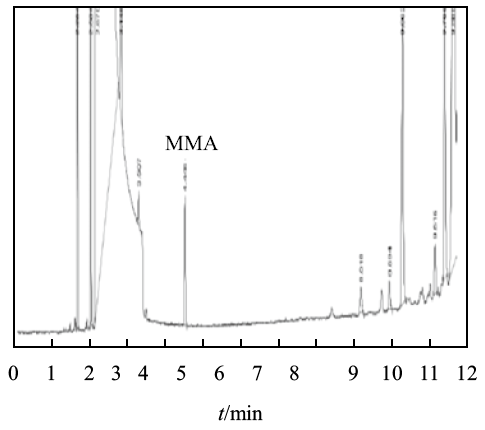

图 1

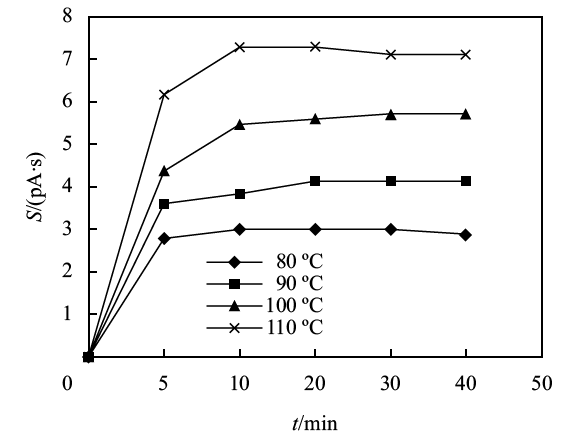

图 2

表 1

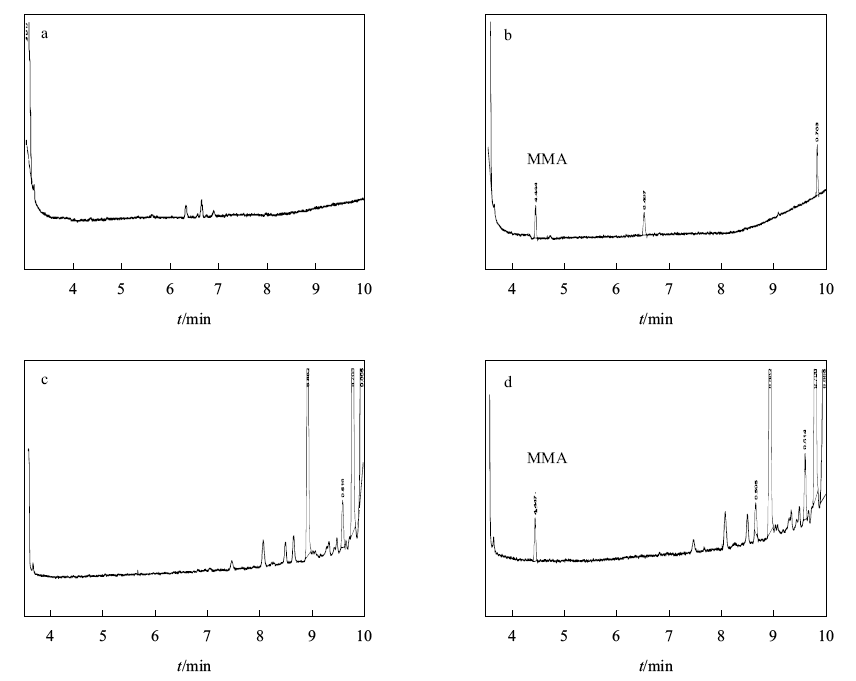

图 3

表 2

参考文献 20

[1]	Xiong Zengheng, Lin Yan, Lin Shaohua, et al. Optimization of graft polymerization conditions of methyl methacrylate onto pineapple leaf fibers and characterization of copolymers[J]. Biomass Chemical Engineering, 2017,51(6) : 11-18.
[2]	Shao Hongjuan, Tian Xiaohui, Sun Jinyu. Inclusion polymerization of β-cyclodextrin with methyl methacrylate for modifying natural rubber latex[J]. China Synthetic Rubber Industry, 2016,39(4) : 289-293.
[3]	Zhang Quan, Li Shen, Wang Qingqing, et al. Preparation and characterization of photodynamic antimicrobial poly （methyl mecthacrylate-co-methacrylic acid） electrospun nanofibrous membrane[J]. Journal of Textile Research, 2017,38(2) : 1-6. doi: 10.1177/004051756803800101
[4]	Luo Fusheng, Han Aijun, Yang Yi, et al. Preparation and application in cosmetic of PMMA-TiO₂ compounded micro-spheres[J]. China Surfactant Detergemt & Cosmetics, 2002,32(2) : 40-42.
[5]	Wang Chunhua, Chen Xi, Cao Shuyi. Toxic effect of MMA to the reproductive system of male rats[J]. Occup and Health, 2011,27(9) : 970-972.
[6]	Ouyang Guoshun, Hao Aigong, Fan Zhongna. et al. Chronic and epidemiological investigation of methyl methacrylate[J]. Chinese Journal of Industrial Hygiene and Occupational Diseases, 1990,8(1) : 7-11.
[7]	[ National Health Commission of the People’s Republic of China National food safety standard- general safety requirements for food contact materials and products: GB 4806.1—2016 [S]. Beijing: China Standard Press, 2016.
[8]	Tang Fangliang, Zhu Wen. Separation and determination of ethyl acrylate and methyl methacrylate in ambient air by gas chromatography[J]. Analysis and Testing Technology and Instruments, 2000,6(2) : 115-118.
[9]	Zhu Yanjun, Cheng Hesheng, Hu Yan, et al. Detecting content of trace MMA from composite materials of artificial skull with gas phase chromatography method[J]. New Chemical Materials, 2003,31(12) : 31-32.
[10]	Wu Caiyu, Zeng Chongyu. Gas chromatographic analysis of methyl methacrylate and methanol in its esterification mixture[J]. Chinese Journal of Chromtography, 1997,15(5) : 456-457.
[11]	Ou Yunfu, Yin Pinghe, Zhao Ling, et al. Analysis of deleterious emission in sculpturing organic glass using GC MS coupled with 3-step preconcentrator[J]. Chinese Journal of Analysis Laboratory, 2006,25(4) : 68-71.
[12]	Wang Yao, Yin Pinghe. GC-MS determination of organic pollutants in air of laser carving workshop[J]. PTCA (Part B: Chem. Anal.) , 2008,44(5) : 458-463.
[13]	National Health Commission of the People’s Republic of China. National food safety standard-food contact materials and products- determination of the migration of methyl methacrylate: GB 31604.29—2016 [S]. Beijing: China Standard Press, 2016.
[14]	Xu Huanbin, Zhang Dongmei, Zhao Yuanguang. The determination of the residual monomers in PMMA by using ultrasonic[J]. China Plastics Industry, 2014,42(2) : 104-106.
[15]	Zhao Hongyan, Cao Guofan, Zhang Xiaoling, et al. Head-Space-Gas chromatographic determination of amount of methyl methacrylate released from bone cement[J]. PTCA (Part B: Chem. Anal.) , 2009,45(6) : 707-709.
[16]	Administration of Quality Supervision, Inspection and Quarantine of the people’s Republic of China. Food contact materials and products- polymethylmethacrylate （PMMA） determination of methyl methacrylate gas chromatography: SN/T 3183—2012 [S]. Beijing: China Standard Press, 2012.
[17]	Wei Zheng, Huang Hong. Determination of residual monomer MMA in MMA-CR system by headspace sampling method[J]. Chemistry &Bioengineering, 2009,26(8) : 83-84, 94.
[18]	Ma Ming, Qing Jiang, Zhou Yun, et al. Head-space GC determination of migrated amount of methyl methacrylate from products of PMMA[J]. PTCA (Part B: Chem. Anal.) , 2013,49(12) : 1486-1488, 1492.
[19]	Hiroyuki O, Motoh M, Yoko K. Identification and quantitation of volatile organic compounds in poly （methyl methacrylate） kitchen utensils by headspace gas chromatography-mass spectrometry[J]. Journal of AOAC International. 2014,97(5) : 1452-1458. doi: 10.5740/jaoacint.12-425
[20]	Tiago F A, Sousa Marta C, Aniceto Célia G, et al. Vortex-assisted liquid-liquid micro-extraction and high-performance liquid chromatography for a higher sensitivity methyl methacrylate determination in biological matrices[J]. Biomedical Chromatography, 2014,28(5) : 680-685. doi: 10.1002/bmc.3089 pmid: 24265023

基质	添加水平/（mg·kg^-1）	平均回收率/%	RSD/%
	20	99.0	4.4
水基类	40	103.0	5.3
	200	101.9	4.0
	20	99.9	7.6
粉类	40	98.2	6.5
	200	101.3	5.4
	20	100.9	4.0
霜乳类	40	101.6	6.1
	200	101.8	4.9
	20	98.9	5.0
油类	40	99.8	2.8
	200	101.2	3.5

基质	添加水平/（mg·kg^-1）	平均回收率/%	RSD/%
	20	96.72	5.65
水基类	40	93.79	7.18
	200	98.47	4.54
	20	97.91	6.98
粉类	40	95.09	6.02
	200	97.51	5.28
	20	99.17	6.14
霜乳类	40	94.4	6.92
	200	95.77	7.16
	20	94.04	6.28
油类	40	92.84	7.12
	200	97.86	4.89
