亚油酸钠协同二元表面活性剂体系中金红石的浮选特性及机理

doi:10.3969/j.issn.1001-1803.2020.06.004

摘要/Abstract

摘要：

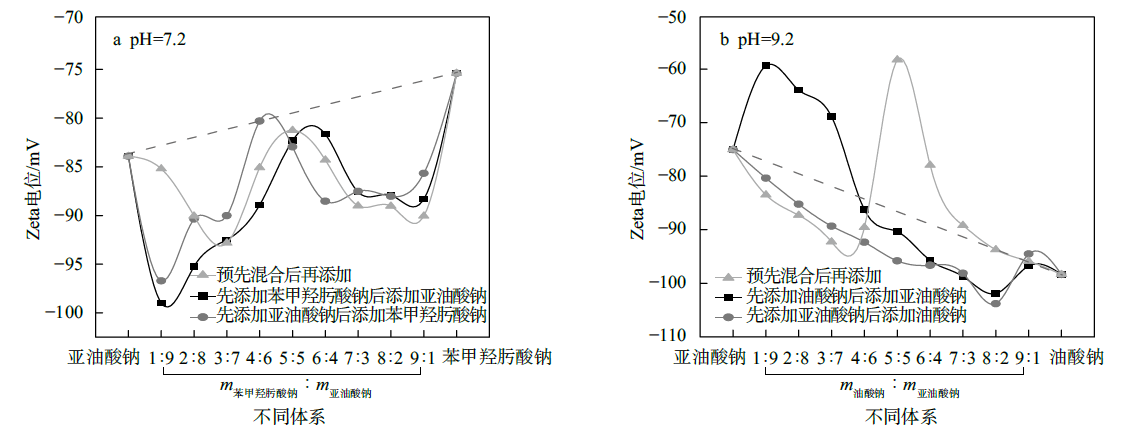

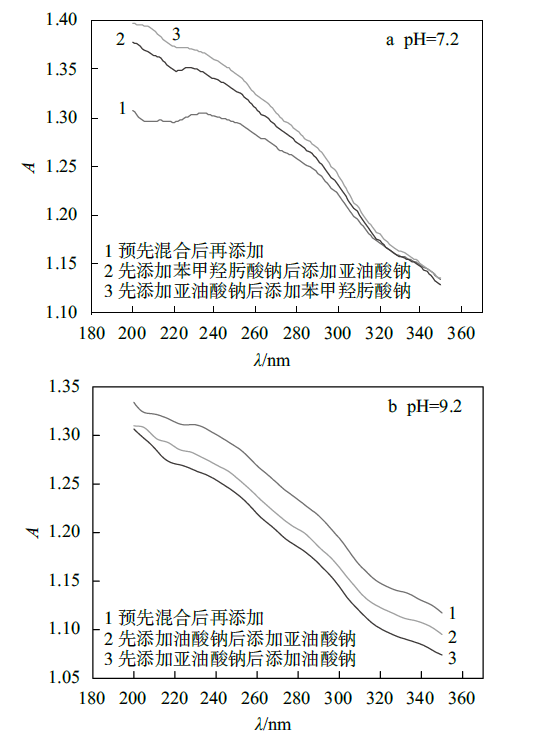

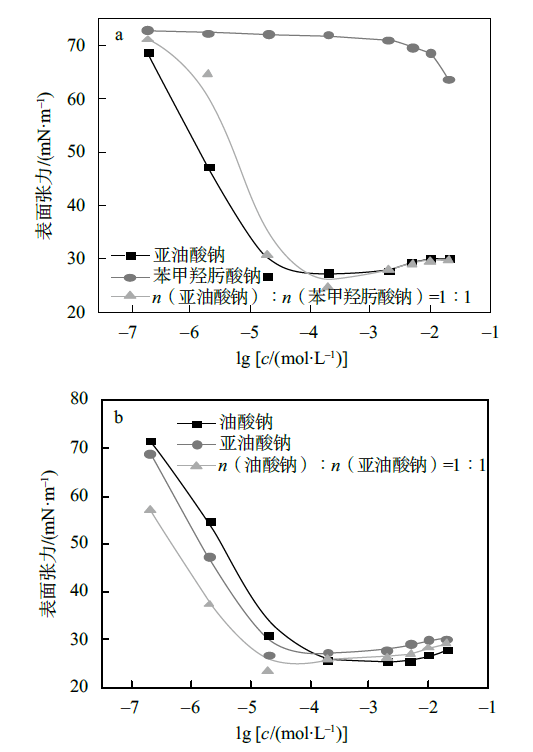

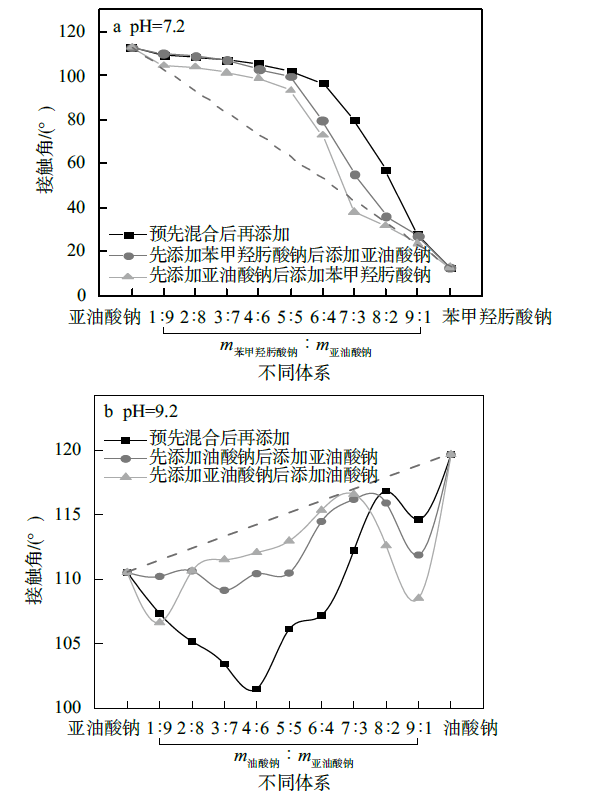

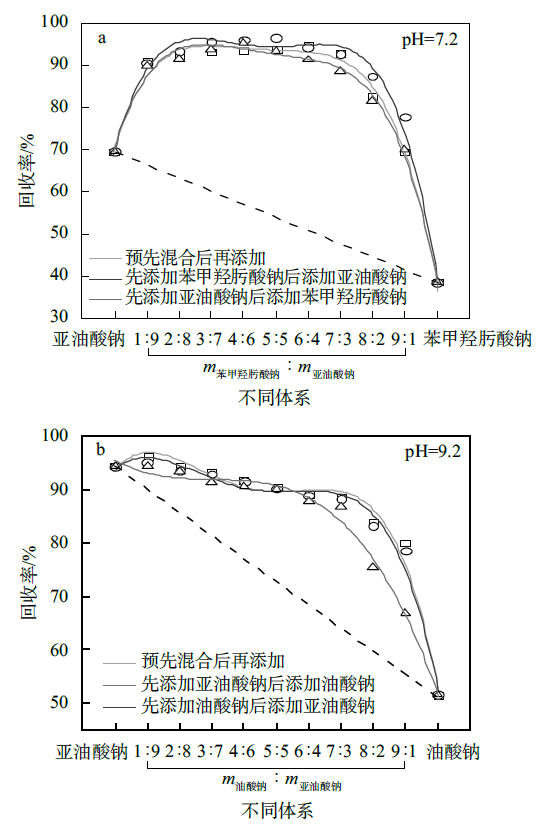

利用单矿物浮选试验分别研究了金红石在亚油酸钠与油酸钠或苯甲羟肟酸钠组成的二元表面活性剂体系中的浮选行为,采用Zeta电位、表面张力、接触角、紫外漫反射吸收光谱等手段从气/液、固/液界面探讨了组合药剂之间及组合药剂在金红石表面的作用机制。结果表明,药剂添加顺序对金红石浮选行为有较大影响,亚油酸钠与苯甲羟肟酸钠的协同效应指数要高于亚油酸钠和油酸钠组合体系;组合药剂在金红石表面的吸附可分为单层诱导共吸附和缔合物多层吸附两大类,分子间的缔合作用力及缔合产物的吸附状态是影响组合药剂协同作用及金红石浮选行为的关键因素;苯甲羟肟酸钠和亚油酸钠体系中不同药剂添加顺序下金红石浮选行为与其带隙宽度的变化有较好的一致性,而油酸钠和亚油酸钠体系中则未发现明确的对应关系。

关键词: 组合表面活性剂, 表面张力, 疏水缔合, 金红石浮选

Abstract:

Flotation performances of rutile in binary systems of sodium linoleate （SL） / sodium oleate （SO） and sodium linoleate （SL） / benzohydroxamic acid sodium salt （BHA） were investigated through pure mineral flotation test. Measurements such as Zeta potential, surface tension, contact angle and UV diffuse reflectance spectroscopy were applied to discuss the interaction mechanism between reagents as well as the reagents onto mineral surface. The results indicated that the adding sequence of reagents had a significant influence on rutile flotation behavior and the synergistic effect index of SL/BHA system was better than that of SL/SO system. The adsorption modes of mixed surfactants on rutile surface could be divided into two major categories: ionic co-adsorption and association adsorption. The intermolecular interaction between the reagents and the adsorption properties of the association complexes were critical for the synergistic effect and the rutile flotation in different systems. The flotation behaviors of rutile at different reagent adding orders were consistent with the variations of bandgap width in SL/BHA system while no distinct corresponding relationship was found in SL/SO system.

Key words: mixed surfactants, surface tension, hydrophobic association, rutile flotation

中图分类号:

TQ423

刘明宝,王婷,王玉雨,刘虎岗,李智. 亚油酸钠协同二元表面活性剂体系中金红石的浮选特性及机理[J]. 日用化学工业, 2020, 50(6): 379-386.

LIU Ming-bao,WANG Ting,WANG Yu-yu,LIU Hu-gang,LI Zhi. Flotation properties and mechanism of rutile in binary surfactant systems containing sodium linoleate[J]. China Surfactant Detergent & Cosmetics, 2020, 50(6): 379-386.

图/表 10

图 1

图 3

图 2

表 1

表 2

图 4

表 3

图 5

图 6

图 7

参考文献 16

[1]	Wang Liping, Wang Gao, Gao Qi, et al. Distribution and production status of titanium resources in China[J]. Chinese Journal of Rare Metals, 2004,28(1) : 265-267.
[2]	Chen Kezhuan, Liu Xianming, Sun Xiangyuan. Analysis for the supply-demand situation and utilization and development prospect of rutile in Xinyi[J]. Modern Ming, 2013 (4) : 126-127.
[3]	Yue Tiebing, Wei Dezhou, Cao Jincheng, et al. Study on the flotation process of fine rutile ore[J]. IM&P, 2005 (3) : 1-3.
[4]	Gao Likun. Distribution floatation theoretic and theoretical research on refractory fine rutile ore[D]. Kunming: Kunming University of Science and Technology, 2009.
[5]	Zhu Jianguang. Collector and regulator for rutile flotation[J]. Metallic Ore Dressing Abord, 2008 (2) : 3-8.
[6]	Gao Likun, Zhang Zonghua, Wang Yajing. Experimental study on mineral processing of a refractory microfine rutile mine in Shanxi[J]. Ming and Metallurgical Engineering, 2008,28(4) : 42-44.
[7]	Wang Yajing, Zhang Zonghua. Study on flotation collectors for fine rutile[J]. Express Information of Mining Industry, 2008 (1) : 31-33.
[8]	Zhu Jianguang, Zhou Jing. Beneficiation technique for ilmenite, rutile and rare earth [M]. Changsha: Central South University Press, 2009.
[9]	Li Hongqiang, Mu Shunxing, Weng Xiaoqing, et al. Rutile flotation with Pb²+ ions as activator: Adsorption of Pb²+ at rutile/water interface [J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2016,506(5) : 431-437.
[10]	Zhang Kai. The combined use of flotation reagents [M]. Beijing: Metallurgical Industry Press, 1994: 58-61.
[11]	Wang Dianzuo, Hu Yuehua. Solution chemistry of flotation [M]. Changsha: Hunan Science and Technology Press, 1988: 113.
[12]	Tian Z R, Voigt J A, Liu J, et al. Complex and oriented ZnO nanostructures[J]. Nat. Mater., 2003,2:821-826.
[13]	Li Ru, Yu Liangmin, Yan Xuefeng, et al. Morphology-controlled preparation and photocatalytic properties of Cu₂O/ZnO microstructures[J]. Chemical Journal of Chinese Universities, 2017,38(2) : 267-274.
[14]	Zhang Wan, Tang Wanying, He Shiying, et al. Synjournal of ZnO-PMPP ximposites for photocatalytic removal of ammonia nitrogen at low concentration[J]. Acta Scientiae Circumstantiae, 2017,37(2) : 267-274.
[15]	Zhao Xiaohua, Su Shuai, Wu Guangli, et al. Preparation and sunlight photocatalytic performance of flower-like ZnO@carbon sphere core-shell structure[J]. Chinese Journal of Inorgnic Chemistry, 2017,33(2) : 276-284.
[16]	Rosalin B, Pachaiappan R, Paramasivam T. A detailed study on Sn⁴+ doped ZnO for enhanced photocatalytic degradation [J]. Appl. Surf. Sci., 2017,433:887-898. doi: 10.1016/j.apsusc.2017.10.127

亚油酸钠质量分数/%	协同效应指数
	后加入亚油酸钠		亚油酸钠与之预先混合		先加入亚油酸钠
	先加入油酸钠	先加入苯甲羟肟酸钠	与油酸钠混合	与苯甲羟肟酸钠混合	后加入油酸钠	后加入苯甲羟肟酸钠
0	0	0	0	0	0	0
10	0.20	0.87	0.44	0.67	0.41	0.68
20	0.26	0.96	0.39	0.85	0.38	0.83
30	0.35	0.94	0.38	0.94	0.37	0.86
40	0.28	0.85	0.30	0.86	0.29	0.80
50	0.23	0.79	0.24	0.74	0.24	0.73
60	0.17	0.68	0.19	0.64	0.19	0.67
70	0.12	0.59	0.14	0.55	0.14	0.56
80	0.09	0.47	0.10	0.45	0.09	0.45
90	0.05	0.36	0.07	0.37	0.06	0.36
100	0	0	0	0	0	0

药剂制度		拟合曲线	拟合优度	标准偏差	P值
亚油酸钠与之预先混合	与油酸钠混合	ε=81.74+18.28n-7.18n²+1.02n³-0.05n⁴	R²=0.98	2.37	<10^-4
亚油酸钠与之预先混合	与苯甲羟肟酸钠混合	ε=38.10+43.80n-12.33n²+1.50n³-0.07n⁴	R²=0.99	2.26	<10^-4
后添加亚油酸钠	先添加油酸钠	ε=84.30+14.57n-5.92n²-0.86n³-0.04n⁴	R²=0.98	2.11	<10^-4
后添加亚油酸钠	先添加苯甲羟肟酸钠	ε=29.51+54.23n-15.76n²+1.94n³-0.09n⁴	R²=0.99	2.51	<10^-4
先添加亚油酸钠	后添加油酸钠	ε=59.78-5.62n+1.37n²-0.11n³	R²=0.98	1.53	<10^-4
先添加亚油酸钠	后添加苯甲羟肟酸钠	ε=36.12+45.37n-12.59n²+1.49n³-0.07n⁴	R²=0.99	1.96	<10^-4

药剂体系	药剂添加顺序	药剂可能的吸附形式	备注
油酸钠与亚油酸钠混合体系	预先混合后再添加	a互相诱导;b多层缔合吸附	兼具物理吸附和化学吸附
	先添加油酸钠后添加亚油酸钠	a互相诱导;b多层缔合吸附	兼具物理吸附和化学吸附
	先添加亚油酸钠后添加油酸钠	互相诱导	单分子层化学吸附为主
苯甲羟肟酸钠与亚油酸钠混合体系	预先混合后再添加	互相诱导	单分子层化学吸附为主
	先添加油酸钠后添加苯甲羟肟酸钠	互相诱导	单分子层化学吸附为主
	先添加苯甲羟肟酸钠后添加油酸钠	互相诱导	单分子层化学吸附为主
