棕榈酸木薯淀粉酯的制备及性能研究

doi:10.3969/j.issn.1001-1803.2020.09.004

摘要/Abstract

摘要：

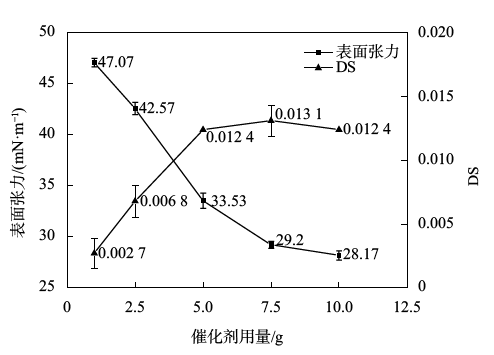

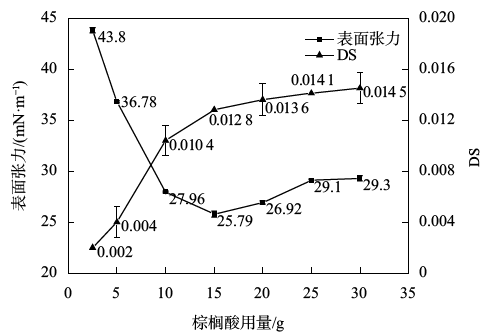

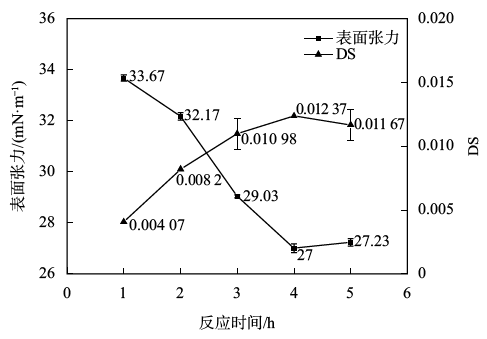

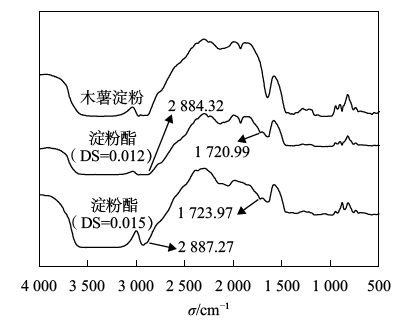

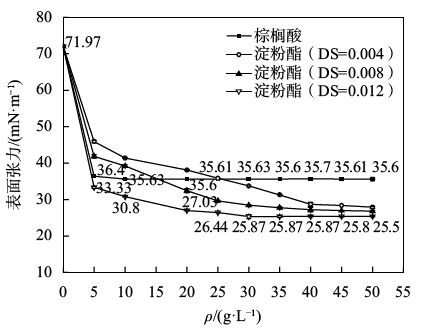

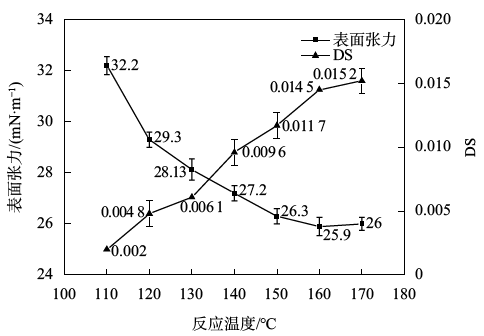

以木薯淀粉为原料,棕榈酸为酯化剂,硅酸钠和醋酸为复合催化剂,采用干法工艺制备棕榈酸木薯淀粉酯。研究了棕榈酸用量、催化剂用量、反应时间、反应温度对淀粉酯取代度和表面张力的影响,研究了淀粉酯取代度与表面活性及乳化性能之间的关系。取代度的测试结果及红外光谱均表明淀粉已被成功酯化。当木薯淀粉用量为100 g,棕榈酸用量为15 g,复合催化剂(硅酸钠与醋酸质量比为5∶1)用量为7.5 g,反应温度为160 ℃,反应时间为4 h时,制得的棕榈酸木薯淀粉酯取代度(DS)为0.012 3,棕榈酸含量为2.39%(w/w),临界胶束浓度为30 g/L,对应的表面张力为25.87 mN/m,具有较好的表面活性和乳化性能。

关键词: 棕榈酸木薯淀粉酯, 取代度, 表面张力, 表面活性, 乳化性能

Abstract:

Using cassava starch as raw material, palmitic acid as esterification agent, sodium silicate and acetic acid as composite catalysts, palmitate cassava starch was prepared by dry process. The effects of palmitate, catalyst, reaction time and reaction temperature on the degree of substitution and surface tension of starch ester were studied. The relationship between the degree of substitution of palmitate cassava starch and its surface activity and emulsifying property was studied. The results of the degree of substitution and infrared spectrum show that the starch has been esterified by palmitate acid. The optimum reaction conditions are as follows: the amount of cassava starch is 100 g, the amount of palmitic acid is 15 g, the amount of composite catalyst (the mass ratio of sodium silicate to acetic acid is 5∶1) is 7.5 g, the reaction temperature is 160 ℃, and the reaction time is 4 h. The DS of the product is 0.012 3, its palmitate content is 2.39% (w/w), the critical micelle concentration is 30 g/L, and its surface tension is 25.87 mN/m. The test results indicate that the palmitate cassava starch has good surface activity and emulsifying property.

Key words: palmitate cassava starch, degree of substitution, surface tension, surfactivity, emulsifiability

中图分类号:

TS239.6

韦爱芬,于斌,韦莉敏. 棕榈酸木薯淀粉酯的制备及性能研究[J]. 日用化学工业, 2020, 50(9): 603-608.

WEI Ai-fen,YU Bin,WEI Li-min. Preparation and properties of palmitate cassava starch[J]. China Surfactant Detergent & Cosmetics, 2020, 50(9): 603-608.

图/表 8

图 1

图 2

图 3

图 4

图 5

图 6

图 7

表 1

参考文献 24

[1]	Zhang Yanping. Manufacture and application of modified starch [M]. Beijing: Chemical Industry Press, 2007.
[2]	Cai Jingrong, Li Zhongjin . Overview of starch based polymer surfactants[J]. China Cleaning Industry, 2009 ( 1) : 74-78.
[3]	Sun Ping, Chen jian, Yang Huijuan, et al. Enzymatic synjournal of potato starch ester palmitate[J]. Food Science and Technology, 2012,37(4) : 249-252.
[4]	Xin J, Wang Y, Liu T , et al. Biosysjournal of corn starch palmitate by lipase Novozym435[J]. International Journal of Molecular Sciences, 2012,13:7226-7236. doi: 10.3390/ijms13067226 pmid: 22837690
[5]	Akhila Rajan , T Emilia Abraham. Enzymatic modification of cassava starch by bacterial lipase[J]. Bioprocess and Biosystems Engineering, 2006,29:65-71. doi: 10.1007/s00449-006-0060-5
[6]	Akhila Rajan, J D Sudha, T Emilia Abraham,. Enzymatic modification of cassava starch by fungal lipase[J]. Industrial Crops & Products, 2007,27:50-59.
[7]	Duan Yaosheng . Preparation and gelatinization properties of palmite-corn starch complex[J]. Chinese Food Additive, 2017,12:153-156.
[8]	Xian Xuequan . Preparation and properties of starch esters of palmitate by mechanical activation solid phase method[J]. Guangdong Agricultural Science, 2015,42(15) : 72-76.
[9]	Wang Zhigang, Huang Qiang, He Xiaowei , et al. Development progress of starch based surfactants[J]. China Cleaning Industry, 2010 ( 4) : 45-47.
[10]	General Administration of Quality Supervision, Inspection and Quarantine of China, National Standardization Administration of China. Surface active agent—Determination of surface tension: GB/T 22237—2008[S]. Beijing: China Standards Press, 2008.
[11]	Xu Baocai, Zhang Guiju, Zhao Li. Surfactant chemistry and technology [M]. Beijing: Chemical Industry Press, 2016: 183.
[12]	General Administration of Quality Supervision, Inspection and Quarantine of China, National Standardization Administration of China. Surface active agent—The identification of emulsion for moderate to high viscosity and the evaluation method of emulsifying ability: GB/T 11543—2008[S]. Beijing: China Standards Press, 2008.
[13]	Miladinov V D, Hanna M A . Starch esterification by reactive extrusion[J]. Industrial Crops & Products, 2000,11:51-57.
[14]	Qian Dajun, Yang Guang . Preparation and properties of acetate starch[J]. Journal of the Chinese Cereals and Oils Association, 2007,22(2) : 49-52.
[15]	Zhao Ruodong . Development of urea sustained-release film material starch with high substituted acetate[J]. Applied Chemical Engineering, 2005,34(4) : 232-236.
[16]	Wang Haiyang, Liu Jie, Liu Yawei , et al. Preparation and characterization of octenyl succinic acid starch esters[J]. Food Science and Technology, 2017,42(12) : 245-250.
[17]	Rajesh Bhosale, Rekha Singhal . Process optimization for the synjournal of octenyl succinyl derivative of waxy corn and amaranth starches[J].Carbohydrate Polymers, 2006,66(4) : 521-527. doi: 10.1016/j.carbpol.2006.04.007
[18]	Wang Yan, Xin Jiayin, Wu Wenlong , et al. Enzymatic synjournal of medium and long chain fatty acid starch esters[J]. Ournal of the Chinese Cereals and Oils Association, 2015,30(4) : 11-17.
[19]	Zhang Yi, Liu Di, Zhang Hao , et al. Preparation of starch based natural macromolecule surfactant carboxymethyl starch stearate and its application in textile auxiliaries[J]. Applied Chemical Engineering, 2018,47(1) : 22-27.
[20]	Wei Aifen, Zhu Qihu . Effects of moisture content on starch etherification under microwave conditions[J]. Chemical Technology and Development, 2014,43(5) : 5-9.
[21]	He Wei, Xue Dong, Tang Bin. Optimized test design method and data analysis [M]. Beijing: Chemical Industry Press, 2012.
[22]	Xiao Jinxin, Zhao Zhenguo. The applied principle of surfactants [M]. Beijing: Chemical Industry Press, 2015: 388.
[23]	Cui Zhenggang. Surfactants, colloids and interfacial chemistry [M]. Beijing: Chemical Industry Press, 2013: 70.
[24]	Xu Baocai, Zhang Guiju, Zhao Li. Surfactant chemistry and technology [M]. Beijing: Chemical Industry Press, 2016: 201.

	乳化能力/%	乳化稳定性/%
淀粉酯(DS=0.004)	42.63	90.67
淀粉酯(DS=0.008)	46.15	93.60
淀粉酯(DS=0.012)	47.79	98.22
SDS	47.21	93.47
LAS	47.38	98.28
