电感耦合等离子发射光谱法测定氧化铁颜料中微量镉

doi:10.3969/j.issn.1001-1803.2020.03.013

摘要/Abstract

摘要：

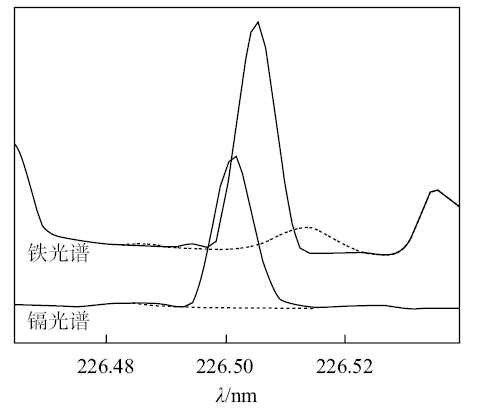

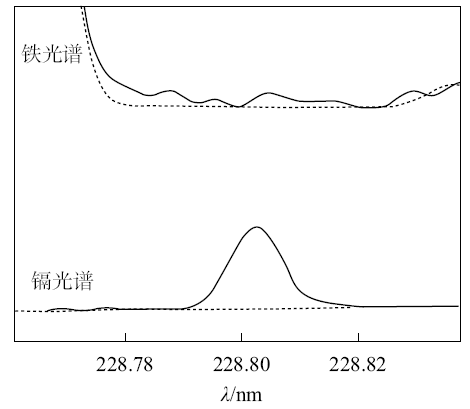

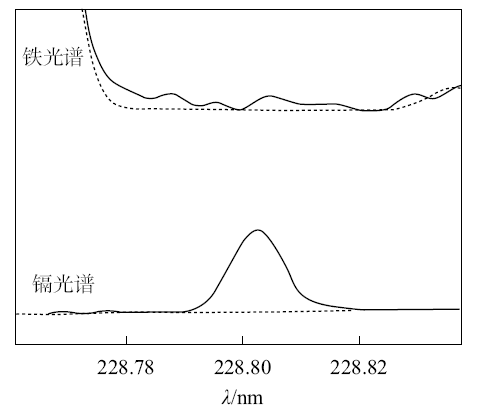

在用电感耦合等离子体发射光谱测定氧化铁颜料中的镉时,镉常用的3条谱线Cd214.439,Cd226.502和Cd228.802均受到铁光谱不同程度的干扰。实验采用铑作内标,在0~20.0 g/L的铁质量浓度范围内,研究了铁在这3条谱线下的干扰大小。结果发现Cd226.502干扰最大,Cd214.439干扰次之,Cd228.802干扰最小,干扰质量浓度分别在0.130~1.430 mg/L、0.031~0.329 mg/L和0.005~0.025 mg/L之间;铁在Cd226.502、Cd214.439的干扰随铁质量浓度的增加而增加,增幅均较明显;铁在Cd228.802的干扰随铁质量浓度变化影响不大。最终用Cd228.802进行筛选分析,对于0.500 g样品称取量,当结果≤5.0 mg/kg时判定合格,结果>6.2 mg/kg时判定为不合格,只有当结果介于二者之间时,再用其他方法进行分析确认。因此,用Cd228.802进行分析,可以大大提高筛选效率。

关键词: 电感耦合等离子体发射光谱法, 氧化铁颜料, 化妆品, 镉元素

Abstract:

Cd214.439, Cd226.502 and Cd228.802, commonly used in determination of cadmium in ferric oxide pigments by ICP-OES, are interfered by the iron spectrum. By using rhodium as the internal standard, the interference at these three spectral lines in the mass concentration range of 0-20.0 g/L of iron was studied. The results showed that, iron interfered most at Cd226.502, next at Cd214.439, and least at Cd228.802. The interference values ranged from 0.130-1.430 mg/L, 0.031-0.329 mg/L, and 0.005-0.025 mg/L, respectively. At Cd226.502 and Cd214.439, the interference intensity grew with the increase of iron mass concentration, but not so much at Cd228.802. Finally, Cd228.802 was selected for screening analysis. The sample was weighed as 0.500 g, which could be judged as qualified when the test result was less than or equal to 5.0 mg/kg, and unqualified when the test result was more than 6.2 mg/kg. Only when the test result was somewhere in between, other methods would be used for analysis and confirmation. Therefore, the selection of Cd228.802 for analysis could greatly improve the screening efficiency.

Key words: ICP-OES, ferric oxide pigment, cosmetic, cadmium

中图分类号:

TQ658

黄豪杰,许菲菲. 电感耦合等离子发射光谱法测定氧化铁颜料中微量镉[J]. 日用化学工业, 2020, 50(3): 208-212.

Hao-jie HUANG,Fei-fei XU. Determination of cadmium in ferric oxide pigments by ICP-OES[J]. China Surfactant Detergent & Cosmetics, 2020, 50(3): 208-212.

图/表 11

表 1

图 1

表 2

图 2

表 3

图 3

表 4

图 3

表 5

表 6

表 7

参考文献 9

[1]	Zheng X M, Ye L L, Jiang J , et al. Determination of lead, copper, iron, cadmium, chromium and arsenic in zinc material containing chromium carbide by microwave digestion-inductively coupled plasma atomic emission spectrometry[J]. Metallurgical Analysis, 2019,39(5) : 49-56.
[2]	Hu D J, Zhang X, Yan X J . Determination of lead, arsenic, mercury, cadmium in 3D hard gold jewelry by ICP-AES with microwave digestion[J]. Physical Testing and Chemical Analysis Part B: Chemical Analysis, 2019,55(3) : 333-337.
[3]	Wei Y J, Wu X Y, Jiang J , et al. Determination of lead, zinc, copper, arsenic, antimony, bismuth and cadmium in silver concentrate by inductively coupled plasma atomic emission spectrometry after microwave digestion[J]. Metallurgical Analysis, 2018,38(5) : 47-53.
[4]	Zang Z J, Zhou L L . Determination of Lead and cadmium in polymers according to RoHS directives by inductively coupled plasma-atomic emission spectrometry (ICP-AES)[J]. Chinese Journal of Inorganic Analytical Chemistry, 2018,8(2) : 14-16.
[5]	Wu Junyi . Determination of cadmium content in pyrotechnics used for fireworks and firecrackers based on inductively coupled plasma optical emission spectrometric approach(ICP-OES) [C]//2017 5th International Conference on Machinery, Materials and Computing Technology ( ICMMCT 2017), 2017.
[6]	Kataoka Y, Watanabe T, Hayashi T , et al. Development of ICP-OES, ICP-MS and GF-AAS methods for simultaneous quantification of lead, total arsenic and cadmium in soft drinks[J]. Shokuhin Eiseigaku Zasshi. Journal of the Food Hygienic Society of Japan, 2015,56(3) : 88-95.
[7]	Ren R, Liu N, Wang X J , et al. Comparison of flame atomic absorption spectrometry and inductively coupled plasma atomic emission spectrometry for the determination of lead and cadmium in imitation jewelry[J]. Metallurgical Analysis, 2017,37(8) : 69-72.
[8]	Gu Y X, Xu H B, Ge Y , et al. Study on the effect of methods of digestion of cosmetic samples on their results of determination of antimony, cadmium, chromium and neodymium by ICP-AES[J]. Physical Testing and Chemical Analysis Part B: Chemical Analysis, 2010,46(9) : 1031-1033,1036.
[9]	Yu Shilin, Du Zhenxia The chemist’s reader Part II instrument analysis [M]. Beijing: Chemical Industry Press, 2017: 105-109.

温度/℃	升温时间/min	保持时间/min
120	5	3
160	5	3
180	5	20

ρ（铁）/（g·L^-1）	6次检测干扰值/（mg·L^-1）						干扰平均值/ （mg·L^-1）	0.500 g样品干扰值/ （mg·kg^-1）
0	-0.000 3,	-0.000 9,	-0.000 7,	-0.000 1,	-0.000 8,	-0.000 6	-0.000 6	-0.03
2.0	0.029,	0.031,	0.031,	0.031,	0.032,	0.031	0.031	1.5
4.0	0.061,	0.059,	0.055,	0.062,	0.062,	0.060	0.060	3.0
8.0	0.120,	0.129,	0.128,	0.127,	0.123,	0.128	0.126	6.3
12.0	0.179,	0.187,	0.184,	0.176,	0.180,	0.187	0.182	9.1
16.0	0.249,	0.251,	0.224,	0.232,	0.244,	0.250	0.242	12.1
20.0	0.336,	0.310,	0.323,	0.343,	0.339,	0.320	0.329	16.4

ρ（铁）/（g·L^-1）	6次检测干扰值/（mg·L^-1）						干扰平均值/ （mg·L^-1）	0.500 g样品干扰值/（mg·kg^-1）
0	-0.000 4,	-0.000 1,	-0.000 1,	0.000 2,	-0.000 4,	-0.000 2	-0.000 2	-0.01
2.0	0.128,	0.127,	0.132,	0.127,	0.135,	0.132	0.130	6.5
4.0	0.235,	0.252,	0.229,	0.250,	0.236,	0.246	0.241	12.1
8.0	0.507,	0.523,	0.525,	0.530,	0.493,	0.522	0.517	25.8
12.0	0.831,	0.813,	0.772,	0.752,	0.762,	0.772	0.784	39.2
16.0	1.02,	1.01,	0.939,	0.981,	1.02,	1.05	1.00	50.2
20.0	1.47,	1.36,	1.40,	1.39,	1.50,	1.46	1.43	71.5

ρ（铁）/（g·L^-1）	6次检测干扰值/（mg·L^-1）						干扰平均值/ （mg·L^-1）	0.500 g样品干扰值/（mg·kg^-1）
0	-0.003 1,	-0.001 3,	-0.001 6,	-0.001 8,	-0.003 1,	-0.002 7	-0.002 3	-0.11
2.0	0.006,	0.003,	0.005,	0.005,	0.004,	0.006	0.005	0.2
4.0	0.021,	0.027,	0.032,	0.026,	0.023,	0.019	0.025	1.2
8.0	0.017,	0.023,	0.017,	0.022,	0.025,	0.019	0.021	1.0
12.0	0.017,	0.020,	0.019,	0.018,	0.019,	0.016	0.018	0.9
16.0	0.031,	0.023,	0.017,	0.024,	0.024,	0.030	0.025	1.2
20.0	0.022,	0.025,	0.018,	0.025,	0.025,	0.022	0.023	1.1

基体	内标比率/%	ρ（未校正）/ （mg·L^-1）	ρ（校正）/ （mg·L^-1）
镉标准溶液	105	0.103	0.098
氧化铁（无填料）	92	0.093	0.101
云母氧化铁	87	0.088	0.101
珠光氧化铁	80	0.084	0.104
