化妆品透皮吸收试验方法概述

doi:10.3969/j.issn.1001-1803.2019.12.010

摘要/Abstract

摘要：

概述了化妆品透皮吸收的途径和理论,介绍了扩散池法、胶带粘贴技术和光谱方法等体外和体内的透皮吸收的评价方法,提供了评价化妆品透皮吸收能力的新思路,展望了化妆品透皮吸收评价方法的发展趋势。

Abstract:

The approaches and theories of skin penetration of cosmetics were summarized. The in vitro and in vivo of transdermal absorption, such as diffusion cell methods, tape stripping and spectroscopy were introduced. A new idea for evaluating the transdermal absorption capacity of cosmetics was provided and the development trend of the cosmetics skin penetration evaluation methods was proposed.

Key words: cosmetics, skin penetration, evaluation methodology

中图分类号:

TQ658

宋艳青,盘瑶,赵华. 化妆品透皮吸收试验方法概述[J]. 日用化学工业, 2019, 49(12): 824-829.

SONG Yan-qing,PAN Yao,ZHAO Hua. An overview of skin penetration test methods for cosmetics[J]. China Surfactant Detergent & Cosmetics, 2019, 49(12): 824-829.

图/表 4

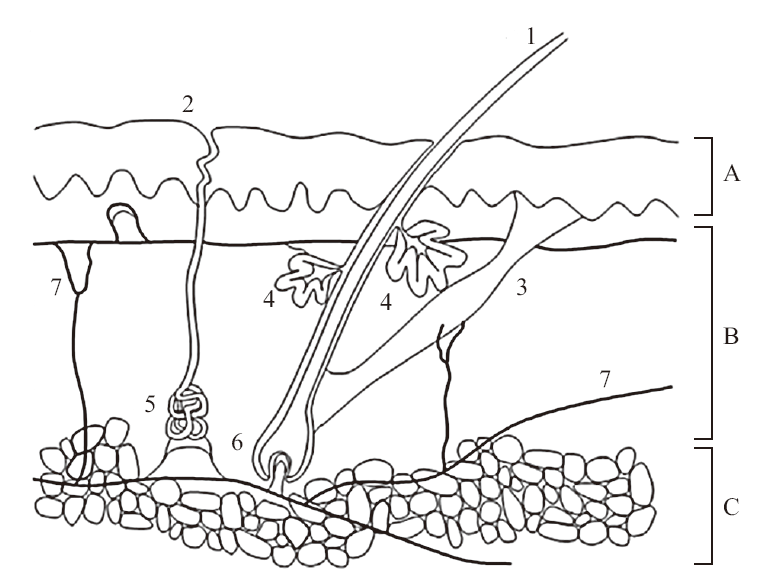

图 1

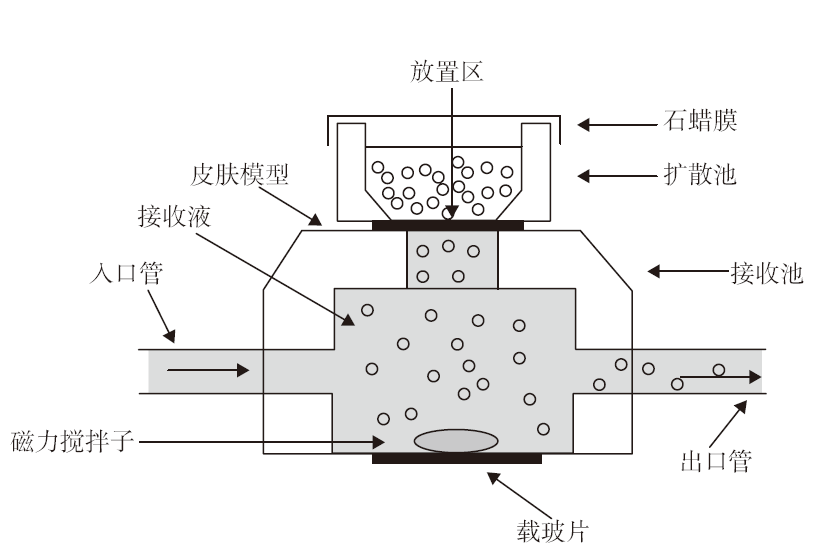

图 2

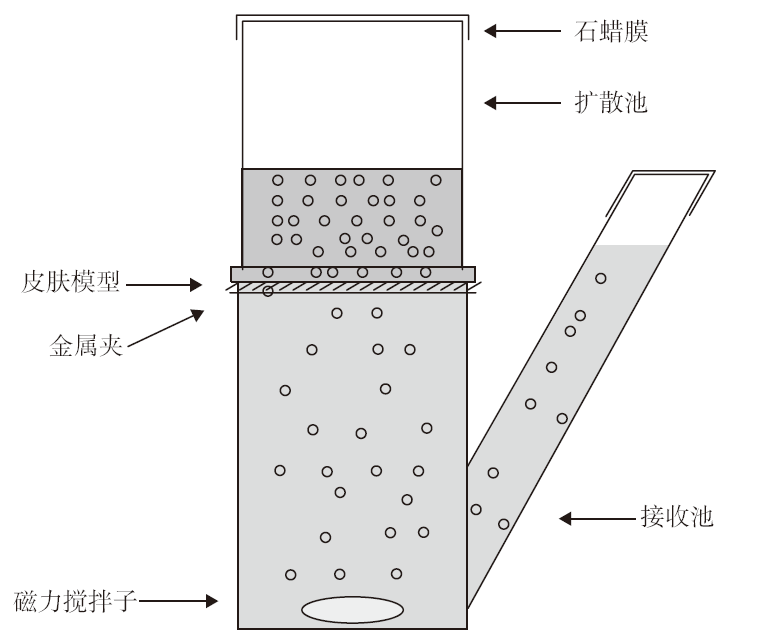

图 3

表 1

参考文献 45

[1]	Lin J, He C F, Dong Y M . Transdermal absorption pathway and technique of cosmetic efficacy components[J]. China Cosmetics Review, 2009 ( 1) : 90-97.
[2]	Guo Q, Lin H F, Gao S , et al. Cosmetic dermal delivery of functional ingredients and its research[J]. Flavour Fragrance Cosmetic, 2002 ( 1) : 32-34. doi: 10.1007/s00403-016-1645-8 pmid: 27086034
[3]	Dong Y M, Meng H, Ma L J. Skin epigenetic physiology[M]. Beijing: Chemical Industry Press, 2018.
[4]	Barry B W . Novel mechanisms and devices to enable successful transdermal drug delivery[J]. Eur J Pharm Sci, 2001,14(2) : 101-114. doi: 10.1016/s0928-0987(01)00167-1 pmid: 11500256
[5]	Lin J, He C F, Dong Y M . Transdemal absorption mechanism of functional compents in cosmetic[J]. China Surfactant Detergent & Cosmetic, 2009,39(4) : 275-278. doi: 10.1016/j.chemosphere.2019.125559 pmid: 31841794
[6]	Bartosova L, Bajgar J . Transdermal drug delivery in vitro using diffusion cells[J]. Curr Med Chem, 2012,19(27) : 4671-4677. doi: 10.2174/092986712803306358 pmid: 22934776
[7]	Van Gele M, Geusens B, Brochez L , et al. Three-dimensional skin models as tools for transdermal drug delivery: challenges and limitations[J]. Expert Opin Drug Deliv, 2011,8(6) : 705-720. doi: 10.1517/17425247.2011.568937 pmid: 21446890
[8]	Jung E C, Maibach H I . Animal models for percutaneous absorption[J]. J Appl Toxicol, 2015,35(1) : 1-10. doi: 10.1002/jat.3004 pmid: 25345378
[9]	Simon G A, Maibach H I . The pig as an experimental animal model of percutaneous permeation in man: qualitative and quantitative observations: an overview[J]. Skin Pharmacol Appl Skin Physiol, 2000,13(5) : 229-234. doi: 10.1159/000029928 pmid: 10940812
[10]	Debeer S, Le Luduec J B, Kaiserlian D , et al. Comparative histology and immunohistochemistry of porcine versus human skin[J]. Eur J Dermatol, 2013,23(4) : 456-466. doi: 10.1684/ejd.2013.2060
[11]	Huang X P, Wan X X, Wang Z B , et al. Comparison on pig skins of different position with human skin in skin permeability of drugs[J]. Chin J Hosp Pharm, 1997 ( 7) : 309-310.
[12]	Ponec M, Boelsma E, Gibbs S , et al. Characterization of reconstructed skin models[J]. Skin Pharmacol Physiol, 2002,15(S1) : 4-17. doi: 10.1038/s41598-019-44204-4 pmid: 31127151
[13]	Schafer-Korting M, Bock U, Diembeck W , et al. The use of reconstructed human epidermis for skin absorption testing: Results of the validation study[J]. Altern Lab Anim, 2008,36(2) : 161-187. doi: 10.1177/026119290803600207 pmid: 18522484
[14]	Holmgaard R, Benfeldt E, Nielsen J B . Percutaneous penetration: methodological considerations[J]. Basic Clin Pharmacol Toxicol, 2014,115(1) : 101-109. doi: 10.1111/bcpt.12188 pmid: 24373389
[15]	OECD. Skin absorption: In vitro method. OECD guidelines for the testing of chemicals No.428[S]. Paris: 2004.
[16]	Liang K, Xu K, Bessarab D , et al. Arbutin encapsulated micelles improved transdermal delivery and suppression of cellular melanin production[J]. BMC Res Notes, 2016 ( 9) : 254. doi: 10.1186/s13104-016-2047-x pmid: 27129306
[17]	Chien Y W, Valia K H . Development of a dynamic skin permeation system for long-term permeation studies[J]. Drug Dev Ind Pharm, 1984,10(4) : 575-599. doi: 10.3109/03639048409041408
[18]	Chen Z X, Li B, Liu T , et al. Evaluation of paeonol-loaded transethosomes as transdermal delivery carriers[J]. Eur J Pharm Sci, 2017,99:240-245. doi: 10.1016/j.ejps.2016.12.026 pmid: 28039091
[19]	Van Ravenzwaay B, Leibold E . A comparison between in vitro rat and human and in vivo rat skin absorption studies[J]. Hum Exp Toxicol, 2004,23(9) : 421-430. doi: 10.1191/0960327104ht471oa pmid: 15497817
[20]	Kezic S . Methods for measuring in-vivo percutaneous absorption in humans[J]. Hum Exp Toxicol, 2008,27(4) : 289-295. doi: 10.1177/0960327107085825 pmid: 18684799
[21]	Jakasa I, Verberk M M, Bunge A L , et al. Increased permeability for polyethylene glycols through skin compromised by sodium lauryl sulphate[J]. Exp Dermatol, 2006,15(10) : 801-807. doi: 10.1111/j.1600-0625.2006.00478.x pmid: 16984262
[22]	Jakasa I, Verberk M M, Esposito M , et al. Altered penetration of polyethylene glycols into uninvolved skin of atopic dermatitis patients[J]. J Invest Dermatol, 2007,127(1) : 129-134. doi: 10.1038/sj.jid.5700582 pmid: 17039242
[23]	Reddy M B, Stinchcomb A L, Guy R H , et al. Determining dermal absorption parameters in vivo from tape strip data[J]. Pharm Res, 2002,19(3) : 292-298. doi: 10.1023/a:1014443001802 pmid: 11934236
[24]	Pirot F, Kalia Y N, Stinchcomb A L , et al. Characterization of the permeability barrier of human skin in vivo[J]. Proc Natl Acad Sci U S A, 1997,94(4) : 1562-1567. doi: 10.1073/pnas.94.4.1562 pmid: 9037093
[25]	Bashir S J, Chew A L, Anigbogu A , et al. Physical and physiological effects of stratum corneum tape stripping[J]. Skin Res Technol, 2001,7(1) : 40-48. doi: 10.1034/j.1600-0846.2001.007001040.x pmid: 11301640
[26]	Wissing S A, Muller R H . Solid lipid nanoparticles as carrier for sunscreens: in vitro release and in vivo skin penetration[J]. J Control Release, 2002,81(3) : 225-233. doi: 10.1016/s0168-3659(02)00056-1 pmid: 12044563
[27]	Alvarez-Roman R, Naik A, Kalia Y N , et al. Visualization of skin penetration using confocal laser scanning microscopy[J]. Eur J Pharm Biopharm, 2004,58(2) : 301-316. doi: 10.1016/j.ejpb.2004.03.027 pmid: 15296957
[28]	Touitou E, Meidan V M, Horwitz E . Methods for quantitative determination of drug localized in the skin[J]. J Control Release, 1998,56(1-3) : 7-21. doi: 10.1016/s0168-3659(98)00060-1 pmid: 9801425
[29]	Lin F, Honghai H . Application of ATR-FTIR spectroscopy in polymer study[J]. Chemical Engineer, 2008 ( 3) : 33-35. doi: 10.1016/j.jconrel.2019.11.033 pmid: 31785302
[30]	Huang H Y, Yin Q H . Fundamentals and application advances in attenuated total internal reflectance fourier transform infrared spectroscopy (ATR-FTIR)[J]. Journal of the Graduates Sun Yatsen University(Natural Sciences, Medicine), 2011,32(1) : 20-31.
[31]	Ayala-Bravo H A, Quintanar-Guerrero D, Naik A , et al. Effects of sucrose oleate and sucrose laureate on in vivo human stratum corneum permeability[J]. Pharm Res, 2003,20(8) : 1267-1273. doi: 10.1023/a:1025013401471 pmid: 12948025
[32]	Yin Y N, Wang S, Gong Y Z , et al. A study on biochemical constitution of human skin tissue by confocal raman microspectroscopy imaging[J]. Acta Laser Biology Sinica, 2016,25(5) : 391-397.
[33]	Franzen L, Windbergs M . Applications of Raman spectroscopy in skin research: From skin physiology and diagnosis up to risk assessment and dermal drug delivery[J]. Adv Drug Deliv Rev, 2015,89:91-104. doi: 10.1016/j.addr.2015.04.002 pmid: 25868454
[34]	Förster M, Blozinger M A, Montagnac G , et al. Confocal Raman microspectroscopy of the skin[J]. Eur J Dermatol, 2011,6(21) : 851-863. doi: 10.1684/ejd.2011.1494 pmid: 21914580
[35]	Mateus R, Abdalghafor H, Oliveira G , et al. A new paradigm in dermatopharmacokinetics: confocal Raman spectroscopy[J]. Int J Pharm, 2013,444(1/2) : 106-108. doi: 10.1016/j.ijpharm.2013.01.036 pmid: 23357254
[36]	Tippavajhala V K, de Oliveira M T, Martin A A . In vivo human skin penetration study of sunscreens by confocal Raman spectroscopy[J]. AAPS PharmSciTech, 2018,19(2) : 753-760. doi: 10.1208/s12249-017-0852-8 pmid: 28983836
[37]	Ying Y C, Zhang G J, Jia H L , et al. Multi-photon skin tissue imaging technology and its applications[J]. Chinese Optics, 2019,12(1) : 104-111. doi: 10.3788/co.
[38]	Alexiev U, Volz P, Boreham A , et al. Time-resolved fluorescence microscopy (FLIM) as an analytical tool in skin nanomedicine[J]. Eur J Pharm Biopharm, 2017,116:111-124. doi: 10.1016/j.ejpb.2017.01.005 pmid: 28115230
[39]	Liu X B, Lin D Y, Wu Q Q , et al. Recent progress of fluorescence lifetime imaging microscopy technology and its application[J]. Chinese Journalof Physics, 2018,67(17) : 27-40.
[40]	Becker W . Fluorescence lifetime imaging: techniques and applications[J]. J Microsc, 2012,247(2) : 119-136. doi: 10.1111/j.1365-2818.2012.03618.x pmid: 22621335
[41]	Vieira C O, Grice J E, Roberts M S , et al. ZnO: SBA-15 nanocomposites for potential use in sunscreen: preparation, properties, human skin penetration and toxicity[J]. Skin Pharmacol Physiol, 2019,32(1) : 32-42. doi: 10.1159/000491758 pmid: 30380537
[42]	Leite-Silva V R, Liu D C, Sanchez W Y , et al. Effect of flexing and massage on in vivo human skin penetration and toxicity of zinc oxide nanoparticles[J]. Nanomedicine (Lond), 2016,11(10) : 1193-1205. doi: 10.2217/nnm-2016-0010 pmid: 27102240
[43]	Liu F F . Analysis of Raman spectroscopy theory[J]. Technological Development of Enterprise, 2014, 33 (27) :71, 92. doi: 10.1016/j.saa.2019.117958 pmid: 31865106
[44]	Liu C, Huang W Q, Wang Q Y , et al. Application of Roman spectroscopy technique in food non-destructive determination[J]. Journal of Food Safety and Quality, 2015,6(8) : 2981-2987. doi: 10.1007/s00216-018-1189-1 pmid: 29934851
[45]	Munster E B V, Gadella T W J . Fluorescence lifetime imaging microscopy (FLIM)[J]. Adv Biochem Eng Biotechnol, 2005,95:143-175. doi: 10.1007/b102213 pmid: 16080268

	ATR-FT-IR	CRM	FLIM
光谱范围	400~4 000 cm^-1	40~4 000 cm^-1	激发波长：700~850 nm 发射波长：350~620 nm
结构特征	具有红外光吸收特性	具有拉曼光谱特征	具有荧光基团
皮肤检测深度	角质层	表皮层（<100 μm）	表皮层和部分真皮层（<250 μm）
优点	制样简单、扫描速度快、灵敏度高、分辨率高、实时原位跟踪、时间短、光谱范围广、操作简单、无红外聚焦热效应影响	制样简单、时间短、无创、可在体检测、分辨率最高、可检测水溶液待测物	无创、可在体检测、特异性强、灵敏度高、可定量、不受光强度影响
缺点	定量分析不够好、间接分析技术、依赖于标准方法数据库	受荧光背景干扰、受激发强度过高影响、检测灵敏度低	分辨率与成像速度相互制约
在化妆品透皮吸收检测中的应用	促渗剂（乙醇、丙二醇、DMSO、脂肪酸）、表面活性剂（蔗糖月桂酸酯、卵磷脂、烷基糖苷）、纳米防晒剂	维生素A、促渗剂（DMSO、丙二醇、氮酮）、咖啡因、化学防晒剂（甲氧基肉桂酸乙基己酯、水杨酸乙基己酯、二苯酮-3、二甲基PABA乙基己酯、苯基苯并咪唑磺酸）、油脂（霍霍巴油、石蜡油、甜杏仁油）	纳米防晒剂（ZnO）、化学防晒剂（水杨酸乙基己酯、二甲基PABA乙基己酯、甲氧基肉桂酸乙基己酯）、荧光标记脂质体
