AC@Fe3O4的制备及其对水中乳液的吸附性能研究

doi:10.3969/j.issn.2097-2806.2024.04.002

摘要/Abstract

摘要：

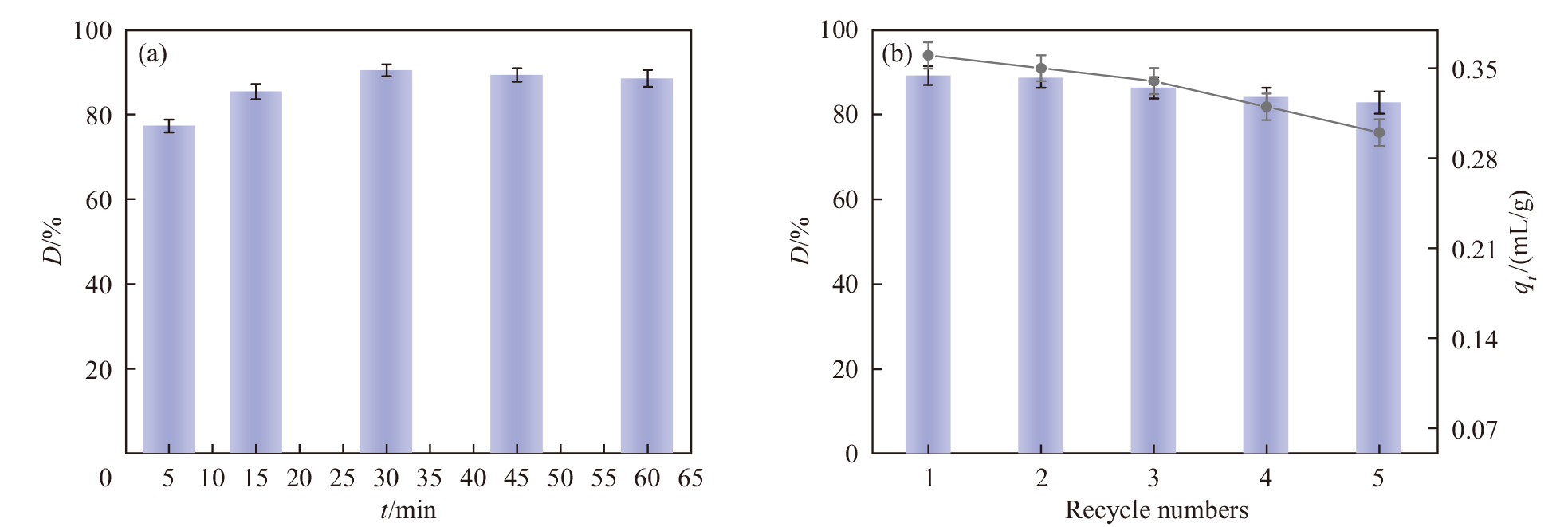

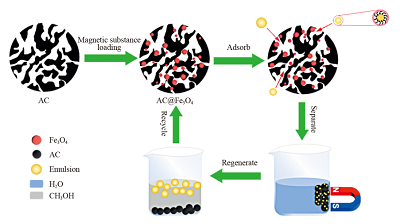

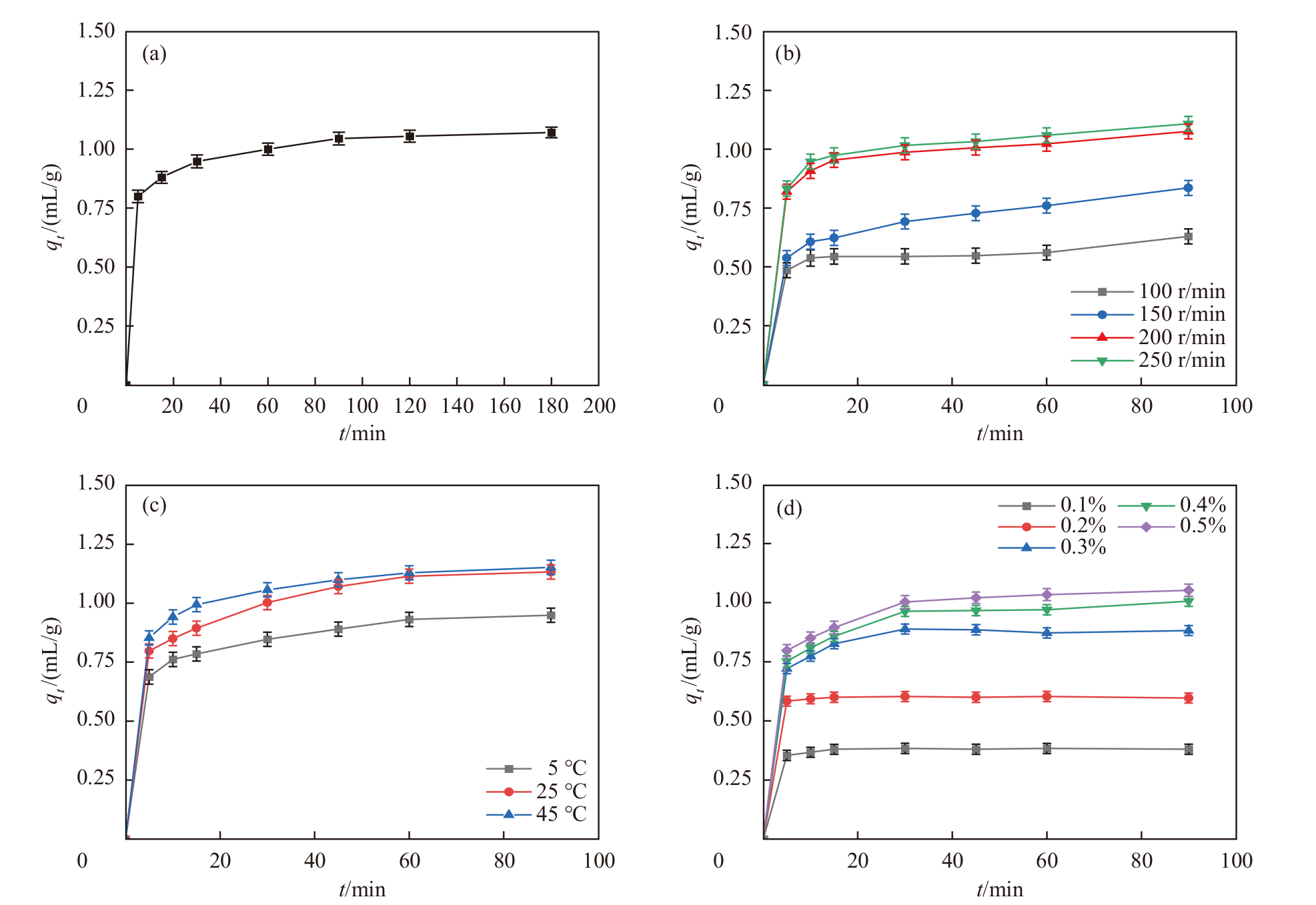

煤矿液压支架乳液在使用的过程汇入矿井水中，大幅度增加了处理难度。粉末活性炭（AC）具有比表面积大、吸附能力强等优点，可以应用于含乳液矿井水的处理中，但存在吸附后固液分离难以及AC再生回用难的问题。基于此，本研究以AC、FeCl₃·6H₂O、FeCl₂·4H₂O为原料，通过化学共沉淀法制备了活性炭负载Fe₃O₄复合材料（AC@Fe₃O₄），并应用于液压乳液废水的吸附处理。结果表明，磁性活性炭对乳液的吸附在90 min时达到吸附平衡，当乳液的初始体积分数为0.5%，温度为25 ℃，振荡速度为200 r/min时，对乳液的吸附量为1.07 mL/g。吸附动力学研究表明，磁性活性炭对乳液的吸附更符合伪二级动力学模型，表明其对乳液的吸附主要是化学吸附，Langmuir等温线模型对磁性活性炭吸附乳液的拟合度较高，通过拟合计算得到的理论饱和吸附量为1.51 mL/g，而实验中优化吸附量也达到1.07 mL/g。吸附平衡后分离出的AC@Fe₃O₄在甲醇中乳液的脱附率可以达到90%以上，吸附剂可以重复利用，经过5次循环仍能保持良好的吸脱附性能，并且在外加磁力的作用下可实现液固分离，回收利用简单方便。

关键词: 磁性活性炭, 液压支架乳液, 吸附

Abstract:

The treatment of mine water has become increasingly difficult due to the afflux of hydraulic support emulsion. With the advantages of large specific surface area and adsorption capacity, powdered activated carbon （AC） has been widely used in water treatment. However, for ordinary AC, there are difficulties in separation and recycling after adsorption of organic pollutants. Herein, activated carbon supported Fe₃O₄ （AC@Fe₃O₄） was prepared with chemical coprecipitation by using AC, FeCl₃·6H₂O and FeCl₂·4H₂O as raw materials, and the product was used to adsorb the hydraulic support emulsion from water. The results showed that the adsorption equilibrium could be reached at 90 min. At the volume fraction of emulsion of 0.5%, temperature of 25 ℃ and oscillation rate of 200 r/min, the adsorption capacity was 1.07 mL/g. The study of adsorption kinetics showed that the adsorption of emulsion at AC@Fe₃O₄ was more consistent with pseudo-second-order model, indicating that the adsorption of emulsion on magnetic activated carbon was mainly chemical adsorption. The Langmuir isotherm model had a high fitting degree for the adsorption of emulsion on magnetic activated carbon, in which the theoretical saturated adsorption capacity calculated by fitting was 1.51 mL/g. In the experiment, the optimized adsorption capacity could reach 1.07 mL/g. After adsorption, external magnetic force was used to realize complete liquid-solid separation. In methanol, more than 90% emulsion could be desorbed from the AC@Fe₃O₄ after adsorption. After 5 cycles, the AC@Fe₃O₄ still maintained excellent performance of adsorption and desorption. This work could provide a novel strategy for efficient recycling and reutilization of activated carbon in treatment of the waste water containing emulsion.

Key words: magnetic activated carbon, hydraulic support emulsion, adsorption

中图分类号:

X703

丁文杰, 申婧, 董晓娜, 杜志平, 王淑军. AC@Fe₃O₄的制备及其对水中乳液的吸附性能研究[J]. 日用化学工业（中英文）, 2024, 54(4): 376-384.

Wenjie Ding, Jing Shen, Xiaona Dong, Zhiping Du, Shujun Wang. Preparation of AC@Fe₃O₄ and its adsorption of emulsion from water[J]. China Surfactant Detergent & Cosmetics, 2024, 54(4): 376-384.

图/表 9

图1

图2

表1

图3

图4

表2

图5

表3

图6

参考文献 28

[1]	Du Guoyong, Yang Yue, Wang Yonghong. A review of oily wastewater by adsorption[J]. Applied Chemical Industry, 2021, 50 (9) : 2490-2495.
[2]	Hong Ke, Mo Chenjian, Zhu Saichang. Research progress on demulsification and subsequent treatment technology of emulsion wastewater[J]. Resources Economization & Environmental Protection, 2016 (3) : 44-45.
[3]	Tian Yongda, Li Ze, Pan Bintao, et al. Research progress of emulsified oil wastewater treatment technology[J]. Chemical Engineering & Equipment, 2018 (8) : 295-296.
[4]	An Rui, Zhao Qing. Progress in the adsorption of triclosan in aqueous solution[J]. China Surfactant Detergent & Cosmetics, 2023, 53 (8) : 945-953.
[5]	Jiang Yong, Xie Qiang, Zhang Yanhai, et al. Preparation of magnetically separable mesoporous activated carbons from brown coal with Fe₃O₄[J]. International Journal of Mining Science and Technology, 2019, 29 (3) : 513-519. doi: 10.1016/j.ijmst.2019.01.002
[6]	Hao Zheng, Wang Changhui, Yan Zaisheng, et al. Magnetic particles modification of coconut shell-derived activated carbon and biochar for effective removal of phenol from water[J]. Chemosphere, 2018, 211: 962-969. doi: S0045-6535(18)31513-3 pmid: 30119027
[7]	Wang Gen, Gao Ge, Yang Shengjiong, et al. Magnetic mesoporous carbon nanospheres from renewable plant phenol for efficient hexavalent chromium removal[J]. Microporous and Mesoporous Materials, 2021, 310. DOI: 10.1016/j.micromeso.2020.110623.
[8]	Zhang Xiaofang, Li Yuhuan, He Yang, et al. Preparation of magnetic activated carbon by activation and modification of char derived from co-pyrolysis of lignite and biomass and its adsorption of heavy-metal-containing wastewater[J]. Minerals, 2022, 12 (6) : 665. doi: 10.3390/min12060665
[9]	Anzai T, Matsuura Y, Sugawara T, et al. Removal of humic acid in water by rice hull magnetic activated carbon and magnetic separation[J]. Ieee Transactions on Applied Superconductivity: A Publication of the Ieee Superconductivity Committee, 2016, 26 (4). DOI: 10.1109/TASC.2015.2512218.
[10]	Kovummal G R, Pattayil A J. Coconut shell based activated carbon-iron oxide magnetic nanocomposite for fast and efficient removal of oil spills[J]. Journal of Environmental Chemical Engineering, 2015, 3 (3) : 2068-2075. doi: 10.1016/j.jece.2015.04.028
[11]	Luo Hao, Zhang Shengxiao, Li Xiaoyan, et al. A facile route for preparation of magnetic biomass activated carbon with high performance for removal of dye pollutants[J]. Environmental Science and Pollution Research International, 2017, 24 (18) : 15599-15608. doi: 10.1007/s11356-017-9207-y pmid: 28523615
[12]	Sağlam S, Türk F N, Arslanoğlu H. Synthesis of magnetic activated carbon from industrial waste: characterization, tetracycline removal and interpretation of its mechanism[J]. Biomass Conversion and Biorefinery, 2024. DOI: 10.1007/s13399-023-05229-y.
[13]	Zhan Huiying. Measuring oil content in waste water using UV-spectrum[J]. Journal of Lanzhou University of Arts and Science (Natural Sciences), 2007 (1) : 65-66, 69.
[14]	Peng Sihan. Research on demulsification and biodegradation of emulsified oil wastewater used for hydraulic supports in mines[D]. Xuzhou: China University of Mining and Technology, 2022.
[15]	Zhang Xiaowei. Study on the removal of emulsified oil from coal chemical wastewater[D]. Qingdao: Qingdao University of Science and Technology, 2021.
[16]	Huang Zhouman. Experimental study on the treatment of trace oil in nine drainage[D]. Huainan: Anhui University of Science and Technology, 2008.
[17]	Lü Ting, Chen Yi, Qi Dongming, et al. Treatment of emulsified oil wastewaters by using chitosan grafted magnetic nanoparticles[J]. Journal of Alloys and Compounds, 2017, 696: 1205-1212. doi: 10.1016/j.jallcom.2016.12.118
[18]	Wu Nannan, Xu Dongmei, Wang Zhou, et al. Achieving superior electromagnetic wave absorbers through the novel metal-organic frameworks derived magnetic porous carbon nanorods[J]. Carbon, 2019, 145: 433-444. doi: 10.1016/j.carbon.2019.01.028
[19]	Arabi M, Ostovan A, Ghaedi M, et al. Novel strategy for synthesis of magnetic dummy molecularly imprinted nanoparticles based on functionalized silica as an efficient sorbent for the determination of acrylamide in potato chips: optimization by experimental design methodology[J]. Talanta, 2016, 154: 526-532. doi: 10.1016/j.talanta.2016.04.010 pmid: 27154710
[20]	Ma Zhiya, Guan Yueping, Liu Huizhou. Synthesis and characterization of micron-Sized monodisperse superparamagnetic polymer particles with amino groups[J]. Journal of Polymer Science part A-Polymer Chemistry, 2005, 43 (15) : 3433-3439. doi: 10.1002/pola.v43:15
[21]	Chang Yanping, Ren Cuiling, Qu Jichun, et al. Preparation and characterization of Fe₃O₄/graphene nanocomposite and investigation of its adsorption performance for aniline and p-chloroaniline[J]. Applied Surface Science, 2012, 261: 504-509. doi: 10.1016/j.apsusc.2012.08.045
[22]	Lü Ting, Zhang Shuang, Qi Dongming, et al. Synthesis of pH-sensitive and recyclable magnetic nanoparticles for efficient separation of emulsified oil from aqueous environments[J]. Applied Surface Science, 2017, 396: 1604-1612. doi: 10.1016/j.apsusc.2016.11.223
[23]	Hossein E, Seyyed A A H. Clay/MgFe₂O₄ as a novel composite for removal of Cr (Ⅵ) from aqueous media[J]. ChemistrySelect, 2020, 5 (30) : 9377-9387. doi: 10.1002/slct.v5.30
[24]	Wang Meng, Fu Xinmei, Wang Hanmei, et al. Study on the adsorption behavior of chestnut shells on emulsified oil in oily wastewater[J]. Technology of Water Treatment, 2022, 48 (7) : 52-57.
[25]	Yuan Bo, Wang Liping, Hua Sulan, et al. Complex organoclay adsorbent for treatment of emulsified oily wastewater[J]. Environmental Pollution & Control, 2006, 28 (6) : 448-451.
[26]	Zhang Jingfan, Zhang Chengnan, Zhu Yunping, et al. Biodegradation of seven phthalate esters by Bacillus mojavensis B1811[J]. International Biodeterioration & Biodegradation, 2018, 132: 200-207.
[27]	Rahmani M, Mabrouki J, Regraguy B, et al. Adsorption of (methylene blue) onto natural oil shale: kinetics of adsorption, isotherm and thermodynamic studies[J]. International Journal of Environmental Analytical Chemistry, 2023, 103 (18) : 6495-6509. doi: 10.1080/03067319.2021.1957466
[28]	Al-Ghouti M A, Da’ana D A. Guidelines for the use and interpretation of adsorption isotherm models: A review[J]. Journal of Hazard Mater, 2020, 393: 122383. doi: 10.1016/j.jhazmat.2020.122383

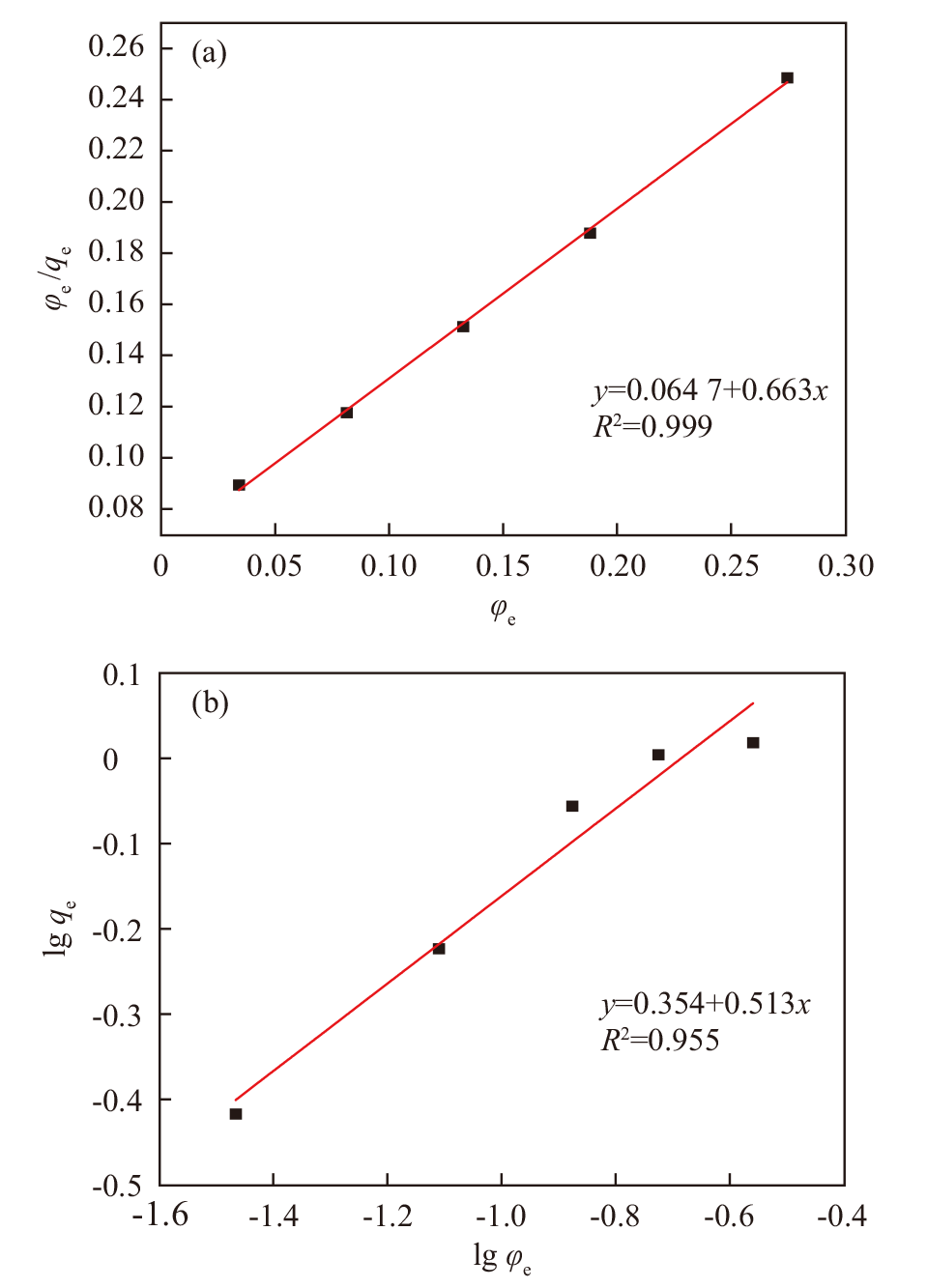

Langmuir模型				Freundlich模型
b	q_m	R²		1/n	R²
10.24	1.51	0.999		0.513	0.955

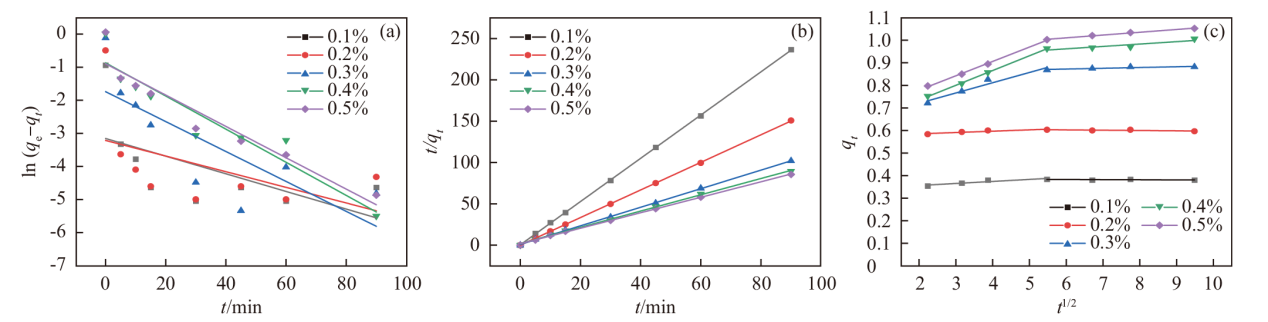

φ（乳液）/%	伪一级动力学			伪二级动力学			实际q_e/（mL/g）
φ（乳液）/%	k₁	q_e/（mL/g）	R²	k₂	q_e/（mL/g）	R²	实际q_e/（mL/g）
0.1	0.023	0.041	0.18	1.81	0.38	0.999	0.38
0.2	0.039	0.064	0.11	1.92	0.61	0.999	0.60
0.3	0.041	0.190	0.43	1.47	0.89	0.998	0.88
0.4	0.048	0.420	0.68	0.55	1.03	0.996	1.01
0.5	0.044	0.520	0.78	0.52	1.09	0.998	1.07
