Janus微纳粒子的制备

doi:10.3969/j.issn.1001-1803.2019.09.010

摘要/Abstract

摘要：

表面活性剂是工业领域中非常重要的一类助剂。然而,分离回收是其面临的一个重大挑战。Janus粒子作为一类新兴的界面活性材料,在结构或性能等方面具有不对称性,不仅具有类似于表面活性剂分子的界面活性,同时由于其质量的显著增加,有可能克服表面活性剂的上述问题,成为表面活性剂的替代产品。文章就现有的Janus粒子主要的制备方法进行了简要的概述,如：模板法、相分离法、乳液聚合法、自组装法、湿化学法和微流控法。并对今后制备Janus粒子的发展方向进行了展望。

关键词: Janus, 微纳粒子, 制备

Abstract:

Surfactants are a very important class of additives in industrial field. However, the issues of separation and recycling are extremely challenging. Janus particle, with asymmetric property or architecture, is a novel type of interfacial active material. Janus particle not only exhibits interfacial activity which is similar to surfactant molecule, but also possesses significantly higher mass than that of surfactants, which might be utilized to overcome the before mentioned problems and might be applied as a candidate for surfactants. The methods for preparation of Janus particles were reviewed, such as template, phase separation, emulsion polymerization, self-assembly, wet chemistry and microfluidic methods. The development directions of Janus particles in the future were also prospected.

Key words: Janus, micro/nanoparticles, preparation

中图分类号:

TB383

薛伟,武江红,杜志平. Janus微纳粒子的制备[J]. 日用化学工业, 2019, 49(9): 614-620.

XUE Wei,WU Jiang-hong,DU Zhi-ping. Preparation of Janus micro/nanoparticles[J]. China Surfactant Detergent & Cosmetics, 2019, 49(9): 614-620.

图/表 6

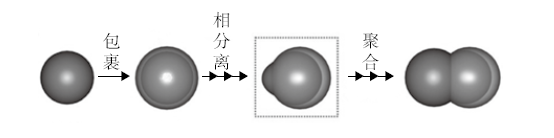

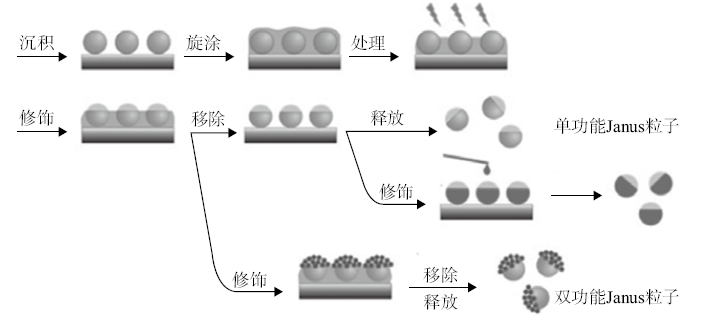

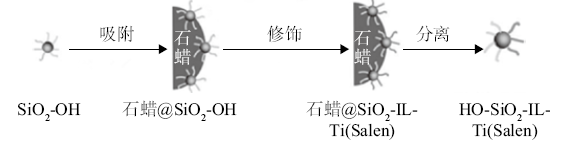

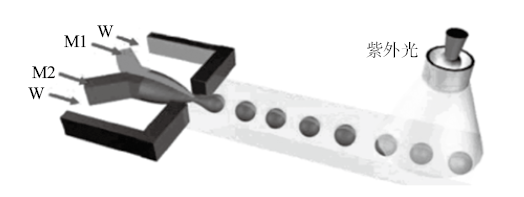

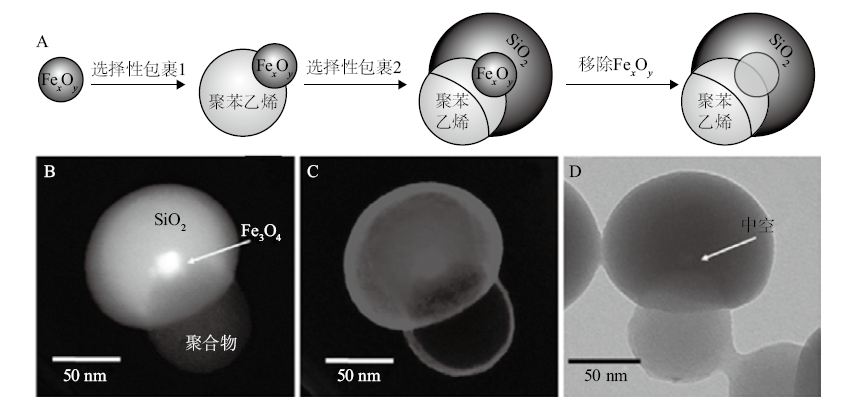

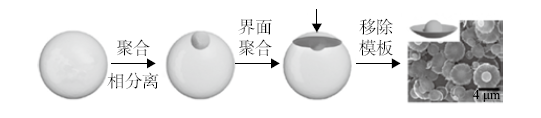

图 1

图 2

图 3

图 4

图 5

图 6

参考文献 25

[1]	de Gennes P G . Soft matter[J]. Science, 1992,256:495-497.
[2]	Hong L, Jiang S, Granick S . Simple method to produce Janus colloidal particles in large quantity[J]. Langmuir, 2006,22:9495-9499.
[3]	Yin Y, Zhou S, You B , et al. Facile fabrication and self-assembly of polystyrene-silica asymmetric colloid spheres[J]. Journal of Polymer Science Part A: Polymer Chemistry, 2011,49:3272-3279.
[4]	Zhang M, Tang Z, Fu W , et al. An ionic liquid-functionalized amphiphilic Janus material as a Pickering interfacial catalyst for asymmetric sulfoxidation in water[J]. Chemical Communication, 2019,55:592-595.
[5]	Zhang Q, Dong R, Wu Y , et al. Light-Driven Au-WO₃@C Janus micromotors for rapid photodegradation of dye pollutants[J]. ACS Appllied Materials & Interfaces, 2017 ( 9) : 4674-4683.
[6]	Ling X Y, Phang I Y, Acikgoz C , et al. Janus particles with controllable patchiness and their chemical functionalization and supramolecular assembly[J]. Angewandte Chemie International Edition, 2009,48:7677-7682.
[7]	Yang S, Lapsley M I, Cao B , et al. Large-scale fabrication of three-dimensional surface patterns using template-defined electrochemical deposition[J]. Advanced Functional Materials, 2013,23:720-730.
[8]	Saito N, Kagari Y, Okubo M . Effect of colloidal stabilizer on the shape of polystyrene/poly (methyl methacrylate) composite particles prepared in aqueous medium by the solvent evaporation method[J]. Langmuir, 2006,22:9397-9402.
[9]	Kim J W, Larsen R J, Weitz D A . Synjournal of nonspherical colloidal particles with anisotropic properties[J]. Journal of the American Chemical Society, 2006,128:14374-14377.
[10]	Park J G, Forster J D, Dufresne E R . High-yield synjournal of monodisperse dumbbell-shaped polymer nanoparticles[J]. Journal of the American Chemical Society, 2010,132:5960-5961.
[11]	Tang C, Zhang C, Liu J , et al. Large scale synjournal of Janus submicrometer sized colloids by seeded emulsion polymerization[J]. Macromolecules, 2010,43:5114-5120.
[12]	Sacanna S, Rossi L, Pine D J . Magnetic click colloidal assembly[J]. Journal of the American Chemical Society, 2012,134:6112-6115.
[13]	Wang Y, Zhang C, Tang C , et al. Emulsion interfacial synjournal of asymmetric Janus particles[J]. Macromolecules, 2011,44:3787-3794.
[14]	Hawker C J, Wooley K L , Frechet J M J. Unimolecular micelles and globular amphiphiles-dendritic macromolecules as novel recyclable solubilization agents[J]. Journal of the Chemical Society-Perkin Transactions 1, 1993,12:1287-1297.
[15]	Ma C, Wu H, Huang Z H , et al. A filled-honeycomb-structured crystal formed by self-assembly of a Janus polyoxometalate-silsesquioxane (POM-POSS) co-cluster[J]. Angewandte Chemie International Edition, 2015,54:15699-15704.
[16]	Zhang S, Xiao Q, Sherman S E , et al. Glycodendrimersomes from sequence-defined Janus glycodendrimers reveal high activity and sensor capacity for the agglutination by natural variants of human lectins[J]. Journal of the American Chemical Society, 2015,137:13334-13344.
[17]	Percec V, Leowanawat P, Sun H J , et al. Modular synjournal of amphiphilic Janus glycodendrimers and their self-assembly into glycodendrimersomes and other complex architectures with bioactivity to biomedically relevant lectins[J]. Journal of the American Chemical Society, 2013,135:9055-9077.
[18]	Liu H K, Ren L J, Wu H , et al. Unraveling the self-assembly of hetero-cluster Janus dumbbells into hybrid cubosomes with internal double diamond structure[J]. Journal of the American Chemical Society, 2018,141:831-839.
[19]	Walther A, Barner-Kowollik C, Muller A H . Mixed, multicompartment, or Janus micelles? A systematic study of thermoresponsive bis-hydrophilic block terpolymers[J]. Langmuir, 2010,26:12237-12246.
[20]	Suteewong T, Sai H, Hovden R , et al. Multicompartment mesoporous silica nanoparticles with branched shapes: an epitaxial growth mechanism[J]. Science, 2013,340:337-341.
[21]	Feyen M, Weidenthaler C, Schuth F , et al. Regioselectively controlled synjournal of colloidal mushroom nanostructures and their hollow derivatives[J]. Journal of the American Chemical Society, 2010,132:6791-6799.
[22]	Zhao T, Zhu X, Hung C T , et al. Spatial isolation of carbon and silica in a single Janus mesoporous nanoparticle with tunable amphiphilicity[J]. Journal of the American Chemical Society, 2018,140:10009-10015.
[23]	Nie Z, Li W, Seo M , et al. Janus and ternary particles generated by microfluidic synjournal: design, synjournal, and self-assembly[J]. Journal of the American Chemical Society, 2006,128:9408-9412.
[24]	Dendukuri D, Pregibon D C, Collins J , et al. Continuous-flow lithography for high-throughput microparticle synjournal[J]. Nature Materials, 2006,5:365-369.
[25]	Yin S N, Yang S, Wang C F , et al. Magnetic-directed assembly from Janus building blocks to multiplex molecular-analogue photonic crystal structures[J]. Journal of the American Chemical Society, 2016,138:566-573.
