亚微米二氧化钛基功效性紫外屏蔽复合材料的制备及性能研究

doi:10.3969/j.issn.2097-2806.2024.11.007

摘要/Abstract

摘要：

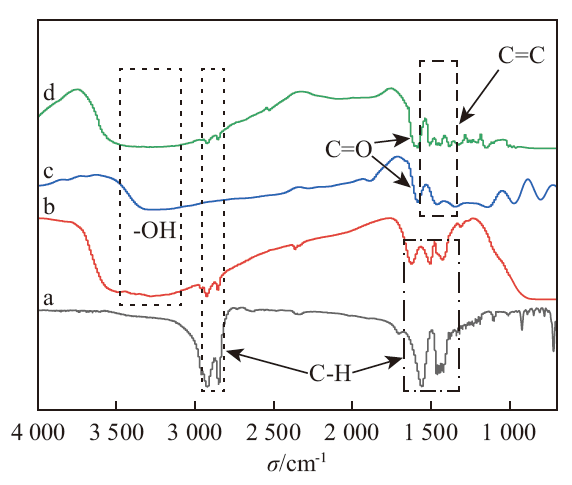

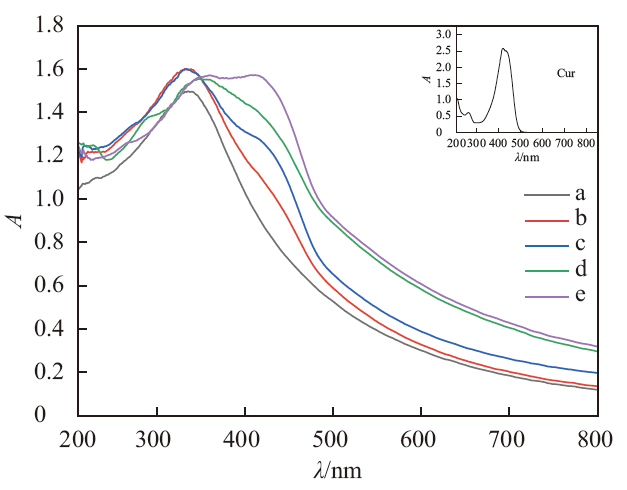

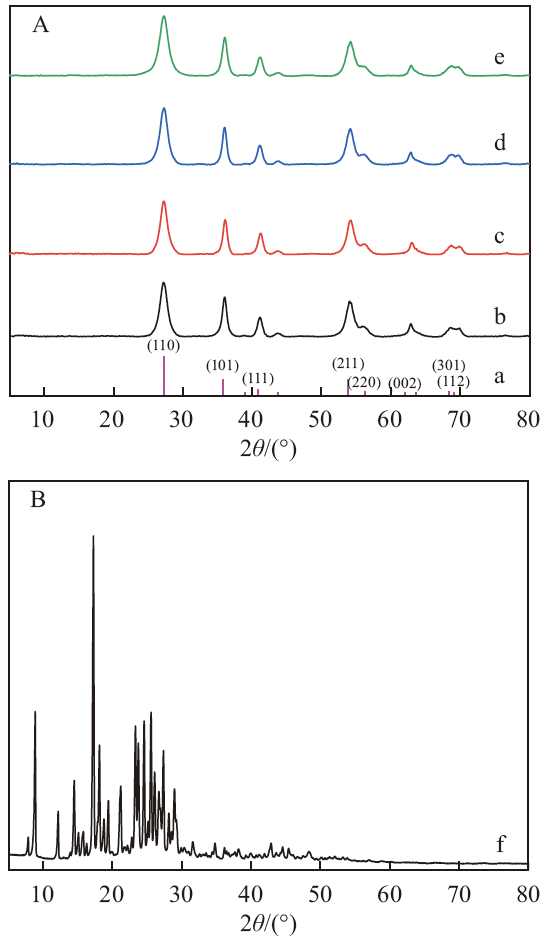

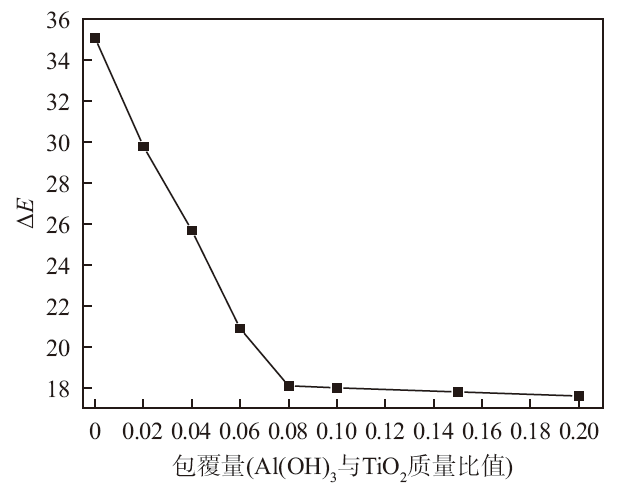

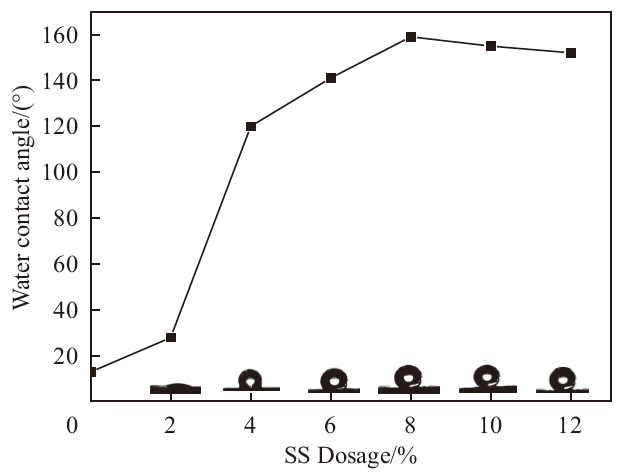

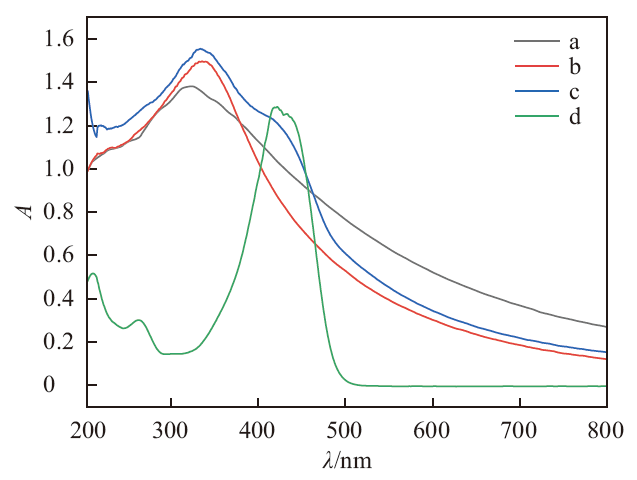

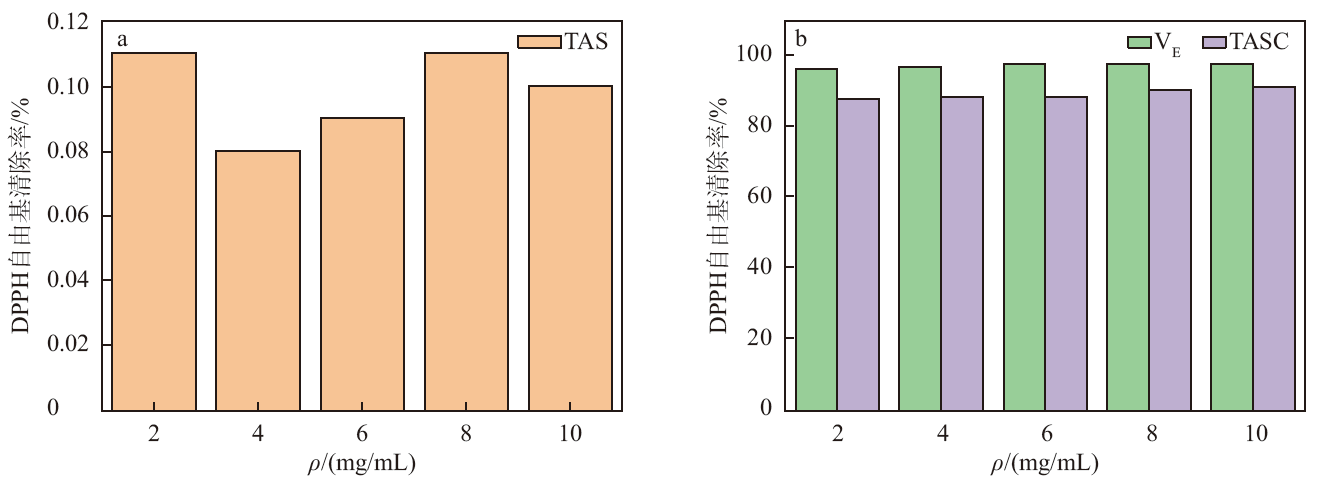

首先制备了一种亚微米花状二氧化钛，依次对其进行无机和有机表面处理后制得TiO₂/Al（OH） ₃/SS复合材料（TAS），最后在TAS表面包覆一种天然防晒剂姜黄素（Cur），得到最终产物TASC复合材料。通过XRD、UV-Vis、TEM、FT-IR、水接触角等技术手段对所得样品进行表征，结果表明：Al（OH） ₃、SS、Cur均以非晶态和物理吸附的形式包覆于TiO₂表面，三者的适宜包覆量分别为8%，8%和6%；防晒指数分析表明：TASC的紫外屏蔽能力远强于市售亚微米TiO₂（CR-50），接近市售纳米TiO₂（626B）。此外，与TAS相比，TASC复合材料还具有较强的抗氧化性。

关键词: 亚微米TiO₂, 姜黄素, 紫外屏蔽, 功效

Abstract:

In this study, a sub-micron flower-like titanium dioxide was first prepared, followed by inorganic and organic surface treatment to prepare TiO₂/Al（OH） ₃/SS composite （TAS）. Finally, the surface of TAS was coated with curcumin （Cur）, a natural sunscreen, to obtain the final product-TASC composite. The samples were characterized by XRD, UV-Vis, TEM, FT-IR and water contact angle. The results show that Al（OH） ₃, SS and Cur are all coated on the TiO₂ surface in the form of amorphous state and physical adsorption, and the suitable coating amounts of the three are 8%, 8% and 6%, respectively. The UV shielding ability of TASC is much stronger than that of the commercial submicron TiO₂ （CR-50） and close to the level of the commercial nano TiO₂ （626B）. In addition, compared with TAS, TASC composite also has strong oxidation resistance.

Key words: submicron TiO₂, curcumin, ultraviolet shielding, efficacy

中图分类号:

TQ658

吴鑫, 左士祥, 余瑶瑶, 孙晓敏, 蔡悦, 姚超. 亚微米二氧化钛基功效性紫外屏蔽复合材料的制备及性能研究[J]. 日用化学工业（中英文）, 2024, 54(11): 1339-1346.

Xin Wu, Shixiang Zuo, Yaoyao Yu, Xiaomin Sun, Yue Cai, Chao Yao. Preparation and properties of submicron titanium dioxide based efficient UV shielding composites[J]. China Surfactant Detergent & Cosmetics, 2024, 54(11): 1339-1346.

图/表 11

图 1

图 2

图 3

图 4

图 5

图 6

图 7

图 8

图 9

表 1

图 10

参考文献 27

[1]	Nakajima, Hideaki, Miyauchi, et al. Determining an effective UV radiation exposure time for vitamin D synthesis in the skin without risk to health: simplified estimations from UV observations[J]. Photochem Photobiol, 2016, 92 (6) : 863-869. doi: 10.1111/php.12651 pmid: 27754554
[2]	Xiao Z, Yang S, Liu Y, et al. A novel glyceroglycolipid from brown algae Ishige okamurae improve photoaging and counteract inflammation in UVB-induced HaCaT cells[J]. Chemico-Biological Interactions, 2022, 351: 109737.
[3]	Balk S J, Hlth C E, Dermatology S. Technical report-ultraviolet radiation: a hazard to children and adolescents[J]. Pediatrics, 2011, 127 (3) : 588-597. doi: 10.1542/peds.2010-3501 pmid: 21357336
[4]	Lin C C, Lin W J. Sun protection factor analysis of sunscreens containing titanium dioxide nanoparticles[J]. Journal of Food and Drug Analysis, 2011, 19 (1) : 1-8.
[5]	Ghamarpoor R, Fallah A, Jamahidi M. Investigating the use of titanium dioxide (TiO₂) nanoparticles on the amount of protection against UV irradiation[J]. Scientific Reports, 2023, 13 (1) : 9793.
[6]	Adriana-Berenice P V, Alberto P B, Lopez-MarureJose, et al. Toxic effect of titanium dioxide nanoparticles on human mesenchymal stem cells[J]. Molecular & Cellular Toxicology, 2020, 16 (3) : 321-330.
[7]	Han H Y, Yang M J, Seong E, et al. Toxicity of orally administered food-grade titanium dioxide nanoparticles[J]. Journal of Applied Toxicology, 2021, 41 (7) : 1127-1147.
[8]	Sha B Y, Gao W, Wang S Q, et al. Cytotoxicity of titanium dioxide nanoparticles differs in four liver cells from human and rat[J]. Composites Part B-Engineering, 2011, 42 (8) : 2136-2144.
[9]	Zhang X, Song Y, Gong H, et al. Neurotoxicity of titanium dioxide nanoparticles: a comprehensive review[J]. International Journal of Nanomedicin, 2023, 18: 7183-7204.
[10]	Liu J, Wu F Q, Yao C, et al. Preparation, characterization and UV shielding properties of TiO₂/ZnO/attapulgite composites[J]. New Chemical Materials, 2016, 44 (4) : 119-121.
[11]	Zhang X B, Wang Z J, Liu H P. Preparation and UV shielding properties of nano-TiO₂ microspheres loaded hydrotalcite composites[J]. New Chemical Materials, 2017, 45 (3) : 108-109, 112.
[12]	Binello A, Grillo G, Barge A, et al. A cross-flow ultrasound-assisted extraction of curcuminoids from Curcuma longa L.: process design to a void degradation[J]. Foods, 2020, 9 (6) : 743.
[13]	Rauf A, Imran M, Orhan I E, et al. Health perspectives of a bioactive compound curcumin: a review[J]. Trends in Food Science & Technology, 2018, 74: 33-45.
[14]	Kumararaja G, Mahendran B, Chelliah S, et al. Nano formulation approaches for curcumin delivery: a review[J]. Journal of Drug Delivery Science and Technology, 2023, 82: 104326.
[15]	Appendino G, Allegrini P, Combarieu E, et al. Shedding light on curcumin stability[J]. Fitoterapia, 2022, 156: 105084.
[16]	Tabanelli R, Brogi S, Calderone V. Improving curcumin bioavailability: current strategies and future perspectives[J]. Pharmaceutics, 2021, 13 (10) : 1715.
[17]	Li Y, Liu J, Jia Z. Morphological control and photodegradation behavior of rutile TiO₂ prepared by a low-temperature process[J]. Materials Letters, 2006, 60 (13) : 1753-1757.
[18]	Yao C, Wu F Q, Lin X P, et al. Study on silica coating on nano-TiO₂ in ultrasonic field[J]. Chinese Journal of Inorganic Chemistry, 2005, 21 (1) : 59-64.
[19]	Moyal D, Alard V, Bertin C. The revised COLIPA in vitro UVA method[J]. International Journal of Cosmetic Science, 2013, 35 (1) : 35-40. doi: 10.1111/j.1468-2494.2012.00748.x pmid: 22882080
[20]	Intarasirisawat R, BenjakuL S, Visessanguan W, et al. Antioxidative and functional properties of protein hydrolysate from defatted skipjack (Katsuwonous pelamis) roe[J]. Food Chemistry, 2012, 135 (4) : 3039-3048. doi: 10.1016/j.foodchem.2012.06.076 pmid: 22980906
[21]	Zhang Y, Harris C X, Wallenmeyer P, et al. Asymmetric lattice vibrational characteristics of rutile TiO₂ as revealed by laser power dependent raman spectroscopy[J]. The Journal of Physical Chemistry C, 2013, 117 (45) : 24015-24022.
[22]	Pantwalawalkar J, More H, Bhange D, et al. Novel curcumin ascorbic acid cocrystal for improved solubility[J]. Journal of Drug Delivery Science and Technology, 2021, 61: 102233.
[23]	Li X, Zhang M, Li Q Y, et al. Research progress in surface treatment of titanium dioxide[J]. Chemical Research, 2017, 28 (5) : 537-547.
[24]	Capelle H A, Britcher L G, Morris G E. Sodium stearate adsorption onto titania pigment[J]. Journal of Colloid and Interface Science, 2003, 268 (2) : 293-300. pmid: 14643230
[25]	Li Y, Wu S, Dai Y, et al. Investigation of sodium stearate organically modified LDHs effect on the anti aging properties of asphalt binder[J]. Construction and Building Materials, 2018, 172: 509-518.
[26]	Song Y C, Zhao F, Li Z, et al. Electrospinning preparation and anti-infrared radiation performance of silica/titanium dioxide composite nanofiber membrane[J]. RSC Advances, 2021, 11 (39) : 23901-23907. doi: 10.1039/d1ra03917b pmid: 35479058
[27]	Nandiyanto A B D, Wiryani A S, Rusli A, et al. Extraction of curcumin pigment from indonesian local turmeric with its infrared spectra and thermal decomposition properties[J]. IOP Conference Series: Materials Science and Engineering, 2017, 180 (1) : 1004-1009.

材料名称	SPF	PFA	临界波长/nm
TAS	12	6	378
TASC	14	9	386
626B	18	3	366
CR-50	3	4	383
