Fe3O4纳米粒子的制备及载药释放性能研究

doi:10.3969/j.issn.2097-2806.2024.06.008

摘要/Abstract

摘要：

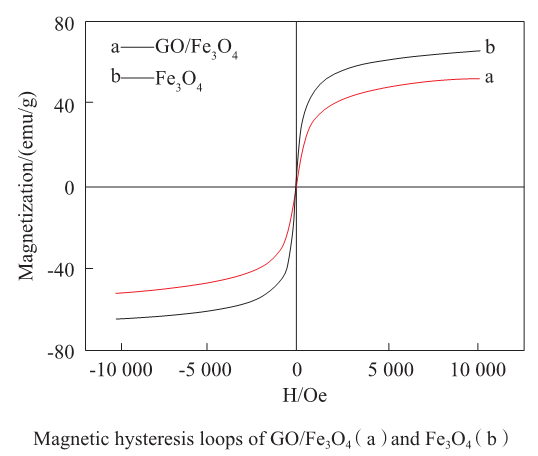

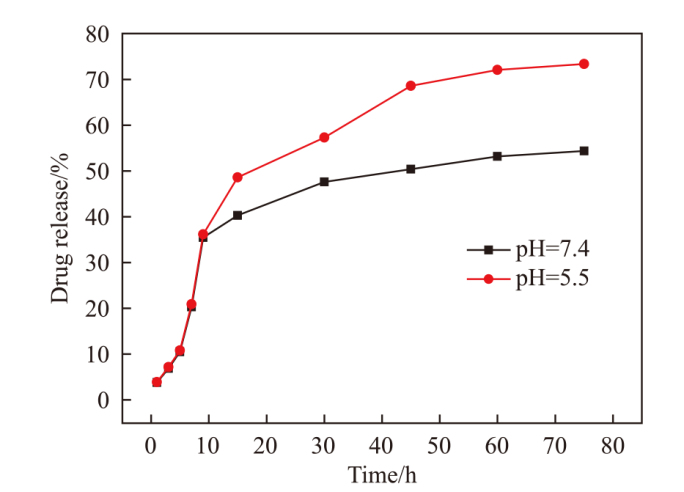

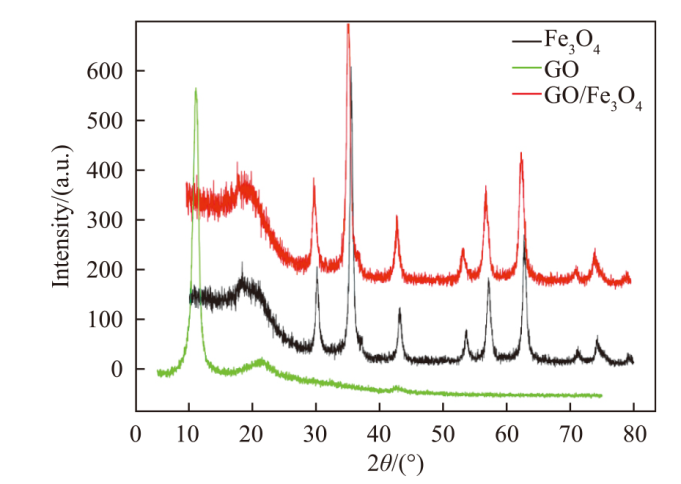

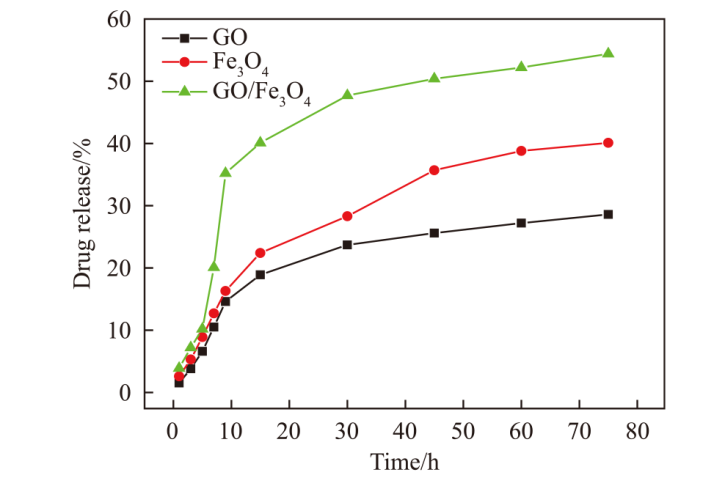

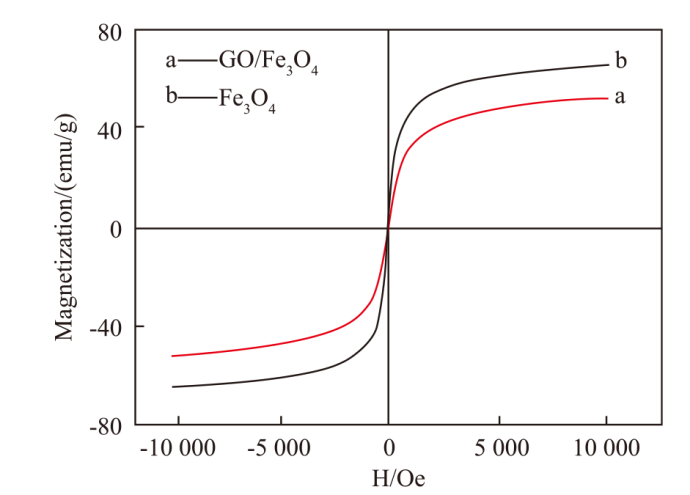

采用改进的Hummers法获得氧化石墨烯（GO），通过共沉淀法制备了GO与磁性Fe₃O₄纳米粒子结合的GO/Fe₃O₄复合材料，分析了复合材料的晶体结构、微观形貌、磁化性能和载药性能，研究结果表明：GO/Fe₃O₄复合材料具有较高的结晶度，GO掺杂改善了Fe₃O₄颗粒的均匀度，晶粒尺寸为13~15 nm。GO/Fe₃O₄复合材料表现出超顺磁性，饱和磁化强度有轻微降低。利用GO/Fe₃O₄负载阿霉素（DOX）研究了载药释放性能，GO/Fe₃O₄/DOX包合物的DOX包封率均值为62.24%，具有较高的包封率，药物释放具有一定的pH依赖性，在pH=7.4时，GO/Fe₃O₄的累计释放率在75 h达到73.3%，摄入试验测试表明GO/Fe₃O₄载体具有一定的靶向性，在生物医学领域有广阔的应用前景。

关键词: 氧化石墨烯, Fe₃O₄, 磁性材料, 共沉淀法, 阿霉素, 药物载体

Abstract:

Graphene oxide （GO） was obtained by the improved Hummers method. The GO/Fe₃O₄ composite, in which GO was combined with magnetic Fe₃O₄ nanoparticles, was prepared by co-precipitation method. The crystalline structure, microscopic morphology, magnetic properties and drug loading of the composite were analyzed. The results showed that: The GO/Fe₃O₄ composite had high crystallinity; GO doping improved the uniformity of Fe₃O₄ particles, and the grain size of GO/Fe₃O₄ composite was 13-15 nm. The GO/Fe₃O₄ composite exhibited superparamagnetic properties with a slight decrease in saturation magnetization. The drug-release properties were studied by using GO/Fe₃O₄ composite to load doxorubicin （DOX）. The average encapsulation efficiency of GO/Fe₃O₄/DOX inclusion complex was 62.24%, which was quite high. The drug release showed pH dependence. When the pH was 7.4, the cumulative release rate reached 73.3% in 75 h. The cellular uptake test showed that the GO/Fe₃O₄ carrier had certain targeting properties and could be used as a good new drug carrier.

Key words: graphene oxide, Fe₃O₄, magnetic material, co-precipitation method, doxorubicin, drug carrier

中图分类号:

O611

高蓉, 石森林. Fe₃O₄纳米粒子的制备及载药释放性能研究[J]. 日用化学工业（中英文）, 2024, 54(6): 677-682.

Rong Gao, Senlin Shi. Preparation of Fe₃O₄ nanoparticles and its drug-loading and drug-release properties[J]. China Surfactant Detergent & Cosmetics, 2024, 54(6): 677-682.

图/表 8

图 1

图 2

图 3

图 4

表 1

图 5

图 6

图 7

参考文献 23

[1]	Zhi D F, Bai Y C, Zhang L, et al. Research progress of magnetically responsive nano-drug carriers based on superparamagnetic Fe₃O₄[J]. Bulletin of Chemistry, 2017, 80 (11) : 987-994, 1060.
[2]	Wu S J, Liu Y G, Wang S B. Research progress of PEI for drug loading and combined drug loading of magnetic nanoparticles in anti-tumor[J]. Materials Review, 2015, 29 (13) : 89-92, 111.
[3]	Gui Z, Yu Y Y, Wang Z W, et al. Preparation and physical properties of nanomagnetic drug carriers[J]. Chinese Journal of Experimental Surgery, 2018, 35 (4) : 687-688.
[4]	Wang S T, Chen W J, Wang D P, et al. Preparation of Fe₃O₄@m-SiO₂ magnetic nanoparticles and its drug release behavior[J]. Journal of Silicate, 2013, 41 (3) : 281-287.
[5]	Jang E S, Shin J H, Gang R, et al. The manipulation of natural killer cells to target tumor sites using magnetic nanoparticles[J]. Biomaterials, 2012, 33 (22) : 5584-5592.
[6]	Song L C, Zhao Y J, Wang Z. Research progress of iron oxide magnetic nanoparticles as drug carriers[J]. International Journal of Pharmaceutical Research, 2013, 40 (3) : 304-307.
[7]	Chen W J, Chen Y C. Fe₃O₄/TiO₂ core/shell magnetic nanoparticle-based photokilling of pathogenic bacteria.[J]. Nanomedicine, 2010, 5 (10) : 1585-1593.
[8]	Mao K L, Yang J J, Fan Z L, et al. Research progress on the application of superparamagnetic nanoparticles in tumor diagnosis and treatment[J]. Military Medicine, 2016, 40 (11) : 927-930.
[9]	Fang K, Yang F, Gu N. Research progress on the preparation and application of drug-loaded microcapsules with magnetic nanoparticles[J]. China Oncology Clinic, 2014, 41 (1) : 9-12.
[10]	Rui X, Sun G, Li Q, et al. A dual-responsive superparamagnetic Fe₃O₄/Silica/PAH/PSS material used for controlled release of chemotherapeutic agent, keggin polyoxotungstate, PM-19[J]. Solid State Sciences, 2010, 12 (10) : 1720-1725.
[11]	Ren X D, Xiong Z H. Adsorption behavior of magnetic multi-walled carbon nanotubes for three nitroimidazoles in water[J]. Chinese Journal of Chemistry, 2013, 71 (4) : 625-633.
[12]	Xiang Y, Bai Z, Zhang S, et al. Lead adsorption, anticoagulation and in vivo toxicity studies on the new magnetic nanomaterial Fe₃O₄@SiO₂@DMSA as a hemoperfusion adsorbent[J]. Nanomedicine, 2017, 13 (4) : 1341-1351. doi: S1549-9634(17)30009-6 pmid: 28115250
[13]	Gao J L, Gong J P, Liu Y M, et al. Study on Fe₃O₄ nanoparticles modified by β-cyclodextrin for drug delivery system[J]. Modern Chemical Industry, 2020, 40 (2) : 157-161.
[14]	Wu W, Chen B, Jian C, et al. Biocompatibility of Fe₃O₄/DNR magnetic nanoparticles in the treatment of hematologic malignancies[J]. Int.J. Nanomedicine, 2010, 5 (1) : 1079-1084.
[15]	Zhou X, Wang X L, Liu Y J, et al. Preparation and characterization of Fe₃O₄/CA@CdSe/CdS magnetic and fluorescent nanocomposites[J]. New Chemical Materials, 2015, 43 (9) : 51-54.
[16]	Wang T, Liu Z L. Adsorption properties of Fe₃O₄/GO composites for methyl orange[J]. Journal of Tianjin Polytechnic University, 2016, 35 (4) : 28-33.
[17]	Wang Y, Wang X Y, Lv Y Y, et al. Preparation of magnetic drug carriers co-loaded with evodiline and Fe₃O₄ nanoparticles[J]. Journal of Chemistry of Universities, 2013, 34 (12) : 2866-2870.
[18]	Kong M Q, Xu H, He Y J, et al. Preparation and drug release behavior of magnetic mesoporous nanosilicon microspheres[J]. Materials Review, 2014, 28 (10) : 12-15.
[19]	Cao X F, Feng L, Yang X Y, et al. Preparation and properties of functionalized graphene oxide as nanocarriers for genes and antitumor drugs[J]. Journal of Tianjin Medical University, 2013, 19 (3) : 178-181, 259.
[20]	Sui L, Wang Y L, Wang L H, et al. Research progress of functionalized graphene oxide as drug carrier[J]. Journal of Hebei North University (Natural Science Edition), 2018, 34 (5) : 58-63.
[21]	Xu B, Li C L, Zhang H Y, et al. Study on the mechanism of graphene oxide prepared by improved Hummers method[J]. Membrane Science and Technology, 2021, 41 (6) : 18-26.
[22]	Yu Z X, LV L, Zeng G Y, et al. Effect of oxidation environment and ratio on preparation of graphene oxide by modified Hummers method[J]. Chemistry, 2015 (11) : 1012-1016.
[23]	Wang Q J, Sun H J, Peng T J, et al. Effect of oxidation degree on adsorption of methylene blue by graphene oxide[J]. Acta Chemologica Sinica, 2017, 68 (4) : 1712-1720.

包合物中DOX的量/mg	包封率/%	平均值/%
0.284 2	52.64	62.24±3.87
0.258 3	73.11
0.264 3	57.15
0.374 7	62.98
0.337 2	65.31
