聚乙二醇和二乙二醇对溶剂热法合成Fe3O4纳米粒子的尺寸及形貌调控

doi:10.3969/j.issn.2097-2806.2023.08.004

摘要/Abstract

摘要：

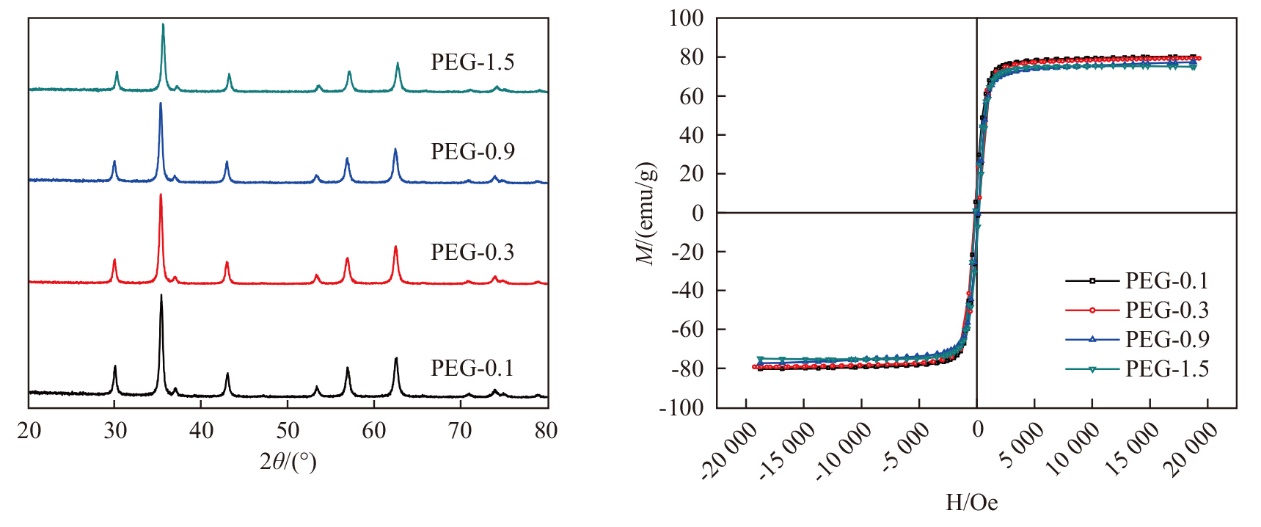

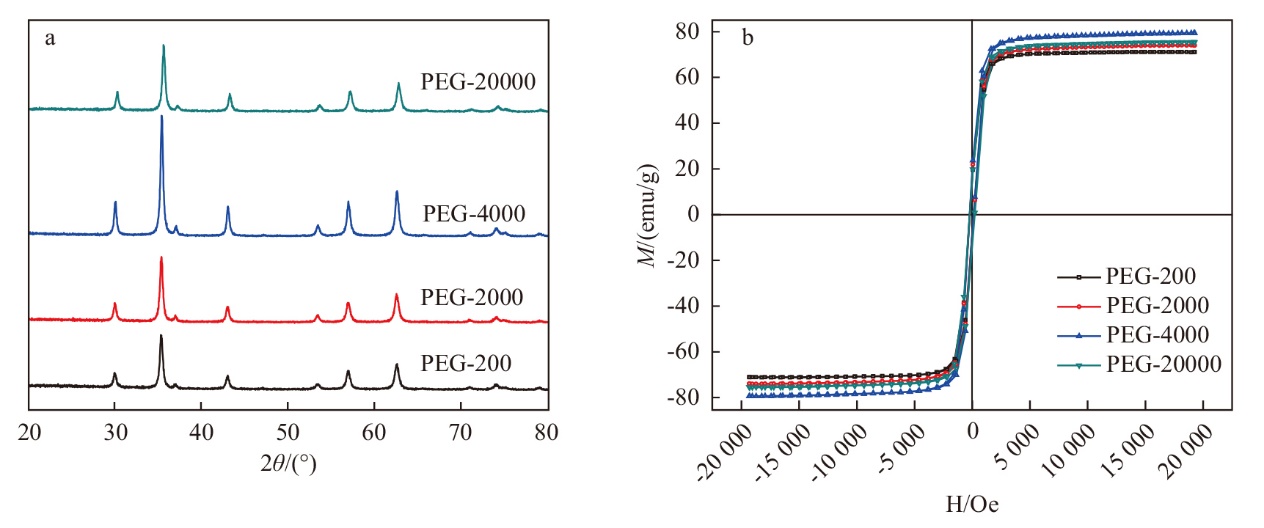

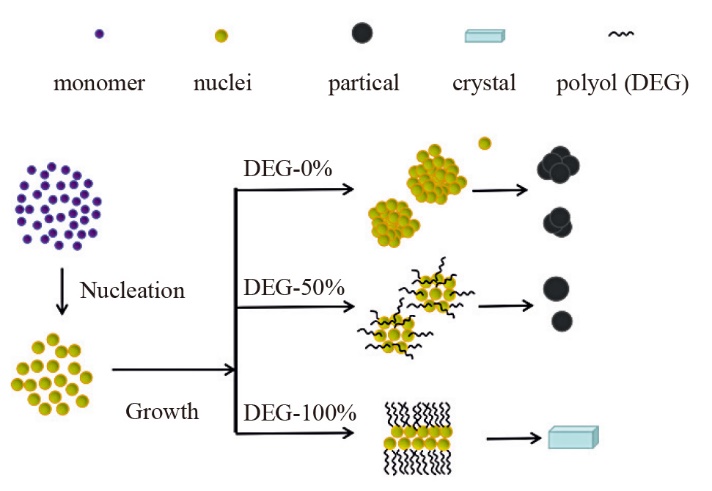

采用溶剂热法，通过改变反应体系中聚乙二醇（PEG）用量、PEG分子量、二乙二醇（DEG）体积分数，实现了对Fe₃O₄纳米粒子的尺寸和形貌调控。利用SEM、TEM、XRD和VSM对制备的Fe₃O₄纳米粒子进行了表征。结果表明：核桃状的Fe₃O₄纳米微球由细小的纳米晶粒组成，随着PEG-4000用量的增加，从0.1 g至1.5 g，有利于生成小的Fe₃O₄纳米晶粒。适当增加PEG链的长度，当分子量从200增加到4 000，有利于促进Fe₃O₄纳米晶粒的生长；但进一步增加PEG链的长度，PEG分子量为20 000时，Fe₃O₄纳米晶粒变小。改变溶剂中DEG的体积分数，Fe₃O₄纳米粒子的形貌实现了从表面粗糙的核桃状大微球到表面光滑的小微球，再到规则的长方体晶粒的转变。基于PEG、DEG的吸附、桥连和空间位阻等作用，提出了利用PEG、DEG调控Fe₃O₄纳米尺寸和形貌结构的可能机理。所制备的Fe₃O₄纳米粒子饱和磁化强度约为80 emu/g，表现为超顺磁性。

关键词: Fe₃O₄纳米粒子, 聚乙二醇, 二乙二醇

Abstract:

A simple solvothermal method was used to control the size and morphology of Fe₃O₄ nanoparticles by changing the dosage of polyethylene glycol （PEG）, the molecular weight of PEG, and the volume fraction of diethylene glycol （DEG） in the reaction system. The prepared Fe₃O₄ nanoparticles were characterized by SEM, TEM, XRD and VSM. The results show that the walnut shaped Fe₃O₄ nanospheres are composed of small grains, as the dosage of PEG-4000 increasing from 0.1 g to 1.5 g, the size of the Fe₃O₄ grain tends to decrease. Appropriately increasing the chain length of PEG, with the molecular weight ranging from 200 to 4 000, is beneficial for promoting the growth of Fe₃O₄ nanocrystals. However, further increasing the length of the chain, at a molecular weight of 20 000, results in smaller Fe₃O₄ nanocrystals and microspheres. Changing the volume fraction of DEG can achieve the shapes transformation of Fe₃O₄ nanoparticles, from rough walnut like large microspheres to smooth small microspheres, and then to regular rectangular crystals. Based on the adsorption, grafting, and steric hindrance effects of PEG and DEG, possible mechanisms for the formation of different morphology and size of nanostructures have been proposed, providing a useful reference for the controllable preparation of Fe₃O₄ nanoparticles. The saturation magnetization of the prepared Fe₃O₄ nanoparticles is about 80 emu/g, showing superparamagnetism.

Key words: Fe₃O₄ nanoparticles, polyethylene glycol （PEG）, diethylene glycol （DEG）

中图分类号:

TQ658

王朱良,关舒萍,张敏,杨杰,李永继. 聚乙二醇和二乙二醇对溶剂热法合成Fe₃O₄纳米粒子的尺寸及形貌调控[J]. 日用化学工业（中英文）, 2023, 53(8): 882-890.

Wang Zhuliang,Guan Shuping,Zhang Min,Yang Jie,Li Yongji. The size and morphology control of Fe₃O₄ nanoparticles synthesized by solvothermal method using polyethylene glycol and diethylene glycol[J]. China Surfactant Detergent & Cosmetics, 2023, 53(8): 882-890.

图/表 8

参考文献 38

[1]	Zhang Yifei, Ning Rende, Wang Wei, et al. Synthesis of Fe₃O₄/PDA nanocomposites for osteosarcoma magnetic resonance imaging and photothermal therapy[J]. Frontiers in Bioengineering and Biotechnology, 2022, 10.
[2]	Duan Wenjuan, Liu Guifang, Guo Cheng, et al. Preparation of nano materials Fe@Fe₃O₄ and its application in magnetic resonance imaging for liver functions[J]. Science of Advanced Materials, 2021, 13 (5) : 906-916. doi: 10.1166/sam.2021.3994
[3]	Li Ziqi, Wan Weimin, Bai Ziwei, et al. Construction of pH-responsive nanoplatform from stable magnetic nanoparticles for targeted drug delivery and intracellular imaging[J]. Sensors and Actuators: B Chemical, 2023, 375.
[4]	Ehsanimehr S, Moghadam P N, Dehaen W, et al. PEI grafted Fe₃O₄@SiO₂@SBA-15 labeled FA as a pH-sensitive mesoporous magnetic and biocompatible nanocarrier for targeted delivery of doxorubicin to MCF-7 cell line[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2021, 615.
[5]	Antarnusa G, Jayanti P D, Denny Y R, et al. Utilization of co-precipitation method on synthesis of Fe₃O₄/PEG with different concentrations of PEG for biosensor applications[J]. Materialia, 2022, 25.
[6]	Yang Wei, Fei Jianwen, Xu Wei, et al. A biosensor based on the biomimetic oxidase Fe₃O₄@MnO₂ for colorimetric determination of uric acid[J]. Colloids and Surfaces B: Biointerfaces, 2022, 212.
[7]	Qin Miao, Xu Mengjie, Niu Lulu, et al. Multifunctional modification of Fe₃O₄nanoparticles for diagnosis and treatment of diseases: A review[J]. Frontiers of Materials Science, 2021, 15 (1) : 36-53. doi: 10.1007/s11706-021-0543-y
[8]	Mo Yuyan, Fan Yajun, Xiao Xin, et al. Electrochemical performance and mechanism of surface‐fluorinated Fe₃O₄ as stable anode for lithium‐ion batteries[J]. Energy Technology, 2022, 10 (4).
[9]	Wang Jie, Hu Qin, Hu Wenhui, et al. Preparation of hollow core-shell Fe₃O₄/nitrogen-doped carbon nanocomposites for lithium-ion batteries[J]. Molecules, 2022, 27 (2).
[10]	Vicente M Y, Caravaca M, Farh S E, et al. Magnetic nanoparticles for removing inorganic arsenic species from waters: A proof of concept for potential application[J]. Advances in Sample Preparation, 2023, 6.
[11]	Ozturk D, Gülcan M. Synthesis, characterization, and in-situ H₂O₂ generation activity of activated Carbon/Goethite/Fe₃O₄/ZnO for heterogeneous electro-Fenton degradation of organics from woolen textile wastewater[J]. Journal of Industrial and Engineering Chemistry, 2023, 122: 251-263. doi: 10.1016/j.jiec.2023.02.026
[12]	Jin Hua, Zhu Lin, Xu Xinyuan, et al. Synergistic pollutant degradation by Ag₃PO₄/Fe₃O₄/graphene oxide visible light-persulfate coupled system: Mechanism elucidation and performance optimization[J]. Catalysis Communications, 2023, 177.
[13]	Wang Lixia, Zheng Hao, Jin Xin, et al. Fe₃O₄ Hollow nanospheres grown in situ in three-dimensional honeycomb macroporous carbon boost long-life and high-rate lithium ion storage[J]. Journal of Electronic Materials, 2023, 52 (1) : 10-22. doi: 10.1007/s11664-022-10026-w
[14]	Rajkumar S, Prabaharan M. Multi-functional core-shell Fe₃O₄@Au nanoparticles for cancer diagnosis and therapy[J]. Colloids and Surfaces B: Biointerfaces, 2018, 174: 252-259. doi: 10.1016/j.colsurfb.2018.11.004
[15]	Cui Zhijie, Feng Tiantian, Wang Xuehong, et al. Fabrication of P-MoO₂-Fe₃O₄ nanobelts for efficient overall water splitting[J]. Fuel, 2023, 332 (2).
[16]	Noroozi S, Hashemnia S, Mokhtari Z. Facile synthesis of cube-shaped Fe₃O₄ mesoporous nanoparticles and their application for electrochemical determination of Cu (Ⅱ) in aqueous solutions through the mediating effect of indigo carmine[J]. Materials Science & Engineering B, 2022, 286.
[17]	Guan Mengjie, Mu Xuejian, Zhang Hao, et al. Spindle-like Fe₃O₄ nanoparticles for improving sensitivity and repeatability of giant magnetoresistance biosensors[J]. Journal of Applied Physics, 2019, 126 (6).
[18]	Yao Yangrong, Huang Wanzhen, Zhou Huan, et al. Self-assembly of dandelion-like Fe₃O₄@C@BiOCl magnetic nanocomposites with excellent solar-driven photocatalytic properties[J]. Journal of Nanoparticle Research, 2014, 16 (6).
[19]	Nguyen M D, Tran H V, Xu S, et al. Fe₃O₄ nanoparticles: structures, synthesis, magnetic properties, surface functionalization, and emerging applications[J]. Applied Sciences, 2021, 11.
[20]	Chen Yongpeng, Zhang Jianguo, Wang Zhixin, et al. Solvothermal synthesis of size-controlled monodispersed superparamagnetic iron oxide nanoparticles[J]. Applied Sciences, 2019, 9.
[21]	Huang Xiaosheng, Zhao Yinshuang, Lu Gongxuan, et al. Review of solvothermal synthesis of metal oxides, zeolites and noble metals based catalysts[J]. Journal of Molecular Catalysis (China), 2017, 31: 287-298.
[22]	Hoffmann M M. Polyethylene glycol as a green chemical solvent[J]. Current Opinion in Colloid & Interface Science, 2022, 57.
[23]	Ali M E, Lamprecht A. Polyethylene glycol as an alternative polymer solvent for nanoparticle preparation[J]. International Journal of Pharmaceutics, 2013, 456 (1) : 135-142. doi: 10.1016/j.ijpharm.2013.07.077 pmid: 23958752
[24]	Cheng Yang, Tan Ruiqin, Wang Weiyan, et al. Controllable synthesis and magnetic properties of Fe₃O₄ and Fe₃O₄@SiO₂ microspheres[J]. Journal of Materials Science, 2010, 45 (19) : 5347-5352. doi: 10.1007/s10853-010-4583-4
[25]	Rawat K, Kim H J, Shishodia P K. Synthesis of Cu₂ZnSnS₄ nanoparticles and controlling the morphology with Polyethylene glycol[J]. Materials Research Bulletin, 2016, 77: 84-90. doi: 10.1016/j.materresbull.2016.01.012
[26]	Saito N, Haneda H. Hierarchical structures of ZnO spherical particles synthesized solvothermally[J]. Science and Technology of Advanced Materials, 2011, 12 (6).
[27]	Cheah P, Brown P, Qu J, et al. Versatile surface functionalization of water-dispersible iron oxide nanoparticles with precisely controlled sizes[J]. Langmuir, 2021, 37 (3) : 1279-1287. doi: 10.1021/acs.langmuir.0c03314 pmid: 33434432
[28]	Ni Xu, Zhang Jingjing, Zhao Linjie, et al. Study of the solvothermal method time variation effects on magnetic iron oxide nanoparticles (Fe₃O₄) features[J]. Journal of Physics and Chemistry of Solids, 2022, 169.
[29]	Safari J, Zarnegar Z, Heydarian M. Magnetic Fe₃O₄ Nanoparticles as efficient and reusable catalyst for the green synthesis of 2-Amino-4H-chromene in aqueous media[J]. Bulletin of the Chemical Society of Japan, 2012, 85 (12) : 1332-1338. doi: 10.1246/bcsj.20120209
[30]	Heidariramsheh M, Dabbagh M M, Mahdavi S M, et al. Morphology and phase-controlled growth of CuInS₂ nanoparticles through polyol based heating up synthesis approach[J]. Materials Science in Semiconductor Processing, 2021, 121.
[31]	Liang Jun, Ma Huiru, Luo Wei, et al. Synthesis of magnetite submicrospheres with tunable size and superparamagnetism by a facile polyol process[J]. Materials Chemistry & Physics, 2013, 139(2-3) : 383-388.
[32]	Linh P H, Hao N V, Khien N V, et al. Correction to: Morphological evolution of 3D ZnO hierarchical nanostructures by diethylene glycol-assisted sol-gel synthesis for highly effective photocatalytic performance[J]. Journal of Sol-Gel Science and Technology, 2022, 104: 342-352. doi: 10.1007/s10971-022-05886-x
[33]	Lamer V K, Dinegar R H. Theory, production and mechanism of formation of monodispersed hydrosols[J]. Journal of the American Chemical Society, 1950, 72 (11) : 4847-4854. doi: 10.1021/ja01167a001
[34]	Thanh N T K, Maclean N, Mahiddine S. Mechanisms of nucleation and growth of nanoparticles in solution[J]. Chemical Reviews, 2014, 114 (15) : 7610-7630. doi: 10.1021/cr400544s pmid: 25003956
[35]	You Hongjun, Fang Jixiang. Particle-mediated nucleation and growth of solution-synthesized metal nanocrystals: a new story beyond the LaMer curve[J]. Nano Today, 2016, 11 (2) : 145-167. doi: 10.1016/j.nantod.2016.04.003
[36]	Shi Liwang, Zhang Jinqiu, Zhao Man, et al. Effects of polyethylene glycol on the surface of nanoparticles for targeted drug delivery[J]. Nanoscale, 2021, 13 (24) : 10748-10764. doi: 10.1039/d1nr02065j pmid: 34132312
[37]	Rabanel J M, Hildgen P, Banquy X. Assessment of PEG on polymeric particles surface, a key step in drug carrier translation[J]. Journal of Controlled Release, 2014, 185: 71-87. doi: 10.1016/j.jconrel.2014.04.017
[38]	Sharif S, Ahmad Z, Hoskins C, et al. Ag nanostructure morphologies and physicochemical properties dictated by the polyols used in the synthesis[J]. Journal of Nano Research, 2022, 76: 93-106. doi: 10.4028/v-3a7iyt
