琥珀酸酯磺酸盐的制备及性能

doi:10.3969/j.issn.1001-1803.2019.03.004

摘要/Abstract

摘要：

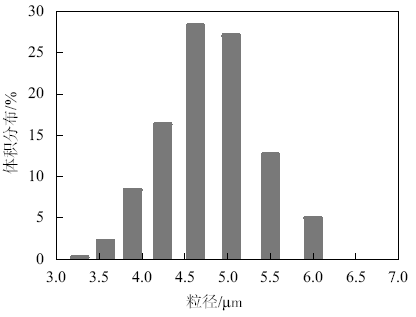

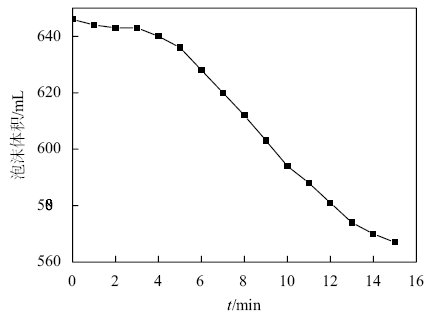

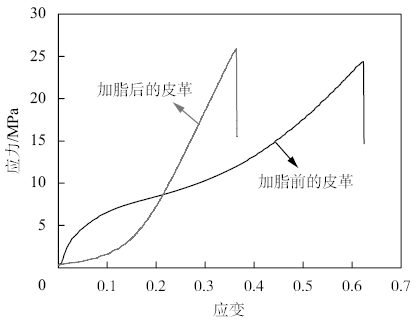

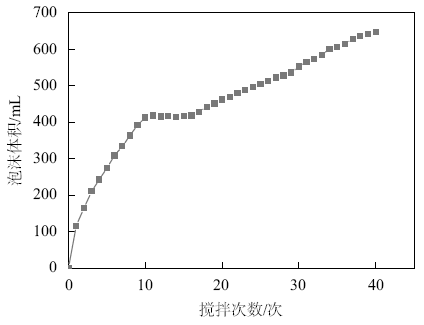

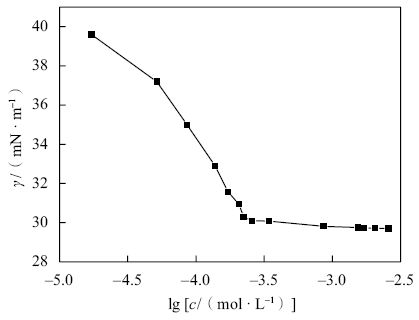

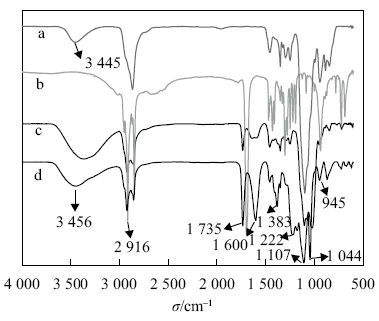

用月桂酸与聚乙二醇-400进行酯化反应,酯化产物顺酐化再与亚硫酸钠进行磺化反应生成聚乙二醇脂肪酸酯琥珀酸酯磺酸盐。采用FT-IR对产品的结构进行表征,并对其乳液粒径、表面张力、接触角、发泡力、抑菌性能进行检测;将合成产物应用于皮革加脂处理,利用SEM观察皮革加脂前后的微观状态和形貌,并测试皮革力学性能。结果表明：制备聚乙二醇脂肪酸酯琥珀酸酯磺酸盐的乳液粒径为4.77 μm,Zeta电位为97.26 mV,泡沫体积为646 mL,临界胶束浓度（cmc）为8.59×10 ^-4 mol/L,接触角为63.1°;其对黑曲霉、铜绿假单胞菌和金色葡萄球菌较为敏感,最小抑菌浓度（MIC）分别为15,20和15 g/L;SEM结果表明,加脂后皮革的纤维束更细小,纤维间距变大;皮革抗张强度从22.07 MPa提高至28.24 MPa,断裂伸长率从64.7%降至36.4%。

关键词: 琥珀酸酯磺酸盐, 月桂酸, 聚乙二醇, 抑菌性能, 皮革加脂

Abstract:

An esterification product was formed by reacting lauric acid with polyethylene glycol-400. The maleation of this ester was performed and the product was then sulfonated with sodium sulfite to form the disodium polyethylene glycol fatty acid ester sulfosuccinate. The structure of the product was characterized by FT-IR. The emulsion particle size, surface tension, contact angle, foaming power and antibacterial property were also tested. The microscopic state and morphology of leather before and after fat liquoring were compared by SEM, and the mechanical properties of leather were also studied. The results show that the prepared polyethylene glycol fatty acid ester sulfosuccinate disodium salt has an emulsion particle size of 4.77 μm, Zeta potential of 97.26 mV, foam volume of 646 mL, critical micelle concentration （cmc） of 8.59×10 ^-4 mol/L, and contact angle of 63.1°. It is sensitive to Aspergillus niger, Pseudomonas aeruginosa and Staphylococcus aureus, and the minimum inhibitory concentrations （MIC） are 15, 20 and 15 g/L, respectively. The SEM results show that the fiber bundle of the leather is finer and the fiber spacing becomes larger after fat liquoring. The tensile strength of leather is increased from 22.07 MPa to 28.24 MPa, and the elongation at break is decreased from 64.7% to 36.4%.

Key words: sulfosuccinate, lauric acid, polyethylene glycol, bacteriostatic activity, leather fat liquoring

中图分类号:

TQ423.11

李伏益,葛赞,史立文,毛雪彬,雷小英,钟凯. 琥珀酸酯磺酸盐的制备及性能[J]. 日用化学工业, 2019, 49(3): 156-161.

Fu-yi LI,Zan GE,Li-wen SHI,Xue-bin MAO,Xiao-ying LEI,Kai ZHONG. Preparation and properties of a sulfosuccinate[J]. China Surfactant Detergent & Cosmetics, 2019, 49(3): 156-161.

图/表 11

图1

图2

图3

图4

图5

图6

表1

表2

表3

图7

图8

参考文献 19

[1]	Leydet A, Boyer B, Lamaty G . Nitrogen analogs of AOT-synjournal and properties[J]. Langmuir, l994, 10(4) : 1000-1002. doi: 10.1021/la00016a007
[2]	Talens-Alesson F I, Adamezak Hanna, Szymanowski Jan . Micellar-enhanced ultrafiltration of phenol by means of oxyethylated fatty acid methyl esters[J]. Journal of Membrane Science, 2001,192:155-163. doi: 10.1016/S0376-7388(01)00476-8
[3]	Mei L, Benedicte L, Stephen M . Synjournal of aragonite nanofilament networks by mesoscale self-assembly and transformation in reverse microemulsions[J]. Advanced Materials, 2003,15(23) : 2032-2035. doi: 10.1002/adma.200305589
[4]	Cason J P, Miller M E, Thompson J B , et al. Solvent effects on copper nanoparticle growth behavior in AOT reverse micelle systems[J]. J Phys Chem B, 2001,105(12) : 2297-2302. doi: 10.1021/jp002127g
[5]	Baczko K, Chasseray X, Larpent C . Synjournal and surfactant properties of symmetric and unsymmetric sulfosuccinic diesters, Aerosol-OT homologues[J]. Journal of the Chemical Society-Perkin Transactions, 2001,2(11) : 2179-2188. doi: 10.1039/b104167n
[6]	State Administration of Quality Supervision, Inspection and Quarantine. Hygienic standard for disposable hygiene products: GB 15979—2002[S]. Beijing: China Standard Press, 2006.
[7]	Wu P, Zhou J, Wang X , et al. Adsorption of Cu-EDTA complexes from aqueous solutions by polymeric Fe/Zr pillared montmorillonite: Behaviors and mechanisms[J]. Desalination, 2011,277:288-295. doi: 10.1016/j.desal.2011.04.043
[8]	Luengoa C, Pucciaa V, Avena M . Arsenate adsorption and desorption kinetics on a Fe (III) -modified montmorillonite[J]. Joural of Hazardous Materials, 2011,186(2/3) : 1713-1719. doi: 10.1016/j.jhazmat.2010.12.074 pmid: 21242027
[9]	Zhao S, Fenga C, Huang X , et al. Role of uniform pore structure and high positive charges in the arsenate adsorption performance of Al₁₃-modified montmorillonite[J]. Joural of Hazardous Materials, 2012 ( 203/204) : 317-325. doi: 10.1016/j.jhazmat.2011.12.035 pmid: 22226720
[10]	Ta-Naska Trotter, Douglas L Marshall . Influence of pH and NaCl on monolaurin inactivation of Streptococcus iniae[J]. International Journal of Food Microbiology, 2003,20(2) : 187-192. doi: 10.1016/S0740-0020(02)00118-1
[11]	Fenja Klevenhusen, Leo Meile, Michael Kreuzer , et al. Effects of monolaurin on ruminal methanogens and selected bacterial species from cattle, as determined with the rumen simulation technique[J]. Anaerobe, 2011,17(5) : 232-238. doi: 10.1016/j.anaerobe.2011.07.003 pmid: 21787874
[12]	Luo Chunyan, Zeng Zeling, Gong Deming , et al. Evaluation of monolaurin from camphor tree seeds for controlling food spoilage fungi[J]. Food Control, 2014,46:488-494. doi: 10.1016/j.foodcont.2014.06.017
[13]	Jill K Branen, P Michael Davidson . Enhancement of nisin, lysozyme, and monolaurin antimicrobial activities by ethylene diamine tetraacetic acid and lactoferrin[J]. International Journal of Food Microbiology, 2004,90(1) : 63-74. doi: 10.1016/S0168-1605(03)00172-7 pmid: 14672831
[14]	Ho T H, Le T N T, Nguyen T A , et al. Poly (ethyleneglycol) grafted chitosan as new copolymer material for oral delivery of insulin[J]. Advances in Natural Sciences: Nanoscience and Nanotechnology, 2015,6(3) : 35004-35009. doi: 10.1088/2043-6262/6/3/035004
[15]	Nie Rongrong . Prepare for polyglycerol middle carbon chain fatty acid ester[D]. Nanchang: Nanchang University, 2011.
[16]	Zhao Cunyang . Study on antibacterial properties of monolaurin and its mechanism[D]. Nanchang: Nanchang University, 2013.
[17]	Zhou Xing . Study on preparation and properties of polyglycerol medium-chain fatty acid esters[D]. Nanchang: Nanchang University, 2012.
[18]	Huang Jinbao . Effect of cyclic stress on the structure and mechanical properties of leather upper leather[D]. Zhengzhou: Zhengzhou University, 2017.
[19]	Sasaki N, Shukunami N, Matsushima N , et al. Time-resolved X-ray diffraction from tendon collagen during creep using synchrotron radiation[J]. Journal of Biomechanics, 1999,32(3) : 285-292. doi: 10.1016/S0021-9290(98)00174-2 pmid: 10093028

种类	Zeta电位/mV	PDI	SD
琥珀酸酯磺酸盐	97.26	0.365	0.000 86
同类商品加脂剂	87.44	0.564	0.000 90

供试菌株	抑菌性能
供试菌株	聚乙二醇脂肪酸酯磺基琥珀酸酯二钠盐	同类商品加脂剂
大肠杆菌	+++	+
金黄色葡萄球菌	+++++	+++
铜绿假单胞菌	++++	+
黑曲霉	++++	+++
酵母菌	+++	+

供试菌株	ρ（聚乙二醇脂肪酸酯磺基琥珀酸酯二钠盐）/（g·L^-1）
供试菌株	0（对照组）	5	10	15	20	25
大肠杆菌	+	+	+	+	+	+
金黄色葡萄球菌	+	+	+	-	-	-
铜绿假单胞菌	+	+	+	+	-	-
黑曲霉	+	+	+	-	-	-
酵母菌	+	+	+	+	+	+
