UPLC-MS/MS法测定化妆品中5种美白剂

doi:10.3969/j.issn.2097-2806.2024.07.016

摘要/Abstract

摘要：

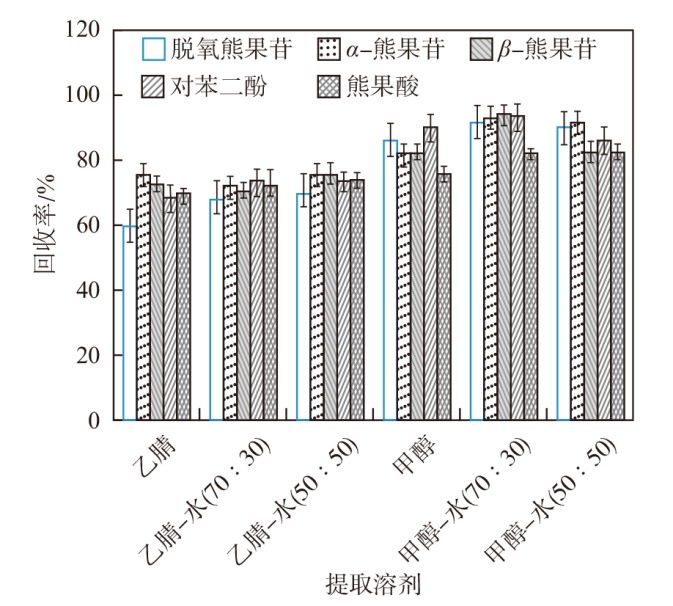

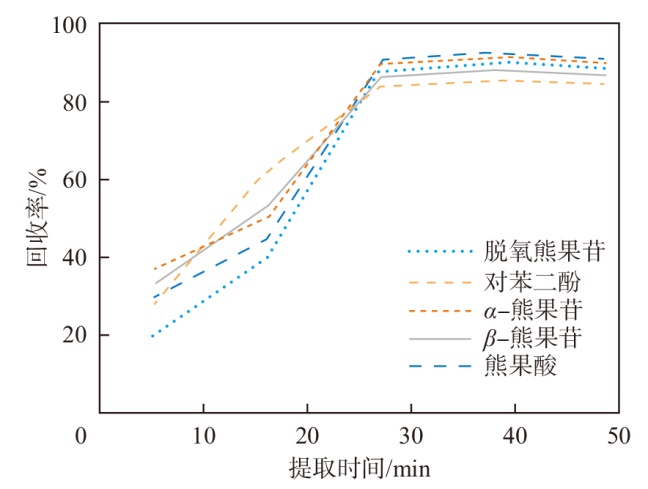

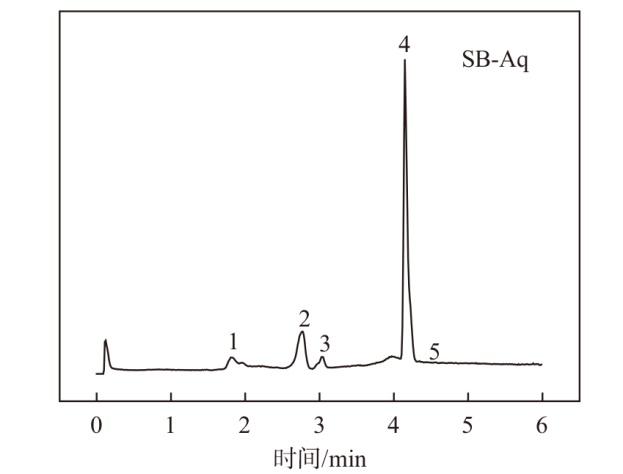

建立了超高效液相色谱-串联质谱法（UPLC-MS/MS）测定化妆品中5种美白剂的方法。样品采用甲醇-水（70∶30）溶液作为提取溶剂，超声提取30 min，采用ZORBAX RR StableBond Aq（Agilent）色谱柱进行液相分离，梯度洗脱，采用电喷雾离子源负离子模式扫描和多反应监测模式采集。结果表明，在最优条件下，5种美白成分实现有效分离，以水乳、霜膏、粉饼化妆品为基质的标准工作曲线均在1.0~200.0 ng/mL范围内线性良好，相关系数R²≥0.996，方法检出限为0.01~0.1 mg/kg，定量限为0.03~0.3 mg/kg。3种不同基质的化妆品样品在1倍、2倍、10倍定量限浓度加标的平均回收率为82.6%~104.8%，相对标准偏差为2.1%~8.6%（n=6）。该方法操作简便，准确性良好，适用于不同基质化妆品中脱氧熊果苷、α-熊果苷、β-熊果苷、对苯二酚和熊果酸5种美白剂的测定。

关键词: 超高效液相色谱-四极杆串联质谱法, 美白剂, 化妆品

Abstract:

A method was established for quantitative determination of five whitening agents in cosmetics using ultra-high performance liquid chromatography-tandem mass spectrometry （UPLC-MS/MS）. The samples were extracted with methanol-water solution （70∶30）, ultrasonic extraction for 30 minutes and then separated by Agilent column （ZORBAX RR StableBond Aq） followed by gradient elution. An electrospray ionization （ESI） source in negative ion mode was utilized for multiple reaction monitoring （MRM） scanning. The results show that under optimal conditions no obvious matrix effect exists in 3 different cosmetic matrices. Among the three cosmetics with different types of matrices, good linearity is obtained for five whitening agents in the range of 1.0-200.0 ng/mL, and the correlation coefficients （R²） are more than 0.996. The limit of detection （LOD） and limit of quantitation （LOQ） are 0.01-0.1 mg/kg and 0.03-0.3 mg/kg, respectively. Spike recovery is performed on three cosmetics at three different spike levels （1, 2, and 10 times of the LOQ）, and the average recovery range is 82.6%-104.8% with a relative standard deviation of 2.1%-8.6% （n=6）. This method is easy to implement, efficient and accurate. It is suitable for quantitative analysis of five whitening agents, including deoxyarbutin, α-arbutin, β-arbutin, hydroquinone, and ursolic acid in common cosmetics, providing technical support for the regulation and risk monitoring of the cosmetics industry.

Key words: UPLC-MS/MS, whitening agents, cosmetics

中图分类号:

TQ658

王昌钊, 李子豪, 王一欣, 杨玥. UPLC-MS/MS法测定化妆品中5种美白剂[J]. 日用化学工业（中英文）, 2024, 54(7): 873-878.

Changzhao Wang, Zihao Li, Yixin Wang, Yue Yang. Determination of 5 whitening agents in cosmetics using UPLC-MS/MS[J]. China Surfactant Detergent & Cosmetics, 2024, 54(7): 873-878.

图/表 8

表1

表2

图1

表3

图2

图3

表4

表5

参考文献 16

[1]	Gao Jiamin, Dai Jing, Li Hongxia, et al. Simultaneous determination of seventeen kinds of whitening ingredients in cosmetics by high performance liquid chromatography[J]. Chin J Pharm Anal, 2019, 39 (9) : 1634-1650.
[2]	Zhang Fenglan, Wu Jing, Wang Gangli, et al. Investigation on the using of whitening ingredients in skin whitening cosmetics[J]. Chin J Health Lab Technol, 2017, 27 (20) : 3012-3015.
[3]	Zhang Bin, Qian Yanfei, Min Chunyan, et al. Simultaneous determination of seven kinds of whitening ingredients in cosmetics by ultra performance liquid chromatography[J]. China Surfactant Detergent & Cosmetics, 2016, 46 (2) : 118-122.
[4]	Chen Peijin, Liang Hong, Xiao Feng, et al. Simultaneous determination of 10 whitening and 2 prohibited components in cosmetics by high performance liquid chromatography[J]. J Instrum Anal, 2017, 36 (3) : 403-408.
[5]	Chen Peijin, Xiao Feng, Tu Xiaoke, et al. Simultaneous determination of whitening and freckle-removing components in cosmetics by high performance liquid chromatography[J]. Chin J Anal Lab, 2013, 32 (9) : 96-100.
[6]	Li Yanju, Wang Fang, Fan Jiemei, et al. Study on the quality of cosmetics risk monitoring under the regulation of supervision and administration of cosmetics[J]. Med Pest Control, 2023, 39 (3) : 262-266.
[7]	Lu Jun. Determination of eight kinds of whitening ingredients in cosmetics by high performance liquid chromatography[J]. China Surfactant Detergent & Cosmetics, 2014, 44 (6) : 351-355.
[8]	Tian Furao, Yang Lanhua, Wang Xuqiang. Determination of hydroquinone and phenol content in whitening, spot-removol cosmetics and shampoo by HPLC-DAD[J]. Chem Anal Meter, 2011, 20 (4) : 42.
[9]	Zhao Jiangli, Zhang Min, Zhang Xiru, et al. Improvement on determination of hydroquinone and phenol in whitening cosmetics by HPLC[J]. Chin J Pharm Anal, 2017, 37 (3) : 508-513.
[10]	Zhao Jiangli, Kang Ying, Sun Han, et al. Determination of hydroquinone and phenol in cosmetics by solid phase extraction high performance liquid chromatography[J]. Chin J Health Lab Technol, 2019, 29 (1) : 16-18.
[11]	Chen Shaobo, Pu Yunyue, Yu Wenjing, et al. Determination of phenol and hydroquinone in cosmetics by gas chromatography mass spectrometry[J]. Anal Test Technol Instrum, 2017, 23 (3) : 176-179.
[12]	Liu Dan, He Yanling, Qiu Hongyan, et al. Simultaneous determination of 5 antioxidant components in cosmetics by high performance liquid chromatography[J]. China Surfactant Detergent & Cosmetics, 2022, 52 (8) : 858-862.
[13]	Mao Xiqin. Determination of nicotinic acid and nicotinamide in cosmetics by high performance liquid chromatography[J]. China Surfactant Detergent & Cosmetics, 2012, 42 (6) : 469-472.
[14]	Chen Zhangting, Wang Kaichen, Yang Zhenyu, et al. Determination of rhododendrol in whitening cosmetics by UPLC and HPLC-MS/MS[J]. Flavour Frag Cosmet, 2014 (2) : 53-56.
[15]	Tong Lanyan, Xiao Zhaojing, Li Genrong, et al. Determination of 14 whitening active components in cosmetics by ultra-high performance liquid chromatography-triple quadrupole mass spectrometry[J]. Chin J Anal Lab, 2022, 44 (1) : 96-102.
[16]	Zou Xiao, Yan Lixiao, Luo Xiaofang, et al. Fast determination of 7 whitening active components in cosmetics by UPLC-MS/MS[J]. Standard & Quality of Light Industry, 2023 (2) : 79-92.

步骤	时间/min	流速/（mL/min）	流动相体积分数/%
步骤	时间/min	流速/（mL/min）	A	B
1	0.00	0.3	10	90
2	2.50	0.3	90	10
3	4.00	0.3	90	10
4	4.50	0.3	10	90
5	6.00	0.3	10	90

化合物名称	保留时间/min	母离子（m/z）	子离子（m/z）	去簇电压/ V	碰撞能量/eV
脱氧熊果苷	4.20	193.1	108.1^*	-35	-21
脱氧熊果苷	4.20	193.1	193.1	-35	-5
α-熊果苷	2.72	271.2	108.2^*	-90	-34
α-熊果苷	2.72	271.2	151.2	-90	-16
β-熊果苷	1.86	271.2	108.2^*	-90	-32
β-熊果苷	1.86	271.2	151.2	-90	-17
对苯二酚	3.05	109.1	108.1^*	-75	-21
对苯二酚	3.05	109.1	81.1	-75	-17
熊果酸	4.54	455.6	455.6^*	-16	-10
熊果酸	4.54	455.6	455.6	-16	-10

化合物名称	基质名称	回归方程	线性范围/（ng/mL）	相关系数R²	方法检出限/（mg/kg）	方法定量限/（mg/kg）
脱氧熊果苷	水乳	Y=1.68×10⁵X+8.78×10³	1.0~200.0	0.996 1	0.01	0.03
	膏霜	Y=1.41×10⁵X-6.76×10⁴	1.0~200.0	0.998 2	0.01	0.03
	粉饼	Y=1.50×10⁵X+6.25×10⁴	1.0~200.0	0.997 4	0.01	0.03
α-熊果苷	水乳	Y=1.44×10⁵X-1.10×10⁵	1.0~200.0	0.998 2	0.02	0.06
	膏霜	Y=1.01×10⁵X+5.46×10⁴	1.0~200.0	0.997 1	0.02	0.06
	粉饼	Y=1.211×10⁵X-1.02×10⁵	1.0~200.0	0.997 5	0.02	0.06
β-熊果苷	水乳	Y=1.34×10⁵X+3.46×10⁵	1.0~200.0	0.998 8	0.05	0.15
	膏霜	Y=1.51×10⁴X+1.53×10⁴	1.0~200.0	0.997 6	0.05	0.15
	粉饼	Y=1.01×10⁴X-1.33×10⁴	1.0~200.0	0.998 4	0.05	0.15
对苯二酚	水乳	Y=8.37×10⁴X-2.27×10⁴	1.0~200.0	0.998 6	0.05	0.15
	膏霜	Y=9.87×10⁴X+8.35×10³	1.0~200.0	0.999 1	0.05	0.15
	粉饼	Y=7.00×10⁴X+6.00×10³	1.0~200.0	0.997 6	0.05	0.15
熊果酸	水乳	Y=6.02×10⁴X+5.26×10³	1.0~200.0	0.999 2	0.1	0.3
	膏霜	Y=5.22×10⁴X-1.56×10³	1.0~200.0	0.998 5	0.1	0.3
	粉饼	Y=4.13×10⁴X+2.12×10³	1.0~200.0	0.999 0	0.1	0.3

样品名称	添加水平/ （mg/kg）	水乳		膏霜		粉饼
样品名称	添加水平/ （mg/kg）	回收率/%	RSD/%	回收率/%	RSD/%	回收率/%	RSD/%
脱氧熊果苷	0.03	91.8	4.2	87.6	6.8	84.5	7.6
	0.06	92.4	4.6	93.0	4.5	85.8	6.7
	0.30	95.0	3.1	100.4	3.4	90.3	5.5
α-熊果苷	0.06	90.6	6.5	92.1	6.8	88.5	8.6
	0.12	97.0	5.1	90.5	5.4	87.0	5.5
	0.60	92.8	2.5	98.6	5.2	89.9	4.4
β-熊果苷	0.15	88.3	5.6	88.7	7.5	82.6	5.0
	0.30	88.9	4.2	93.4	4.4	85.6	4.7
	1.50	90.4	3.2	99.6	2.1	90.5	3.6
对苯二酚	0.15	89.9	6.5	93.2	5.4	84.6	5.7
	0.30	91.7	4.4	90.8	3.4	88.9	4.8
	1.50	92.3	3.3	104.8	2.0	87.5	3.0
熊果酸	0.3	95.2	5.6	86.9	4.5	91.0	5.5
	0.6	91.3	4.2	89.5	4.0	91.1	3.4
	3.0	97.8	2.9	99.5	2.7	92.4	3.1
