9, 10-二羟基硬脂酸钠的性能研究

doi:10.3969/j.issn.1001-1803.2022.01.001

摘要/Abstract

摘要：

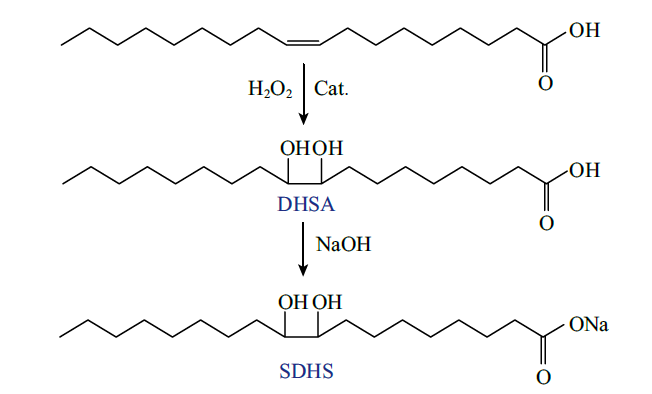

以油酸为原料,双氧水为氧化剂采用一锅法合成了9, 10-二羟基硬脂酸钠（SDHS）,该合成方法效率高、污染小,产物结构经核磁与质谱表征,产物纯度经气相色谱和液相色谱确定。研究了SDHS在表面张力、乳化、泡沫、润湿、去污等方面的性能。结果表明,SDHS的纯度较高且表面活性较好,可以在低浓度下稳定O/W乳状液;SDHS是一类低泡型表面活性剂且泡沫稳定性较差;SDHS具有良好的润湿性能和较好的去污性能,适用于洗涤类产品配方中。

关键词: 油酸, 羟基硬脂酸, 润湿, 去污

Abstract:

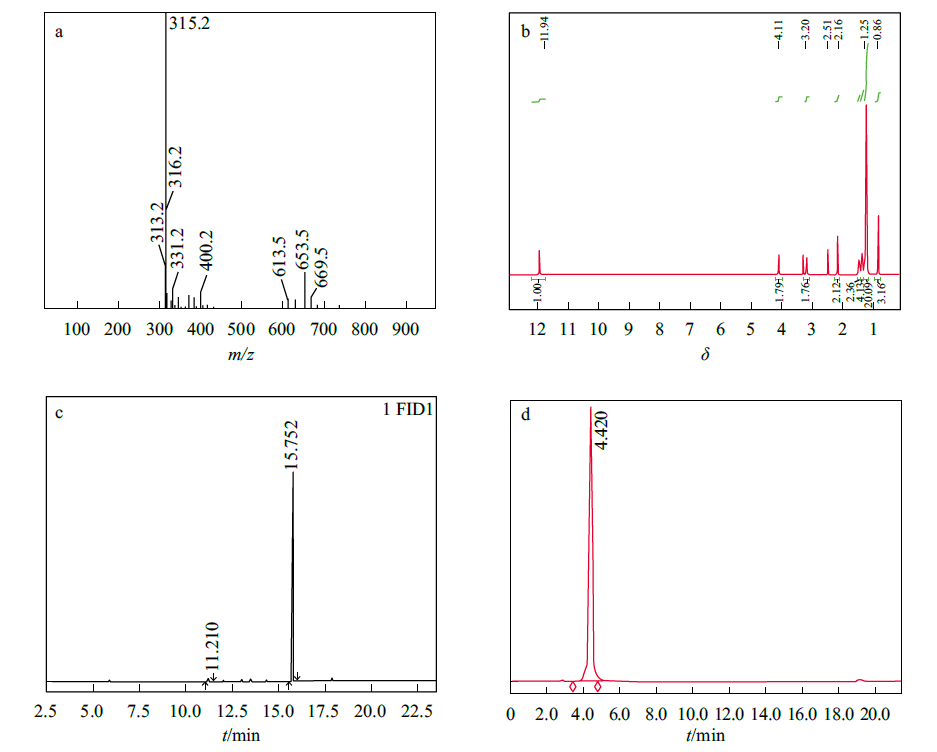

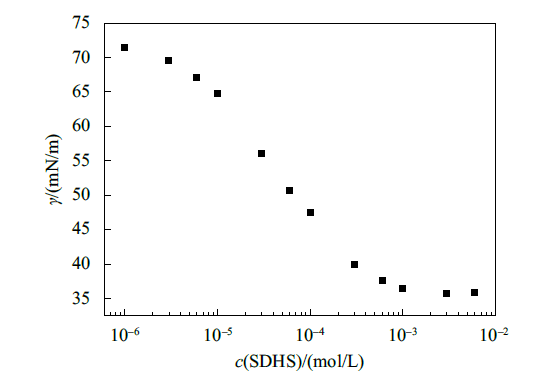

Sodium 9,10-dihydroxystearate （SDHS） was synthesized from oleic acid and hydrogen peroxide. Compared with the traditional method for preparing SDHS, this synthetic method had the advantages of short reaction time, high efficiency, no waste water, and low environmental pollution. The product was characterized by ¹H-NMR, mass spectroscopy, GC and HPLC. The surface tension, detergency and the emulsifying, foaming and wetting properties of SDHS were studied. The results show that the SDHS synthesized by this method has higher purity; SDHS has good surface-active performance; the emulsifying ability of SDHS is better than those of sodium stearate and sodium oleate; it can stabilize O/W emulsions at low concentrations. Compared with traditional anionic surfactants, SDHS has poor foaming performance. SDHS is a kind of low-foaming surfactant and has poor foam stability. SDHS has good wetting performance, and its wetting power is better than sodium oleate and sodium stearate. The detergency experiment shows that SDHS has better cleaning performance, especially for sebum stained cloth. SDHS is suitable to be used in various detergent formulations.

Key words: oleic acid, hydroxystearic acid, wetting, detergency

中图分类号:

TQ423

黄思瑜,蒋建中,崔正刚. 9, 10-二羟基硬脂酸钠的性能研究[J]. 日用化学工业, 2022, 52(1): 1-6.

Huang Siyu,Jiang Jianzhong,Cui Zhenggang. Study on the performance of sodium 9, 10-dihydroxystearate[J]. China Surfactant Detergent & Cosmetics, 2022, 52(1): 1-6.

图/表 11

图 1

图 2

图 3

表 1

图 4

图 5

图 6

表 2

表 3

表 4

表 5

参考文献 15

[1]	Zhang H. The development of detergents and the demand for grease-based surfactants[J]. Beijing Daily Chemical, 2013, 2:31-37.
[2]	Ren X R, Niu J P, Han Y M. Oil based surfactants in the application of mineral flotation[J]. China Detergent Industry, 2009, 5:49-50.
[3]	Zhang G Y, Li Q X. The research and development of Chinese surfactants based on oil and fat[J]. Detergent & Cosmetics, 2001, 24(1) : 1-5.
[4]	Plietker B, Niggemann M. An improved protocol for the RuO₄-catalyzed dihydroxylation of olefins[J]. Organic Letters, 2003, 5(18) : 3353-3356. pmid: 12943425
[5]	Zhang M, Selvakumar, Zhang X, et al. Structural and solubility parameter correlations of gelation abilities for dihydroxylated derivatives of long-chain, naturally occurring fatty acids[J]. Chemistry-A European Journal, 2015, 21(23) : 8530-8543. doi: 10.1002/chem.v21.23
[6]	Amatjang S, Xiamusikamar, Ayiaxiamu, et al. Synjournal of trans-9,10-dihydroxystearic acid[J]. Fine Chemicals, 2009, 26(7) : 724-728.
[7]	Chen A M, Cheng Q L, Ji F, et al. Preparation of methyl-9 (10) -hydroxy-10 (9) -methoxystearate from methyl-9,10-epoxystearate[J]. Applied Chemical Industry, 2016, 45(4) : 649-656.
[8]	Zhang L. Preparation and properties of oleic acid derived multifunctional surfactants[D]. Taiyuan: China Daily Chemical Industry Research Institute, 2009.
[9]	Yu X M, Zhang Y H, Liu Y H, et al. Effects of 9,10-dihydroxysteatic acid on gulcose metabolism in KKAy mice[J]. Health Research, 2010, 39(4) : 423-425.
[10]	Cheng S Y, Guo X C, He Y, et al. Preparation and rheological properties of lithium grease based on 9,10-dihydroxysteatic acid[J]. Journal of Chongqing University of Technology, 2018, 32(10) : 121-126.
[11]	Yan S X, Tan L L, Tong M W, et al. Synjournal and application of zinc dihydroxystearate[J]. Plastic Additives, 2017, 6:22-24.
[12]	Zhang L, Sun Y Q, Di S M. Synjournal and properties of 9,10-dihydroxystearic acid ethoxylate[J]. Tenside Surfactants Detergents, 2019, 56(3) : 237-243. doi: 10.3139/113.110621
[13]	Dierker M, SchaFer H J. Surfactants from oleic, erucic and petroselinic acid: Synjournal and properties[J]. European Journal of Lipid Science & Technology, 2010, 112(1) : 122-136.
[14]	Feng Z P. Study of detergent solution, cleaning and rinse behavior in washing machine[D]. Wuxi: Jiangnan University, 2012.
[15]	Zhao X, Hu X Y, Fang Y, et al. Unique physicochemical properties of sodium 9,10,12,13-tetrahydroxyl stearate in cold hard water and under neutral pH condition[J]. Fine Chemicals, 2013 (9) : 57-61.

样品	初始泡沫高度/mL	5 min后泡沫高度/mL
SDHS	0	0
SDS	14.0	14.0
SDBS	16.0	16.0
硬脂酸钠	7.0	6.5

样品	沉降所需时间/s
AEO9	36
SDHS	3 215
硬脂酸钠	>7 200
油酸钠	4 034

洗涤剂名称	去污力
洗涤剂名称	炭黑污布	蛋白污布	皮脂污布
标准洗衣液	12.05	4.48	6.01
SDHS	17.75	8.09	22.29
硬脂酸钠	10.39	3.22	3.64
油酸钠	15.84	5.18	19.27
SDBS	16.65	4.02	10.91
