超细TiO2在硅油中的流变特性与紫外保护性能

doi:10.3969/j.issn.1001-1803.2020.02.007

日用化学工业 ›› 2020, Vol. 50 ›› Issue (2): 112-117.doi: 10.3969/j.issn.1001-1803.2020.02.007

超细TiO₂在硅油中的流变特性与紫外保护性能

王优,左士祥,李霞章,刘文杰,徐荣,钟璟,姚超()

常州大学石油化工学院,江苏常州 213164

收稿日期:2019-07-24 修回日期:2019-08-19 出版日期:2020-02-22 发布日期:2020-03-04
通讯作者: 姚超
作者简介:王优（1995-）,男,江苏淮安人,硕士生,电话：15006116206,E-mail：15006116206@163.com。
基金资助:
江苏省重点研发计划资助项目(BE2018649);江苏省重点研发计划资助项目(BE2018100);江苏省“六大人才高峰”第十三批创新人才团队项目资助(XCL-CXTD-029)

Rheological and UV protective properties of ultrafine TiO₂ in silicone oil

WANG You,ZUO Shi-xiang,LI Xia-zhang,LIU Wen-jie,XU Rong,ZHONG Jing,YAO Chao()

School of Petrochemical Engineering, Changzhou University, Changzhou, Jiangsu 213164, China

Received:2019-07-24 Revised:2019-08-19 Online:2020-02-22 Published:2020-03-04
Contact: Chao YAO

摘要/Abstract

摘要：

以超细TiO₂为原料,PEG-10聚二甲基硅氧烷为分散剂,十甲基环五硅氧烷为溶剂,制备出超细TiO₂分散浆。考察了分散剂用量对分散浆稳定性和黏度的影响。结果表明：当TiO₂固含量为30%,分散剂用量为6%的条件下得到的分散浆黏度仅为57.20 mPa·s,触变性小,不易絮凝,稳定性高;以5%有效成分含量与凡士林混合模拟防晒霜,测得其防晒指数SPF为11,与TiO₂粉体相比（SPF为9）,分散浆的紫外保护性能显著提高。流变特性研究结果表明：分散浆黏度具有剪切稀化特性,为假塑性流体,其流动行为符合幂律模型。通过阿伦尼乌斯方程描述温度对黏度的影响,分散浆黏度随温度的升高而减小,随着固含量的增加,分散浆黏度对温度的敏感性增强。

关键词: TiO₂分散浆, 紫外保护, 防晒指数, 流变特性, 黏度

Abstract:

An ultrafine TiO₂ dispersion slurry was prepared using ultrafine TiO₂ as the raw material, PEG-10 polydimethylsiloxane as the dispersant, and decamethylcyclopentasiloxane as the solvent. The effects of the amount of dispersant on the stability and viscosity of the dispersion slurry were studied in detail. The results indicated that, at a solid content of 30% and a dispersant dosage of 6%, the viscosity of the dispersion slurry was only 57.20 mPa·s, which had small thixotropy and high stability and was not easy to flocculate and settle. The sun protection factor （SPF） of the dispersion slurry was 11 with the active ingredient content of 5% in vaseline. The UV protective property of the slurry was significantly improved when compared with TiO₂ powder whose SPF was merely 9. Rheological studies showed that the dispersion slurry was a pseudoplastic fluid with shear thinning characteristics. And the flow behavior could be fitted into the power law model. The effects of temperature on viscosity could be well described by the Arrhenius equation. It was found that the viscosity decreased with the increase of temperature. Moreover, the higher the solid content, the more sensitive the viscosity as changed with temperature.

Key words: TiO₂ dispersion slurry, UV protection, sun protection factor, rheology, viscosity

中图分类号:

TQ658

王优,左士祥,李霞章,刘文杰,徐荣,钟璟,姚超. 超细TiO₂在硅油中的流变特性与紫外保护性能[J]. 日用化学工业, 2020, 50(2): 112-117.

WANG You,ZUO Shi-xiang,LI Xia-zhang,LIU Wen-jie,XU Rong,ZHONG Jing,YAO Chao. Rheological and UV protective properties of ultrafine TiO₂ in silicone oil[J]. China Surfactant Detergent & Cosmetics, 2020, 50(2): 112-117.

图/表 8

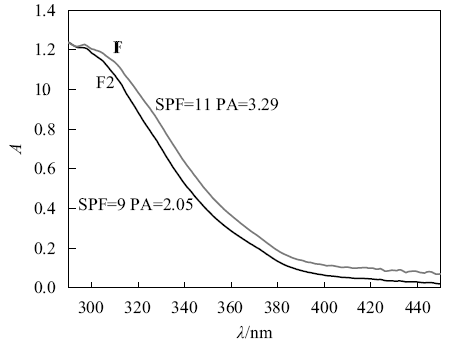

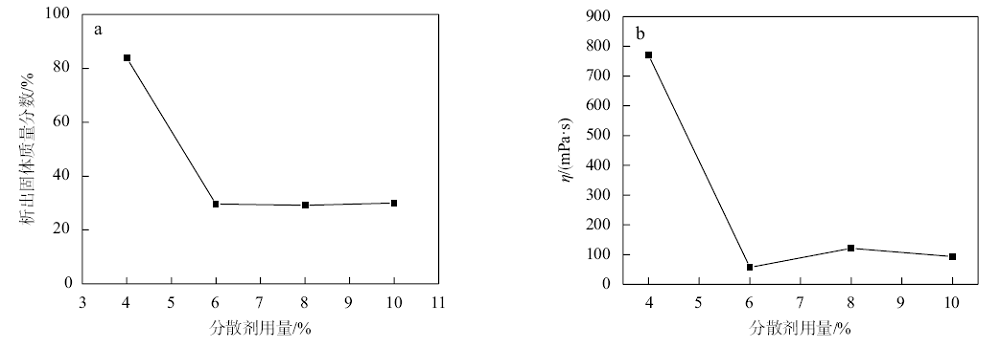

图 1

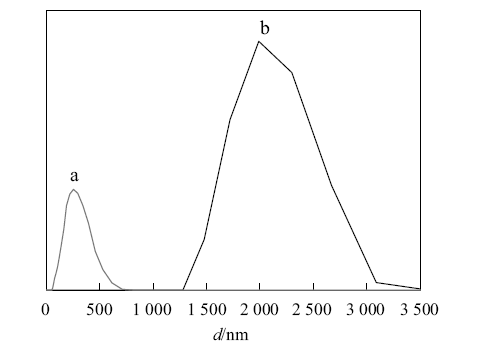

图 2

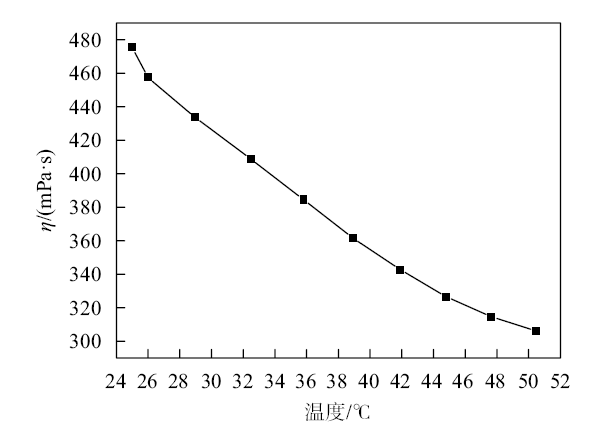

图 3

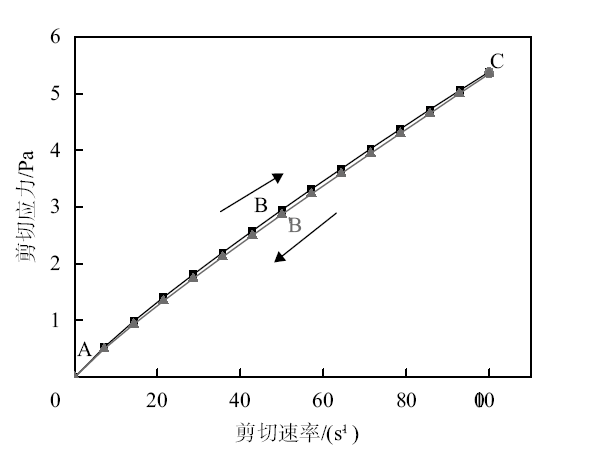

图 4

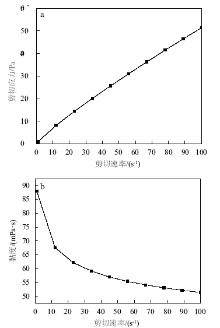

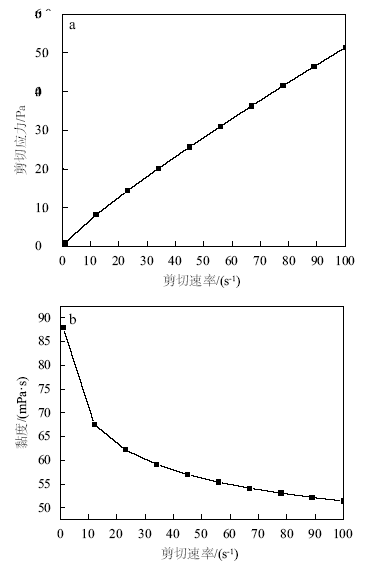

图 5

表 1

图 6

表 2

参考文献 21

[1]	Jutta K, Michael O, Sherry R , et al. Photostability of sunscreens[J]. Journal of Photochemistry and Photobiology C: Photochemistry Reviews, 2012,13(1) : 91-110.
[2]	Jia Lin, Wang Xixian, Zhang Haixia , et al. Ultraviolet protective properties of polyacrylonitrile/TiO₂ nanofiber[J]. Journal of Textile Research, 2017,38(7) : 18-22.
[3]	Zeng Xiuni, Zeng Zhi, Han Chunchun . Research progress of polymer nanocomposites in the field of light shielding[J]. Plastic Additives, 2017 ( 3) : 14-18.
[4]	Wang Chong, Nan Hui, Wang Gang , et al. Modification research of nanometer TiO₂ coating and its effect on properties of PVC[J]. Engineering Plastics Application, 2015,43(1) : 108-111.
[5]	Wang Yawen, Mo Zunli, Zhang Chun , et al. Morphology-controllable 3D flower-like TiO₂ for UV shielding application[J]. Journal of Industrial and Engineering Chemistry, 2015,32(25) : 172-177.
[6]	Cao Zhi, Zhang Daojun . Inorganic sunscreening agents[J]. China Surfactant Detergent & Cosmetics, 2014,44(12) : 700-705.
[7]	Hu Zhe, Ye Chaoxian, Li Hongqiang , et al. Studies on preparation of KH-570 modified nano-titanium dioxide and its dispersibility[J]. Paint & Coatings Industry, 2011,41(11) : 41-44.
[8]	Qiu Bingyi. Rheological properties of cosmetics and detergents [M]. Beijing: Chemical Industry Press, 2004.
[9]	Yao Chao, Wu Fengqin, Lin Xiping , et al. Study on nanosized TiO₂ coated by silica in ultrasonic field[J]. Chinese Journal of Inorganic Chemistry, 2005,21(1) : 59-64.
[10]	Stiller S, Gers-Barlag H, Lergenmueller M , et al. Investigation of the stability in emulsions stabilized with different surface modified titanium dioxides[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2004,232(2/3):261-267.
[11]	Zhu Lianqing . Research on biorheological characteristic testing method and its applications[D]. Harbin: Harbin Institute of Technology, 2013.
[12]	Wei Z, Wang Y, Guan Q , et al. Analyzing the spatial heterogeneity of number of plant individuals in grassland community by using power law model[J]. Ecological Modelling, 2016,320(24) : 316-321.
[13]	Erhan G, Mehmet G, Asraa A , et al. Fresh and rheological behavior of nano-silica and fly ash blended self-compacting concrete[J]. Construction and Building Materials, 2015,95(1) : 29-44.
[14]	Yang Huagui, Gao Piying, Gu Homgchen , et al. Rheological behavior of TiO₂/water suspensions[J]. Journal of Inorganic Materials, 2000,15(3) : 431-436.
[15]	Sambandan D, Ratner D . Sunscreens: an overview and update[J]. Journal of the American Academy of Dermatology, 2011,64(4) : 748-758.
[16]	Zhu Haiyang, Zhou Shuqian, Song Shanhan , et al. Rheological properties of new type POM/PE alloy feedstock[J]. Journal of Materials Science and Engineering, 2018,36(1) : 103-106.
[17]	Morris E, Cutler A, Ross-murphy S , et al. Concentration and shear rate dependence of viscosity in random coil polysaccharide solutions[J]. Carbohydrate Polymers, 1981,1(1) : 5-21.
[18]	Wu Y, Ding W, Jia L , et al. The rheological properties of tara gum (Caesalpinia spinosa)[J]. Food Chemistry, 2015,168:366-371.
[19]	Perret D, Locat J, Martignoni P . Thixotropic behavior during shear of a fine-grained mud from Eastern Canada[J]. Engineering Geology, 1996,43(1) : 31-44.
[20]	Amira H, Ali B, Ali I , et al. The structural characteristics and rheological properties of Lebanese locust bean gum[J]. Journal of Food Engineering, 2014,120(1) : 204-214.
[21]	Kim W, Yoo B . Rheological behaviour of acorn starch dispersions: effects of concentration and temperature[J]. International Journal of Food Science & Technology, 2009,44(3) : 503-509.

w/%	k/（Pa·sⁿ）	n
30	0.09	0.88
35	0.18	0.86
38	0.42	0.84
40	10.97	0.51

w/%	A/（mPa·s）	E_a/（J·mol^-1）
30	0.173 2	14 395
35	0.104 7	17 299
38	0.135 3	18 671
40	0.603 6	19 170
