高悬浮能力清洁剂的制备与性能研究

doi:10.3969/j.issn.1001-1803.2022.03.004

日用化学工业 ›› 2022, Vol. 52 ›› Issue (3): 253-257.doi: 10.3969/j.issn.1001-1803.2022.03.004

高悬浮能力清洁剂的制备与性能研究

张云¹,李琛^2,^*(),于思涵¹,刘冬¹

1.苏州绿叶日用品有限公司,江苏苏州 215000
2.玉溪师范学院化学生物与环境学院,云南玉溪 653100

收稿日期:2021-06-01 修回日期:2022-01-06 出版日期:2022-03-22 发布日期:2022-03-21
通讯作者: 李琛
基金资助:
国家自然科学基金地区科学基金项目(21765023);云南省科技厅科技计划项目(2018FD091)

Study on preparation and performances of high suspension ability detergent

Zhang Yun¹,Li Chen^2,^*(),Yu Sihan¹,Liu Dong¹

1. Suzhou Green Leaf Daily Necessities Co., Ltd., Suzhou, Jiangsu 215000, China
2. School of Chemistry, Biology and Environment, Yuxi Normal University, Yuxi, Yunnan 653100, China

Received:2021-06-01 Revised:2022-01-06 Online:2022-03-22 Published:2022-03-21
Contact: Chen Li

摘要/Abstract

摘要：

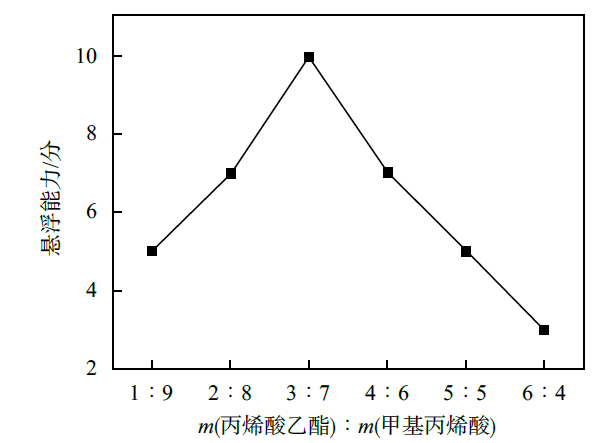

为了制备出具有高悬浮能力、低黏度、高透明度和低成膜性的清洁剂,采用丙烯酸乙酯和甲基丙烯酸两种单体来制备聚合物作为清洁剂（实验组A）中的悬浮剂,考察了不同单体比例对悬浮剂悬浮能力的影响。与两种常用的丙烯酸类悬浮剂即Carbopol® Aqua SF-1 Polymer（对照组B）和Carbopol® Aqua SF-2CN Polymer（对照组C）进行对比实验,比较3种悬浮剂在体系中的黏度和浊度、悬浮能力、成膜性和剪切变稀能力的区别。结果表明：在相同实验条件下,实验组A的黏度最小,涂抹时的延展性最好;当悬浮剂质量分数≥1.8%时,3种悬浮剂都具有较好的透明度和悬浮能力;实验组A的成膜性最差,不容易堵塞泵头;实验组A的喷雾挤压力度和喷雾均匀度这两个性能均优于对照组B和对照组C。总体来看,实验组A的性能最优。

关键词: 悬浮剂, 清洁剂, 黏度, 浊度, 成膜性

Abstract:

In order to prepare detergents with high suspension ability, low viscosity, high transparency and low film-forming ability, two monomers of ethyl acrylate and methacrylic acid were used to prepare the polymer as the suspending agent in detergent （experimental group A）. The influence of different monomer ratios on the suspension ability of the suspension agent was investigated. The viscosity and turbidity, suspension ability, film-forming ability and shear thinning ability in detergent of the experimental group A was compared with two commonly used acrylic suspension agents, namely Carbopol® Aqua SF-1 Polymer （control group B） and Carbopol® Aqua SF-2CN Polymer （control group C）. The results show that the ductility in application of the experimental group A is the best due to the smallest viscosity in the same experimental conditions. When the mass fraction of the suspending agent is ≥1.8%, all three suspending agents have good transparency and suspending ability. The film forming ability of the experimental group A is the worst, therefore it is not easy to block the pump head. The spray extrusion strength and spray uniformity of the experimental group A are better than those of the control group B and the control group C. Overall, the performances of the experimental group A are the best.

Key words: suspending agent, detergent, viscosity, turbidity, film-forming ability

中图分类号:

TQ423

张云,李琛,于思涵,刘冬. 高悬浮能力清洁剂的制备与性能研究[J]. 日用化学工业, 2022, 52(3): 253-257.

Zhang Yun,Li Chen,Yu Sihan,Liu Dong. Study on preparation and performances of high suspension ability detergent[J]. China Surfactant Detergent & Cosmetics, 2022, 52(3): 253-257.

图/表 6

图1

表1

表2

图2

图3

表3

悬浮剂种类	质量分数/%	体系黏度/（mPa·s）			体系浊度/NTU
悬浮剂种类	质量分数/%	pH=4.0	pH=7.0	pH=10.0	pH=4.0	pH=7.0	pH=10.0
实验组A	0.6	16.5	6.3	8.4	380	294	295
	0.9	99.3	29.4	28.8	321	218	210
	1.2	145	112.8	100.2	296	154	143
	1.8	1 452	372	367	147	79.6	77.4
	3.0	3 323	1 386	1 218	81	56.3	50.2
对照组B（Carbopol® Aqua SF-1 Polymer）	0.6	32.7	10.2	9.3	563	40.8	152
	0.9	197.1	67.8	50.4	313	23	100
	1.2	646.4	260.9	183	203	10.9	60.4
	1.8	2 220	1 176	721	145	5.56	26.8
	3.0	7 332	5 153	3 263	183	5.14	14
对照组C（Carbopol® Aqua SF-2 Polymer）	0.6	23.2	9.2	8.1	432	92	192
	0.9	145.2	47.2	45.9	322	46	82
	1.2	292.1	172.4	161	265	38	71
	1.8	1 720	721	670	148	12	32
	3.0	5 210	2 432	2 152	142	9.2	12

[1]	Bai Jianyun, Qu Xianghua, Wang Hongwei, et al. Rapid screening of stable suspension formulations in detergent products[J]. Detergent & Cosmetics, 2019, 42(4) : 24-27, 39.
[2]	Joel L, Zatz. Application of gum in suspensions of medicines and cosmetics[J]. Detergent & Cosmetics, 1985, 4:34-39.
[3]	Zhao Shikuang, Cheng Juhua, Zhang Yucang, et al. Preliminary study on the viscosity and suspension ability of composite xanthan gum[J]. Food Science, 1998, 19(4) : 12-15.
[4]	Jeffery M. Yield stress measurements for personal care, part 1: definitions and basics[J]. Cosmetics & Toiletries, 2015, 130(8) : 44-56.
[5]	Jaromír Š, Otakar Q, Jiří H. Effect of styrene and methyl methacrylate comonomers in ethyl acrylate/methacrylic acid latex on particle alkali-swellability, film formation and thickening with associative thickeners[J]. Progress in Organic Coatings, 2005, 54(2) : 99-103. doi: 10.1016/j.porgcoat.2005.04.003

[1]	郭芳. 乳化剂及增稠剂对低黏液晶乳液的影响[J]. 日用化学工业（中英文）, 2023, 53(1): 16-23.
[2]	赵中华,张健,盛雪茹,李娜,平清伟. 硅藻土基清洁剂的制备及应用[J]. 日用化学工业, 2022, 52(3): 270-277.
[3]	陈思佳,易亚,张大伟. 丙三醇对壳聚糖溶液储存稳定性的影响[J]. 日用化学工业, 2021, 51(4): 306-311.
[4]	李劲峰,高鹰,宁科功,张秋霞,刘萍,伍鹏,李黎仙. 一种低黏度悬浮液体系的开发研究[J]. 日用化学工业, 2021, 51(2): 132-138.
[5]	张冉冉,杜玉兰,范培浩,张云贤. 油包水乳化体系稳定性的研究与分析[J]. 日用化学工业, 2020, 50(8): 566-571.
[6]	王优,左士祥,李霞章,刘文杰,徐荣,钟璟,姚超. 超细TiO₂在硅油中的流变特性与紫外保护性能[J]. 日用化学工业, 2020, 50(2): 112-117.
[7]	许格,郑延成,元平南,郑恒. 马来酸酯磺酸盐型活性聚合物的合成及性能研究[J]. 日用化学工业, 2019, 49(2): 76-82.
[8]	陈凯丽,刘冬,张云,倪鑫炯,曹玉华,曹光群. 氯化钠对包覆维生素C多重乳液的影响[J]. 日用化学工业, 2019, 49(12): 805-810.
[9]	吴业帆, 奚丽莎, 方云, 林梦楚, 李秀秀, 翟然. PVP-SDS缔合行为与pH及比浓黏度的关系[J]. 日用化学工业, 2017, 47(7): 361-364.
[10]	汤小芹, 陈明华, 李芳芳, 任天辉. 椰油酰基甘氨酸钾部分酸化对洁面膏性能的影响[J]. 日用化学工业, 2017, 47(7): 403-407.
[11]	刘晓敏, 龙春霞. 化妆品用聚丙烯酸类增稠剂的增稠性及耐离子性分析[J]. 日用化学工业, 2017, 47(6): 341-344.
[12]	吕鹏, 王成胜, 吴晓燕, 左清泉, 吴雅丽, 樊俊楼. 两种聚合物表面活性剂与渤海B油田原油乳化性能研究[J]. 日用化学工业, 2017, 47(4): 202-206.
[13]	王汪送, 吴业帆, 方云, 胡学一. 聚乙二醇-十二烷基硫酸钠水溶液的黏度特性研究[J]. 日用化学工业, 2017, 47(10): 541-545.
[14]	王宸宸, 易玉峰, 孙超, 丁福臣, 毛瑞云, 韩佳. 消泡剂气/液界面膜的性质对其消泡性能的影响[J]. 日用化学工业, 2017, 47(1): 13-17.
[15]	邹华,刘华荣,梅平. 磺酸盐型Gemini表面活性剂复配体系的黏度性质研究[J]. 日用化学工业, 2016, 46(9): 502-506.

高悬浮能力清洁剂的制备与性能研究

Study on preparation and performances of high suspension ability detergent

RichHTML

PDF (PC)

赞

可视化

摘要/Abstract

引用本文

使用本文

图/表 6

参考文献 5

相关文章 15

Metrics

本文评价

推荐阅读 10

悬浮剂种类	喷雾测试
悬浮剂种类	喷雾挤压力度	喷雾均匀度
实验组A	5	5
对照组B	4	3
对照组C	4	4
