高效液相色谱法同时测定葡萄柚提取物牙膏中6种黄酮类物质

doi:10.3969/j.issn.2097-2806.2025.07.015

Abstract

Abstract:

In this study, a high performance liquid chromatography （HPLC） method was established to simultaneously detect six major flavonoids （naringin, hesperidin, neohesperidin, naringenin, eriocitrin, and tangeretin） in grapefruit extract toothpaste. The mobile phase was methanol and 0.1% formic acid aqueous solution, and the toothpaste extraction solvent was 80% methanol. The results of the methodological investigation show that the precision RSD ranges from 0.93% to 1.42%, the stability RSD ranges from 0.94% to 1.42%, and the repeatability RSD ranges from 1.14% to 1.44%, and all RSDs are less than 2.0%. The six flavonoids show a good linear relationship in the mass concentration range of 1-100 μg/mL, with a correlation coefficient of 0.999 4-0.999 8. The average recovery rate of the six flavonoids ranges from 95.20% to 104.57%, and the RSD ranges from 0.51% to 2.06%. The detection method in this study can accurately detect the content of the six flavonoids in grapefruit extract toothpaste, which has a reference value for the quality control of grapefruit extract toothpaste.

Key words: HPLC, toothpaste, grapefruit extract, flavonoids, simultaneous detection, quality control

CLC Number:

TQ658

Xiaoting Jin, Jinsheng Li. Simultaneous determination of 6 flavonoids in grapefruit extract toothpaste by high performance liquid chromatography[J].China Surfactant Detergent & Cosmetics, 2025, 55(7): 937-942.

Figures/Tables 5

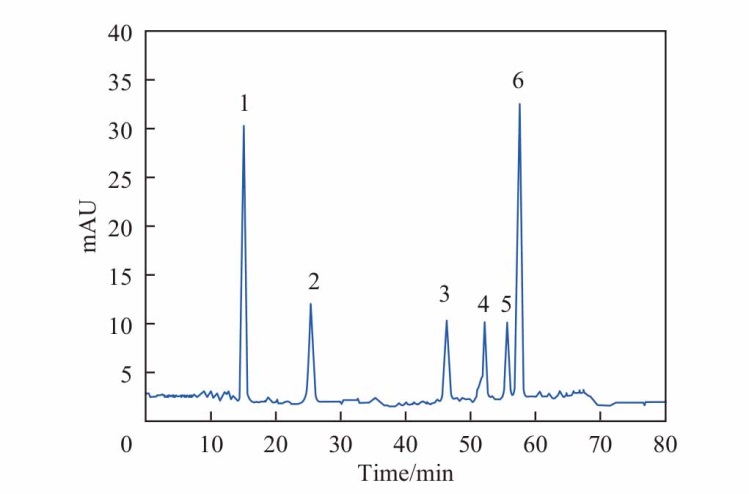

Fig. 1

Tab. 1

Tab. 2

Tab. 3

Tab. 4

References 26

[1]	Karadağlıoğlu Ö, Ulusoy N, Başer K H C, et al. Antibacterial activities of herbal toothpastes combined with essential oils against streptococcus mutans[J]. Pathogens, 2019, 8 (1) : 20.
[2]	Hajishengallis G, Chavakis T, Hajishengallis E, et al. Neutrophil homeostasis and inflammation: novel paradigms from studying periodontitis[J]. J. Leukoc. Biol., 2015, 98 (4) : 539-548.
[3]	Schmidt J C, Bux M, Filipuzzi-Jenny E, et al. Influence of time, toothpaste and saliva in the retention of Streptococcus mutans and Streptococcus sanguinis on different toothbrushes[J]. J. Appl. Oral. Sci., 2014, 22 (3) : 152-158.
[4]	Filoche S K, Anderson S A, Sissons C H. Biofilm growth of Lactobacillus species is promoted by Actinomyces species and Streptococcus mutans[J]. Oral. Microbiol. Immunol., 2004, 19 (5) : 322-326.
[5]	Smith A J, Jackson M S, Bagg J. The ecology of Staphylococcus species in the oral cavity[J]. J. Med. Microbiol., 2001, 50 (11) : 940-946.
[6]	Anderson A C, Jonas D, Huber I, et al. Enterococcus faecalis from food, clinical specimens, and oral sites: prevalence of virulence factors in association with biofilm formation[J]. Front. Microbiol., 2015, 6: 1534. doi: 10.3389/fmicb.2015.01534 pmid: 26793174
[7]	Deepak D. Antibiotic susceptibility pattern against pathogenic bacteria causing dental caries[J]. South Asian Journal of Experimental Biology, 2011, 1 (1) : 31-35.
[8]	Heggers J P, Cottingham J, Gusman J, et al. The effectiveness of processed grapefruit-seed extract as an antibacterial agent: Ⅱ. Mechanism of action and in vitro toxicity[J]. J. Altern. Complement. Med., 2002, 8 (3) : 333-340.
[9]	Cvetnić Z, Vladimir-Knezević S. Antimicrobial activity of grapefruit seed and pulp ethanolic extract[J]. Acta Pharm., 2004, 54 (3) : 243-250.
[10]	钟声, 刘建党, 黄晓晶, 等. 葡萄柚漱口液对变异链球菌抗菌机制的研究[J]. 南京医科大学学报(自然科学版), 2011, 31 (4) : 503-506.
[11]	田政, 肖博文, 张环, 等. 葡萄柚提取物在牙膏中的应用研究[J]. 口腔护理用品工业, 2020, 30 (4) : 28-30.
[12]	Wang T Y, Li Q, Bi K S. Bioactive flavonoids in medicinal plants: Structure, activity and biological fate[J]. Asian J. Pharm. Sci., 2018, 13 (1) : 12-23.
[13]	Perumal S R, Gopalakrishnakone P. Therapeutic potential of plants as anti-microbials for drug discovery[J]. Evid. Based Complement. Alternat. Med., 2010, 7 (3) : 283-294.
[14]	Yuan G, Guan Y, Yi H, et al. Antibacterial activity and mechanism of plant flavonoids to gram-positive bacteria predicted from their lipophilicities[J]. Sci. Rep., 2021, 11 (1) : 10471. doi: 10.1038/s41598-021-90035-7 pmid: 34006930
[15]	Xie Y, Yang W, Tang F, et al. Antibacterial activities of flavonoids: structure-activity relationship and mechanism[J]. Curr. Med. Chem., 2015, 22 (1) : 132-149.
[16]	Scurria A, Sciortino M, Albanese L, et al. Flavonoids in lemon and grapefruit integropectin[J]. ChemistryOpen, 2021, 10 (10) : 1055-1058.
[17]	张桂伟, 张秋云, 江东, 等. 中国主栽葡萄柚果肉酚类物质组成及其抗氧化活性[J]. 中国农业科学, 2015, (9) : 1785-1794. doi: 10.3864/j.issn.0578-1752.2015.09.12
[18]	Gutiérrez-Venegas G, Gómez-Mora J A, Meraz-Rodríguez M A, et al. Effect of flavonoids on antimicrobial activity of microorganisms present in dental plaque[J]. Heliyon, 2019, 5 (12) : e03013.
[19]	Pyrzynska K. Hesperidin: A review on extraction methods, stability and biological activities[J]. Nutrients, 2022, 14 (12) : 2387.
[20]	Choi S S, Lee S H, Lee K A. A comparative study of hesperetin, hesperidin and hesperidin glucoside: antioxidant, anti-inflammatory, and antibacterial activities in vitro[J]. Antioxidants (Basel), 2022, 11 (8) : 1618.
[21]	Manconi M, Manca M L, Caddeo C, et al. Citrus limon extract loaded in vesicular systems for the protection of oral cavity[J]. Medicines (Basel), 2018, 5 (4) : 108.
[22]	Yue J, Yang H, Liu S, et al. Influence of naringenin on the biofilm formation of Streptococcus mutans[J]. J. Dent., 2018, 76: 24-31.
[23]	Jayaprakasha G K, Negi P S, Sikder S, et al. Antibacterial activity of Citrus reticulata peel extracts[J]. Z. Naturforsch. C. J. Biosci., 2000, 55 (11-12) : 1030-1034. pmid: 11204182
[24]	黄光伟, 韦宝韩, 卢凯玲, 等. HPLC法测定牙膏中银杏叶提取物总黄酮苷的含量[J]. 香料香精化妆品, 2009 (3) : 25-27.
[25]	Song Y J, Yu H H, Kim Y J, et al. Anti-biofilm activity of grapefruit seed extract against Staphylococcus aureus and Escherichia coli[J]. J. Microbiol. Biotechnol., 2019, 29 (8) : 1177-1183.
[26]	Komura M, Suzuki M, Sangsriratanakul N, et al. Inhibitory effect of grapefruit seed extract (GSE) on avian pathogens[J]. J. Vet. Med. Sci., 2019, 81 (3) : 466-472.

黄酮类物质	精密度RSD/%	稳定性RSD/%	重复性RSD/%
柚皮苷	1.19	1.04	1.15
橙皮苷	1.25	1.14	1.35
新橙皮苷	1.08	1.42	1.34
柚皮素	1.40	1.35	1.27
圣草次甙	1.42	0.94	1.44
橘皮素	0.93	1.02	1.14

黄酮类物质	线性方程	相关系数	线性范围/ （μg/mL）
柚皮苷	Y=6 870 336X-5.08	0.999 7	1~100
橙皮苷	Y=7 574 356X+64.70	0.999 4	1~100
新橙皮苷	Y=6 177 452X+66.09	0.999 6	1~100
柚皮素	Y=6 635 227X-12.06	0.999 7	1~100
圣草次甙	Y=5 998 118X+30.84	0.999 8	1~100
橘皮素	Y=7 522 442X-43.91	0.999 7	1~100

黄酮类物质	加入量/（mg/g）	实测量/（mg/g）	回收率/%	RSD/%	平均回收率/%	RSD/%
柚皮苷	1	0.94	94.01	0.70	97.97	0.82
	10	10.33	103.26	1.57
	50	48.32	96.64	0.28
橙皮苷	1	1.01	100.54	0.87	95.20	1.07
	10	8.64	86.36	1.63
	50	49.35	98.70	0.90
新橙皮苷	1	1.080	108.1	0.51	104.57	2.06
	10	10.38	103.75	0.77
	50	50.92	101.84	1.18
柚皮素	1	0.95	94.98	0.80	98.08	1.02
	10	9.34	93.41	1.60
	50	52.92	105.85	0.42
圣草次甙	1	0.98	97.62	1.38	101.11	0.51
	10	9.81	98.06	0.63
	50	53.82	107.64	1.93
橘皮素	1	1.01	101.18	1.70	102.78	0.83
	10	10.17	101.71	0.75
	50	52.72	105.44	1.56

黄酮类物质	含量/（μg/g）
黄酮类物质	葡萄柚提取物牙膏1	葡萄柚提取物牙膏2	葡萄柚提取物牙膏3	葡萄柚提取物牙膏4
柚皮苷	382.98	425.56	226.59	134.34
橙皮苷	115.66	164.93	214.24	163.69
新橙皮苷	74.26	129.66	128.41	147.50
柚皮素	214.89	331.10	15.14	226.85
圣草次甙	39.73	52.23	105.59	18.65
橘皮素	78.62	102.24	149.39	69.22
