pH对脂肪醇醚羧酸盐性能的影响研究

doi:10.3969/j.issn.1001-1803.2022.12.002

摘要/Abstract

摘要：

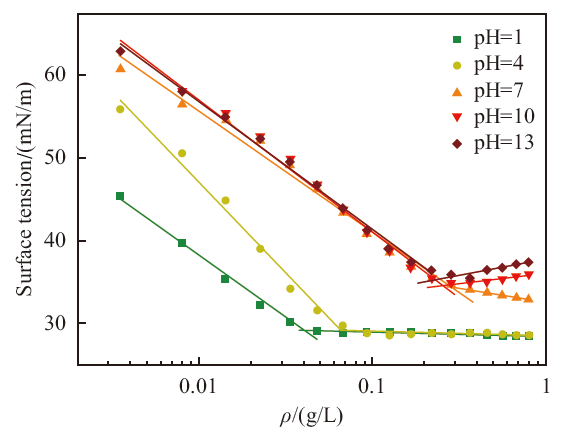

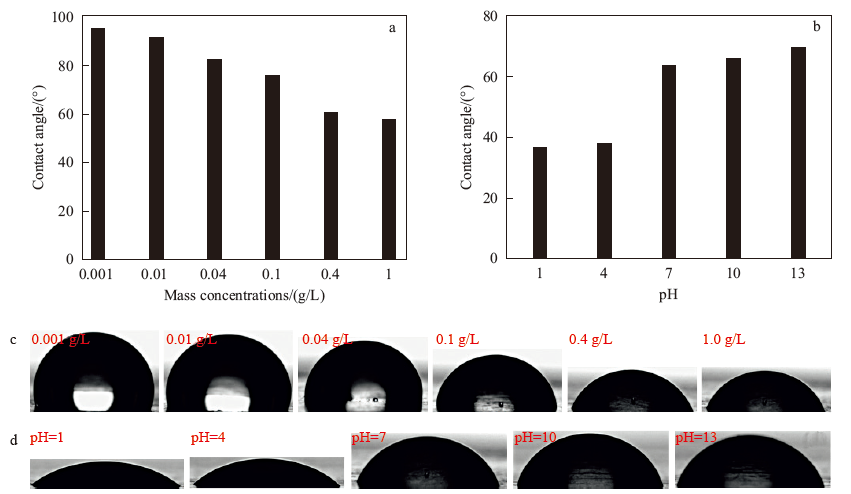

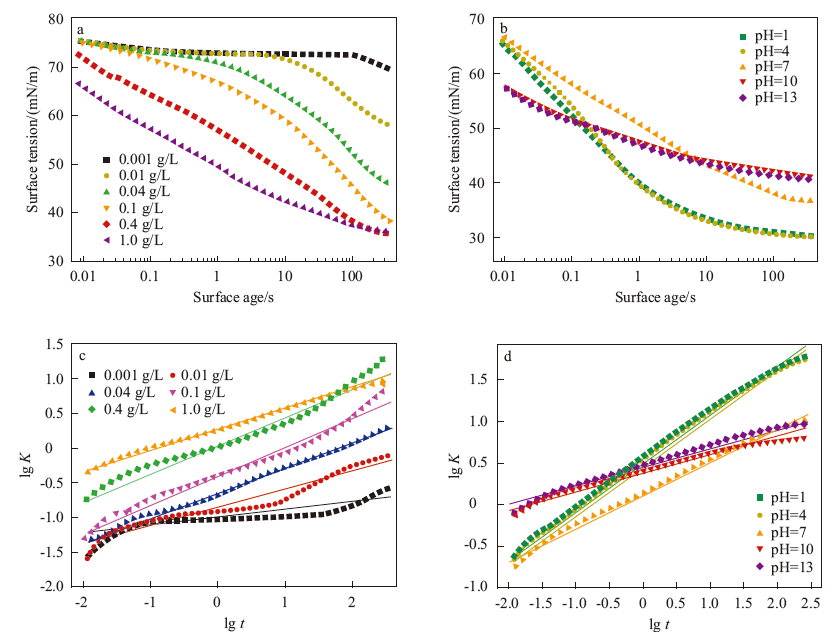

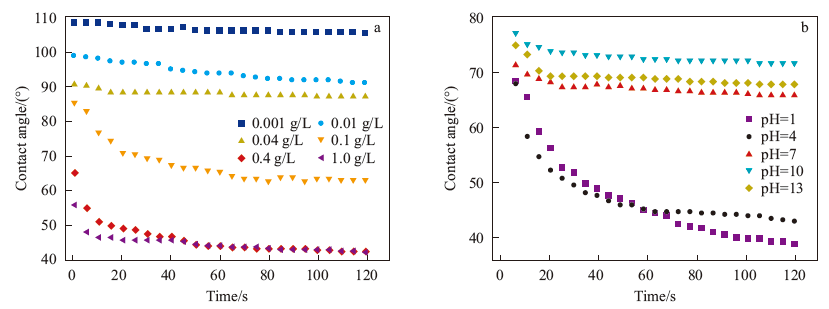

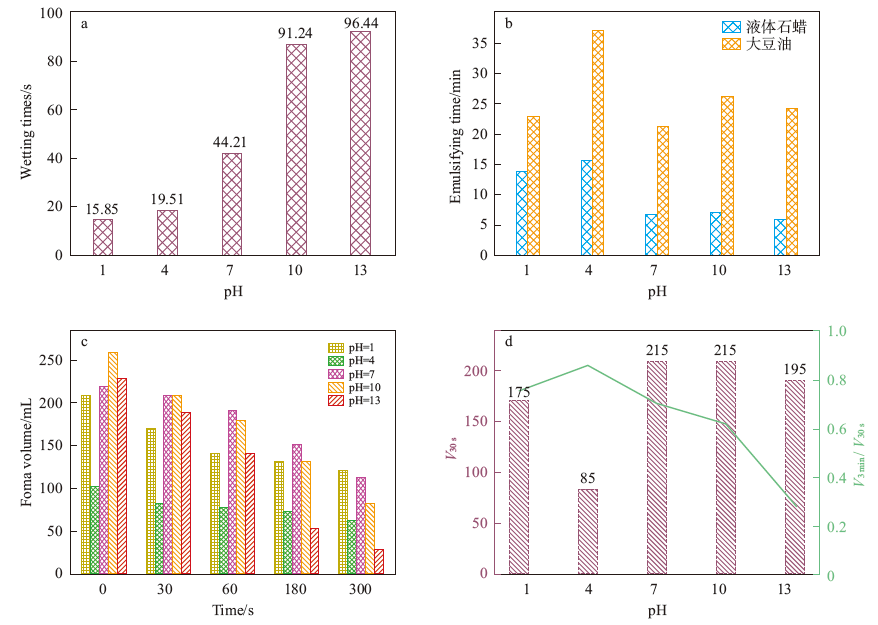

详细研究了脂肪醇醚羧酸盐（AEC-9Na）在不同质量浓度和不同pH下的平衡表面张力、动态表面张力、吸附动力学、动态接触角、润湿性能、乳化性能和泡沫性能。结果表明，在酸性条件下样品具有更好的表面活性和润湿性能，这都归因于其羧酸头基对pH的高度依赖性。在应用性能方面，碱性条件下，样品表现出良好的泡沫性能，但泡沫稳定性较差，这样的实验结果解释了乳化实验中出现的现象。为其后续的研究和工业应用提供一定的理论支持。

关键词: 脂肪醇醚羧酸盐, pH, 理化性质, 应用性能

Abstract:

The properties of a fatty alcohol ether carboxylate （AEC-9Na） in acidic and alkaline conditions was tested. Its equilibrium surface tension, dynamic surface tension, adsorption kinetics, dynamic contact angle, wetting properties, emulsification properties and foaming properties at different mass concentrations and different pH values were studied. The results show that, the samples have better surface activity and wettability in acidic conditions, which may ascribed to the highly dependence of the ionization of surfactant molecules on pH. In terms of application performance, the samples showed good foamability but poor foam stability in alkaline conditions. In the case of alkaline conditions, the ionization of carboxyl groups was increased and the electrostatic repulsion of ionic headgroups was increased, resulting in more easily broken foams. Such mechanism can also explain the phenomenon observed in emulsification experiments. The present work, indicative of the different behaviors of fatty alcohol ether carboxylates at different pH, may provide some theoretical support for subsequent research and industrial application.

Key words: fatty alcohol ether carboxylate, pH, physicochemical property, application property

中图分类号:

TQ423

孙邦平,张璐,李俊,鞠洪斌,耿涛,姜亚洁. pH对脂肪醇醚羧酸盐性能的影响研究[J]. 日用化学工业（中英文）, 2022, 52(12): 1269-1277.

Sun Bangping,Zhang Lu,Li Jun,Ju Hongbin,Geng Tao,Jiang Yajie. Study on the effects of pH on the properties of a fatty alcohol ether carboxylate[J]. China Surfactant Detergent & Cosmetics, 2022, 52(12): 1269-1277.

图/表 10

表1

表2

图1

表3

图2

图3

表4

图4

图5

图6

参考文献 25

[1]	Li Jun, Li Yunling, Song Yongbo, et al. Properties of quaternary ammonium surfactant with hydroxyethyl group and anionic surfactant mixed systems[J]. Journal of Molecular Liquids, 2018, 271: 373-379. doi: 10.1016/j.molliq.2018.08.151
[2]	Wu Zhifang, Li Yunling, Wang Mengwei, et al. Comparative study on the surface activity and adsorption behavior of linear fatty alcohol ether carboxylic ester with fatty alcohol ether[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2019, 579: 123696. doi: 10.1016/j.colsurfa.2019.123696
[3]	Zhang Qinghong, Li Yunling, Song Yongbo, et al. Properties of branched alcohol polyoxyethylene ether carboxylates[J]. Journal of Molecular Liquids, 2018, 258: 34-39. doi: 10.1016/j.molliq.2018.02.107
[4]	Gu Q, Fang W H, Wischert R, et al. AuCu/CeO₂ bimetallic catalysts for the selective oxidation of fatty alcohol ethoxylates to alkyl ether carboxylic acids[J]. Journal of Catalysis, 2019, 380: 132-144. doi: 10.1016/j.jcat.2019.10.017
[5]	Wu Zhifang, Li Yunling, Wang Mengwei, et al. Synthesis of fatty alcohol ether carboxylic ester surfactant and its performance in an anionic/non-ionic mixed system[J]. Australian Journal of Chemistry, 2020, 73: 627-634. doi: 10.1071/CH19482
[6]	Sha J, Zheng Erjin, Zhou Wenjuan, et al. Selective oxidation of fatty alcohol ethoxylates with H₂O₂ over Au catalysts for the synthesis of alkyl ether carboxylic acids in alkaline solution[J]. Journal of Catalysis, 2016, 337: 199-207. doi: 10.1016/j.jcat.2016.02.014
[7]	Schmidt W W, Durante D R, Gingell R, et al. Alcohol ethoxycarboxylates: mild, high-foaming surfactants for personal-care products[J]. Journal of the American Oil Chemists’ Society, 1997, 74: 25-31. doi: 10.1007/s11746-997-0114-0
[8]	Yao Runchong, Qian Jiasheng, Li Huazhen, et al. Synthesis and high-performance of a new sarcosinate anionic surfactant with a long unsaturated tail[J]. RSC Advances, 2014, 4: 2865-2872. doi: 10.1039/C3RA44338H
[9]	Ghosh R, Das S, Dhruba P. Surfactant-triggered fluorescence turn “on/off” behavior of a polythiophene-graft-polyampholyte[J]. Langmuir, 2016, 32: 8413-8423. doi: 10.1021/acs.langmuir.6b01928
[10]	Lin Yiyang, Han Xue, Cheng Xinhao, et al. pH-regulated molecular self-assemblies in a cationic-anionic surfactant system: from a “1-2” surfactant pair to a “1-1” surfactant pair[J]. Langmuir, 2008, 24: 13918-13924. doi: 10.1021/la802593n pmid: 19007260
[11]	Wang Jingui, Xiao Qiang, Zhou Huijing, et al. Anionic surfactant-templated mesoporous silica (AMS) nano-spheres with radially oriented mesopores[J]. Journal of Colloid and Interface Science, 2008, 323: 332-337. doi: 10.1016/j.jcis.2008.04.044 pmid: 18495146
[12]	Xu Fuli, Zhang Wei, Wang Fengshou. Research of the performance of a series of narrow distribution fatty alcohol ether carboxylates prepared by oxidation[J]. China Surfactant Detergent & Cosmetics, 2019, 49: 19-23.
[13]	Chiappisi L. Polyoxyethylene alkyl ether carboxylic acids: An overview of a neglected class of surfactants with multiresponsive properties[J]. Advances in Colloid and Interface Science, 2017, 250: 79-94. doi: S0001-8686(17)30356-1 pmid: 29056232
[14]	Zhang Qinghong, Li Yunling, Song Yongbo, et al. Adsorption behavior of branched polyoxyethylene ether carboxylate surfactants[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2018, 538: 361-370. doi: 10.1016/j.colsurfa.2017.09.050
[15]	Rosen M J, Kunjappu J T. Characteristic features of surfactants[M]. New York: John Wiley & Sons, 2012: 1-38.
[16]	Li Yunling, Li Qiuxiao, Zhi Lifei, et al. Synthesis, characterization and surface-activity of hydroxyethyl group-containing quaternary ammonium surfactants[J]. Journal of Surfactants and Detergents, 2011, 14, 529-533.
[17]	Rosen M J, Kunjappu J T. Reduction of surface and interfacial tension by surfactants[M]. 4th Edition. Hoboken: John & Wiley & Sons, Inc., 2012: 235-271.
[18]	Hua X Y, Rosen M J. Dynamic surface tension of aqueous surfactant solutions: I. Basic paremeters[J]. Journal of Colloid and Interface Science, 1987, 124: 652-659. doi: 10.1016/0021-9797(88)90203-2
[19]	Gao T, Rosen M J. Dynamic surface tension of aqueous surfactant solutions. 6. compounds containing two hydrophilic head groups and two or three hydrophobic groups and their mixtures with other surfactants[J]. Journal of the American Oil Chemists’ Society, 1994, 71: 771-776. doi: 10.1007/BF02541437
[20]	Hugo E G, Vadim K, Abraham N. NMR chemical shifts of common laboratory solvents as trace impurities[J]. The Journal of Organic Chemistry, 1997, 62: 7512-7515. doi: 10.1021/jo971176v
[21]	Guo Yi, Wu Qiansong, Yao Cheng. Aggregation behavior of a pH-responsive cationic-nonionic silicone surfactant in aqueous solution[J]. Colloid and Interface Science Communications, 2021, 42: 100401. doi: 10.1016/j.colcom.2021.100401
[22]	FitzGerald P A, Carr M W, Davey T W, et al. Preparation and dilute solution properties of model gemini nonionic surfactants[J]. Journal of Colloid and Interface Science, 2004, 275: 649-658. pmid: 15178299
[23]	Rillaerts E, Joos P. Rate of demicellization from the dynamic surface tensions of micellar solutions[J]. The Journal of Physical Chemistry, 1982, 86: 3471-3478. doi: 10.1021/j100214a040
[24]	Fameau A L, Carl A, Saint-Jalmes A, et al. Responsive aqueous foams[J]. ChemPhysChem, 2015, 16: 66-75. doi: 10.1002/cphc.201402580
[25]	Zhao G X, Zhu B Y. Principles of surfactant action[M]. First edition. Beijing: China Light Industry Press Ltd., 2003.

样品	样品质量浓度/（g/L）	测试条件	结果评定（级）
样品	样品质量浓度/（g/L）	测试条件	0.5 h	1.0 h	2.0 h
AEC-9Na	4	a	1	1~2	1~2
		b	1	1~2	1~2
		c	2	2	2~3
	10	a	2	2~3	3
		b	2~3	3	3
		c	2~3	3	3

样品	测试液	结果评定（级）
样品	测试液	0.5 h	1.0 h	2.0 h
AEC-9Na	a	1	1	1
	a	1	1	1
	b	1	1	1
	b	1	1	1
	c	1	1	1
	c	1	1	1
	d	1	1	1
	d	1	1	1

样品	pH	cmc/（g/L）	γ_cmc/（mN/m）	Γ_max/（μmol/m²）	A_min/nm²	pc₂₀
AEC-9Na	1	0.025 4	29.20	3.60	0.46	5.61
	4	0.042 6	28.82	3.83	0.43	5.16
	7	0.100 2	31.89	1.61	1.03	4.69
	10	0.157 7	34.51	1.40	1.19	4.67
	13	0.159 5	35.36	1.35	1.23	4.69

样品	ρ/（g/L）	C	n	lg t^*	t^*/s	R_1/2/（mN/ms）
AEC-9Na	0.001	-1.25	0.10	12.34	2.17×10¹²	9.58×10^-12
	0.01	-1.20	0.35	3.40	2 500.54	0.01
	0.04	-0.95	0.51	1.87	74.34	0.28
	0.1	-0.61	0.49	1.25	17.80	1.17
	0.4	-0.15	0.41	0.36	2.28	9.10
	1.0	0.13	0.32	-0.39	0.41	50.95
	pH	C	n	lg t^*	t^* /s	R_1/2/（mN/ms）
	1	-0.86	0.27	3.22	1 649.86	0.01
	4	-0.63	0.35	1.77	58.67	0.30
	7	-0.41	0.42	0.97	9.39	1.86
	10	0.05	0.41	-0.13	0.75	23.49
	13	0.26	0.29	-0.88	0.13	133.78
