化妆品中13种防腐剂的高效液相色谱分析及质谱确证

doi:10.3969/j.issn.2097-2806.2024.12.016

摘要/Abstract

摘要：

建立了同时测定化妆品中13种防腐剂（乙酰丙酸、对羟基苯乙酮、覆盆子酮、对茴香酸、辛酰羟肟酸、羟基乙氧基苯基丁酮、甲基异噻唑啉酮、苯氧乙醇、苯甲酸、4-羟基苯甲酸甲酯、氯苯甘醚、脱氢乙酸、5-溴-5-硝基-1,3-二噁烷）的高效液相色谱分析方法和质谱确证方法。不同基质类型的化妆品样品经甲醇超声提取后，使用Agilent ZORBAX Eclipse XDB-C18 （250 mm×4.6 mm，5 μm）色谱柱进行色谱分离，以0.1%磷酸水溶液和乙腈作为流动相梯度洗脱，流速1.0 mL/min，柱温30 ℃，检测波长为275，230和210 nm。对疑似阳性的样品，进一步采用液相色谱-串联质谱法或气相色谱-质谱法进行确证。结果表明，13种防腐剂组分在各自的质量浓度范围内，线性关系良好（r>0.999 8），检出限为0.4~100.0 mg/kg，定量限为1.2~250.0 mg/kg。在低、中、高3个加标水平下，13种目标组分在3种基质样品中的平均回收率为84.0%~115.4%，相对标准偏差为0.5%~4.8%（n=6）。该方法操作简便、分离效果好、精密度高，适用于化妆品中常见表外防腐剂和准用防腐剂的定性和定量测定。

关键词: 防腐剂, 化妆品, 高效液相色谱法, 质谱

Abstract:

A method using high performance liquid chromatography （HPLC） was developed for the simultaneous determination of 13 preservatives （levulinic acid, p-hydroxyacetophenone, raspberry ketone, p-anisic acid, caprylhydroxamic acid, hydroxyethoxyphenyl butanone, methylisothiazolinone, phenoxyethanol, benzoic acid, methylparaben, chlorphenesin, dehydroacetic acid, and 5-bromo-5-nitro-1,3-dioxane） in cosmetics. Different types of samples were ultrasonically extracted by methanol, then the separation of 13 preservatives was carried out on a column of Agilent ZORBAX Eclipse XDB-C18 （250 mm×4.6 mm, 5 μm） by gradient elution at a flow rate of 1.0 mL/min, using 0.1% phosphoric acid solution and acetonitrile as mobile phases. The column temperature was 30 ℃, and the detection was completed by a diode array detector with the wavelengths at 275, 230 and 210 nm. Suspected positive samples were further confirmed by liquid chromatography-tandem mass spectrometry or gas chromatography-mass spectrometry. The linear regression analysis data shows good linearity for 13 preservatives in the respective mass concentration range, with their correlation coefficients （r） greater than 0.999 8. The limits of detection （LODs） and limits of quantitation （LOQs） of the method are in the ranges of 0.4-100.0 mg/kg and 1.2-250.0 mg/kg, respectively. At three spiked levels, the average recoveries for 13 target compounds in three kinds of matrix samples are within 84.0%-115.4%, and the relative standard deviations （RSD） are within 0.5%-4.8% （n = 6）. This method is convenient, efficient, and precise, which can be used for qualitative and quantitative analysis of common preservatives in daily cosmetics.

Key words: preservatives, cosmetics, high performance liquid chromatography, mass spectrometry

中图分类号:

TQ658

邹坡, 徐炜, 李雪艳, 李长于, 陈艳, 陈勤勤. 化妆品中13种防腐剂的高效液相色谱分析及质谱确证[J]. 日用化学工业（中英文）, 2024, 54(12): 1532-1540.

Po Zou, Wei Xu, Xueyan Li, Changyu Li, Yan Chen, Qinqin Chen. Determination of 13 preservatives in cosmetics by high performance liquid chromatography and verification by mass spectrometry[J]. China Surfactant Detergent & Cosmetics, 2024, 54(12): 1532-1540.

图/表 12

表1

表2

表3

图1

图2

表4

表5

图3

图4

表6

表7

图5

参考文献 22

[1]	Xiao Shuxiong, Zeng Zijun, Liang Zhuye, et al. Current status and regulatory recommendations for the use of unlisted cosmetic preservatives[J]. Flavour Fragrance Cosmetics, 2020 (3) : 77-81.
[2]	Matwiejczuk N, Galicka A, Brzóska M M. Review of the safety of application of cosmetic products containing parabens[J]. Journal of Applied Toxicology, 2020, 40 (1) : 176-210. doi: 10.1002/jat.3917 pmid: 31903662
[3]	Burnett C L, Bergfeld W F, Belsito D V, et al. Amended safety assessment of methylchloroisothiazolinone and methylisothiazolinone as used in cosmetics[J]. International Journal of Toxicology, 2021, 40(1_suppl): 20-33.
[4]	Li Chengbei, Dou Jie, Yang Jie. Cosmetics with no preservative system[J]. Industrial Microbiology, 2016, 46 (4) : 41-48.
[5]	Kong Qiuchan, Zhang Yi, Liu Wei, et al. Application of a blend of p-anisic acid, sodium levulinate and sodium dehydroacetate in cosmetics[J]. Flavour Fragrance Cosmetics, 2018 (5) : 45-51, 56.
[6]	Kong Qiuchan, Zhang Yi, Feng Xiaoling, et al. Antimicrobial efficacy study of a blended preservation system for cosmetics[J]. China Surfactant Detergent & Cosmetics, 2015, 45 (5) : 269-274, 278.
[7]	Mellegård H, Stalheim T, Hormazabal V, et al. Antibacterial activity of sphagnum acid and other phenolic compounds found in sphagnum papillosum against food-borne bacteria[J]. Letters in Applied Microbiology, 2009, 49 (1) : 85-90. doi: 10.1111/j.1472-765X.2009.02622.x pmid: 19413769
[8]	Zhu Hairong, Sun Shengmin, ZhangJuan, et al. Recent progress on the application status of cosmetic preservatives and their detection technology[J]. China Surfactant Detergent & Cosmetics, 2023, 53 (6) : 679-685.
[9]	Wu Ting, Wang Chao, Wang Xing, et al. Determination of 24 preservatives in cosmetics by reversed phase high performance liquid chromatography[J]. Chinese Journal of Analytical Chemistry, 2007, 35 (10) : 1439-1443.
[10]	Han Xiaoping, Li Yanan, Zhou Pei. Simultaneous determination of 12 kinds of preservatives in cosmetics by high performance liquid chromatography[J]. China Surfactant Detergent & Cosmetics, 2018, 48 (3) : 178-182.
[11]	Tang Yuping, Shen Mengjie, Sun Xiaomei. Simultaneous determination of eighteen preservatives in cosmetics by high performance liquid chromatography[J]. Flavour Fragrance Cosmetics, 2023 (1) : 69-73.
[12]	Chen Jing, Mao Beiping, Zheng Rong, et al. Simultaneous determination of 23 preservatives in 8 different matrixes of cosmetics by HPLC-MS/MS[J]. China Surfactant Detergent & Cosmetics, 2018, 48 (12) : 717-724.
[13]	Lu Jun, Jiao Xiaoman, Tong Xiaobo, et al. Simultaneous determination of 15 kinds of preservative in cosmetics by gas chromatography[J]. China Surfactant Detergent & Cosmetics, 2012, 42 (2) : 146-149.
[14]	Sun Jing, Tan Li, Cao Ling, et al. Determination of 25 preservatives in cosmetics by gas chromatography-tandem mass spectrometry[J]. Chinese Journal of Chromatography, 2019, 37 (3) : 331-339. doi: 10.3724/SP.J.1123.2018.11007
[15]	Li Li, Li Shuo, Wang Haiyan, et al. Influence of chromatographic column selection on the determination of 23 preservatives[J]. Chinese Journal of Chromatography, 2022, 40 (2) : 190-197. doi: 10.3724/SP.J.1123.2021.05006
[16]	Ren Feifei, Li Jingping. Determination of 24 common preservatives in cosmetics by high performance liquid chromatography[J]. Guangdong Chemical Industry, 2022, 49 (21) : 223-227.
[17]	Mao Shanqiao, Li Xijun, Zhou Liwu. Determination of 4-hydroxyacetophenone in cosmetics by high performance liquid chromatography[J]. China Surfactant Detergent & Cosmetics, 2018, 48 (2) : 119-122.
[18]	Chen Tian. Determination of the content of p-hydroxyacetophenone in cosmetics by HPLC[J]. Flavour Fragrance Cosmetics, 2019 (5) : 48-51, 54.
[19]	Li Fajin, Li Shiwei, Liu Ruixue, et al. Determination of octyl hydroxamic acid in cosmetics by high performance liquid chromatography[J]. China Surfactant Detergent & Cosmetics, 2019, 49 (2) : 132-134.
[20]	Li Yanjun, Qi Aiming, Xiao Shuxiong, et al. Simultaneous determination of four kinds of unlisted preservatives in cosmetics by HPLC[J]. Biological Chemical Engineering, 2022, 8 (3) : 54-58.
[21]	Wang Jishuang, Li Li, Wang Haiyan, et al. Determination of 4-hydroxyacetophenone, p-anisic acid and octyl hydroxamic acid in cosmetics by high performance liquid chromatography[J]. Chemical Analysis and Meterage, 2023, 32 (6) : 65-69.
[22]	Li Zexiaqiong, Qiu Hongyan, Ma Ying, et al. Simultaneous determination of caprylhydroxamic acid, 4-hydroxyacetophenone and p-anisic acid in cosmetics by HPLC-MS[J]. China Surfactant Detergent & Cosmetics, 2023, 53 (5) : 596-601.

序号	组分名称	ρ（系列混合标准溶液）/（μg/mL）
1	甲基异噻唑啉酮	0.12	0.30	1.20	3.00	12.00	30.00
2	乙酰丙酸	25.0	62.5	250.0	625.0	2 500.0	6 250.0
3	对羟基苯乙酮	0.12	0.30	1.20	3.00	12.00	30.00
4	苯氧乙醇	2.0	5.0	20.0	50.0	200.0	500.0
5	覆盆子酮	0.6	1.5	6.0	15.0	60.0	150.0
6	苯甲酸	0.30	0.75	3.00	7.50	30.00	75.00
7	4-羟基苯甲酸甲酯	0.2	0.5	2.0	5.0	20.0	50.0
8	对茴香酸	0.30	0.75	3.00	7.50	30.00	75.00
9	氯苯甘醚	0.2	0.5	2.0	5.0	20.0	50.0
10	脱氢乙酸	0.30	0.75	3.00	7.50	30.00	75.00
11	5-溴-5-硝基-1,3-二噁烷	2.50	6.25	25.00	62.50	250.00	625.00
12	辛酰羟肟酸	2.0	5.0	20.0	50.0	200.0	500.0
13	羟基乙氧基苯基丁酮	0.6	1.5	6.0	15.0	60.0	150.0

时间/min	φ（流动相A）/%	φ（流动相B）/%
0.0	95	5
4.0	95	5
4.1	80	20
25.0	70	30
25.1	65	35
27.0	65	35
27.1	95	5
30.0	95	5

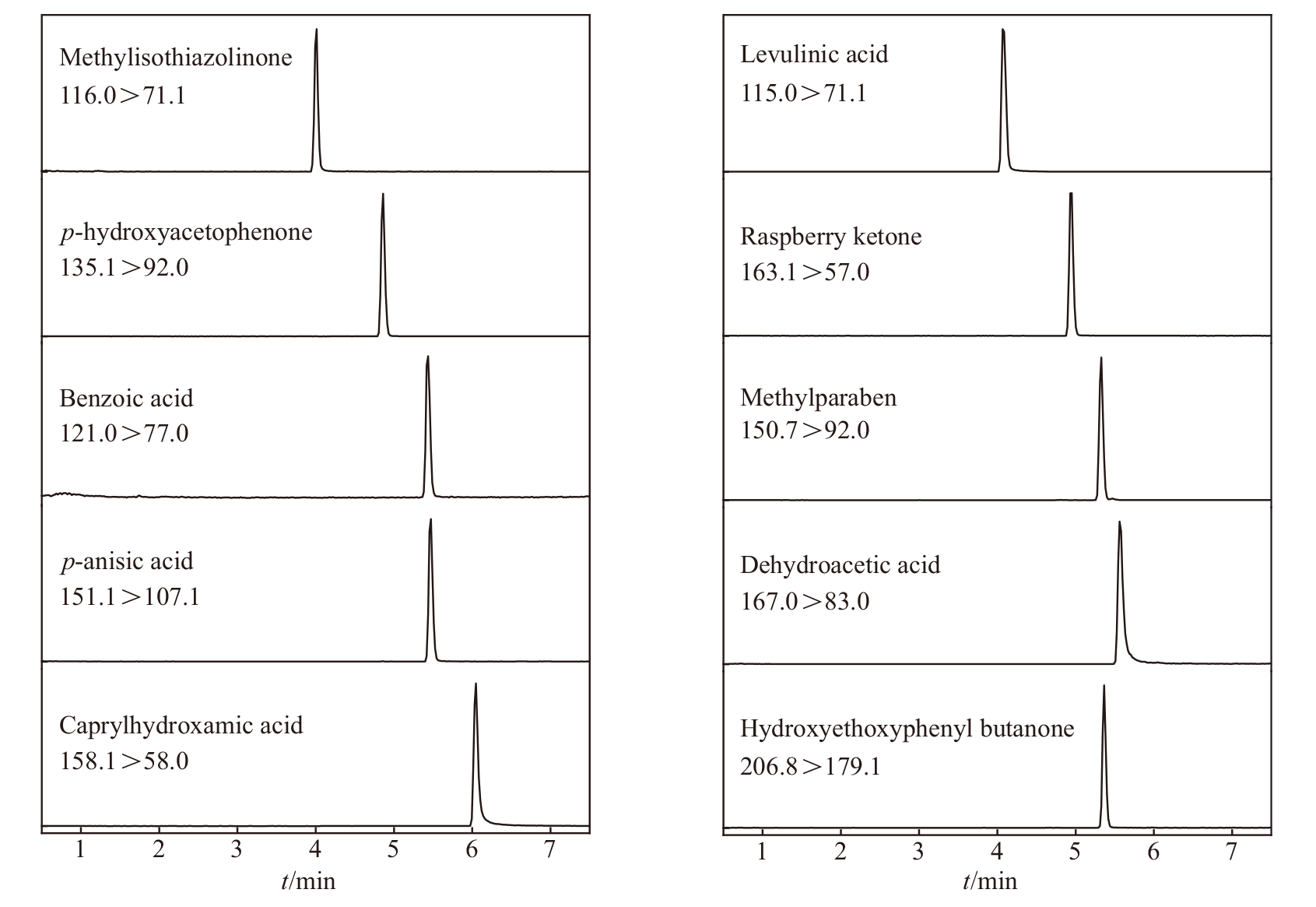

序号	组分名称	ESI+/ESI-	母离子/（m/z）	子离子/（m/z）	去簇电压/V	碰撞电压/V
1	甲基异噻唑啉酮	+	116.0	71.1/101.1	70	28/30
2	乙酰丙酸	-	115.0	71.1/97.0	60	15/13
3	对羟基苯乙酮	-	135.1	92.0/93.0	80	31/25
4	覆盆子酮	-	163.1	57.0/163.1	40	24/8
5	苯甲酸	-	121.0	77.0/121.0	130	15/10
6	4-羟基苯甲酸甲酯	-	150.7	92.0/135.8	75	24/18
7	对茴香酸	-	151.1	107.1/92.0	60	16/35
8	脱氢乙酸	-	167.0	83.0/123.1	40	22/14
9	辛酰羟肟酸	-	158.1	58.0/110.2	90	17/17
10	羟基乙氧基苯基丁酮	-	206.8	57.0/179.1	60	31/14

序号	组分名称	线性方程	相关系数r	检出限/（mg/kg）	定量限/（mg/kg）
1	甲基异噻唑啉酮	y = 19.003 4 x+0.207 8	0.999 9	0.4	1.2
2	乙酰丙酸	y = 0.093 5 x+0.327 5	0.999 9	100.0	250.0
3	对羟基苯乙酮	y = 31.853 1 x+0.439 1	0.999 9	0.4	1.2
4	苯氧乙醇	y = 2.458 3 x+0.806 6	0.999 9	6.0	20.0
5	覆盆子酮	y = 7.587 5 x+0.788 7	0.999 9	2.0	6.0
6	苯甲酸	y = 27.268 7 x+2.104 0	0.999 9	1.0	3.0
7	4-羟基苯甲酸甲酯	y = 12.770 2 x+0.385 9	0.999 9	0.8	2.0
8	对茴香酸	y = 12.891 1 x+0.670 3	0.999 9	1.0	3.0
9	氯苯甘醚	y = 15.571 8 x+0.241 9	0.999 9	0.6	2.0
10	脱氢乙酸	y = 15.415 7 x-1.730 2	0.999 9	1.0	3.0
11	5-溴-5-硝基-1,3-二噁烷	y = 1.479 2 x+0.566 9	0.999 9	8.0	25.0
12	辛酰羟肟酸	y = 2.972 1 x-1.230 5	0.999 9	7.5	20.0
13	羟基乙氧基苯基丁酮	y = 3.442 5 x+0.277 2	0.999 9	2.0	6.0

组分名称	水剂		乳液		蜡基
组分名称	回收率/%	RSD/%	回收率/%	RSD/%	回收率/%	RSD/%
甲基异噻唑啉酮	88.6~101.7	1.3~1.7	86.5~102.8	1.4~1.7	95.8~110.5	0.9~3.7
乙酰丙酸	97.3~ 99.5	1.6~4.7	94.1~ 99.2	1.1~4.8	92.6~107.3	1.5~3.4
对羟基苯乙酮	87.6~101.1	1.2~1.9	88.2~105.7	1.0~3.2	97.4~111.5	1.8~2.7
苯氧乙醇	88.4~101.0	1.1~2.6	86.9~103.5	0.8~1.5	95.5~110.1	2.0~2.4
覆盆子酮	87.1~100.7	0.5~1.7	88.4~103.9	0.9~1.7	100.2~110.5	1.5~2.4
苯甲酸	86.0~102.5	0.8~1.7	91.2~104.7	1.0~3.4	96.9~107.2	2.0~2.7
4-羟基苯甲酸甲酯	87.7~100.4	1.5~3.0	90.1~103.7	0.9~4.1	96.6~115.4	1.8~2.8
对茴香酸	87.6~ 99.8	1.2~1.7	87.6~103.5	0.8~2.4	94.5~108.5	2.2~2.5
氯苯甘醚	88.3~100.6	1.2~1.6	88.6~103.7	0.9~2.4	93.5~110.3	1.8~2.6
脱氢乙酸	88.3~107.2	1.1~1.9	86.5~102.3	1.1~2.2	95.8~107.2	1.3~2.5
5-溴-5-硝基-1,3-二噁烷	87.4~100.0	1.2~3.0	84.1~102.2	1.0~1.3	84.0~109.5	1.7~2.7
辛酰羟肟酸	91.6~100.2	1.3~2.0	85.8~102.1	1.3~3.0	94.5~108.3	1.2~2.8
羟基乙氧基苯基丁酮	92.0~101.2	1.5~3.3	90.4~104.2	1.1~2.6	96.7~110.6	1.7~3.2
