Au NPs/Cu-TCPP材料的构筑及其催化薄荷醇氧化的研究

doi:10.3969/j.issn.2097-2806.2024.11.006

摘要/Abstract

摘要：

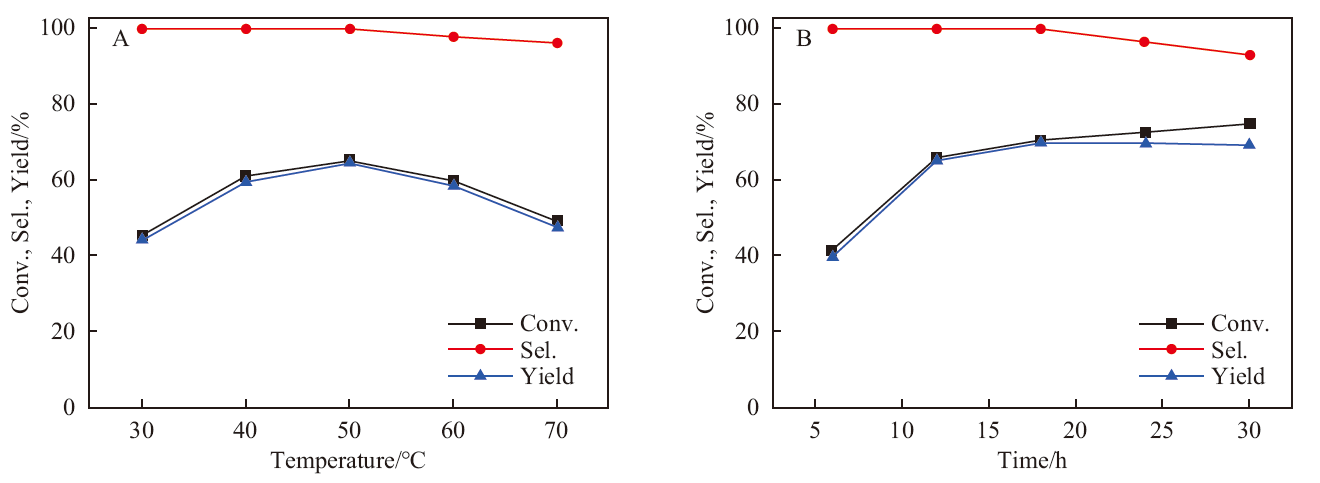

二维纳米片具有大的比表面积和高孔隙率的特征，这使得其可以承载更多的活性中心，从而提高该材料的催化性能。如Cu-TCPP纳米片，拥有大的比表面积，可用于负载Pd NPs、Pt NPs以及Au NPs，以获得X NPs/Cu-TCPP纳米片（X=Pd NPs、Pt NPs和Au NPs）。本研究首先通过水热法，以三水合硝酸铜（Cu（NO₃） ₂·3H₂O）为金属盐，4-羧基卟啉（TCPP）为有机配体，N,N-二甲基甲酰胺（DMF）和CH₃CH₂OH（体积比3∶1）的混合溶液作为溶剂，合成Cu-TCPP纳米片。随后，采用还原法将Au NPs负载到Cu-TCPP纳米片上，形成Au NPs/Cu-TCPP纳米片，用于催化薄荷醇进行选择性氧化反应。在反应中，以叔丁基过氧化氢（TBHP）为氧化剂，乙腈（MeCN）为溶剂，氨基酸咪唑离子液体（[C₄mim]Cys）为助催化剂，Au NPs/Cu-TCPP催化薄荷醇进行选择性氧化，生成薄荷酮。在50 ℃下反应18 h，薄荷醇的转化率和薄荷酮的选择性和产率都达到最高，分别为70.2%，99.9%和69.5%，该方法不仅将薄荷醇转化为高选择性的薄荷酮，而且操作简便，绿色环保，符合当前绿色化工发展的要求。

关键词: 二维纳米片, Au NPs/Cu-TCPP纳米片, 薄荷醇, 选择性氧化, 薄荷酮

Abstract:

Two-dimensional nanosheets have the characteristics of large specific surface area and high porosity, which allow them to support more active centers, thus improving the catalytic performance of the material. For example, Cu-TCPP nanosheets have large specific surface area and can be loaded with Pd nanoparticles （NPs）, Pt NPs and Au NPs to obtain X NPs/Cu-TCPP nanosheets （X=Pd NPs, Pt NPs and Au NPs）. In this work, Cu-TCPP nanosheets were synthesized by hydrothermal method, in which Cu（NO₃） ₂·3H₂O was used as the metal salt, TCPP （4-carboxyporphyrin） was used as the organic ligand, and a mixed solution of DMF and CH₃CH₂OH （V_DMF/V_CH3CH2OH=3∶1） was used as the solvent. Then Au NPs were loaded onto Cu-TCPP nanosheets by reduction method to form Au NPs/Cu-TCPP nanosheets, which were employed to catalyze the selective oxidation of menthol. In the reaction, with tert-butyl hydroperoxide （TBHP） as oxidant, acetonitrile （MeCN） as solvent, and the amino acid imidazolium ionic liquid [C₄mim]Cys as cocatalyst, Au NPs/Cu-TCPP catalyzed the selective oxidation of menthol to obtain menthone. After reacting at 50 ℃ for 18 h, the conversion of menthol was up to 70.2%, the selectivity and yield of menthone could reach 99.9% and 69.5%. This method not only highly selectively convert menthol to menthone, but also was easy to operate and environmentally friendly, which could meet the current development requirements of the green chemical industry.

Key words: two-dimensional nanosheet, Au NPs/Cu-TCPP nanosheet, menthol, selective oxidation, menthone

中图分类号:

TQ032

李世叶, 张剑, 王杰, 杨超, 张晋, 成世兴. Au NPs/Cu-TCPP材料的构筑及其催化薄荷醇氧化的研究[J]. 日用化学工业（中英文）, 2024, 54(11): 1330-1338.

Shiye Li, Jian Zhang, Jie Wang, Chao Yang, Jin Zhang, Shixing Cheng. Preparation of Au NPs/Cu-TCPP material and its performance in catalytic oxidation of menthol[J]. China Surfactant Detergent & Cosmetics, 2024, 54(11): 1330-1338.

图/表 9

图 1

图 2

图 3

表 1

表 2

表 3

图 4

图 5

图 6

参考文献 34

[1]	Wang H. Synthesis of colling-agent menthone glycerin keta[J]. Chemical Industry Times, 2001 (8) : 30-32.
[2]	Chen X, Wu Q, Gong Z, et al. A natural plant ingredient, menthone, regulates T cell subtypes and lowers pro-inflammatory cytokines of rheumatoid arthritis[J]. Journal of Natural Products, 2022, 85 (4) : 1109-1117. doi: 10.1021/acs.jnatprod.1c01231 pmid: 35302365
[3]	Su Y, Lin J. Menthone supplementation protects from allergic inflammation in the lungs of asthmatic mice[J]. European Journal of Pharmacology, 2022, 931: 175222.
[4]	Klupinski T P, Strozier E D, Koebel D D, et al. Detection of the synthetic coolant menthone 1, 2-glycerol ketal in an e-liquid and in electronic waterpipe aerosols therefrom[J]. Chemical Research in Toxicology, 2023, 36 (8) : 1355-1360. doi: 10.1021/acs.chemrestox.3c00089 pmid: 37439580
[5]	Goudarzian A, Pirbalouti A G, Hossaynzadeh M. Menthol, balance of menthol/menthone, and essential oil contents of mentha×piperita l.under foliar-applied chitosan and inoculation of arbuscular mycorrhizal fungi[J]. Journal of Essential Oil Bearing Plants, 2020, 23 (5) : 1012-1021. doi: 10.1080/0972060X.2020.1828177
[6]	Fu Y, Wang H, Hu K, et al. Oxidation of L-menthol to produce L-menthone and treatment of chromium wastewater[J]. Technology Innovation and Application, 2018 (8) : 8-13.
[7]	Zhou H C, Kitagawa S. Metal-organic frameworks (MOFs)[J]. Chemical Society Reviews, 2014, 43: 5415-5418.
[8]	Furukawa H, Cordova K E, O’Keeffe M, et al. The chemistry and applications of metal-organic frameworks[J]. Science, 2013, 341 (6149) : 974.
[9]	Zhao M, Yuan K, Wang Y, et al. Metal-organic frameworks as selectivity regulators for hydrogenation reactions[J]. Nature, 2016, 539 (7627) : 76-80.
[10]	Liao P, Huang N, Zhang W, et al. Controlling guest conformation for efficient purification of butadiene[J]. Science, 2017, 356 (6343) : 1193-1196.
[11]	Sheberla D, Bachman J C, Elias J S, et al. Conductive MOF electrodes for stable supercapacitors with high areal capacitance[J]. Nature Materials, 2017, 16 (2) : 220-224. doi: 10.1038/nmat4766 pmid: 27723738
[12]	Ding Y, Chen Y, Zhang X, et al. Controlled intercalation and chemical exfoliation of layered metal-organic frameworks using a chemically labile intercalating agent[J]. Journal of the American Chemical Society, 2017, 139 (27) : 9136-9139. doi: 10.1021/jacs.7b04829 pmid: 28651432
[13]	Shi W, Cao L, Zhang H, et al. Surface modification of two-dimensional metal-organic layers creates biomimetic catalytic microenvironments for selective oxidation[J]. Angewandte Chemie International Edition, 2017, 56 (33) : 9704-9709.
[14]	He T, Ni B, Zhang S, et al. Ultrathin 2D zirconium metal-organic framework nanosheets: preparation and application in photocatalysis[J]. Small, 2018, 14 (16) : 1703929.
[15]	Lin Z, Thacker N C, Sawano T, et al. Metal-organic layers stabilize earth-abundant metal-terpyridine diradical complexes for catalytic C-H activation[J]. Chemical Science, 2018, 9: 143-151. doi: 10.1039/c7sc03537c pmid: 29629082
[16]	Li Y, Guo Y, Luan D, et al. An unlocked two-dimensional conductive Zn-MOF on polymeric carbon nitride for photocatalytic H₂O₂ production[J]. Angewandte Chemie International Edition, 2023, 62 (44).
[17]	Zhao M, Wang Y, Ma Q, et al. Ultrathin 2D metal-organic framework nanosheets[J]. Advanced Materials, 2015, 27 (45) : 7372-7378. doi: 10.1002/adma.201503648
[18]	Dong L, Yin L, Tian G, et al. An enzymefree ultrasensitive electrochemical immunosensor for calprotectin detection based on PtNi nanoparticles functionalized 2D Cu-metal organic framework nanosheets[J]. Sensors and Actuators B: Chemical, 2020, 308: 127687.
[19]	Lian X, Fang Y, Joseph E, et al. Enzyme-MOF (metalorganic framework) composites[J]. Chemical Society Reviews, 2017, 46 (11) : 3386-3401.
[20]	Qiu Q, Chen H, Sharif S, et al. Ultrathin noble metal nanoplates decorated metal-organic framework nanosheets as 2D/2D heterojunction nanobionic catalysts for explosive residues monitoring[J]. 2D Materials, 2019.
[21]	Zhang B, Yang H, Wang Y, et al. A comprehensive review on controlling surface composition of Pt-based bimetallic electrocatalysts[J]. Advanced Energy Materials, 2018, 8 (20) : 1703597.
[22]	Wei S, Li L, Gou L, et al. Thiol-ene click derivatization reaction coupled with ratiometric surface-enhanced Raman scattering for reproducible and accurate determination of acrylamide[J]. Food Chemistry, 2023, 429: 136991.
[23]	Ji G, Zhu W, Jia X, et al. AuNP/Cu-TCPP(Fe) metal-organic framework nanofilm: a paper-based electrochemical sensor for non-invasive detection of lactate in sweat[J]. Nanoscale, 2023, 15 (10) : 5023-5035.
[24]	Huang Y, Zhao M, Han S, et al. Growth of Au nanoparticles on 2D metalloporphyrinic metal-organic framework nanosheets used as biomimetic catalysts for cascade reactions[J]. Advanced Materials, 2017, 29 (32) : 1700102.
[25]	Wang D, Zhang J, Li G, et al. Mesoporous hexanuclear copper cluster-based metal-organic framework with highly selective adsorption of gas and organic dye molecules[J]. ACS Applied Materials & Interfaces, 2018, 10 (37) : 31233-31239.
[26]	Rösler C, Esken D, Wiktor C, et al. Encapsulation of bimetallic nanoparticles into a metal-organic framework: preparation and microstructure characterization of Pd/Au@ZIF-8[J]. European Journal of Inorganic Chemistry, 2014, 2014 (32) : 5514-5521.
[27]	Wang Y, Li L, Yan L, et al. Bottom-up fabrication of ultrathin 2D Zr metal-organic framework nanosheets through a facile continuous microdroplet flow reaction[J]. Chemistry of Materials, 2018, 30 (9) : 3048-3059.
[28]	Chen H, Sun L, Li G, et al. Well-tuned surface oxygen chemistry of cation off-stoichiometric spinel oxides for highly selective and sensitive formaldehyde detection[J]. Chemistry of Materials, 2018, 30 (6) : 2018-2027.
[29]	Zhao C, Zhang A, Han H, et al. Effect of impregnation solvent on stability of Pt/ZSM-5 catalyst for alkylation of toluene with methanol to para-xylene[J]. Modern Chemical Industry, 2022, 42 (3) : 109-113.
[30]	Li S, Shi L, Zhang L, et al. Ionic liquid-mediated catalytic oxidation of β-caryophyllene by ultrathin 2D metal-organic framework nanosheets under 1 atm O₂[J]. Molecular Catalysis, 2020, 496: 111196.
[31]	Yang X, Yan N, Fei Z, et al. Biphasic hydrogenation over PVP stabilized Rh nanoparticles in hydroxyl functionalized ionic liquids[J]. Inorganic Chemistry, 2008, 47 (17) : 7444-7446. doi: 10.1021/ic8009145 pmid: 18616239
[32]	Yan H, Zhang Y. Study on process conditions for catalytic synthesis of propylene carbonate on ionic liquid fixed bed[J]. Advances in Fine Petrochemicals, 2020, 21 (3) : 29-31.
[33]	Feng F, Jin C, Wang S, et al. Self-oxidation of Au-[Bmim][Cl₃] catalyst with enhanced activity and stability for acetylene hydrochlorination[J]. Applied Catalysis A: General, 2023, 661: 119238.
[34]	Pereira M M, Dias L D, Calvete M J F. Metalloporphyrins: bioinspired oxidation catalysts[J]. ACS Catalysis, 2018, 8 (11) : 10784-10808.

Entry	Catalyst/mg	Solvent/mL	Conv./%	Sel./%	Yield/%
1	Au NPs/ Cu-TCPP	MeCN（1.0）	24.5	>99	23.6
2		MeCN（2.0）	45.9	>99	44.9
3		MeCN（3.0）	30.4	>99	29.8
4		MeCN（4.0）	20.3	>99	19.7
5		MeCN（5.0）	8.2	>99	7.6
6		EA（2.0）	7.8	>99	7.2
7		THF（2.0）	1.8	>99	1.2
8		DMF（2.0）	9.9	>99	9.5
9		Ethanol（2.0）	1.7	>99	1.3
10		DMSO（2.0）	6.0	>99	5.6
11	Cu-TCPP	MeCN（2.0）	10.6	>99	9.8

Entry	IL	Conv./%	Sel./%	Yield/%
1	0.01 mmol [C₄mim]Cys	17.2	>99	16.9
2	0.025 mmol [C₄mim]Cys	28.9	>99	28.2
3	0.03 mmol [C₄mim]Cys	37.9	>99	37.2
4	0.05 mmol [C₄mim]Cys	45.9	>99	44.9
5	0.075 mmol [C₄mim]Cys	38.9	>99	38.0
6	0.10 mmol [C₄mim]Cy	27.7	>99	27.2
7	0.05 mmol [C₄mim]HSO₄	22.4	>99	22.0
8	0.05 mmol [C₄mim]Cl	17.8	>99	17.3
9	0.05 mmol [C₄mim]Ala	6.6	>99	5.9
10	0.05 mmol [C₄mim]Pro	20.3	>99	19.8
11	no	5.7	>99	5.2

Entry	Type of oxidants	Conv./%	Sel./%	Yield/%
1	TBHP	45.9	>99	44.9
2	DTBP	14.2	>99	13.6
3	BPO	6.7	>99	5.9
4	M-CPBA	2.4	>99	1.6
5	O₂	17.2	>99	16.8
6	H₂O₂	26.7	>99	26.2
