高效液相色谱-串联质谱法测定化妆品中禁用磺胺和喹诺酮类化合物

doi:10.3969/j.issn.2097-2806.2024.08.015

摘要/Abstract

摘要：

建立了高效液相色谱-串联质谱法同时测定化妆品中喹诺酮类、磺胺类等53种抗感染药物的检测方法。样品采用饱和氯化钠分散，体积分数1%甲酸-乙腈溶液超声提取，离心后，以0.1%甲酸水溶液（含1 mmol/L乙酸铵）和0.1%甲酸-甲醇溶液作为流动相，梯度洗脱，并采用电喷雾离子源、正离子多反应监测模式（MRM）测定，外标法定量。结果表明，53种禁用原料线性拟合良好，相关系数大于0.991 0，检出限为0.01~0.1 μg/g，在低、中、高3种加标质量浓度下，磺胺类和喹诺酮类的平均回收率为80.84%~115.09%。筛查的100批次样品中有1批次样品检出磺胺甲噁唑。该方法具有良好灵敏度、选择性和准确性，可用于化妆品中53种抗感染药物测定。

关键词: 高效液相色谱-串联质谱法, 磺胺类, 喹诺酮类

Abstract:

A method for simultaneous determination of 53 anti-infective drugs such as quinolones and sulfonamides in cosmetics was established by high-performance liquid chromatography-tandem mass spectrometry （HPLC-MS/MS）. The samples were dispersed with saturated sodium chloride, extracted by ultrasound with 1% acetonitrile formate solution, and centrifuged. 0.1% Formic acid aqueous solution （containing 1 mmol/L ammonium acetate） and 0.1% formic acid methanol solution were chose as mobile phase, gradient elution was used, and electrospray ion source, positive ion multi-reaction monitoring mode （MRM） were used for determination with quantitative external standard method. The results show that the linear fitting of the 53 banned raw materials is good, with the correlation coefficient greater than 0.991 0, and the detection limit of 0.01-0.1 μg/g. The average recovery rates of sulfonamides and quinolones are 80.84% to 115.09% at low, medium, and high spiked mass concentrations. Among the 100 batches of samples screened, 1 batch is detected to contain sulfamethoxazole. The method has good sensitivity, selectivity and accuracy, and can be used for the determination of 53 anti-infective drugs in cosmetics.

Key words: high-performance liquid chromatography-tandem mass spectrometry （HPLC-MS/MS）, sulfonamides, quinolones

中图分类号:

TQ658

杨飘飘,张静雅,刘红,李丽霞. 高效液相色谱-串联质谱法测定化妆品中禁用磺胺和喹诺酮类化合物[J]. 日用化学工业（中英文）, 2024, 54(8): 997-1007.

Piaopiao Yang,Jingya Zhang,Hong Liu,Lixia Li. Simultaneous determination of sulfonamides and quinolones antibiotics in cosmetics by high-performance liquid chromatography-tandem mass spectrometry[J]. China Surfactant Detergent & Cosmetics, 2024, 54(8): 997-1007.

图/表 6

表1

禁用原料的质谱参数"

序号	名称	保留时间/min	母离子（m/z）	子离子（m/z）	锥孔电压/V	碰撞能量/eV
1	甲氧苄啶	5.90	291.1	261.0^*	80	36
1	甲氧苄啶	5.90	291.1	123.1	80	35
2	磺胺醋酰	7.25	215.0	108.0^*	20	28
2	磺胺醋酰	7.25	215.0	156.0	20	18
3	磺胺二甲异嘧啶	4.88	279.1	156.0^*	20	27
3	磺胺二甲异嘧啶	4.88	279.1	186.1	20	25
4	磺胺嘧啶	5.30	251.1	156.0^*	20	22
4	磺胺嘧啶	5.30	251.1	108.0	20	36
5	磺胺噻唑	6.09	256.1	156.0^*	20	21
5	磺胺噻唑	6.09	256.1	92.0	20	41
6	磺胺吡啶	2.55	250.1	156.0^*	20	24
6	磺胺吡啶	2.55	250.1	184.1	20	24
7	磺胺甲嘧啶	2.70	265.1	156.0	20	24
7	磺胺甲嘧啶	2.70	265.1	172.0^*	20	23
8	磺胺对甲氧嘧啶	5.59	281.1	156.0^*	20	25
8	磺胺对甲氧嘧啶	5.59	281.1	126.1	20	31
9	磺胺甲二唑	3.46	271.1	156.0	20	21
9	磺胺甲二唑	3.46	271.1	108.0^*	20	37
10	磺胺二甲嘧啶	3.88	279.1	186.1^*	20	25
10	磺胺二甲嘧啶	3.88	279.1	124.1	20	31
11	磺胺甲氧嗪	4.20	281.1	156.0^*	20	25
11	磺胺甲氧嗪	4.20	281.1	126.1	20	31
12	磺胺氯哒嗪	4.57	285.1	156.0	20	21
12	磺胺氯哒嗪	4.57	285.1	92.0^*	20	43
13	磺胺甲噁唑	5.18	254.1	156.0	20	23
13	磺胺甲噁唑	5.18	254.1	108.0^*	20	36
14	磺胺间甲氧嘧啶	5.30	281.1	156.0	20	25
14	磺胺间甲氧嘧啶	5.30	281.1	126.1^*	20	31
15	磺胺多辛	3.77	311.1	156.0^*	20	28
15	磺胺多辛	3.77	311.1	108.0	20	40
16	磺胺二甲异噁唑	5.70	268.1	113.1	20	22
16	磺胺二甲异噁唑	5.70	268.1	92.0^*	20	42
17	苯酰磺胺	5.98	277.1	92.0	20	41
17	苯酰磺胺	5.98	277.1	156.0^*	20	19
18	酞磺胺噻唑	6.11	404.1	149.0^*	50	32
18	酞磺胺噻唑	6.11	404.1	156.0	50	15
19	磺胺苯吡唑	6.28	315.0	108.0	20	42
19	磺胺苯吡唑	6.28	315.0	156.0^*	20	30
20	磺胺间二甲氧嘧啶	8.24	311.1	156.0	20	28
20	磺胺间二甲氧嘧啶	8.24	311.1	108.0^*	20	40
21	磺胺氯吡嗪	6.64	285.0	156.1	70	24
21	磺胺氯吡嗪	6.64	285.0	92.0^*	70	41
22	琥珀酰磺胺噻唑	7.05	356.2	192.1^*	70	34
22	琥珀酰磺胺噻唑	7.05	356.2	108.0	70	40
23	醋酸磺胺米隆	0.72	187.1	170.2^*	25	13
23	醋酸磺胺米隆	0.72	187.1	106.1	25	24
24	甲磺胺磺隆	10.04	504.1	306.0	60	34
24	甲磺胺磺隆	10.04	504.1	182.2^*	60	34
25	磺胺脒	1.21	215.1	156.1^*	30	22
25	磺胺脒	1.21	215.1	108.0	30	32
26	磺胺喹噁啉	8.52	301.1	156.1^*	30	24
26	磺胺喹噁啉	8.52	301.1	108.0	30	38
27	磺胺	1.39	173.1	156.1^*	30	14
27	磺胺	1.39	173.1	93.0	30	34
28	磺胺二甲恶唑	5.28	268.1	156.0^*	30	23
28	磺胺二甲恶唑	5.28	268.1	108.0	30	38
29	磺胺吡嗪	8.52	329.0	236.0	50	29
29	磺胺吡嗪	8.52	329.0	156.0^*	50	34
30	醋磺胺甲噁唑	7.74	296.0	134.0	50	36
30	醋磺胺甲噁唑	7.74	296.0	108.0^*	50	38
31	氧氟沙星	5.98	362.2	261.1^*	100	38
31	氧氟沙星	5.98	362.2	318.2	100	27
32	安妥沙星	6.00	377.2	333.1	80	29
32	安妥沙星	6.00	377.2	256.1^*	80	40
33	麻保沙星	5.38	363.1	72.0	90	49
33	麻保沙星	5.38	363.1	320.0^*	90	23
34	那氟沙星	10.05	361.1	343.2^*	80	32
34	那氟沙星	10.05	361.1	283.0	80	55
35	帕珠沙星	6.63	319.1	301.1^*	70	29
35	帕珠沙星	6.63	319.1	281.2	70	35
36	依诺沙星	5.98	321.1	232.0	110	46
36	依诺沙星	5.98	321.1	303.1^*	110	27
37	环丙沙星	6.30	332.2	231.0^*	115	50
37	环丙沙星	6.30	332.2	288.1	115	26
38	恩诺沙星	6.50	360.2	245.1	105	38
38	恩诺沙星	6.50	360.2	342.2^*	105	30
39	达氟沙星	6.55	358.1	283.1	70	35
39	达氟沙星	6.55	358.1	340.1^*	70	38
40	加替沙星	7.43	376.2	332.2	70	28
40	加替沙星	7.43	376.2	289.1^*	70	34
41	奥比沙星	6.85	396.1	295.1^*	100	34
41	奥比沙星	6.85	396.1	352.1	100	27
42	司帕沙星	7.93	393.1	375.1	90	32
42	司帕沙星	7.93	393.1	349.2^*	90	29
43	莫西沙星	8.25	402.2	261.1	110	33
43	莫西沙星	8.25	402.2	364.2^*	110	37
44	克林沙星	7.80	366.1	348.1	70	30
44	克林沙星	7.80	366.1	305.1^*	70	33
45	氟罗沙星	5.50	370.2	269.1^*	100	38
45	氟罗沙星	5.50	370.2	326.0	100	27
46	诺氟沙星	6.05	320.1	233.1	110	35
46	诺氟沙星	6.05	320.1	276.1^*	110	25
47	培氟沙星	5.90	334.2	233.1	100	35
47	培氟沙星	5.90	334.2	290.1^*	100	25
48	洛美沙星	6.65	352.2	308.2^*	70	22
48	洛美沙星	6.65	352.2	265.1	70	33
49	双氟沙星	6.86	400.2	299.1^*	110	39
49	双氟沙星	6.86	400.2	356.0	110	28
50	替马沙星	8.30	418.0	400.1	80	38
50	替马沙星	8.30	418.0	331.1	80	41
51	巴洛沙星	8.56	390.1	372.0^*	50	29
51	巴洛沙星	8.56	390.1	315.0	50	33
52	沙拉沙星	7.05	386.2	299.1	120	38
52	沙拉沙星	7.05	386.2	342.1^*	120	26
53	西诺沙星	8.17	263.0	245.0^*	30	22
53	西诺沙星	8.17	263.0	217.1	30	33

表1

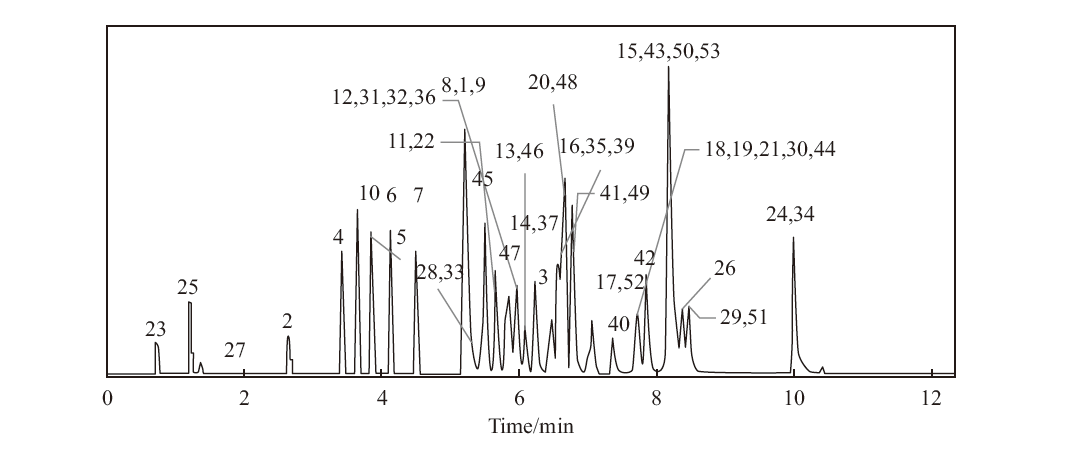

图1

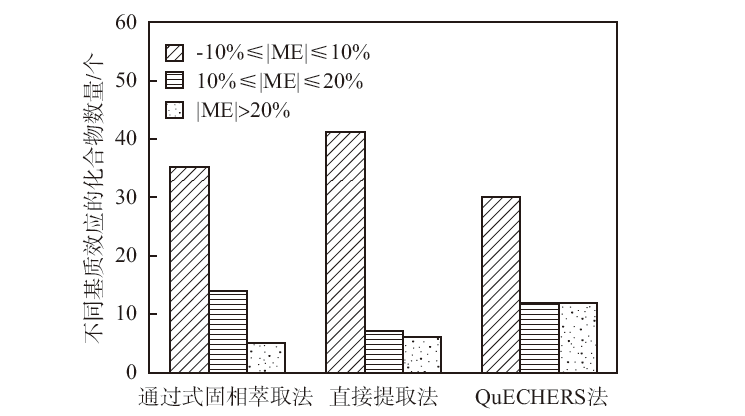

图2

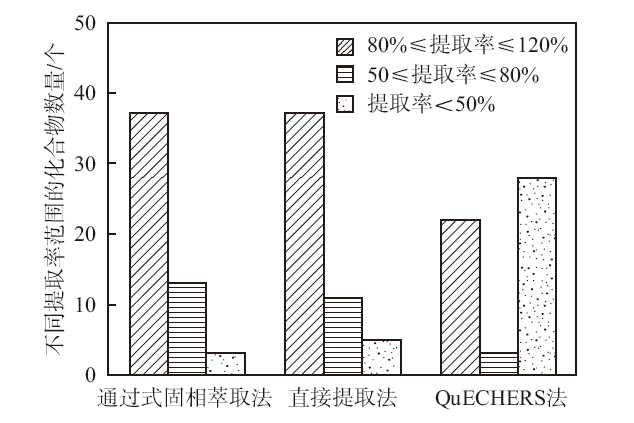

图 3

表2

两类基质的线性范围、相关系数和回归方程"

序号	线性范围/（ng/mL）	膏霜乳类基质		液体（水）类基质
序号	线性范围/（ng/mL）	R	回归方程	R	回归方程
1	0.5~15	0.999 1	y=131 620x+22 543	0.998 7	y=130 789x+9 032
2	0.5~15	0.999 3	y=14 920x+1 591	0.999 5	y=15 232x+2 900
3	0.5~15	1.000 0	y=32 952x-1 095	0.999 7	y=34 855x+3 620
4	0.5~15	1.000 0	y=79 507x-7 881	0.999 1	y=78 033x+9 414
5	0.5~10	0.997 1	y=58 808x+9 612	0.999 7	y=69 593x+6 770
6	0.5~10	0.994 1	y=34 696x+10 689	0.998 7	y=47 897x+4 249
7	0.5~15	0.996 5	y=34 045x+9 444	0.998 5	y=44 673x+3 847
8	0.5~15	0.996 5	y=10 999x-1 875	0.996 4	y=10 864x+994
9	0.5~15	0.999 7	y=12 139x+189	0.999 1	y=12 460x+715
10	0.5~10	0.997 7	y=76 084x+15 573	0.999 1	y=66 460x+12 166
11	0.5~15	0.995 7	y=65 331x-4 925	0.999 7	y=70 263x+12 109
12	0.5~20	0.999 0	y=12 866x+934	0.999 8	y=14 275x+1 364
13	0.5~15	0.997 3	y=26 401x+924	0.997 1	y=26 276x+2 025
14	0.5~15	0.996 3	y=44 182x+2 712	0.998 0	y=49 495x-843
15	0.5~15	0.994 0	y=111 978x-5 753	0.998 9	y=109 827x-701
16	0.5~15	0.999 4	y=21 779x+1 272	0.998 2	y=21 858x+2 879
17	0.5~15	0.998 1	y=64 338x+4 455	0.998 7	y=69 802x+476
18	0.5~15	0.998 6	y=30 995x-840	0.999 1	y=30 524x+831
19	0.5~10	0.998 1	y=21 974x+5 297	0.999 9	y=23 451x+2 238
20	0.5~15	0.996 5	y=47 922x+2 666	0.999 8	y=51 764x+7 059
21	0.5~15	0.995 9	y=6 407x-409	0.999 5	y=6 132x-473
22	5~200	0.999 6	y=53 821x+3 059	0.999 9	y=56 596x-4 475
23	5~150	0.995 5	y=5 286x+1 058	0.999 8	y=5 023x+112
24	0.5~15	0.997 2	y=110 473x+2 107	0.999 0	y=108 966x-6 612
25	0.5~15	0.991 5	y=21 529x+9 651	0.994 6	y=32 071x-1 429
26	0.5~15	0.995 8	y=47 440x-501	0.999 2	y=48 349x-680
27	5~200	0.996 6	y=3 196x+1 087	0.999 0	y=3 662x+1 598
28	0.5~15	0.999 9	y=65 231x+1 659	0.997 3	y=72 724x+1 360
29	0.5~10	0.997 6	y=25 282x+6 436	0.999 6	y=26 574x+957
30	0.5~10	0.996 4	y=8 814x+372	0.999 7	y=8 301x+427
31	0.5~15	0.996 4	y=167 925x+5 372	0.998 7	y=167 728x-42 743
32	0.5~10	0.995 7	y=15 882x+2 234	0.998 4	y=20 568x-1 917
33	0.5~15	0.998 5	y=68 099x+463	1.000 0	y=63 959x-13 046
34	0.5~10	0.997 9	y=702 103x+136 127	0.999 2	y=691 461x+28 350
35	0.5~15	0.997 7	y=39 763x-1 963	0.999 5	y=35 686x-4 533
36	0.5~15	0.999 7	y=269 490x+15 756	0.999 5	y=256 716x-98 412
37	0.5~15	0.998 8	y=144 465x-5 202	0.998 9	y=139 396x-41 787
38	0.5~15	0.995 5	y=336 503x-15 933	0.998 9	y=318 854x-70 507
39	0.5~15	0.999 5	y=438 161x-46 134	0.999 7	y=390 906x-119 613
40	0.5~15	0.998 5	y=48 273x-7 899	0.999 2	y=44 148x-4 147
41	0.5~15	0.998 0	y=166 732x+30 881	0.999 8	y=170 616x+20 738
42	0.5~20	0.999 9	y=286 909x-15 717	0.999 7	y=265 163x-12 844
43	0.5~10	0.991 0	y=17 942x+3 782	0.999 6	y=19 084x-3 934
44	0.5~15	0.998 0	y=13 485x-263	0.999 7	y=12 498x-3 788
45	0.5~15	0.994 9	y=108 841x-6 121	0.999 9	y=104 729x-10 757
46	0.5~15	0.991 4	y=21 498x+277	0.995 9	y=19 700x-9 702
47	0.5~15	0.994 9	y=57 757x-5 256	0.999 0	y=52 461x-8 652
48	0.5~15	0.997 0	y=84 649x+3 869	0.999 8	y=83 681x-2 897
49	0.5~15	0.997 5	y=90 170x+7 943	0.999 7	y=91 079x-6 950
50	0.5~15	0.999 0	y=260 297x+3 234	0.999 8	y=232 408x-27 881
51	0.5~15	0.994 0	y=92 581x+1 704	0.999 7	y=80 395x-13 558
52	0.5~15	0.996 1	y=56 289x-636	0.996 6	y=54 908x-11 438
53	0.5~15	0.996 4	y=540 522x-58 410	0.999 7	y=497 204x-5 134

表2

表3

两类基质的回收率、精密度、检出限和定量限（n=6）"

序号	膏霜乳类基质的回收率/%			膏霜乳类基质的精密度/%			液体（水）类基质的回收率/%			液体（水）类基质的精密度/%			检出限/（μg/g）	定量限/（μg/g）
1	98.57	106.38	98.81	2.5	3.8	7.9	107.89	82.30	104.91	3.6	5.3	3.3	0.01	0.025
2	100.34	106.45	99.13	5.5	2.2	6.1	96.54	96.24	112.09	6.9	3.0	2.7	0.01	0.025
3	101.98	95.61	90.32	7.1	7.2	9.8	97.11	90.64	109.50	4.7	8.2	3.4	0.01	0.025
4	110.73	99.82	96.27	3.3	2.1	5.6	101.00	102.83	114.51	3.4	6.6	3.8	0.01	0.025
5	100.29	102.13	108.26	3.6	2.5	5.8	106.88	93.56	111.59	3.6	7.0	6.2	0.01	0.025
6	88.80	98.97	105.99	5.4	4.2	5.1	97.79	93.24	110.60	5.6	7.4	4.2	0.01	0.025
7	91.94	102.09	107.05	5.3	5.8	4.8	98.05	88.77	109.57	6.5	6.3	2.5	0.01	0.025
8	113.35	106.83	93.18	3.6	4.4	9.8	97.72	91.49	109.84	5.3	5.1	3.0	0.01	0.025
9	97.28	95.09	90.43	10.1	4.4	7.1	110.35	90.31	108.58	9.4	7.1	4.3	0.01	0.025
10	95.82	102.08	100.28	3.2	3.6	5.0	94.27	90.52	110.33	7.4	6.6	3.8	0.01	0.025
11	104.93	97.73	95.10	4.8	5.3	6.7	89.93	92.14	100.34	6.9	5.7	4.0	0.01	0.025
12	100.56	100.97	100.39	4.6	7.1	8.8	96.36	99.51	108.03	6.3	6.8	7.0	0.01	0.025
13	104.88	102.69	92.72	5.5	6.4	7.7	103.03	97.75	111.49	10.0	8.0	3.9	0.01	0.025
14	105.77	103.18	100.55	5.6	3.7	5.1	108.56	95.24	109.51	5.3	7.5	2.1	0.01	0.025
15	112.89	107.72	95.80	2.1	4.4	8.8	108.04	92.74	111.23	2.0	7.0	4.8	0.01	0.025
16	106.80	106.61	98.53	6.4	5.9	7.4	100.02	99.37	113.06	9.6	9.1	6.8	0.01	0.025
17	104.24	105.37	99.24	4.5	5.1	9.1	104.19	93.56	107.70	6.9	5.7	4.5	0.01	0.025
18	110.98	106.34	95.34	3.9	3.5	8.8	101.62	89.29	100.96	10.9	9.6	3.6	0.01	0.025
19	93.73	97.36	99.05	7.9	8.5	7.9	99.61	87.93	109.57	8.3	6.0	3.4	0.01	0.025
20	106.24	106.22	99.29	4.3	2.8	6.7	92.56	91.11	110.26	3.7	3.3	3.7	0.01	0.025
21	114.03	102.51	95.06	6.8	6.4	8.8	111.12	87.71	108.86	3.3	7.5	3.5	0.01	0.025
22	102.42	102.40	96.51	3.9	6.8	9.4	110.31	80.84	105.67	7.6	9.0	3.4	0.1	0.25
23	102.98	96.84	91.64	7.9	5.4	7.5	106.85	86.75	105.70	6.2	5.0	2.7	0.1	0.25
24	108.31	105.88	96.79	4.4	4.1	8.6	114.37	93.59	113.40	3.7	5.7	4.7	0.01	0.025
25	107.57	96.92	102.70	5.0	3.4	10.9	104.02	88.97	110.96	4.4	4.5	5.0	0.01	0.025
26	114.53	106.78	97.32	1.6	5.5	7.4	109.89	87.73	111.31	5.0	4.5	4.4	0.01	0.025
27	105.00	101.71	97.27	6.5	8.0	8.3	103.24	93.92	111.07	12.4	10.6	6.4	0.1	0.25
28	95.15	87.95	87.55	4.5	4.4	5.4	106.89	91.50	110.78	7.8	7.7	2.5	0.01	0.025
29	97.88	104.58	101.20	4.4	6.1	9.3	107.44	91.99	112.03	9.0	6.2	4.7	0.01	0.025
30	106.82	108.33	95.89	5.3	4.9	9.3	108.46	90.35	111.22	10.3	6.6	8.3	0.01	0.025
31	104.44	99.71	102.97	4.1	6.4	7.6	102.40	85.10	106.70	6.7	12.9	9.3	0.01	0.025
32	111.65	90.00	100.14	6.3	7.5	5.1	107.90	85.47	110.40	5.3	6.8	4.8	0.01	0.025
33	99.76	95.40	94.81	3.2	3.3	7.2	100.11	92.92	111.88	7.9	9.5	4.3	0.01	0.025
34	102.39	101.75	104.08	5.3	2.1	7.6	107.73	88.66	110.52	5.3	3.8	5.8	0.01	0.025
35	105.89	97.24	97.73	5.3	3.7	8.9	99.34	92.76	112.95	6.1	4.8	6.7	0.01	0.025
36	97.51	91.35	98.02	4.8	2.5	5.4	104.86	87.10	109.40	4.2	6.1	6.5	0.01	0.025
37	106.03	97.14	96.46	5.2	4.6	8.6	100.35	87.99	111.77	10.2	5.5	3.0	0.01	0.025
38	104.07	95.83	97.77	4.2	1.8	8.9	98.75	89.76	113.43	5.4	6.4	8.6	0.01	0.025
39	107.72	92.52	92.61	7.1	4.3	10.3	100.22	87.34	111.86	4.6	7.3	7.6	0.01	0.025
40	114.32	98.93	97.35	5.0	5.7	7.1	101.95	87.19	106.81	8.5	7.7	4.3	0.01	0.025
41	98.07	104.06	102.85	5.9	2.8	8.3	99.94	96.49	113.16	5.8	6.1	5.1	0.01	0.025
42	112.46	93.27	93.80	4.6	4.0	8.5	106.77	92.77	113.23	6.4	3.5	6.9	0.01	0.025
43	99.86	100.02	105.56	7.7	4.4	7.6	93.51	89.37	106.89	7.8	3.9	5.7	0.01	0.025
44	103.70	99.73	98.77	8.4	4.1	9.3	108.92	90.99	113.68	10.3	7.0	5.3	0.01	0.025
45	108.55	98.62	98.84	5.1	5.4	7.3	100.58	90.96	111.68	6.6	1.9	4.0	0.01	0.025
46	104.46	95.69	100.73	8.3	9.8	7.6	113.74	97.72	114.48	7.4	8.2	5.4	0.01	0.025
47	105.88	96.49	100.40	8.8	6.5	8.6	91.04	86.77	108.00	8.5	6.2	3.9	0.01	0.025
48	100.86	98.64	101.82	4.9	3.2	6.4	95.34	86.37	107.46	2.8	6.8	4.5	0.01	0.025
49	100.93	95.27	103.61	7.7	4.2	5.9	95.37	90.47	115.09	5.6	6.9	5.0	0.01	0.025
50	103.85	94.60	95.96	5.5	3.4	8.5	108.04	90.78	94.39	5.4	5.8	6.8	0.01	0.025
51	111.29	100.32	99.93	2.9	2.9	9.0	113.85	91.85	109.92	4.4	4.8	2.9	0.01	0.025
52	108.53	100.16	103.53	5.3	5.6	8.9	105.52	88.35	108.46	3.8	5.8	2.4	0.01	0.025
53	106.64	87.44	96.99	5.5	5.2	9.0	105.77	89.46	110.38	5.4	5.2	3.7	0.01	0.025

表3

参考文献 24

[1]	Yang Baofeng, Chen Jianguo. Pharmacology[M]. 9ed. Beijing: Peoples Medical Publishing House, 2018.
[2]	You Qidong. Medicinal chemistry[M]. 8ed. Beijing: People’s Medical Publishing House, 2016.
[3]	Xu Xiaohui, Wang Xiaoqiao, Zhao Bo, et al. PRiME HLB-UPLC-MS/MS method for rapid determination of 9 sulfonamides in anti-acne cosmetics[J]. China Food & Drug Administration Magazine, 2022 (6) : 80-85.
[4]	Xie Yujie, Li Tiemei, Niu Xiangtao, et al. Determination of sulfonamides in beef by one step QuEChERS method combined with high performance liquid chromatography-tandem mass spectrometry[J]. Science and Technology of Food Industry, 2021, 42 (20) : 268-278.
[5]	Zhang Lirong, Xie Songyang, Xiao Zifen, et al. Determination of 10 sulfonamides in antiacne cosmetics by ultra-high performance liquid chromatography tandem mas spectrometry[J]. Journal of Fanalyticals Science, 2021, 37 (6) : 814-818.
[6]	China Food and Drug Administration. Safety and Technical Standards for Cosmetics (2015 Edition)[S]. Beijing: China Food and Drug Administration, 2015.
[7]	GB/T 39999—2021. Determination of 15 kinds of prohibited quinolone-type antibiotics in cosmetics including enrofloxacin-Liquid chromatography-tandem mass spectrometry [S]. National Standards of the People’s Republic of China, 2021.
[8]	SN/T 4393—2015. Determination of quinolones in cosmetics by import and export-LC-MS/MS method[S]. General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China, 2015.
[9]	GB/T 24800.6—2009.Determination of 21 sulfonamides in cosmetics by high performance liquid chromatography method [S]. National Standards of the People’s Republic of China, 2009.
[10]	Gao Shuang. Application of sulfonamides residues in milk by high performance liquid chromatography[J]. China Dairy, 2022 (6) : 55-59.
[11]	Yu Peiyao, Chen Chuansheng, Liu Hanbing, et al. Simultaneous determination of tetracyclines, fluoroquinolones,and sulfonamides in chicken manure using solid-phase extraction and high performance liquid chromatography[J]. Chinese Joural of Chromatograhpy, 2019, 37 (5) : 518-524.
[12]	Wang Yixiao, Li Jinhua, Ji Ling, et al. Simultaneous determination of sulfonamides antibiotics in environmental water and seafood samples using ultrasonic-assisted dispersive liquid-liquid microextraction coupled with high performance liquid chromatography[J]. Molecules, 2022, 27 (7) : 1-16.
[13]	Shen Songli, Lu Hengjun, Tao Song, et al. Determination of fourteen sulfonamides in poultice cosmetic by high performance liquid chromatography coupled with ultrasonic-assisted extraction[J]. Chinese Journal of Analysis Laboratory, 2013, 32 (10) : 121-124.
[14]	Wang Suhan, Ma Ningzang, Xiao Huanzhang, et al. Determination of fluoroquinolones in chicken muscle by molecularly imprinted graphitic carbon nitride-based solid-phase extraction and ultra-performance liquid chromatography[J]. Food Additives & Contaminants, 2022, 39 (5) : 901-011.
[15]	Du Hui, Ren Jing. Simultaneous determination of 26 prohibited substances in masks by ultra performance liquid chromatography-triple quadrupole mass spectrometry[J]. China Surfactant Detergent & Cosmetics, 2021, 51 (11) : 1142-1149.
[16]	Yin Qiong, Xue Yuan, Huang Xiaohui, et al. Determination of compound sulfamethoxazole in human plasma by LC-MS/MS and its clinical application[J]. China Pharmacist, 2022, 25 (7) : 1179-1182.
[17]	Li Shuo, Zhang Can, Ma Ling, et al. Simultaneous determination of 24 sulfonamide antibiotics in fish products by QuEChERS with ultra performance liquid chromatography-tandem mass spectrometry[J]. Science and Technology of Food Industry, 2022, 43 (9) : 301-308.
[18]	Luo Ruilian, Wu Zhengshuang, Liang Chiqiong, et al. Determination of multiveterinary drug residues in complementary foods for infants and young children by ultra performance liquid chromatography tandem mass spectrometry[J]. Chinese Joural of Chromatograhpy, 2022: 1-11.
[19]	Wei Dan, Zhang Ju, Guo Ming. Determination of sulfonamides and quinolones antibiotics residues in water samples by high performance liquid chromatography-tandem mass spectrometry with mixed adsorbents based magnetic solid phase extraction[J]. Journal of Instrumental Analysis, 2022, 41 (2) : 187-195.
[20]	Lu Linling, Qian Yefei, Zhang Bin, et al. Determination of 38 anti-infective drugs in cosmetics by ultra high performance liquid chromatography-tandem mass spectrometry[J]. China Surfactant Detergent & Cosmetics, 2022, 52 (2) : 214-223.
[21]	Xiao Ruina, Li Yuli. Simultaneous determination of 40 antibacterial agents in cosmetics by liquid chromatography tandem mass spectrometry[J]. China Surfactant Detergent & Cosmetics, 2020, 50 (6) : 419-426.
[22]	Chen Shaobo, Pu Yunyue, Wang Hairui, et al. Simultaneous and rapid screening of 112 prohibited drugs in cosmetics by high performance liquid chromatography-tandem mass spectrometry[J]. Journal of Instrumental Analysis, 2018, 37 (11) : 1302-1310.
[23]	Niu Zengyuan, Luo Xin, Wang Fenngmei, et al. Fast screening and confirmation of 89 prohibited compounds in cosmetics using UPLC-LTQ/Orbitrap MS[J]. Journal of Chinese Mass Spectrometry Society, 2016, 37 (3) : 201-212. doi: 10.7538/zpxb.youxian.2015.0051
[24]	He Pengfei, Hu Hongmei, Qi Mengyu, et al. Determination of quinolone antibiotics in environ-mental water using automatic solid-phase extraction and isotope dilution ultra-performance liquid chromatography tandem mass spectrometry[J]. Journal of Chromatography B, 2022, 37 (3) : 1-9.
