可调控结构色互穿纳米水凝胶的合成及凝胶化转变

doi:10.3969/j.issn.2097-2806.2024.08.005

日用化学工业（中英文） ›› 2024, Vol. 54 ›› Issue (8): 911-920.doi: 10.3969/j.issn.2097-2806.2024.08.005

可调控结构色互穿纳米水凝胶的合成及凝胶化转变

夏婷婷¹,李雪婷^1,^2,³,鲁希华^1,^2,^3,^*()

1.东华大学化学与化工学院，上海 201620
2.福建纳微新材料科技有限公司，福建晋江 362200
3.上海爱文斯顿新材料科技有限公司，上海 200082

收稿日期:2024-03-26 修回日期:2024-07-22 出版日期:2024-08-22 发布日期:2024-08-21
通讯作者: 鲁希华
基金资助:
国家自然科学基金面上项目(52173157);中央高校基本科研业务费专项资金资助(2232022A-07)

Synthesis and sol-gel transition of interpenetrating nanogels with controllable structural color

Tingting Xia¹,Xueting Li^1,^2,³,Xihua Lu^1,^2,^3,^*()

1. College of Chemistry and Chemical Engineering, Donghua University, Shanghai 201620, China
2. Fujian Nano-Micro Advanced Materials Sc. & Tech Co., Ltd., Jinjiang, Fujian 362200, China
3. Shanghai Evanston Advanced Materials Sc. & Tech Co., Ltd., Shanghai 200082, China

Received:2024-03-26 Revised:2024-07-22 Online:2024-08-22 Published:2024-08-21
Contact: Xihua Lu

摘要/Abstract

摘要：

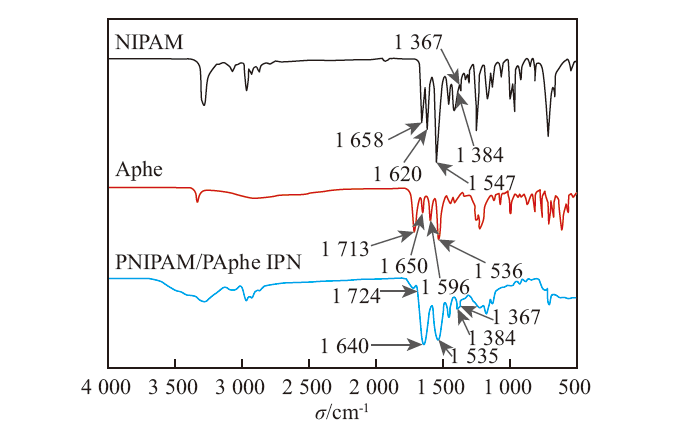

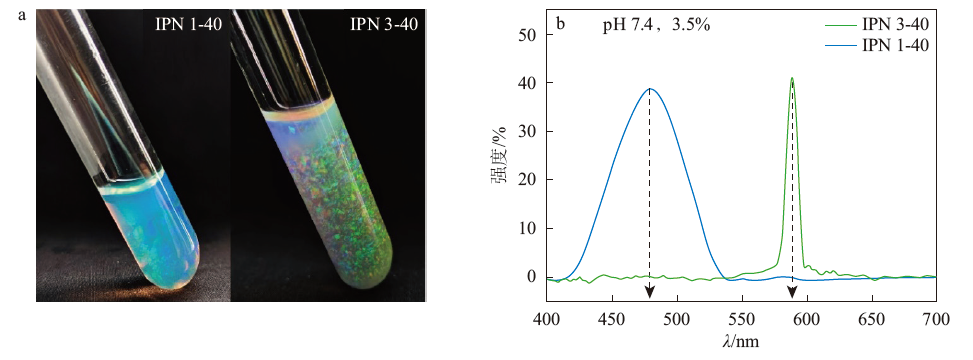

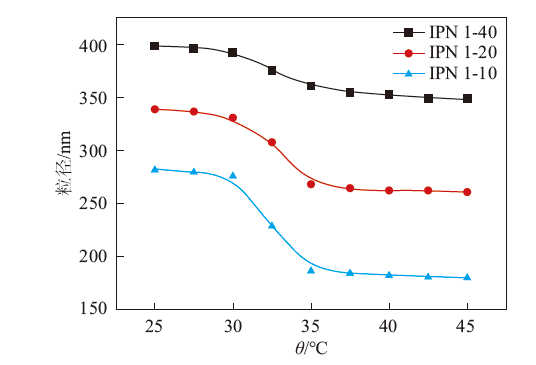

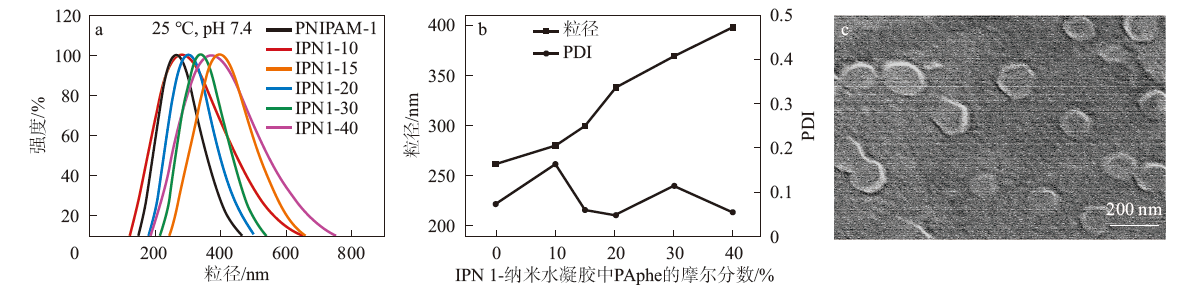

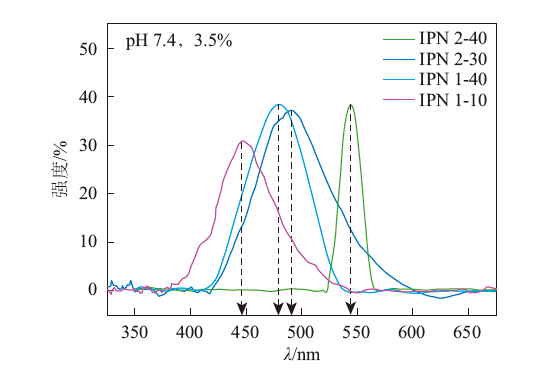

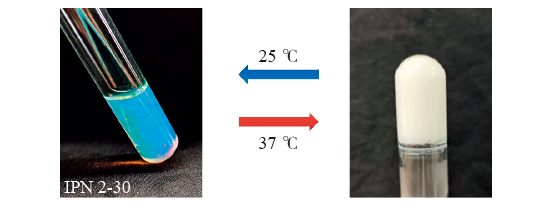

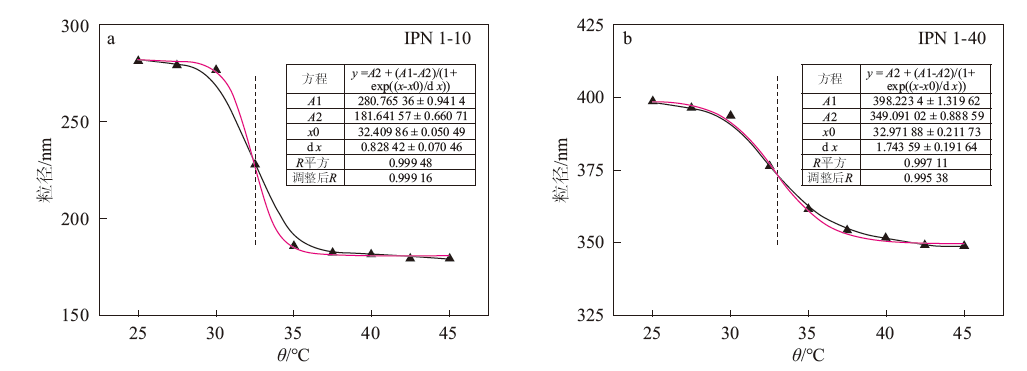

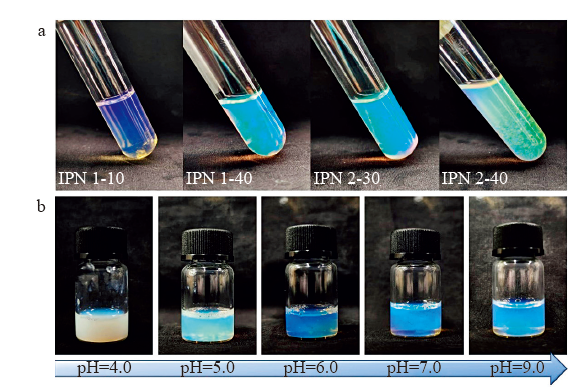

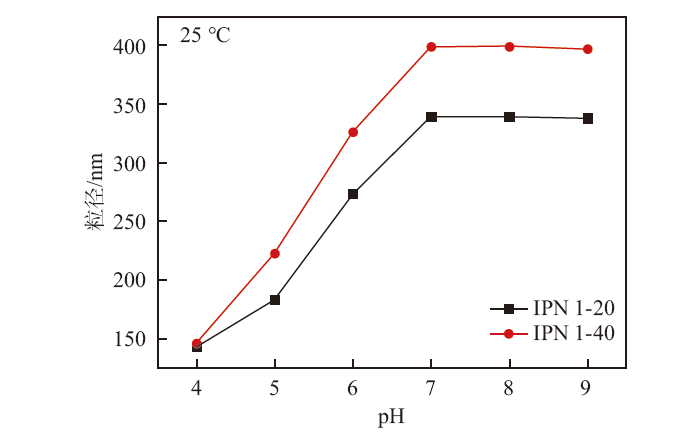

研究合成了具有温度和pH响应性的PNIPAM/PAphe互穿纳米水凝胶，通过红外光谱、扫描电镜、动态光散射仪、光纤光谱仪等技术，详细研究了互穿纳米水凝胶的结构和形貌、粒径与分散性、温度和pH响应性、结构色调控与光子晶体自组装，以及凝胶化转变行为。根据红外光谱和扫描电镜图确认了两种网络的有效互穿和其良好的单分散性。通过粒径分析可以得到随着PAphe含量的增加，互穿纳米水凝胶的粒径相应增大，但单分散性保持良好。利用温度和pH敏感性实验证明了该互穿纳米水凝胶的智能调控响应性，具体表现为：在温度上升或pH值下降的条件下，其粒径显著减小。结合光纤光谱图，进一步发现该互穿纳米水凝胶能够通过调整粒径大小来实现其结构色的可调控性。更为重要的是，通过试管倒置法发现在相变温度（32 ℃）以上该纳米凝胶具有从溶胶转变到凝胶的能力，展现了其在高度可调控的光学材料及生物医学领域中的应用潜力。

关键词: 互穿纳米水凝胶, 双重响应性, 凝胶化, 结构色

Abstract:

The PNIPAM/PAphe interpenetrating nanogels which were responsive to temperature and pH were synthesized. The chemical structure, morphology, particle size and dispersity, temperature-and pH-response, structural color tunability, photonic crystal self-assembly, and sol-gel transition behavior of the interpenetrating nanogels were studied in detail by infrared spectroscopy, scanning electron microscopy （SEM）, dynamic light scattering, and optical fiber spectrometry. According to the infrared spectrum and SEM image, the effective interpenetration and good monodispersity of the two networks were confirmed. The analysis of particle size and polydispersity index （PDI） indicated that, with the increase of PAphe content, the particle size of the interpenetrating nanogels correspondingly increased, but the monodispersity remained good. The temperature-and pH-sensitivity experiments proved the responsiveness of the interpenetrating nanogels, which showed that the particle size was significantly decreased when the temperature was increased or the pH value was decreased. Combined with the optical fiber spectrum, it was further found that the interpenetrating nanogel could achieve controllable structural colors by adjusting the particle size. More importantly, they possessed the ability of transition from sol to gel above T_p （32 ℃） by the method of test tube inversion. These characteristics showed their potential applications in highly controllable optical materials and the biomedical field.

Key words: interpenetrating nanogel, dual-responsive, gelation, structural color

中图分类号:

TQ427.2

夏婷婷,李雪婷,鲁希华. 可调控结构色互穿纳米水凝胶的合成及凝胶化转变[J]. 日用化学工业（中英文）, 2024, 54(8): 911-920.

Tingting Xia,Xueting Li,Xihua Lu. Synthesis and sol-gel transition of interpenetrating nanogels with controllable structural color[J]. China Surfactant Detergent & Cosmetics, 2024, 54(8): 911-920.

图/表 14

图1

图2

表1

表2

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

参考文献 19

[1]	Wei M, Gao Y, Li X, et al. Stimuli-responsive polymers and their applications[J]. Polymer Chemistry, 2017, 8 (1) : 127-143.
[2]	Neumann M, Marco G, Iudin D, et al. Stimuli-responsive hydrogels: The dynamic smart biomaterials of tomorrow[J]. Macromolecules, 2023, 56 (21) : 8377-8392. doi: 10.1021/acs.macromol.3c00967 pmid: 38024154
[3]	Wang Q, Jiao C, Wang X, et al. A hydrogel-based biosensor for stable detection of glucose[J]. Biosensors and Bioelectronics, 2023, 221: 114908.
[4]	Vu N D, Crozzolo J, Guérinot A, et al. Injectable and self-healing thiazolidine-crosslinked hydrogels: synthesis and characterization[J]. Macromolecules, 2022, 55 (23) : 10430-10438.
[5]	Griffin D R, Weaver W M, Scumpia P O, et al. Accelerated wound healing by injectable microporous gel scaffolds assembled from annealed building blocks[J]. Nature Materials, 2015, 14 (7) : 737-744. doi: 10.1038/nmat4294 pmid: 26030305
[6]	Hu B, Gao M, Boakye-Yiadom K O, et al. An intrinsically bioactive hydrogel with on-demand drug release behaviors for diabetic wound healing[J]. Bioactive Materials, 2021, 6 (12) : 4592-4606. doi: 10.1016/j.bioactmat.2021.04.040 pmid: 34095619
[7]	Li Z, Yin Y. Stimuli-responsive optical nanomaterials[J]. Advanced Materials, 2019, 31 (15) : 1-33.
[8]	Ren Y, Huo D, Hou C. Thermosensitive poly(N-isopropylacrylamide) and its application[J]. Materials Reports, 2004 (11) : 54-56.
[9]	Vijayakumar B, Takatsuka M, Kita R, et al. Dynamics of the poly(N-isopropylacrylamide) microgel aqueous suspension investigated by dielectric relaxation spectroscopy[J]. Macromolecules, 2022, 55 (4) : 1218-1229.
[10]	Wang J, Zhang B, Cui X, et al. Preparation of temperature and pH-sensitive carboxymethyl chitosan/sodium alginate hydrogel microsphere[J]. Applied Chemical Industry, 2015, 44 (8) : 1464-1467.
[11]	Lu C, Zha L. Research progress in stimuli responsive properties of intelligent nano-hydrogels[J]. Journal of Functional Polymers, 2012, 25 (2) : 211-220.
[12]	Jalababu R, Krishna Rao K S V, Sreenivasa Rao B, et al. Dual responsive GG-g-PNPA/PIPAM based novel hydrogels for the controlled release of anti-cancer agent and their swelling and release kinetics[J]. Journal of Polymer Research, 2020, 27: 83.
[13]	Zhao J, Liang F, Wang Y. Preparation and properties of temperature and pH sensitive chitosan hydrogel[J]. Applied Chemical Industry, 2018, 47 (5) : 983-987.
[14]	Li X, Li X, Xia T, et al. Remarkable sol-gel transition of PNIPAm-based nanogels via large steric hindrance of side-chains[J]. Materials Horizons, 2023, 10: 4452-4462.
[15]	Ding H, Li X, Lu X. Preparation and tunable structural color of dual-responsive nanogels[J]. China Surfactant Detergent & Cosmetics, 2021, 51 (9) : 852-858.
[16]	Nigro V, Angelini R, Bertoldo M, et al. Chemical-physical behaviour of microgels made of interpenetrating polymer networks of PNIPAM and poly (acrylic acid)[J]. Polymers, 2021, 13 (9) : 1353-1378.
[17]	Gilbert T, Campea M A, Rivera N P, et al. Injectable poly(N-isopropylacrylamide)/poly(vinylpyrrolidone) interpenetrating network hydrogels formed via hydrazone/disulfide cross-linking[J]. Macromolecules, 2023, 56 (17) : 6679-6691.
[18]	Li Z, Xu W, Wang X, et al. Fabrication of PVA/PAAm IPN hydrogel with high adhesion and enhanced mechanical properties for body sensors and antibacterial activity[J]. European Polymer Journal, 2021, 146: 110253.
[19]	Zhuo R, Zhang X. The synthesis and characterization of temperature and pH sensitive poly(acrylic acid)/poly(N-isopropylacrylamide) IPN hydrogel[J]. Acta Polymerica Sinica, 1998 (1) : 40-43.

	NIPAM摩尔分数/%	NIPAM质量/g	BIS摩尔分数/%	BIS质量/g	SDBS质量/g	H₂O质量/g	KPS质量/g
PNIPAM-1	98	1.107 4	2	0.030 8	0.04	100	0.06
PNIPAM-2	98	1.107 4	2	0.030 8	0.03	100	0.06
PNIAPM-3	99	1.118 7	1	0.015 4	0.04	100	0.06

	PNIPAM 摩尔分数/%	PNIPAM 质量/g	Aphe 摩尔分数/%	Aphe 质量/g	BIS 摩尔分数/%	BIS 质量/g	H₂O 质量/g	KPS 质量/g	Na₂S₂O₅质量/g
IPN 1-10	88	10	10	0.029 8	2	0.004 2	70	0.06	0.06
IPN 1-20	78	10	20	0.067 5	2	0.004 7	70	0.06	0.06
IPN 1-30	68	10	30	0.115 6	2	0.005 4	70	0.06	0.06
IPN 1-40	58	10	40	0.181 3	2	0.006 4	70	0.06	0.06
IPN 2-30	68	10	30	0.115 6	2	0.005 4	70	0.06	0.06
IPN 2-40	58	10	40	0.181 3	2	0.006 4	70	0.06	0.06
IPN 3-40	58	10	40	0.181 3	2	0.006 4	70	0.06	0.06
