海水条件下延展型表面活性剂降低界面张力性能研究

doi:10.3969/j.issn.2097-2806.2024.07.002

摘要/Abstract

摘要：

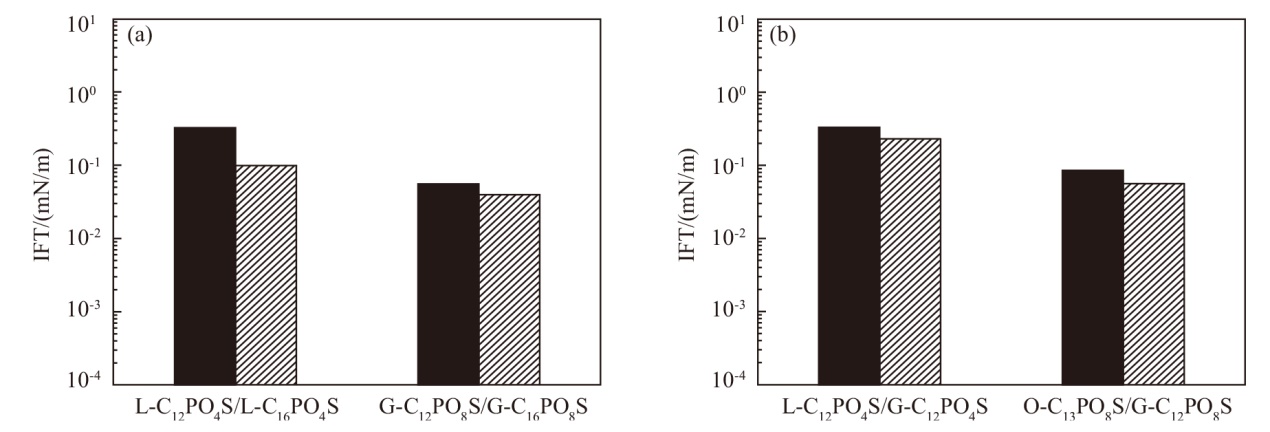

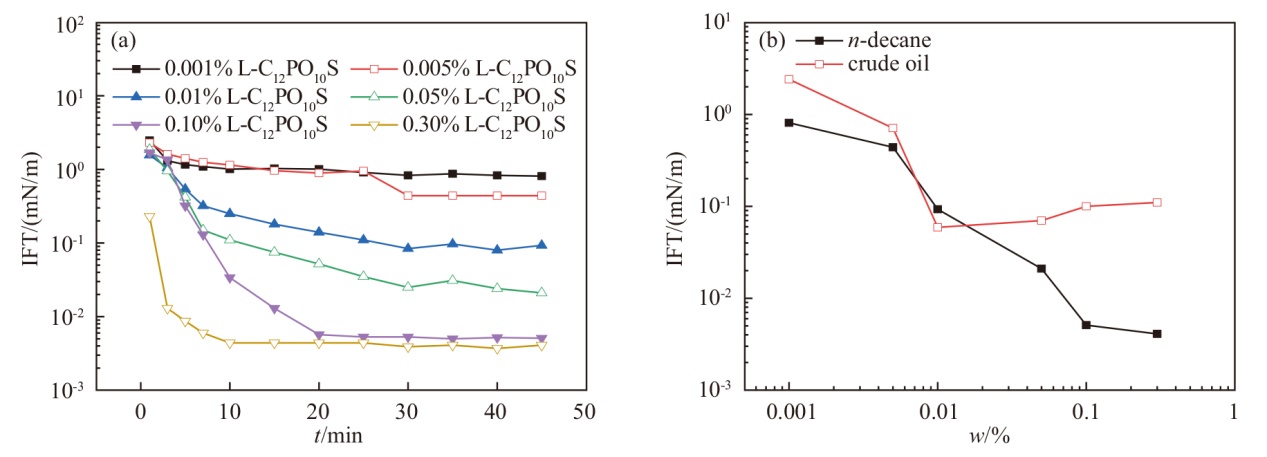

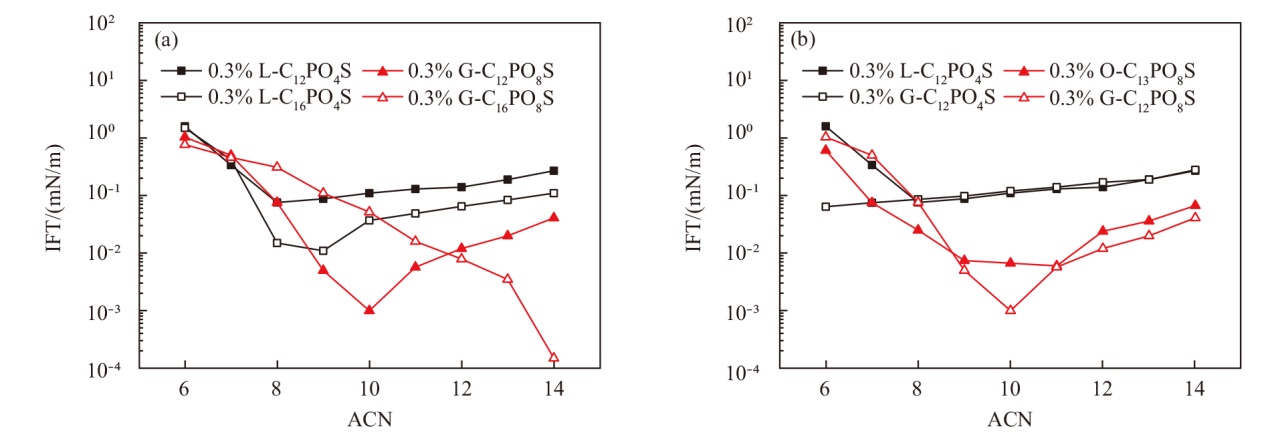

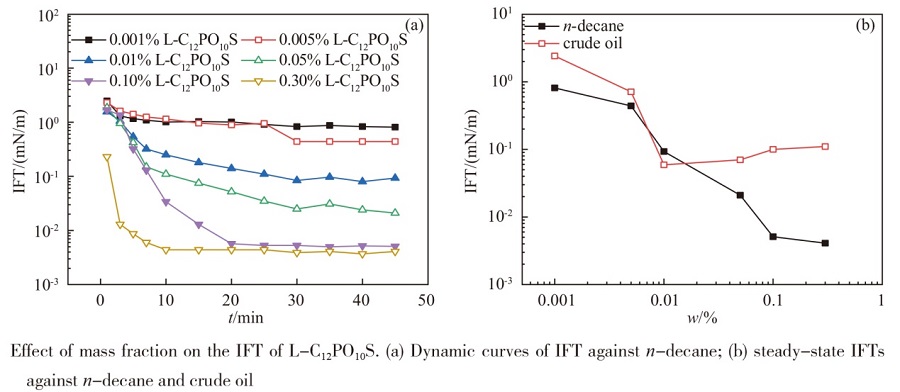

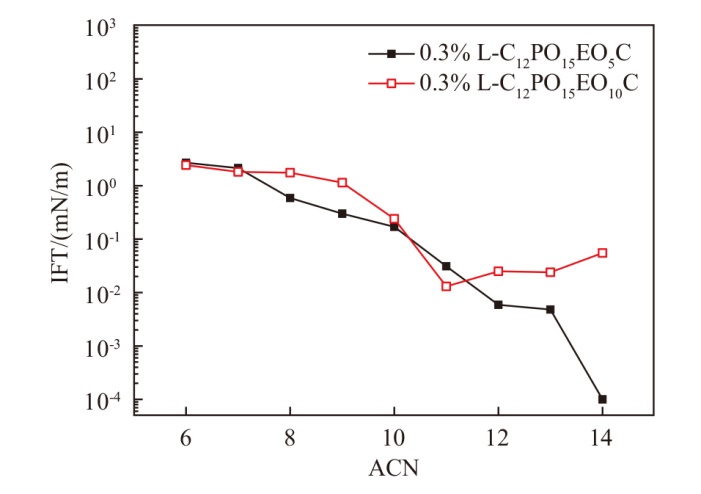

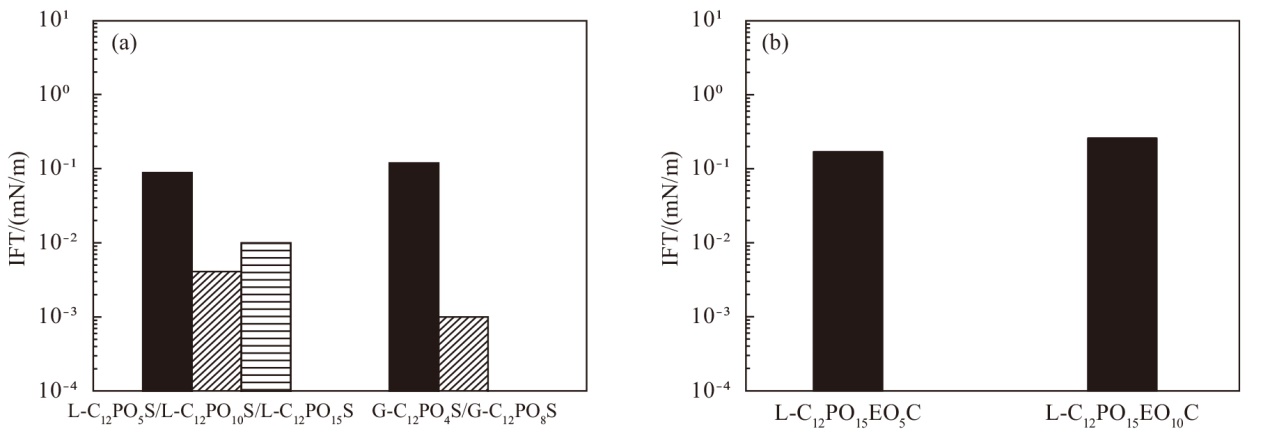

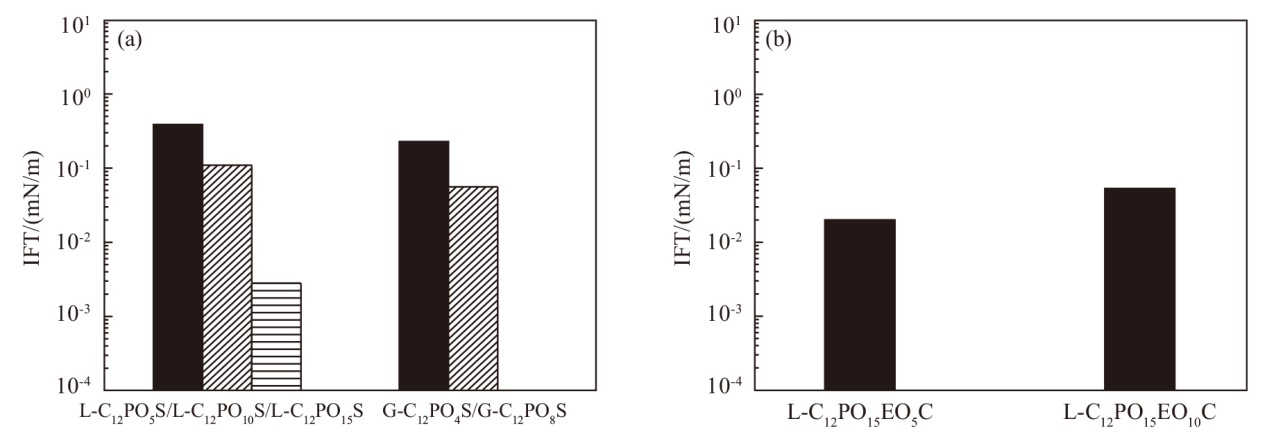

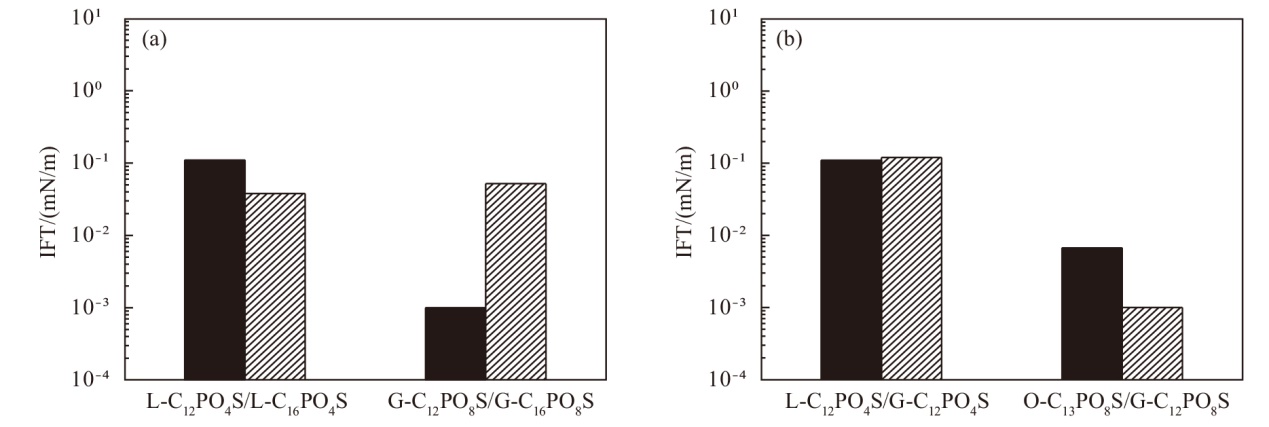

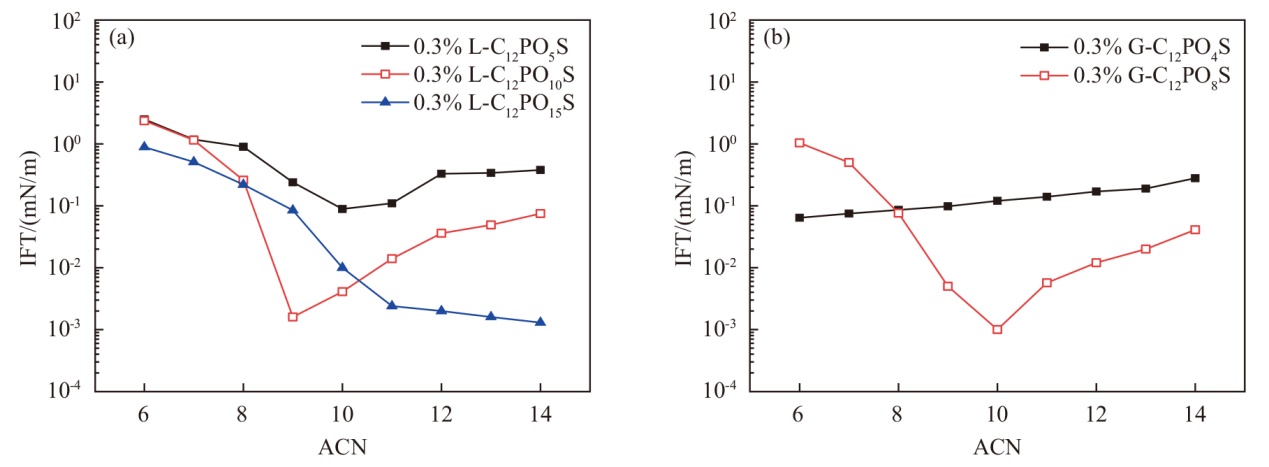

为系统探究海水条件下延展型表面活性剂降低界面张力的结构-性能关系，本研究选取不同结构的延展型表面活性剂进行了界面张力测试，并分别考察了疏水烷基链长、烷基支链化、氧丙烯（PO）基团数、氧乙烯（EO）基团数对降低界面张力能力的影响。结果表明，通过增加烷基链长和疏水基支链化，对界面张力降低能力影响幅度小，不能达到超低数值（<10^-2 mN/m）。PO数是影响延展型表面活性剂降低界面张力能力的关键因素，通过长PO链段螺旋卷曲，增大疏水基尺寸，在适宜的亲水亲油平衡条件下，可以将界面张力降至10^-3 mN/m数量级。EO基团增加不利于分子在界面上紧密排列，造成界面张力升高。原油组分在界面上的竞争吸附不利于界面张力降低，PO数增加，与原油的界面张力逐渐降低。该类表面活性剂在海水条件下依然具有高界面活性，适用于海上油藏化学驱提高采收率。

关键词: 延展型表面活性剂, 界面张力, PO数, EO数, 烷基链长, 烷基支链化

Abstract:

The aim of this work was to systematically explore the relationship between the structure of extended surfactants and their abilities in reducing interfacial tension （IFT） under seawater conditions. Those extended surfactants with different structures were selected to test IFT. The effects of hydrophobic alkyl chain length, alkyl branching, and numbers of oxypropylene （PO） and oxyethylene （EO） groups on the ability of reducing IFT were investigated. The results showed that by increasing the length of the alkyl chain and the branching of the hydrophobic group, the effectiveness in reduction of IFT was small, which could not achieve the ultra-low level （<10^-2 mN/m）. In contrast, the PO number was a key factor affecting the IFTs of the extended surfactant solutions against hydrocarbons and crude oil. The IFT could be reduced to the magnitude order of 10^-3 mN/m at appropriate hydrophilic-lipophilic balance by spirally curling the long PO segment and thus increasing the hydrophobic group size. The increase of EO groups lead to incompact arrangement of molecules at the interface, resulting in the increase of IFT. The competitive adsorption of crude oil components at the interface was unfavorable to the decrease of interfacial tension. The increase of PO number lead to the gradual decrease of IFT against crude oil. This extended surfactant showed high interfacial activity under seawater conditions, which was suitable for chemical flooding to enhance oil recovery in offshore reservoirs.

Key words: extended surfactant, interfacial tension, PO number, EO number, alkyl chain length, branched chain

中图分类号:

TQ423

潘斌林. 海水条件下延展型表面活性剂降低界面张力性能研究[J]. 日用化学工业（中英文）, 2024, 54(7): 759-766.

Binlin Pan. Study on the performance of extended surfactants in reducing interfacial tension under seawater conditions[J]. China Surfactant Detergent & Cosmetics, 2024, 54(7): 759-766.

图/表 10

表1

表2

图1

图2

图3

图4

图5

图6

图7

图8

参考文献 16

[1]	Ma Kang, Jiang Hanqiao, Li Junjian, et al. Experimental study on the micro alkali sensitivity damage mechanism in low-permeability reservoirs using QEMSCAN[J]. Journal of Natural Gas Science and Engineering, 2016, 36: 1004-1017.
[2]	Yuan Guangyu. Research progress of the emulsification mechanism in chemical flooding and the new technology of emulsification displacement[J]. China Surfactant Detergent & Cosmetics, 2019, 49 (1) : 44-50.
[3]	Sun Fujie. Research progress of the emulsification mechanism in chemical flooding and the new technology of emulsification displacement[J]. China Offshore Oil and Gas, 2023, 35 (5) : 91-99.
[4]	Chan K S, Shah D O. The molecular mechanism for achieving ultra low interfacial tension minimum in a petroleum sulfonate/oil/brine system[J]. Journal of Dispersion Science and Technology, 1980, 1 (1) : 55-95.
[5]	Chen Ji, Hu Xueyi, Fang Yun, et al. What dominates the interfacial properties of extended surfactants: Amphipathicity or surfactant shape?[J]. Journal of Colloid and Interface Science, 2019, 547: 190-198. doi: S0021-9797(19)30416-3 pmid: 30954763
[6]	He Zhiqiang, Zhang Meijun, Fang Yun, et al. Extended surfactants: A well-designed spacer to improve interfacial performance through a gradual polarity transition[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2014, 450: 83-92.
[7]	Chen Ji, Hu Xueyi, Fang Yun, et al. Cooperative effects of polypropylene oxide spacers and alkyl chains on dynamic amphipathicity of extended surfactants[J]. Journal of Molecular Liquids, 2020, 311: 113276.
[8]	He Hongjia, Xiao Hongyan, Cao Xulong, et al. A helical shape of polyoxypropylene chain for extended surfactant molecule at the water/oil interface: Theoretical and experimental study[J]. Fuel, 2022, 312: 122835.
[9]	Wang Zhongsheng, Zhou Zhaohui, Han Lu, et al. The mechanism for lowering interfacial tension by extended surfactant containing ethylene oxide and propylene oxide groups[J]. Journal of Molecular Liquids, 2022, 359: 119364.
[10]	Zhou Zhaohui, Zhang Qun, Liu Yan, et al. Effect of fatty acids on interfacial tensions of novel sulfobetaines solutions[J]. Energy & Fuels, 2014, 28 (2) : 1020-1027.
[11]	Rosen M J, Wang Hongzhuang, Shen Pingping, et al. Ultralow interfacial tension for enhanced oil recovery at very low surfactant concentrations[J]. Langmuir, 2005, 21 (9) : 3749-3756. pmid: 15835933
[12]	Zhang Xiaojie, Zhou Zhaohui, Han Lu, et al. Mechanism responsible for the reduction of interfacial tension by extended surfactants[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2022, 634: 128013.
[13]	Zhao Shuai, Zhou Zhaohui, Shangguan Yangnan, et al. Effect of bivalent cations on the interfacial tensions of extended anionic surfactant solutions[J]. Journal of Molecular Liquids, 2022, 349: 118162.
[14]	He Hongjia, Xiao Hongyan, Zhou Zhaohui, et al. Effect of oxyethylene and oxypropylene groups on the interfacial structure and property of extended surfactants: Molecular simulation and experimental study[J]. Journal of Molecular Liquids, 2023, 382: 121944.
[15]	Cash L, Cayias J L, Fournier G, et al. The application of low interfacial tension scaling rules to binary hydrocarbon mixtures[J]. Journal of Colloid and Interface Science, 1977, 59 (1) : 39-44.
[16]	Baek K, Liu M, Argüelles-Vivas F J, et al. The effect of surfactant partition coefficient and interfacial tension on oil displacement in low-tension polymer flooding[J]. Journal of Petroleum Science and Engineering, 2022, 214: 110487.
