日用化学工业(中英文) ›› 2022, Vol. 52 ›› Issue (10): 1055-1061.doi: 10.3969/j.issn.1001-1803.2022.10.004

• 开发与应用 • 上一篇    下一篇

C16格尔伯特醇聚氧烷烯醚硫酸盐的制备及其界面性能研究

陈琪,冉立君,陈钊,崔正刚*()

  1. 江南大学 化学与材料工程学院 合成与生物胶体教育部重点实验室,江苏 无锡 214122
  • 收稿日期:2021-12-15 修回日期:2022-09-29 出版日期:2022-10-22 发布日期:2022-10-24
  • 通讯作者: 崔正刚
  • 基金资助:
    基金国家自然科学基金(青基)资助项目(22002049)

Study on the preparation of C16 Guerbet alcohol polyoxyalkylene ether sulfate and its interfacial properties

Chen Qi,Ran Lijun,Chen Zhao,Cui Zhenggang*()

  1. The Key Laboratory of Synthetic and Biological Colloids, Ministry of Education, School of Chemical & Material Engineering,Jiangnan University, Wuxi, Jiangsu 214122, China
  • Received:2021-12-15 Revised:2022-09-29 Online:2022-10-22 Published:2022-10-24
  • Contact: Zhenggang Cui

摘要:

用C16格尔伯特醇经共聚加成环氧丙烷(PO)和环氧乙烷(EO),再经氨基磺酸硫酸化合成了一种支链烷基醇醚硫酸盐(C16GA-PES)。这种新型阴-非复合型表面活性剂具有优良的水溶性、耐盐性和表面活性。45 ℃下溶于大庆地层水,单独即可将大庆轻质原油/地层水界面张力降至超低;对稍重质的大庆三类油层油,使用该表面活性剂与少量亲油性更强的表面活性剂混合,亦可将界面张力降至超低。这种新型结构表面活性剂吸附在油/水界面形成的单分子层具有从强亲油到弱亲油-弱亲水再到强亲水的过渡结构,而双烷基链又赋予单分子层较高的烷基链密度,从而增强了单分子层与油分子的相互作用,易于将原油/水界面张力降至超低。与相应的嵌段中间体相比,共聚所得非离子中间体黏度显著降低,便于管道输送并且有利于采用SO3气体降膜式硫酸化工艺制备硫酸盐。

关键词: 驱油剂, 醇醚硫酸盐, 共聚, 支链烷基, 超低界面张力

Abstract:

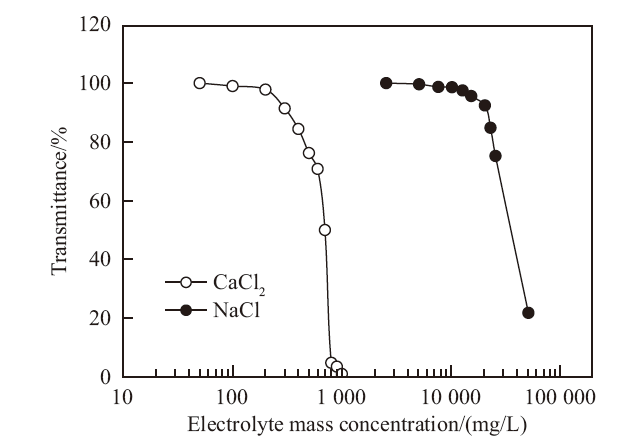

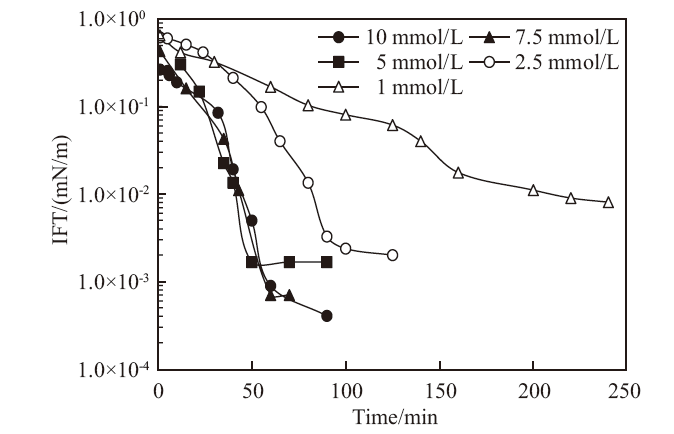

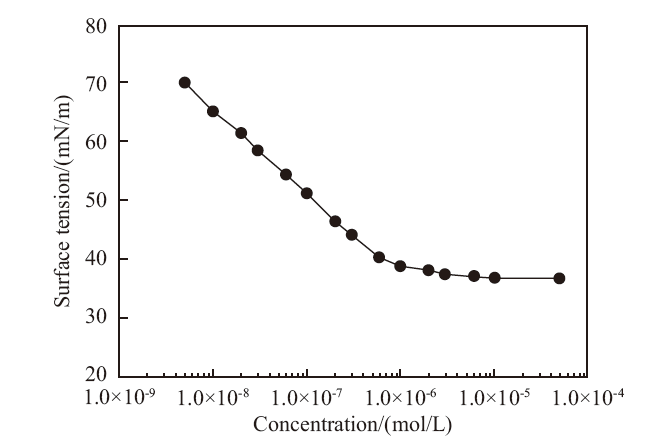

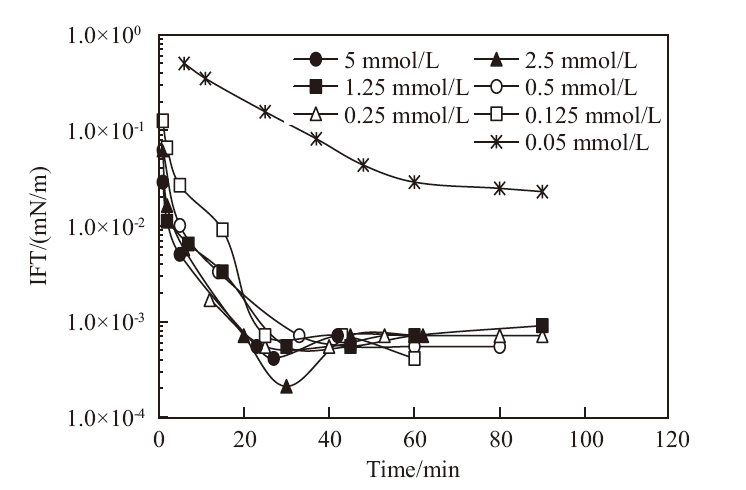

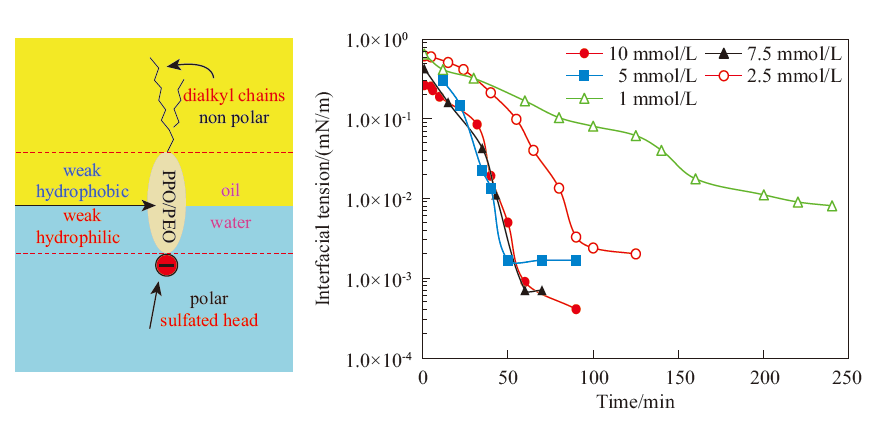

A new anionic-nonionic surfactant with branched hydrophobic group was prepared using C16 Guerbet alcohol by co-polymerization of propylene oxide (PO) and ethylene oxide (EO) followed by sulfation with aminosulfonic acid. This surfactant (C16GA-PES) shows excellent aqueous solubility, good tolerance to inorganic electrolytes such as sodium chloride (NaCl) and calcium chloride (CaCl2), and good surface activity (cmc=1.15×10-6 mol/L). When dissolved in Daqing formation water (pH=8-9) with a total salinity of 6 788 mg/L, including 23 mg/L Ca2+ and 31 mg/L Mg2+ at 45 ℃, the C16GA-PES solely can reduce the interfacial tension (IFT) between Daqing light crude oil and formation water to ultralow (<0.01 mN/m); for the slightly heavy crude oil from the third type of reservoir in Daqing oilfield, ultralow IFT can be achieved by mixing the C16GA-PES with a small fraction of more hydrophobic surfactant, 1,3-didecyl glyceryl ether hydroxypropyl sulfobetaine (diC10GE-HSB). The new surfactant adsorbs at the oil/water interface constituting a monolayer which has high alkyl chain density and a transition structure from strongly hydrophobic to weak hydrophobic-weak hydrophilic and to strong hydrophilic, resulting in strong interactions between the monolayer and oil molecules and making ultralow IFT easily achievable. It is also noticed that, the nonionic intermediate produced by co-polymerization of PO and EO has low viscosity, which is beneficial to pipeline transport and sulfation with SO3/air mixture.

Key words: oil-displacing agent, alcohol ether sulfate, copolymerization, branched alkyl, ultralow IFT

中图分类号:

  • TQ423
