流变调节剂对W/O型乳液稳定性和流变性的影响

doi:10.3969/j.issn.1001-1803.2022.05.001

摘要/Abstract

摘要：

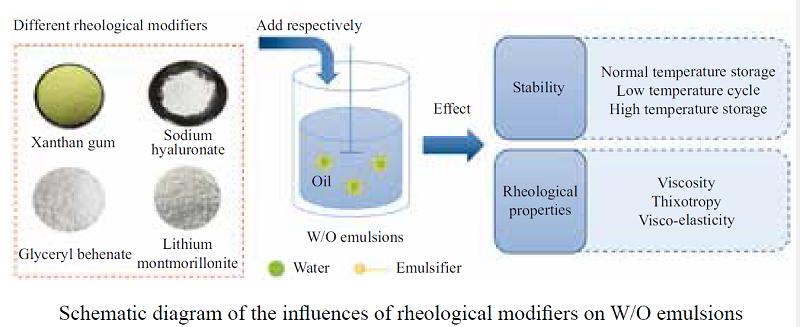

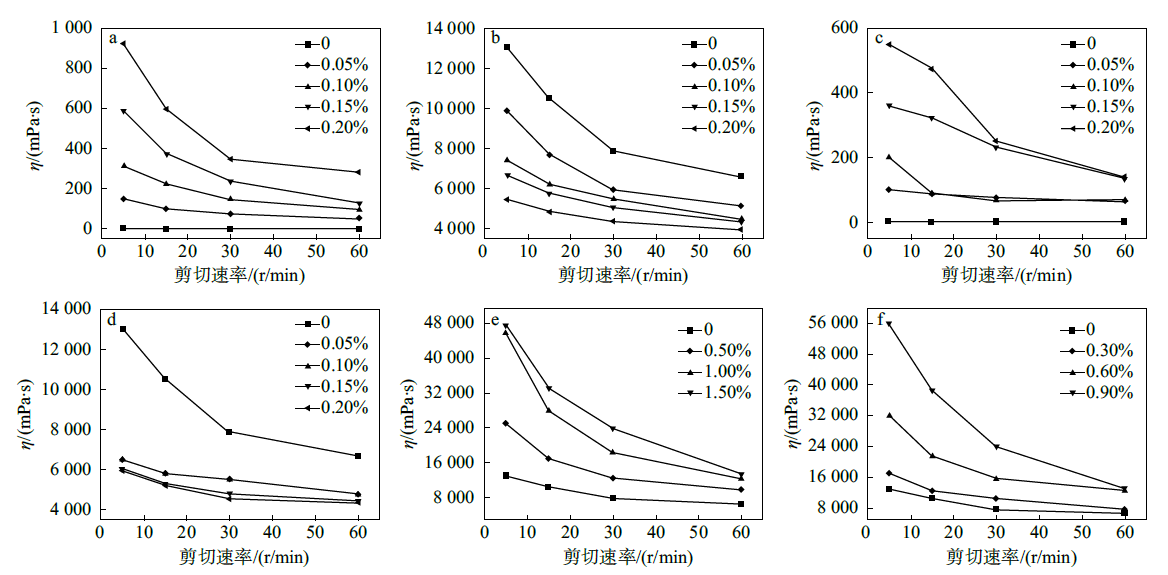

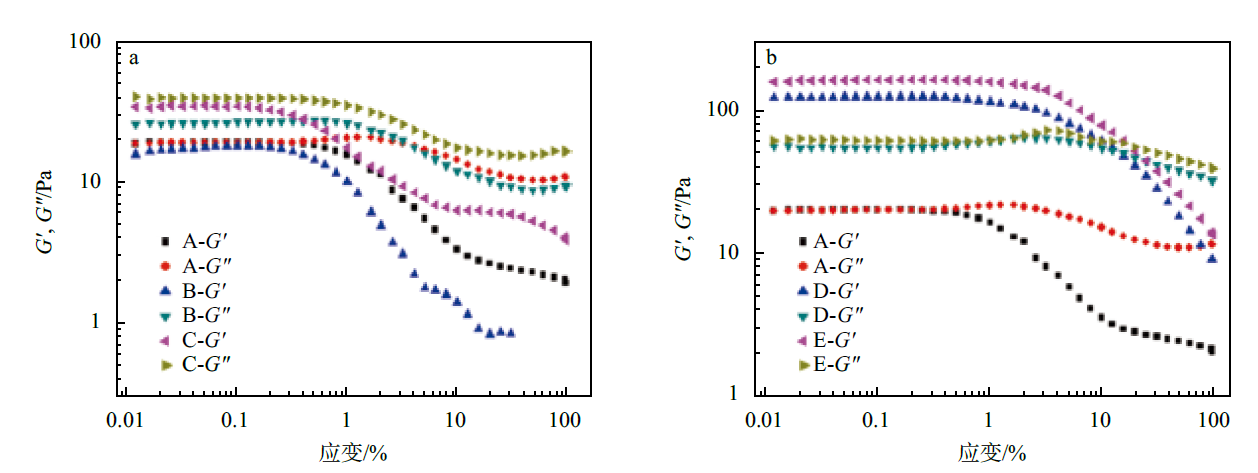

采用均质乳化法制备了W/O型乳液,研究了高分子水溶性聚合物（黄原胶、透明质酸钠）和油相增稠剂（山嵛酸甘油酯、二甲基二硬脂基铵锂蒙脱石）对W/O型乳液稳定性和流变性的影响。实验结果表明,添加黄原胶后,W/O型乳液在不同稳定性测试条件下的稳定性均下降;添加透明质酸钠后,乳液的常温储存稳定性下降,但一定程度上提升了乳液的高温储存稳定性;山嵛酸甘油酯加入W/O型乳液体系后,常温和高温储存的稳定性均增加;二甲基二硬脂基铵锂蒙脱石添加后,乳液在不同条件下稳定性均增强。高分子水溶性聚合物加入后,内水相黏度上升,但W/O型乳液的表观黏度显著降低且线性黏弹区范围缩小,这可能是由于内水相黏度升高阻碍乳化剂分子在油/水界面的吸附;油相增稠剂的添加均增加了W/O型乳液的表观黏度和线性黏弹区范围,这可能和乳化粒子粒径降低和油/水界面能的变化有关。此外,流变调节剂加入后,乳液的滞后环面积均有不同程度的降低。

关键词: 流变调节剂, W/O型乳液, 稳定性, 流变性

Abstract:

W/O emulsions were prepared by homogeneous emulsification method. The effects of water-soluble polymers （xanthan gum and sodium hyaluronate）and oil-phase thickeners （glyceryl behenate and dimethyl distearyl ammonium lithium-montmorillonite） on the stability and rheological properties of W/O emulsions were studied. The experimental results showed that the stability of W/O emulsions was decreased under different stability testing conditions after the addition of xanthan gum. When sodium hyaluronate was added, the storage stability of the emulsion was decreased at room temperature, but the storage stability at high temperature was improved. The storage stabilities at room temperature and high temperature were both increased when glyceryl behenate was added to the W/Oemulsions. With the addition of dimethyl distearyl ammonium lithium-montmorillonite, the stability of the emulsion was enhanced under different conditions. After the addition of water-soluble polymers, the water-phase viscosity was increased, but the apparent viscosity of W/O emulsions was significantly decreased and the range of linear viscoelastic region became narrow. This might be due to the increased viscosity of the inner water phase which prevented the adsorption of emulsifier molecules at the oil/water interface. The apparent viscosity and linear viscoelastic region of W/Oemulsions were both increased with the addition of oil-phase thickeners, which might be related to the decrease of emulsion droplet size and the change of oil-water interface energy. In addition, the hysteresis loop area of emulsions was decreased to different extent with the addition of rheological modifiers.

Key words: rheological modifier, W/O emulsion, stability, rheology

中图分类号:

O648.23

董蕾蕾,黄天怿,段国兰,陈晗俊,张婉萍,张倩洁. 流变调节剂对W/O型乳液稳定性和流变性的影响[J]. 日用化学工业, 2022, 52(5): 457-467.

Dong Leilei,Huang Tianyi,Duan Guolan,Chen Hanjun,Zhang Wanping,Zhang Qianjie. Effects of rheological modifiers on the rheological properties and stability of W/O emulsions[J]. China Surfactant Detergent & Cosmetics, 2022, 52(5): 457-467.

图/表 13

表1

图1

表2

图2

表3

图3

表4

图4

表5

图5

图6

表6

图7

参考文献 23

[1]	Wang L, Gao J, An Z, et al. Polymer microsphere for water-soluble drug delivery via carbon dot-stabilizing W/O emulsion[J]. Journal of Materials Science, 2019, 54 (4832): 5160-5175. doi: 10.1007/s10853-018-03197-7
[2]	Cao Y, Jin Y, Li J, et al. Effects of emulsion properties on demulsification of the phosphoric acid-tributyl phosphate (W/O) emulsion by hydrocyclone[J]. Separation Science & Technology, 2019, 55 (4): 1-11.
[3]	Gomes A, Costa A L R, Cunha R L. Impact of oil type and WPI/Tween 80 ratio at the oil-water interface: Adsorption, interfacial rheology and emulsion features[J]. Colloids & Surfaces B: Biointerfaces, 2018, 164: 272-280.
[4]	Kumar N, Mandal A. Surfactant stabilized oil-in-water nanoemulsion: stability, interfacial tension, and rheology study for enhanced oil recovery application[J]. Energy & Fuels, 2018, 32 (6): 6452-6466. doi: 10.1021/acs.energyfuels.8b00043
[5]	Sasaki K, Kitajima M, Nishii K, et al. Novel W/O emulsion prepared in a water/isohexadecane/organoclay system and its application to skincare products[J]. Journal of Society of Cosmetic Chemists of Japan, 2013, 47 (1): 19-25. doi: 10.5107/sccj.47.19
[6]	Zhang J. Movement of dispersed droplets of W/O emulsion in a uniform DC electrostatic field: Simulation on droplet coalescence[J]. Chinese Journal of Chemical Engineering, 2015, 23 (9): 1453-1459. doi: 10.1016/j.cjche.2015.07.007
[7]	Liu Gangyong, Ge Hong, Zheng Gongming. Study on rheological property of W/O emollient lotion[J]. Journal of Shaanxi University of Science and Technology (Natural Science Edition), 2013, 120 (5): 98-101.
[8]	Choi M H, Jeong S, Nam S I, et al. Rheology of decamethylceclopentasiloxane (cyclomethicone) W/O emulsion system[J]. Macromolecular Research, 2009, 17 (12): 943-949. doi: 10.1007/BF03218640
[9]	Otsubo Y, Prud' homme R K. Rheology of oil-in-water emulsions[J]. Rheologica Acta, 1994, 33 (1): 29-37. doi: 10.1007/BF00453461
[10]	Zhang Qianjie, Duan Guolan, Zhang Wanping. Effects of the structure of emulsifiers and oils on the formation and stability of O/W/O multiple emulsions[J]. China Surfactant Detergent & Cosmetics, 2020, 50 (11): 735-742.
[11]	Sumi T, Horikoshi S. Microwave selective heating for size effect of water droplet in W/O emulsion with sorbitan fatty acid monostearate surfactant[J]. Radiation Physics & Chemistry, 2015, 114: 31-37.
[12]	Su Lu, Zhang Jianghui, Dong Ming, et al. Research progress of xanthan gum and its modified products[J]. Shandong Chemical Industry, 2020, 49 (24): 76-79.
[13]	Weiss J, Herrmann N, Mcclements D J. Ostwald ripening of hydrocarbon emulsion droplets in surfactant solutions[J]. Langmuir, 1999, 15 (20): 6652-6657. doi: 10.1021/la981739d
[14]	Wei Yuanyuan, Zhang Hongbin, Ma Aiqin, et al. Rheological properties of hyaluronan thickened enteral nutritional preparations for dysphagia management[J]. Food Science, 2019, 40 (1): 50-55. doi: 10.1111/j.1365-2621.1975.tb03733.x
[15]	Ribeiro H M, Morais J A, Eccleston G M. Structure and rheology of semisolid O/W creams containing cetyl alcohol/non-ionic surfactant mixed emulsifier and different polymers[J]. International Journal of Cosmetic Science, 2004, 26 (2): 47-59. doi: 10.1111/j.0412-5463.2004.00190.x pmid: 18494913
[16]	Huang X B, Sun J S, Lv K H, et al. An alternative method to enhance W/O emulsion stability using modified dimer acid and its application in oil based drilling fluids[J]. RSC Advances, 2018, 8 (46): 26318-26324 doi: 10.1039/C8RA02293C
[17]	Kwon H I, In K S, Bum L S. Effects of HLB value on oil-in-water emulsions: Droplet size, rheological behavior, zeta-potential, and creaming index[J]. Journal of Industrial & Engineering Chemistry, 2018, 67: 123-131.
[18]	Pal R. Influence of interfacial rheology on the viscosity of concentrated emulsions[J]. Journal of Colloid and Interface Science, 2011, 356 (1): 118-122. doi: 10.1016/j.jcis.2010.12.068
[19]	Chen Y, Liu X, Shi M. Effects of inertia on the rheology of a dilute emulsion of drops in shear[J]. Journal of Rheology, 49 (6): 1377-1394. doi: 10.1122/1.2048748
[20]	Wei Lixin, Bi Hangming, Dong Hang, et al. Influence of microstructure on rheology of W/O waxy crude oil emulsion[J]. Contemporary Chemical Industry, 2020, 49 (12): 2637-2645.
[21]	Fan Yue, Chen Qiang, Jin Hao, et al. Application research of rheological properties in emulsifying process conditions[J]. China Surfactant Detergent & Cosmetics, 2018, 48 (10): 577-581.
[22]	Jiang Tong, Zhang Chen, Zhang Zhiwei, et al. Study on the relationship between rheological properties and the thickness of O/W creams[J]. China Surfactant Detergent & Cosmetics, 2020, 50 (4): 227-232.
[23]	Freitas G B, Duncke A C, Barbato C N, et al. Influence of wax chemical structure on W/O emulsion rheology and stability[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2018, 558 (5): 45-56. doi: 10.1016/j.colsurfa.2018.08.008

配方编号	组分名称	w/%
A相	角鲨烷	4
	辛酸/癸酸甘油三酯	15
	霍霍巴籽油	3
	乳木果油	4
	聚甘油-2二聚羟基硬脂酸酯	4
B相	水	至100
B相	甘油	6
C相	防腐剂	0.2

储存条件		稳定性
储存条件		0	0.05%	0.10%	0.15%	0.20%
室温	1天	+++++	+++++	+++++	+++++	+++++
室温	7天	++++	+++	+++	+++	+++
低温	1次循环	++++	++++	++++	++++	++++
	2次循环	+++	++	++	++	++
	3次循环	+++	++	++	++	++
高温	1天	++++	++++	++++	++++	++++
	3天	+++	+++	+++	++	++
	7天	++	++	+	+	+

储存条件		稳定性
储存条件		0	0.05%	0.10%	0.15%	0.20%
室温	1天	+++++	+++++	+++++	+++++	+++++
室温	7天	++++	++++	+++	+++	+++
低温	1次循环	++++	++++	++++	++++	++++
	2次循环	+++	++	++	++	++
	3次循环	++	+	++	++	++
高温	1天	++++	+++++	+++++	+++++	+++++
	3天	+++	+++	+++	+++	+++
	7天	++	+++	+++	+++	+++

储存条件		稳定性
储存条件		0	0.50%	1.00%	1.50%
室温	1天	+++++	+++++	+++++	+++++
室温	7天	++++	++++	++++	++++
低温	1次循环	++++	++++	+++	+++
	2次循环	+++	+++	++	++
	3次循环	+++	++	+	+
高温	1天	++++	++++	++++	++++
	3天	+++	+++	+++	+++
	7天	++	++	+++	+++

储存条件		稳定性
储存条件		0	0.30%	0.60%	0.90%
室温	1天	+++++	+++++	+++++	+++++
室温	7天	++++	+++++	+++++	+++++
低温	1次循环	++++	++++	++++	++++
	2次循环	+++	+++	+++	+++
	3次循环	+++	+++	+++	+++
高温	1天	++++	+++++	+++++	+++++
	3天	+++	+++++	+++++	+++++
	7天	++	+++++	++++	++++
