SSZ-13分子筛无钠合成工艺与产物物性表征

doi:10.3969/j.issn.1001-1803.2019.04.005

日用化学工业 ›› 2019, Vol. 49 ›› Issue (4): 229-233.doi: 10.3969/j.issn.1001-1803.2019.04.005

SSZ-13分子筛无钠合成工艺与产物物性表征

闵令飞¹,梁亚凝²,李宁²,李晓峰¹(),窦涛¹

^1. 太原理工大学精细化工研究所,山西太原 030024
^2. 太原大成环能化工技术有限公司,山西太原 030024

收稿日期:2018-09-04 修回日期:2019-04-02 出版日期:2019-04-22 发布日期:2019-04-24
通讯作者: 李晓峰
作者简介:闵令飞（1993-）,男,硕士研究生,E-mail：Lingfeimin123@163.com。
基金资助:
国家科技型中小企业技术创新项目(14C26211400552)

Sodium-free synthetic process and characterization of SSZ-13molecular sieves

MIN Ling-fei¹,LIANG Ya-ning²,LI Ning²,LI Xiao-feng¹(),DOU Tao¹

^1. Institute of Special Chemicals, Taiyuan University of Technology, Taiyuan,Shanxi 030024, China
^2. Taiyuan Dacheng Environment & Energy Chemical Technology Co., Ltd, Taiyuan, Shanxi 030024, China;

Received:2018-09-04 Revised:2019-04-02 Online:2019-04-22 Published:2019-04-24
Contact: Xiao-feng LI

摘要/Abstract

摘要：

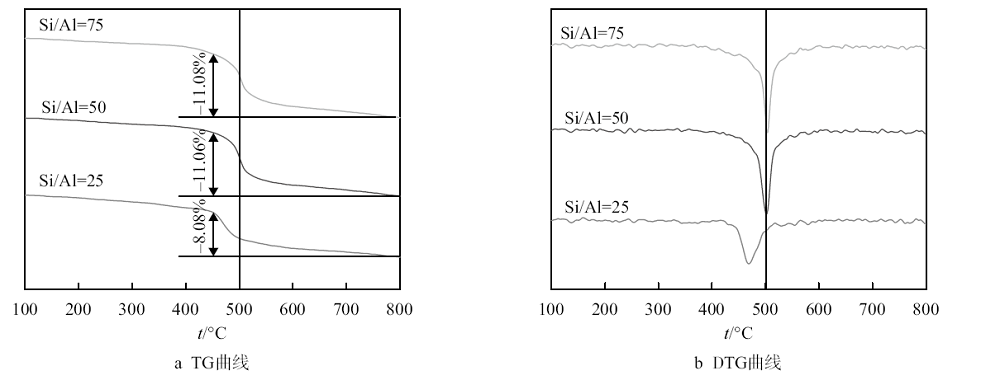

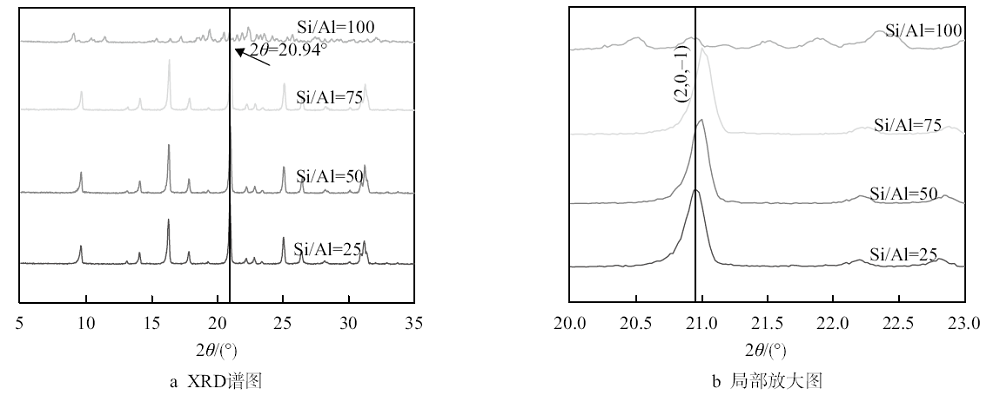

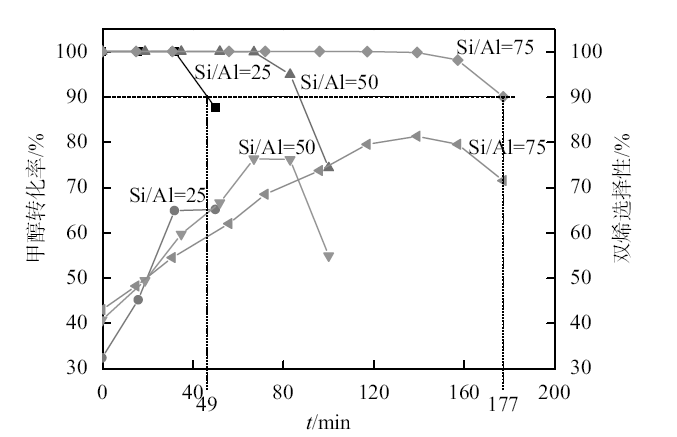

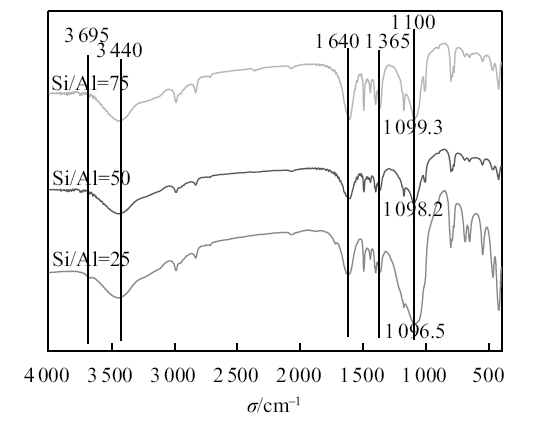

以氨水弱碱代替NaOH作为碱源,铵型硅溶胶与硫酸铝作为不含钠的硅铝源,N,N,N-三甲基-1-金刚烷基氢氧化铵作为有机模板剂,一步水热法无钠途径合成了不同硅铝比的SSZ-13分子筛。采用X射线衍射仪（XRD）、扫描电子显微镜（SEM）、傅里叶红外光谱（FT-IR）、氨气程序升温脱附（NH₃-TPD）、元素分析、热重分析（TG-DTG）和N₂等温吸附-脱附（BET）等手段表征产物,并以甲醇制烯烃反应（MTO）评价其催化性能。结果表明,采用氨水合成的不同硅铝比的铵型 SSZ-13分子筛,粒径随着硅铝比增加而减小;合成产物直接焙烧后可用于催化反应,硅铝比为75 较25的样品在甲醇制烯烃催化反应中寿命延长了2.6倍。

关键词: 氨水, 铵型SSZ-13分子筛, 无钠合成, 甲醇制烯烃

Abstract:

SSZ-13 molecular sieves with different silica-alumina ratios were synthesized by sodium-free one-step hydrothermal method in which ammonia water was used to replace NaOH as alkaline source, ammonium-type silica sol and aluminum sulfate were used as silicon and aluminum sources, and N,N,N-trimethyl-1-adamantyl ammonium hydroxide was used as the organic template agent. The products were characterized by X-ray diffraction（XRD）, scanning electron microscopy（SEM）, FT-IR, temperature-programmed desorption of ammonia（NH₃-TPD）, elemental analysis, thermogravimetric analysis（TG-DTG） and isothermal N₂ adsorption and desorption（BET）. The catalytic performance of the products was evaluated by Methanol-to-Olefins（MTO） reaction. The results show that the particle size of SSZ-13 molecular sieves with different silica-alumina ratios synthesized by ammonia is decreased with the increase of silica-alumina ratio; the products synthesized can be directly used after calcination for catalytic reaction; in the catalytic reaction of MTO, the catalyst with silica-alumina ratio of 75 exhibits a life span nearly 2.6 times longer than the one with silica-alumina ratio of 25.

Key words: ammonia liquor, ammonium-type SSZ-13 molecular sieve, sodium-free method, Methanol-to-Olefins

中图分类号:

TQ424.25

闵令飞,梁亚凝,李宁,李晓峰,窦涛. SSZ-13分子筛无钠合成工艺与产物物性表征[J]. 日用化学工业, 2019, 49(4): 229-233.

MIN Ling-fei,LIANG Ya-ning,LI Ning,LI Xiao-feng,DOU Tao. Sodium-free synthetic process and characterization of SSZ-13molecular sieves[J]. China Surfactant Detergent & Cosmetics, 2019, 49(4): 229-233.

图/表 8

图1

图2

图3

图4

表1

表2

图5

图6

参考文献 22

[1]	Schmidt F, Paasch S, Brunner E , et al. Carbon templated SAPO-34 with improved adsorption kinetics and catalytic performance in the MTO-reaction[J]. Microporous & Mesoporous Materials, 2012,164(1) : 214-221. doi: 10.1016/j.micromeso.2012.04.045
[2]	Wang Long, Li Xiaofeng, Wang Ping , et al. Synjournal and characterization of lamellar SAPO-34 molecular sieve and its catalytic performance in methanol to olefins (MTO)[J]. Acta Petrolei Sinica (Petroleum Processing Section) , 2016,32(2) : 355-361.
[3]	Qian Q, Ruiz-Martínez J, Mokhtar M , et al. Single-catalyst particle spectroscopy of alcohol-to-olefins conversions: Comparison between SAPO-34 and SSZ-13[J]. Catalysis Today, 2014,226(1) : 14-24. doi: 10.1016/j.cattod.2013.09.056
[4]	Li Xiaofeng, Wang Ping, Liang Guanghua , et al. Effects of different ways of adding aluminum on the synjournal of SAPO-34 molecular sieve and the catalytic performance of MTO[J]. Chinese Journal of Inorganic Chemistry, 2016,32(3) : 450-456.
[5]	Wu L, Hensen E J M . Comparison of mesoporous SSZ-13 and SAPO-34 zeolite catalysts for the methanol-to-olefins reaction[J]. Catalysis Today, 2014,235(20) : 160-168. doi: 10.1016/j.cattod.2014.02.057
[6]	Deimund M A, Harrison L, Lunn J D , et al. Effect of heteroatom concentration in SSZ-13 on the Methanol-to-Olefins reaction[J]. Acs Catalysis, 2016,6(6) : 542-550. doi: 10.1021/acscatal.5b01450
[7]	Bohström Z, Arstad B, Lillerud K P . Preparation of high silica chabazite with controllableparticle size[J]. Microporous & Mesoporous Materials, 2014,195(9) : 294-302.
[8]	Chen Biaohua, Zhang Runduo, Xu Ruinian . A method for synpatent of molecular sieve SSZ-13: 103601211A[P]. 2014-02-26.
[9]	Itakura M, Inoue T, Takahashi A , et al. Synjournal of high-silica CHA zeolite from FAU zeolite in the presence of benzyltrimethylammonium hydroxide[J]. Chemistry Letters, 2008,37(9) : 908-909. doi: 10.1246/cl.2008.908
[10]	Kosinov N, Auffret C, Borghuis G J , et al. Influence of the Si/Al ratio on the separation properties of SSZ-13 zeolite membranes[J]. Journal of Membrane Science, 2015,484:140-145. doi: 10.1016/j.memsci.2015.02.044
[11]	Mu Y, Zhang Y, Fan J , et al. Effect of ultrasound pretreatment on the hydrothermal synjournal of SSZ-13 zeolite[J]. Ultrasonics Sonochemistry, 2017,38:430. doi: 10.1016/j.ultsonch.2017.03.043
[12]	Bohström Z, Lillerud K P . Crystal growth kinetics of unseeded high silica chabazite[J]. Journal of Crystal Growth, 2018,498:154-159. doi: 10.1016/j.jcrysgro.2018.06.016
[13]	Delprato F, Delmotte L, Guth J L , et al. Synjournal of new silica-rich cubic and hexagonal faujasites using crown-etherbased supramolecules as templates[J]. Zeolites, 1990,10(6) : 546-552. doi: 10.1016/S0144-2449(05)80310-0
[14]	Dědeček J, Sklenak S, Li C , et al. Effect of Al-Si-Al and Al-Si-Si-Al pairs in the ZSM-5 zeolite framework on the 27Al NMR spectra. A combined high-resolution 27Al NMR and DFT/MM study[J]. Journal of Physical Chemistry C, 2009,113(4) : 1447-1458.
[15]	Persson A E, Schoeman B J, Sterte J , et al. Synjournal of stable suspensions of discrete colloidal zeolite (Na, TPA) ZSM-5 crystals[J]. Zeolites, 1995,15(7) : 611-619. doi: 10.1016/0144-2449(95)00070-M
[16]	Xu Qinhua, Yu Qiuming . Infrared spectroscopy was used to study the skeletal vibrations of ZSM-5 and ZSM-11 molecular sieves with different Si/Al ratios[J]. Chemical Journal of Chinese Universities, 1988,9(5) : 508-509.
[17]	Xin Qin. Solid catalyst research methods[M]. Beijing: Science Press, 2004: 348.
[18]	Jing Chao, Li Xiaofeng, Wang Yanyue , et al. Preparation of NH₄ +-LSX zeolite by microwave-assisted ion exchange [J]. Modern Engineering, 2015 ( 6) : 91-94.
[19]	Fritz P O, Lunsford J H . The effect of sodium poisoning on dealuminated Y-type zeolites[J]. Journal of Catalysis, 1989,118(1) : 85-98. doi: 10.1016/0021-9517(89)90303-5
[20]	Wang L, Zhang Z, Yin C , et al. Hierarchical mesoporous zeolites with controllable mesoporosity templated from cationic polymers[J]. Microporous & Mesoporous Materials, 2010,131(1) : 58-67. doi: 10.1016/j.micromeso.2009.12.001
[21]	Mores D, Kornatowski J, Olsbye U , et al. Coke formation during the methanol-to-olefin conversion: in situ microspectroscopy on individual H-ZSM-5 crystals with different Brønsted acidity[J]. Chemistry-A European Journal, 2011,17(10) : 2874-2884. doi: 10.1002/chem.v17.10
[22]	Choi M, Na K, Kim J , et al. Stable single-unit-cell nanosheets of zeolite MFI as active and long-lived catalysts[J]. Nature, 2009,461(7261) : 246. doi: 10.1038/nature08288

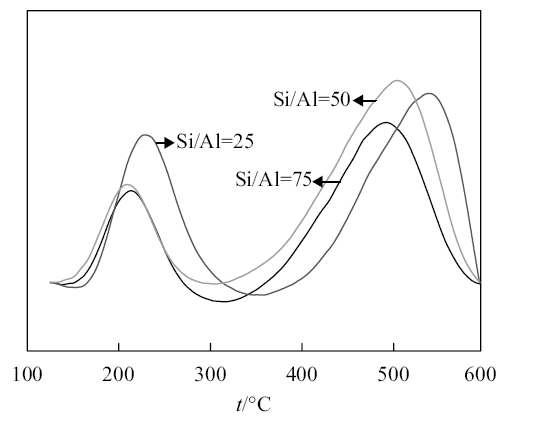

Si/Al		t（脱附峰）/℃		总酸量/ （mmol·g^-1）
初始凝胶	元素分析	左峰	右峰	总酸量/ （mmol·g^-1）
25	25.36	233	541	0.963
50	48.33	221	512	0.907
75	74.25	224	494	0.671

样品	总比表面积/	微孔比表面积/	外比表面积/	总孔体积/	微孔体积/	介孔体积/	孔径/
样品	（m²·g^-1）	（m²·g^-1）	（m²·g^-1）	（cm³·g^-1）	（cm³·g^-1）	（cm³·g^-1）	nm
Si/Al=25	593.36	561.18	32.18	0.25	0.22	0.03	1.69
Si/Al=50	666.42	625.42	41.00	0.29	0.24	0.05	1.74
Si/Al=75	664.53	609.88	54.65	0.30	0.24	0.06	1.79
