高温油藏改性纳米SiO2增效体系的制备及驱油效果研究

doi:10.3969/j.issn.2097-2806.2026.01.006

Abstract

Abstract:

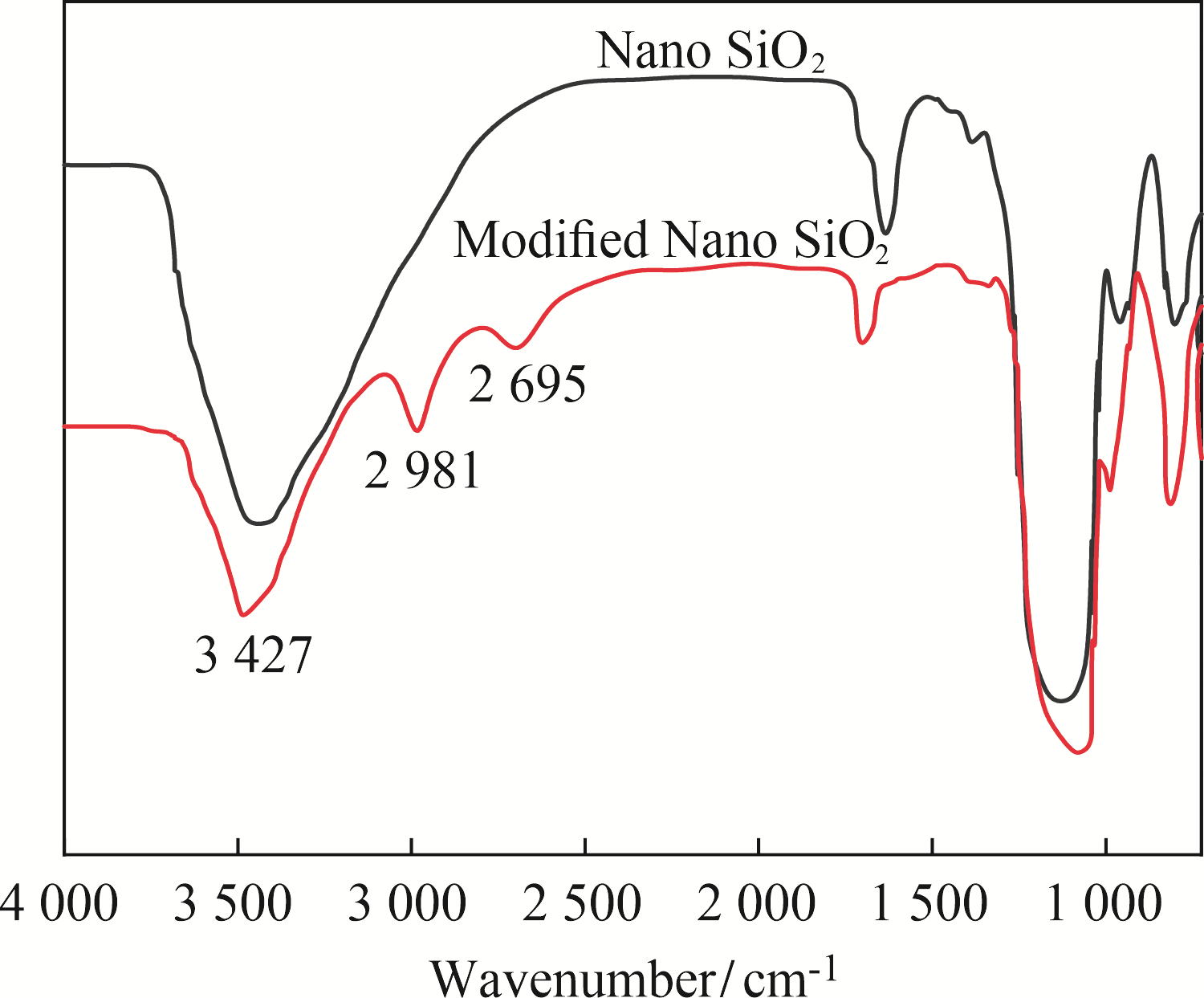

To meet the needs for nano-oil displacement agents in the development of high-temperature reservoirs, in this work, nano-SiO₂ was modified with silane coupling agent dodecyltriethoxysilane. The temperature-resistant modified nano-SiO₂ was optimized by using the reduction of interfacial tension as evaluation index. The modified nanomaterial was analyzed by infrared spectroscopy, and the microstructure and particle size thereof were characterized by transmission electron microscopy and dynamic light scattering, respectively. Then, a surfactant with good compatibility with modified nano-SiO₂ was selected among several surfactants of different types by dispersion to construct a synergistic system. The interfacial tension and wetting ability of the constructed synergistic system were evaluated on an interfacial tensimeter and a contact angle meter. Finally, the microscopic oil displacement experiment was carried out by means of microscopic visualized displacement model. The results showed that when the reaction time was 40 h, the reaction temperature was 60 °C, and the amount of the modifier was 16%, the oil-water interfacial tension of the modified nano-SiO₂ reached 6.081 7 mN/m, and the particle size of the modified nano-SiO₂ was 122 nm. According to dispersibility, the surfactants HN and allyloxy polyethyleneglycol （APEG） with good compatibility with modified nano-SiO₂ were selected. The test results of interfacial tension and wetting ability showed that the modified nano-SiO₂/HN composite system had better performance. The modified nano-SiO₂/HN system had good abilities to reduce the interfacial tension and change the water-phase contact angle under the conditions of reservoir temperature of 160 °C and salinity of 35 000 mg/L. The results of microscopic displacement experiments showed that the oil recovery of modified nano-SiO₂/HN system was 21.1% higher than that of water flooding. This research could provide scientific support and theoretical basis for the application of this kind of synergistic system.

Key words: modified nano-SiO₂, surfactant, interface tension, wetting ability, oil displacement effect

CLC Number:

TQ423

Li Wang, Yanan Hou, Bumin Guo, Jian Zhao, Wenhui Bao, Jinwei Shen. Preparation of a synergistic system with modified nano-SiO₂ for high-temperature oil reservoirs and its oil displacement effect[J].China Surfactant Detergent & Cosmetics, 2026, 56(1): 48-54.

Figures/Tables 7

Fig.1

Fig.2

Fig.3

Tab.1

Fig.4

Fig.5

Fig.6

References 22

[1]	郑皓轩, 师永民, 田雨, 等. 一种耐温抗盐型表面活性剂的制备及其驱油性能评价[J]. 应用化工, 2022, 51(7): 1929-1934.
[2]	陈斌, 曹小华, 周亮, 等. 适用于高温高盐低渗砂岩油藏的表面活性剂驱油体系[J]. 钻采工艺, 2021, 44(3): 87-91. doi: 10.3969/J. ISSN.1006-768X.2021.03.21
[3]	Davoodia S, Al-Shargabia M, Wood D. Experimental and field applications of nanotechnology for enhanced oil recovery purposes: a review[J]. Fuel, 2022, 324: 124669. doi: 10.1016/j.fuel.2022.124669
[4]	张中太, 林元华, 唐子龙, 等. 纳米材料及其技术的应用前景[J]. 材料工程, 2000(3): 42-48.
[5]	王永红, 赵明伟, 耿捷, 等. 渗吸置换提高原油采收率研究进展[J]. 石油与天然气化工, 2024, 53(3): 64-72.
[6]	Sun Y, Yang D, Shi L, et al. Properties of nanofluids and their applications in enhanced oil recovery: a comprehensive review[J]. Energy & Fuels, 2020, 34(2): 1202-1218. doi: 10.1021/acs.energyfuels.9b03501
[7]	刘宇龙, 佘跃惠. 纳米粒子的分散稳定机制及影响因素研究[J]. 化工新型材料, 2022, 50(S1): 298-302.
[8]	罗健辉, 雷群, 丁彬, 等. 智能纳米驱油剂应用展望[C]// 北京: 中国化学会学术年会, 2014.
[9]	袁俊秀, 王康. 纳米乳液驱油体系性能评价及驱油机理分析[J]. 能源化工, 2016, 37(3): 47-49.
[10]	Chegenizadeh N, Saeedi A, Xie Q. Application of nanotechnology for enhancing oil recovery - a review[J]. Petroleum, 2016, 2(4): 324-333. doi: 10.1016/j.petlm.2016.10.002
[11]	王维. 驱油用纳米二氧化硅的制备及改性研究[D]. 青岛: 中国石油大学(华东), 2015.
[12]	Ye Z, Qin X, Lai N, et al. Synthesis and performance of an acrylamide copolymer containing nano-SiO₂ as enhanced oil recovery chemical[J]. Journal of Chemistry, 2013(1): 437309.
[13]	陈世军, 先思蓉. 油田用纳米驱油剂提高采收率的机理与影响因素[J]. 化工技术与开发, 2020, 49(11): 50-54.
[14]	郑存川, 张莉伟, 徐金山, 等. 纳米微乳液驱油体系的构建及性能评价[J]. 新疆石油天然气, 2023, 19(1): 89-94.
[15]	温伯尧, 杨海中, 姚秀田, 等. 油水界面上表面活性剂的脱附动力学及其离子调控[J]. 科学通报, 2022, 67(25): 3088-3096.
[16]	王艺之. 氯化钠颗粒转向剂的制备及现场应用研究[D]. 成都: 西南石油大学, 2019.
[17]	李迪, 王彦玲, 刘斌, 等. 介孔SiO₂纳米材料的特性及在EOR领域的应用进展[J]. 应用化工, 2023, 52(5): 1447-1453.
[18]	Privman V, Goia D V, Park J, et al. Mechanism of formation of monodispersed colloids by aggregation of nanosize precursors[J]. Journal of Colloid and Interface Science, 1999, 213: 36-45. pmid: 10191004
[19]	Biswas K, Ray J, Choi J S, et al. Morphology control of MSU-1 silica particles[J]. Journal of Non-Crystalline Solids, 2008, 354: 1-9. doi: 10.1016/j.jnoncrysol.2007.07.020
[20]	裴秀中. 超细粉体填料表面化学修饰[J]. 上海化工, 2003, 1:21-23.
[21]	尚丹森, 伊卓, 刘希, 等. SiO₂纳米流体启动残余油的热力学机制[J]. 石油化工, 2022, 51(12): 1438-1442. doi: 10.3969/j.issn.1000-8144.2022.12.010
[22]	杨昌华, 王辰, 曲世元, 等. 纳米SiO₂/十二烷基硫酸钠复配体系的渗吸采油效果[J]. 石油化工, 2024, 53(11): 1625-1630.

表面活性剂	w/%
表面活性剂	0.1	0.2	0.3
十二烷基三甲基溴化铵	浑浊	浑浊	浑浊
十二烷基磺酸钠	浑浊	浑浊	浑浊
石油磺酸盐	浑浊	浑浊	浑浊
N,N-二甲基十六烷基胺	浑浊	浑浊	浑浊
HN	澄清	澄清	澄清
烯丙氧基聚氧乙烯醚（APEG）	澄清	澄清	澄清
司班20	浑浊	浑浊	浑浊
