ASP三元复合驱油体系在长岩心中的运移规律

doi:10.3969/j.issn.1001-1803.2019.12.004

摘要/Abstract

摘要：

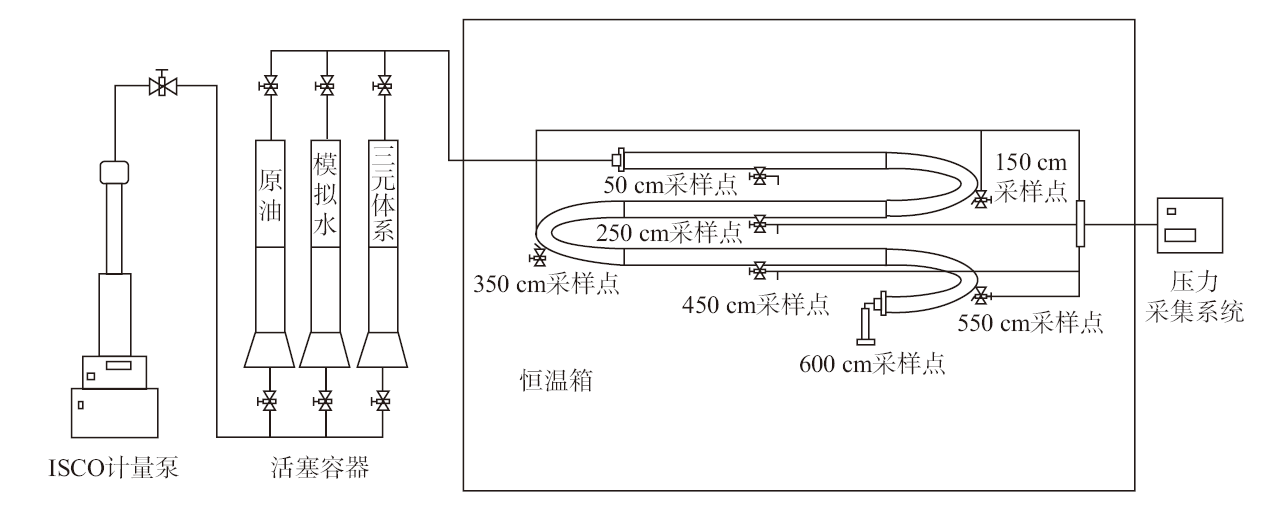

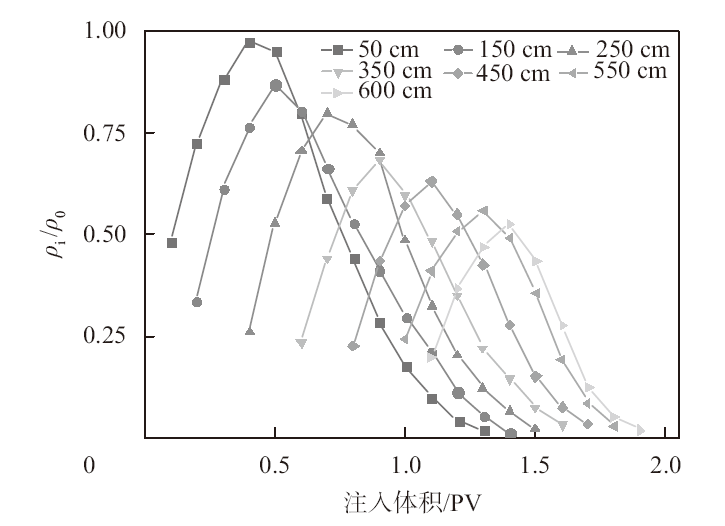

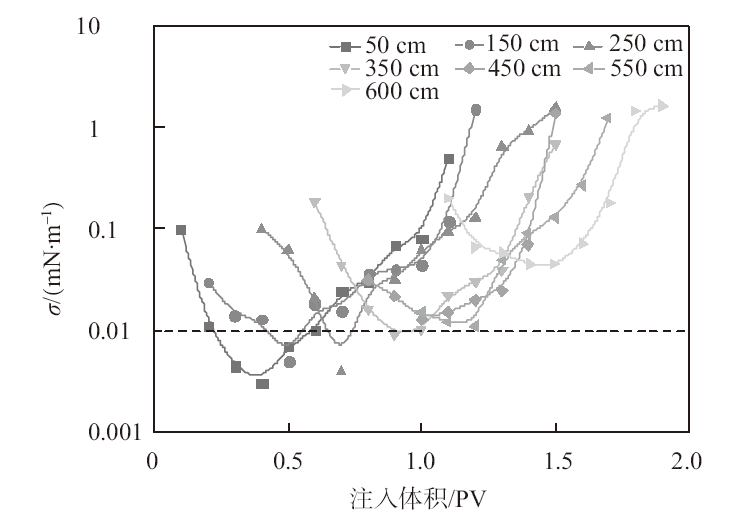

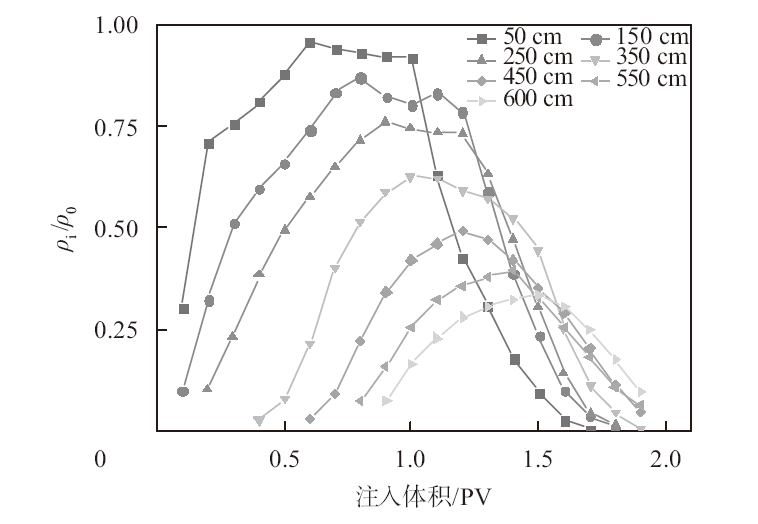

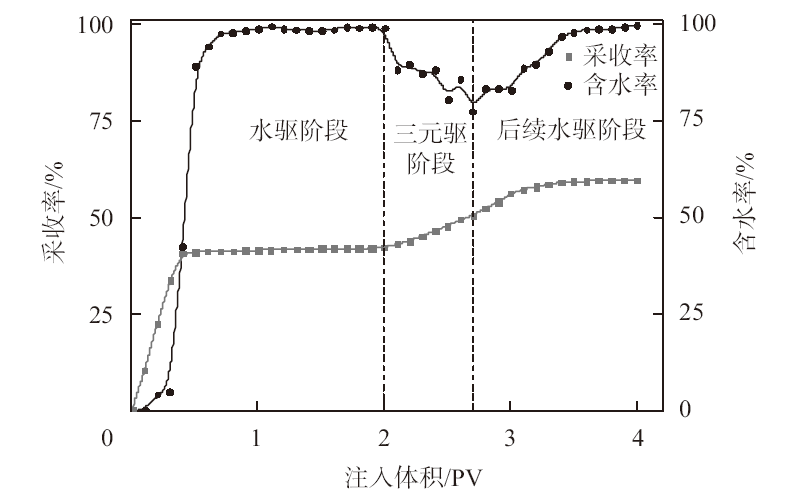

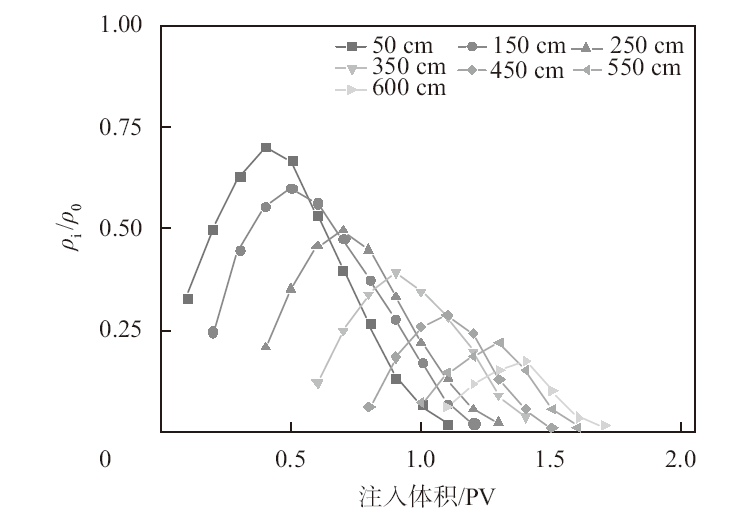

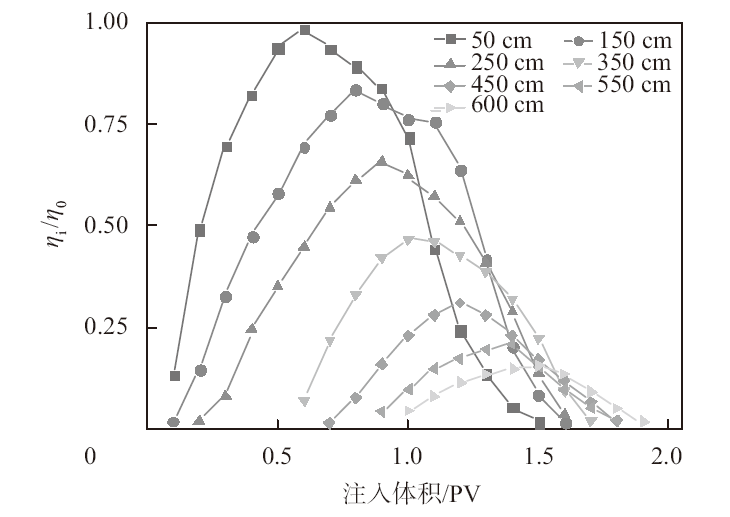

为研究大庆油田ASP（碱、表面活性剂、聚合物）三元复合驱油体系在地层中的运移规律,制备了渗透率为479 mD,长度为6 m的填砂管模型,根据现场提供的复合体系配方在45 ℃环境下进行恒温驱替,分析采出液的化学剂浓度、黏度、界面张力的变化。结果表明,在三元驱阶段,复合体系的注入程度越高,含水率越低,采收率越高,ASP注入开始1.5 PV后复合体系驱油效果彻底失效。复合体系的化学剂浓度和黏度的损失程度为黏度（6倍）>表面活性剂（4倍）>聚合物（3倍）>碱（2倍）,由于黏度的损失过大,复合体系在后1/12井距失去了控制流度比的作用。碱的存在使得超低界面张力（0.001 mN/m）可以维持前1/2井距,低界面张力（0.01 mN/m）可以维持后1/2井距。

关键词: 三元复合驱, 表面活性剂, 长岩心模型, 化学剂浓度, 运移规律

Abstract:

To study the migration of ASP（alkali/surfactant/polymer）flooding system in the formation in Daqing Oilfield, a sand filling tube model with a permeability of 479 mD and a length of 6 m was prepared, according to the practical formula applied in oilfield, isothermal displacement was carried out at 45 ℃. The concentration, viscosity and interfacial tension of the produced fluid were analyzed. The results showed that in the ternary flooding stage, the higher the injection degree was, the lower the water content and the higher the recovery factor would be; the flooding effect of the system completely failed after ASP started 1.5 PV. The loss degrees of chemical agent concentration and viscosity in the system were as follows: viscosity（6 times） > surfactant（4 times） > polymer（3 times）> alkali（2 times）. Because of the excessive loss of viscosity, the system lost the function of controlling the fluidity ratio in the latter 1/12 well spacing. Because of the presence of alkali, ultralow interfacial tension（0.001 mN/m）could be maintained for the first 1/2 well spacing, while low interfacial tension（0.01 mN/m）could be maintained for the rear 1/2 well spacing.

Key words: ASP flooding, surfactant, long core model, chemical agent concentration, transport law

中图分类号:

TQ423

毕艳昌,孙灵辉,萧汉敏,顾兆斌,赵红运,岳青. ASP三元复合驱油体系在长岩心中的运移规律[J]. 日用化学工业, 2019, 49(12): 790-794.

BI Yan-chang,SUN Ling-hui,XIAO Han-min,GU Zhao-bin,ZHAO Hong-yun,YUE Qing. Study on the migration of ASP flooding system in long core[J]. China Surfactant Detergent & Cosmetics, 2019, 49(12): 790-794.

图/表 8

表 1

图 1

图 2

图 3

图 4

图 5

图 6

图 7

参考文献 15

[1]	Liao G Z, Wang Q, Liu W D , et al. Chemical flooding development status and prospect[J]. Acta Petrolei Sinica, 2017,38(2) : 82-93.
[2]	Luo L T, Liao G Z, Yan W H , et al. Study on hydrodynamic size and optimal matching injection of polymer in the chemical flooding[J]. Oilfield Chemistry, 2016,33(1) : 125-136.
[3]	Zhang Y, Lu X G, Chen X , et al. Experiment study on the reaction between alkaline/surfactant/polymer system and crude oil in different blocks of Daqing oilfield[J]. Oilfield Chemistry, 2014,31(3) : 424-427.
[4]	Thirawarapan C, Thiele M R, Kovscek A , et al. A simplified model for field-scale surfactant-polymer flooding[C]// SPE Heavy Oil Conference-Canada. Society of Petroleum Engineers, 2014: 3-4.
[5]	Wang K L, Fu T T, Wang K L , et al. Emulsion forming of ASP system seepage flow in porous media[J]. Oilfield Chemistry, 2013,30(1) : 83-86.
[6]	Jin J, Zhu Y Z, Wang D , et al. Recent progress in developing advanced membranes for emulsified oil/water separation[J]. NPG Asia Materials, 2014,6:1-11.
[7]	Zhu Z, Kang W L, Wu R K , et al. The stability of emulsion stabilized by betain polymer under salt condition[J]. Journal of Petrochemical Universities, 2017,30(6) : 32-36.
[8]	Yin D Y, Zhang X R . Evaluation and research on performance of a blend surfactant system of alkyl polyglycoside in carbonate reservoir[J]. J. Petrol. Sci. Eng., 2013,111(21) : 153-158. doi: 10.1016/j.petrol.2013.08.032
[9]	Liu Y H, Kong B L, Xiao L , et al. Study on combination flooding enhanced oil recovery technique in ultra-high water cut reservoir[J]. Oilfield Chemistry, 2013,30(4) : 570-574.
[10]	Zhang X R, Meng X H, Zhao P , et al. Migration rule for polymer and polymer/surfactant binary compound flooding system in long core[J]. Oilfield Chemistry, 2017,34(2) : 312-317.
[11]	Chu Y P, Wu X L, Guo C P , et al. New evaluation method of static chemical agent loss degree in compound flooding system[J]. Oilfield Chemistry, 2013,30(4) : 609-612.
[12]	Ma Y F, Zhao F L, Wang X , et al. Dynamic performance evaluation of polymer-surfactant at 30 m long sand-packed model[J]. Oilfield Chemistry, 2017,34(2) : 300-305.
[13]	Zhao Y J, Luo L T, Liu W D , et al. Variations of viscosity and interfacial tension of polymer/surfactant binary flooding in porous media[J]. Science & Technology Review, 2014,32(16) : 34-38. doi: 10.1111/tops.12473 pmid: 31865641
[14]	An C H . Experiment research on the effect of ASP system property on oil displacement efficiency in 30 m sand filling tube[J]. Chemical Engineering of Oil & Gas, 2016,45(5) : 67-70. doi: 10.1007/s11356-019-07193-5 pmid: 31865580
[15]	Yang H, Yu G H, Huang C X , et al. Effect of core size on the seepage characteristic of alkali/surfactant/polymer system[J]. Oilfield Chemistry, 2016,33(4) : 710-714.

项目	总矿化度/（mg·L^-1）	矿化度/（mg·L^-1）
项目	总矿化度/（mg·L^-1）	Cl^-	Na⁺	HCO₃^-	Ca²⁺	Mg²⁺	CO₃^2-	SO₄^2-
模拟污水	5 608.3	976.5	1 771.9	2 349.2	60.1	6.1	420.1	24.4
地层水	8 217.5	2 101.6	2 732.6	2 997.0	11.6	7.9	321.0	45.8
