脂肪醇聚醚类乳化剂对低粘乳液制备的影响

doi:10.3969/j.issn.1001-1803.2021.10.005

摘要/Abstract

摘要：

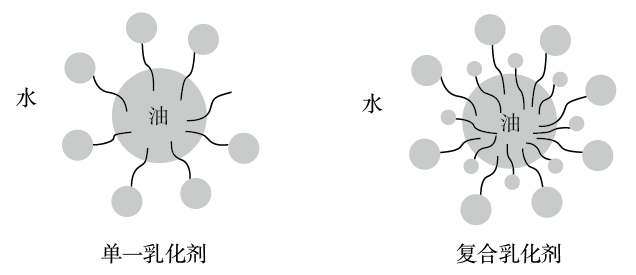

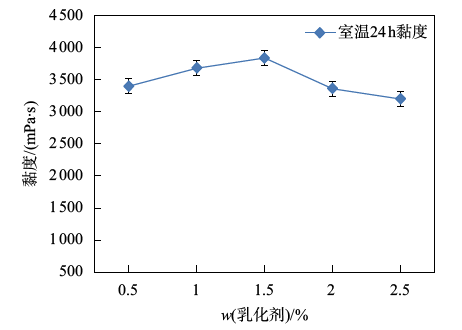

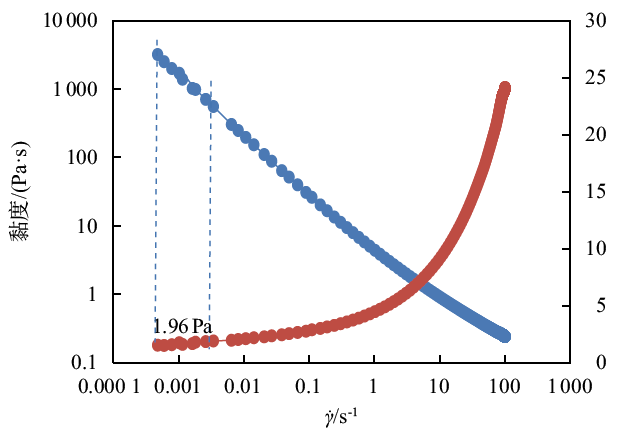

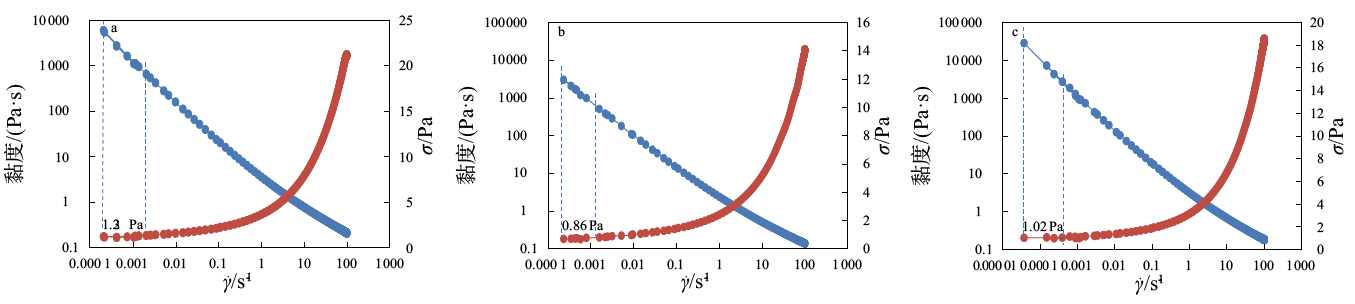

研究乳化剂对低粘乳液制备的影响,从而筛选出适合制备低粘乳液的乳化剂,并通过流变性能对其稳定性进行了初步考察。实验结果表明：鲸蜡硬脂醇聚醚类乳化剂比较适合制备低粘乳液;对于水包油类型乳化剂,相同的亲脂性基团下,亲水基越短屈服应力越高,同时离心稳定性越好。鲸蜡硬脂醇聚醚类乳化剂在配方中单用时存在一个较佳用量,在该用量下与低HLB值非离子乳化剂复配使用后乳液屈服应力明显提高,同时粒径更小。因为配方体系只有乳化剂变化,屈服应力提高很有可能是因为复配乳化剂导致更高的界面膜强度所致。

关键词: 脂肪醇聚醚类乳化剂, EO链长, 屈服应力, 流变性, 稳定性

Abstract:

The effects of emulsifiers on the preparation of low-viscosity emulsions were studied. The long-term thermal stability of low-viscosity emulsions was monitored by investigating their rheological properties. The results show that cetearyl alcohol polyether emulsifier is suitable for preparing low-viscosity emulsions. For oil-in-water emulsifiers, given the same lipophilic group, the shorter the EO chain length, the better the yield stress and the centrifugal stability of the resulting emulsion. There is an optimal amount for cetearyl alcohol polyether emulsifier when it is solely used as the emulsifier. Its emulsifying property is good. The yield stress of the low-viscosity emulsion is significantly higher when cetearyl alcohol polyether emulsifier is combined with a low-HLB nonionic emulsifier, and the resulting particle size is smaller. It is highly likely due to the stronger interfacial film strength in the presence of two emulsifiers, because the emulsifier is the only variable in the studied emulsions.

Key words: fatty alcohol polyether emulsifier, EO chain length, yield stress, rheology, stability

中图分类号:

TQ423

李喜连,胡璠,陈明华. 脂肪醇聚醚类乳化剂对低粘乳液制备的影响[J]. 日用化学工业, 2021, 51(10): 956-962.

Li Xilian,Hu Fan,Chen Minghua. Effects of fatty alcohol polyether emulsifiers on the preparation of low-viscosity emulsions[J]. China Surfactant Detergent & Cosmetics, 2021, 51(10): 956-962.

图/表 11

表 1

图 1

图 2

图 3

图 4

图 5

图 6

图 7

表 2

图 8

图 9

参考文献 14

[1]	Chen Qinfa. The preparation method of low viscosity emulsion: CN 101433500A[P]. 2009-05-20.
[2]	Qiu Bingyi, Gao Zhihong, Qiu Bingyi, Gao Zhihong. Modern cosmetics science and technology [M]. Beijing: China Light Industry Press, 2015: 1074.
[3]	Gu Pengxiang, Xia Lixin, Yang Ying. Effect of surfactants and solid particles on the dynamic shear viscosity of interfacial films[J]. Journal of Liaoning University Natural Science Edition, 2005, 32(3):225-228.
[4]	Wang Xinping, Zhang Jiayun, Tang Jian. Interfacial rheology investigation of polyacrylamide-surfactant interactions[J]. Acta Physico-Chimica Sinica, 1998, 14(1):88-92. doi: 10.3866/PKU.WHXB19980117
[5]	Lemm C, Pape W, Schneider G. Low viscosity cosmetic and pharmaceutical emulsion: CN 1124449A[P]. 1996-06-12.
[6]	Zoe D D, Xu D, Liu W, Zoe D D, Xu D, Liu W. Cosmetics (the third edition) [M]. Beijing: People’s Medical Press, 2018: 22.
[7]	Shen Zhong, Zhao Zhenguo, Kang Wanli, Shen Zhong, Zhao Zhenguo, Kang Wanli,. Colloid and surface chemistry (the forth edition) [M]. Beijing: Chemical Industry Press, 2012: 119.
[8]	Zhao Guoxi, Zhao Guoxi. Physical chemistry of surfactants [M]. Beijing: Peking University Press, 1984: 391.
[9]	Zhang Wanping, Jiang Cheng. Skin care emulsion, cream (continued)[J]. Detergent & Cosmetics, 2019, 42(2):54-58.
[10]	Li Rongmiao, Guan Yongmei, Wang Sen, et al. Effects of alkyl glycosides emulsifiers and their compound on microstructure and physical stability of cream[J]. Chinese Traditional Patent Medicine, 2016, 38(1):62-67.
[11]	Chen Yuwei, Guo Meng, Wang Bingjie, et al. Effect of instantaneous high-speed shear at low temperature on the stability of cosmetics[J]. Technique Express, 2020 (1): 39-43.
[12]	Daniela G, Veronique S, Fernando L, et al. On the possible role of surface elasticity in emulsion stability[J]. Langmuir, 2009, 25(10):5565-5573. doi: 10.1021/la804240e
[13]	Qin Jiaolong, Pang Wenwen, Yang Xiaodong. et al. Surface properties of dodecanol polyoxyethylene ether and its application in water suspension concentrate[J]. Chemical Journal of Chinese University, 2014, 35(10):2182-2190.
[14]	Luo Guanghua, Zheng Dianmo, Li Guangmei. Selection of emulsifier for aqueous emulsion[J]. Guang Dong Chemistry, 2008, 35(11):62-64.

组别	原料	w/%
组别	原料	1#	2#	3#	4#
A	去离子水	至100.0	至100.0	至100.0	至100.0
	卡波姆	0.1	0.1	0.1	0.1
	甘油	8.0	8.0	8.0	8.0
	羟苯甲酯	0.2	0.2	0.2	0.2
B	季戊四醇四（乙基己酸）酯	4.0	4.0	4.0	4.0
	辛酸/癸酸甘油三酯	4.0	4.0	4.0	4.0
	聚二甲基硅氧烷	2.0	2.0	2.0	2.0
	Emulgin B1/B2/B3	按实验比例添加	—	—	—
	Montanov L	—	0.5~1.5	—	—
	Tego care 450	—	—	0.5~1.5	—
	Tego care 165	—	—	—	0.5~1.5
	硬脂醇/鲸蜡醇/肉豆蔻醇/花生醇	0.5	0.5	0.5	0.5
C	三乙醇胺	0.1	0.1	0.1	0.1
C	苯氧乙醇	适量	适量	适量	适量

乳化剂类型	平均粒径/μm	中径/μm	90%粒径/μm
1.5% Emulgin B1+0.5% GMS	6.969 69	6.101 39	<12.71
1.5% Emulgin B1	8.028 80	7.324 74	<14.14
