疏水改性透明质酸的制备及性能

doi:10.3969/j.issn.1001-1803.2020.11.007

摘要/Abstract

摘要：

通过化学反应将胆固醇（CHO）引入透明质酸（HA）的分子结构中,获得疏水改性透明质酸（HACHO）。利用核磁氢谱和红外光谱对合成产物结构进行了表征。使用透射电子显微镜（TEM）、荧光光谱以及流变仪等对HACHO的临界聚集浓度、在水中的自组装行为及流变行为等进行了研究。采用MTT法评价了HACHO的体外细胞毒性。在此基础上,将HACHO应用于制备双凝胶乳液,考察其稳定乳液的性能。结果表明,HACHO具有一定的界面活性,较好的生物相容性,且能在水相体系中形成较紧致的网络结构,能更好地稳定双凝胶乳液,在化妆品领域具有广阔的应用前景。

关键词: 透明质酸, 胆固醇, 疏水改性, 流变行为, 双凝胶乳液

Abstract:

Cholesterol （CHO） was grafted onto the molecular structure of hyaluronic acid （HA） through a chemical reaction to obtain a modified product HACHO. ¹H NMR and FT-IR were used to characterize the structure of the modified product. Transmission electron microscope （TEM）, fluorescence spectrum and rheometer were used to study the critical aggregation concentration, self-assembly behavior and rheological behavior of HACHO in water. The cell viability of the modified product HACHO was evaluated by the MTT assay. On this basis, HACHO was used to prepare bi-gel emulsion, and the stability of the emulsion was investigated. The results showed that, HACHO had interfacial activity and good biocompatibility, and could form a network structure in aqueous phase to stabilize the bi-gel emulsion. Therefore, HACHO showed a broad application prospect in the field of cosmetics.

Key words: hyaluronic acid, cholesterol, hydrophobic modification, rheological behavior, bi-gel emulsion

中图分类号:

TQ658

石梦琳,刘力嘉,尚亚卓,刘洪来. 疏水改性透明质酸的制备及性能[J]. 日用化学工业, 2020, 50(11): 776-782.

SHI Meng-lin,LIU Li-jia,SHANG Ya-zhuo,LIU Hong-lai. Preparation and properties of hydrophobically modified hyaluronic acid[J]. China Surfactant Detergent & Cosmetics, 2020, 50(11): 776-782.

图/表 7

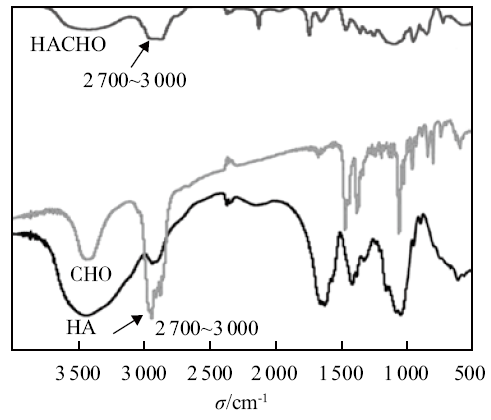

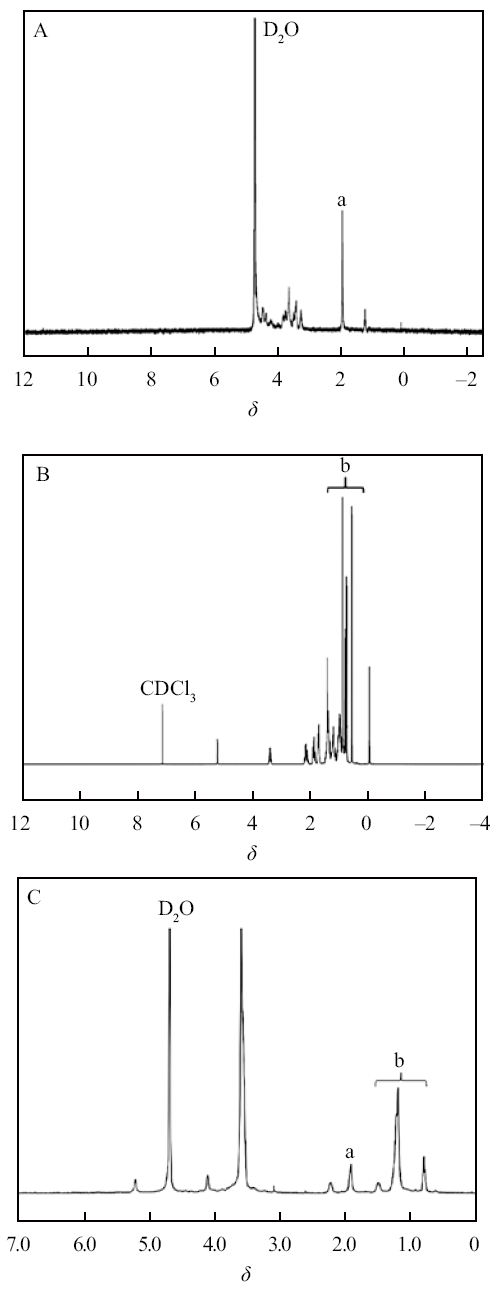

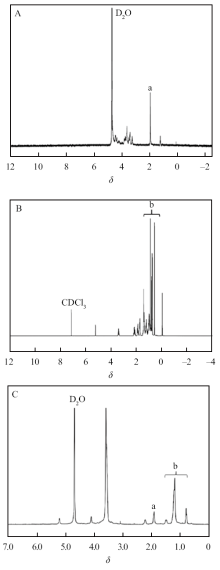

图 1

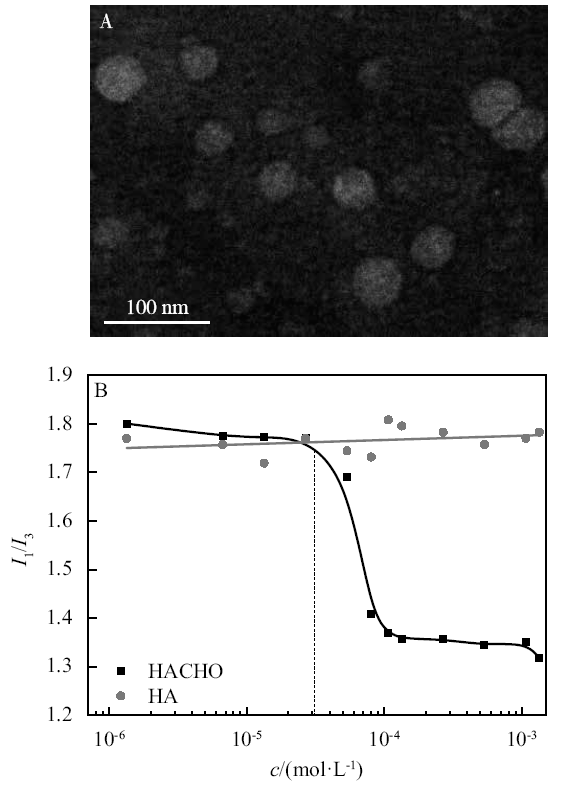

图 2

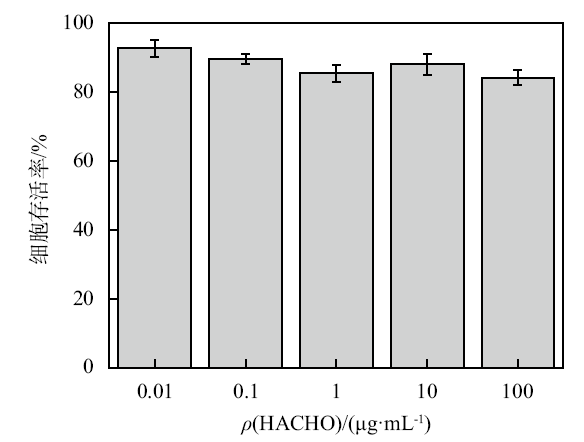

图 3

图 4

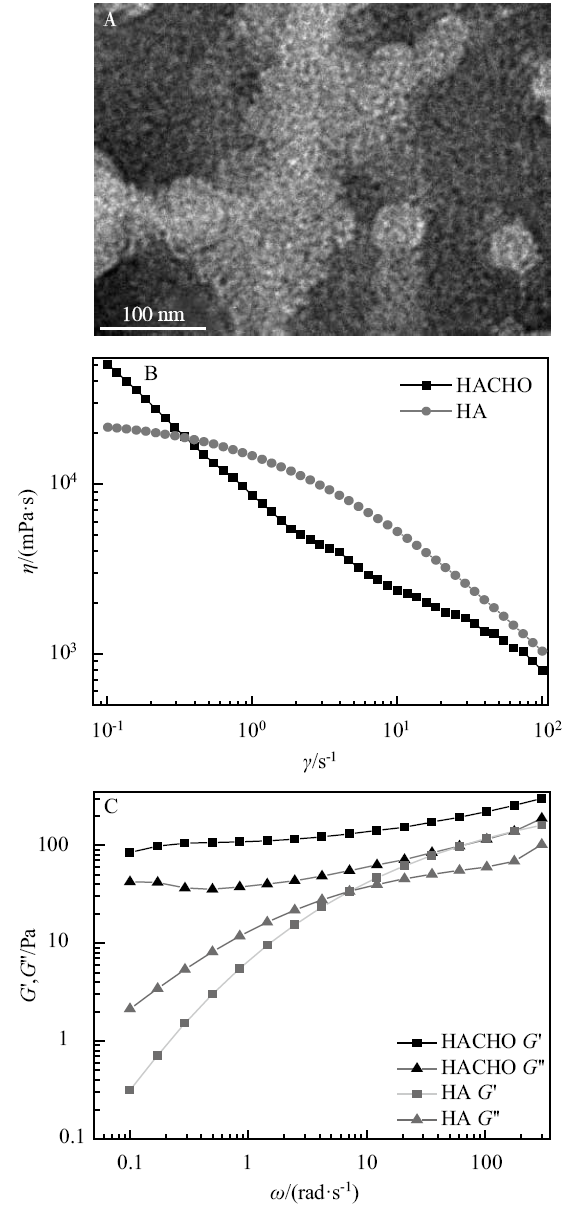

图 5

表 1

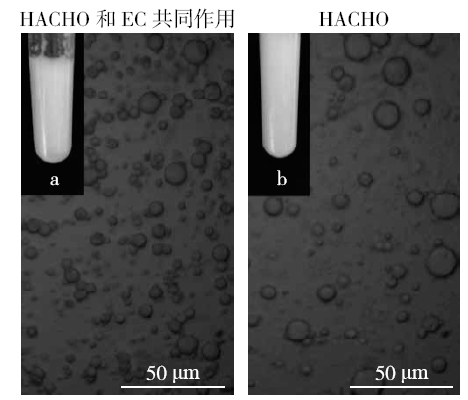

图 6

参考文献 21

[1]	Yang Weiyu, Guo Ling, Li Fenfen, et al. Hydrophobically modified glucan as an amphiphilic carbohydrate polymer for micellar delivery of myricetin[J]. Molecules, 2019,24(20): 3747. doi: 10.3390/molecules24203747
[2]	Pan Hongmei. Current research of hyaluronic acid[J]. Sichuan Food and Fermentation, 2003,39(1): 5-9.
[3]	Scott J E, Chen Y, Brass A. Secondary and tertiary structures involving chondroitin and chondroitin sulphates in solution, investigated by rotary shadowing/electron microscopy and computer simulation[J]. European Journal of Biochemistry, 1992,209(2): 675-680. doi: 10.1111/j.1432-1033.1992.tb17335.x pmid: 1425674
[4]	Li Ling, Wang Ning, Jin Xun, et al. Biodegradable and injectable in situ cross-linking chitosan-hyaluronic acid based hydrogels for postoperative adhesion prevention[J]. Biomaterials, 2014,35(12): 3903-3917. doi: 10.1016/j.biomaterials.2014.01.050 pmid: 24507411
[5]	Hu Lejian, Liu Fulei, Li Lingchao, et al. Preparation of amphiphilic hyaluronic acid derivatives and their applications in anti-tumor nano-drug delivery systems[J]. Progress in Pharmaceutical Science, 2017,41(11): 804-811.
[6]	Wang Juanqin. Modification and functionalization of hyaluronic acid[D]. Wuxi: Jiangnan University, 2013.
[7]	Montagner I M, Banzato A, Zuccolotto G, et al. Paclitaxel-hyaluronan hydrosoluble bioconjugate: mechanism of action in human bladder cancer cell lines[J]. Urol Oncol, 2013,31(7): 1261-1269. pmid: 22341413
[8]	Ran Haiyan, Hong Hui, Zhu Chao, et al. Preparation and performance of particulate emulsifier self-assembled from cinnamic acid modified hyaluronic acid[J]. Journal of Functional Polymers, 2019,32(1): 53-62.
[9]	Eenschooten C, Guillaumie F, Kontogeorgis G M, et al. Preparation and structural characterisation of novel and versatile amphiphilic octenyl succinic anhydride-modified hyaluronic acid derivatives[J]. Carbohydrate Polymers, 2010,79(3): 597-605. doi: 10.1016/j.carbpol.2009.09.011
[10]	Li J, Huo M, Wang J, et al. Redox-sensitive micelles self-assembled from amphiphilic hyaluronic acid-deoxycholic acid conjugates for targeted intracellular delivery of paclitaxel[J]. Biomaterials, 2012,33(7): 2310-2320. doi: 10.1016/j.biomaterials.2011.11.022 pmid: 22166223
[11]	Cao Yinfen. Application of emulsifier-free bi-gel emulsion in cosmetics[D]. Wuxi: Jiangnan University, 2008.
[12]	Li Lei. Synthesis and self-assemble of stimulus-responsive block polymer and its applications for controlling DOX release[D]. Shihezi: Shihezi University, 2016.
[13]	Ran Maoshuang. Studies on biomacromolecule capsules: synthesis, properties and glucose-triggered insulin delivery[D]. Wuxi: Jiangnan University, 2016.
[14]	Lee J, Chang K, Kim S, et al. Phase controllable hyaluronic acid hydrogel with iron (Ⅲ): ion-catechol induced dual cross-linking by utilizing the gap of gelation kinetics[J]. Macromolecules, 2016,49(10): 7450-7459. doi: 10.1021/acs.macromol.6b01198
[15]	Eenschooten C, Vaccaro A, Delie F, et al. Novel self-associative and multiphasic nanostructured soft carriers based on amphiphilic hyaluronic acid derivatives[J]. Carbohyd. Polym., 2012,87(1): 444-451. doi: 10.1016/j.carbpol.2011.08.004
[16]	Xian Ji. Research on rheological properties of polymer solution in porous media[D]. Chengdu: Southwest Petroleum University, 2017.
[17]	Clausen M, Vinson K, Minter R, et al. Viscoelastic micellar solutions: microscopy and rheology[J]. The Journal of Physical Chemistry, 1992,96(1): 474-484. doi: 10.1021/j100180a086
[18]	Fu F. Study on the preparation and viscoelasticity of wormlike micelles[D]. Xi’an: Xi’an Shiyou University, 2018.
[19]	Wu Lijiao. Study on hyaluronic acid solutions and freeze-thaw gels[D]. Shanghai: Shanghai Jiaotong University, 2012.
[20]	Wang Gang, Xu Yuanze, Fan Xueqin, et al. Texture and rheology of the gelation process of HPAM aqueous solution[J]. Chemical Journal of Chinese University, 2008,29(9): 1908-1913.
[21]	Zhang Fei. Functional materials based on the mucopolysaccharide of hyaluronan and their applications[D]. Shanghai: Shanghai Jiaotong University, 2014.
