耐温缓交联有机锆冻胶压裂液的制备与性能评价

doi:10.3969/j.issn.1001-1803.2023.03.005

摘要/Abstract

摘要：

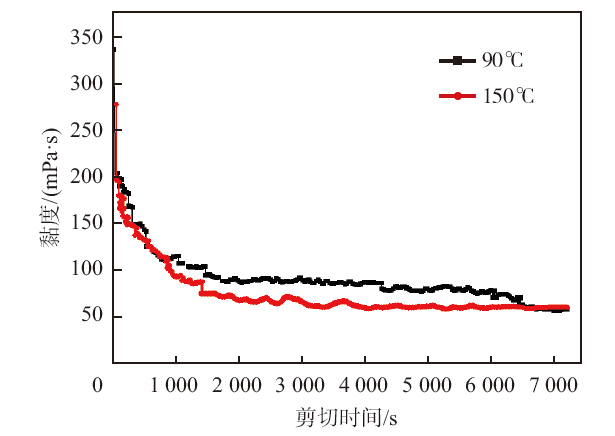

针对目前现场常用的压裂液耐温性差、交联时间短及残渣含量高等诸多问题，以氧氯化锆、多元醇、有机配体、络合交联剂和高温稳定剂等原料成功合成了有机锆交联剂YJ-3，并选用聚丙烯酰胺类稠化剂RG-1和添加剂制备出一种耐温缓交联有机锆冻胶压裂液体系。采用单因素试验对交联剂YJ-3和稠化剂RG-1质量分数进行了优化，进而评价了该压裂液体系的性能指标。实验结果表明：压裂液的较优配方组成为0.50% RG-1+2.0% YJ-3+0.15% Na₂S₂O₃+0.8%助排剂，该体系交联时间在3~45 min之间可调，90 ℃和150℃时在170 s^-1速度下剪切2 h后黏度仍高于50 mPa·s，携砂性能和滤失性明显优于常规瓜胶压裂液体系，在1~3 h内可实现完全破胶，无残渣、易于返排，是一种性能优良的耐温缓交联型低伤害压裂液，具有广阔的现场应用前景。

关键词: 耐温, 锆冻胶, 压裂液, 缓交联, 性能评价

Abstract:

To solve the problems of poor temperature resistance, short cross-linking time and high residue content of fracturing fluids commonly used in field, an organic zirconium cross-linking agent YJ-3 was successfully synthesized from zirconium oxychloride, polyols, organic ligands, complex cross-linking agent and high temperature stabilizer. On this basis, a temperature resistant and slowly-cross-linking organic zirconium gelled fracturing fluid was prepared by selecting polyacrylamide thickener RG-1 and additives. Mass fractions of YJ-3 and RG-1 were optimized by single factor method, and the performance indexes of the fracturing fluid system were evaluated. Experimental results showed that the optimal composition of the fracturing fluid was 0.50% RG-1+2.0% YJ-3+0.15% Na₂S₂O₃+0.8% cleanup additive. The cross-linking time was adjustable between 3 and 45 min. The viscosity was still higher than 50 mPa·s at 90 ℃ and 150 ℃ after shear at 170 s^-1 for 2 h. The sand-carrying performance and filtration property were obviously better than that of conventional fracturing fluid system based on guar gum. Fracturing fluid could be completely broken within 1-3 h, without residue and easy to flow back. It is a kind of temperature-resistant, slowly-cross-linking and low-damage fracturing fluid with excellent performance, which has a broad application prospect.

Key words: temperature resistance, organic zirconium gel, fracturing fluid, slowly-cross-linking, performance evaluation

中图分类号:

TE357

斤朕, 张春生. 耐温缓交联有机锆冻胶压裂液的制备与性能评价[J]. 日用化学工业（中英文）, 2023, 53(3): 279-284.

Jin Zhen, Zhang Chunsheng. Preparation and performance evaluation of organic zirconium gelled fracturing fluid with high temperature resistance and slowly-cross-linking[J]. China Surfactant Detergent & Cosmetics, 2023, 53(3): 279-284.

图/表 11

图1

图2

图3

图4

表1

图5

表2

表3

表4

表5

表6

参考文献 15

[1]	Gao Chenhao, Guo Jixiang, Xu Zhenfang, et al. Advances in multifunctional performance of fracturing fluid[J]. Modern Chemical Industry, 2022, 42 (2) : 102-105, 111.
[2]	Pan Yi, Xia Chen, Yang Shuangchun, et al. Research progress on high temperature water-based fracturing fluid[J]. Chemical Industry and Engineering Progress, 2019, 38 (4) : 1913-1920.
[3]	Lu Yang, Kang Wanli, Wu Hairong, et al. Comprehensive review of acrylamide-based polymer fracturing fluid[J]. Polymeric Materials Science and Engineering, 2018, 34 (12) : 156-162.
[4]	An Na, Luo Pandeng, Li Yongshou, et al. Preparation of and study on sulfonated humic acid/guar gum fracturing fluid[J]. Drilling Fluid & Completion Fluid, 2021, 38 (5) : 657-662.
[5]	Zhang Honghu, Wang Pingquan, Zhou Huacheng, et al. Preparation of ultrathin BiOI/BiOBr composites and performance study in degradation of hydroxypropyl guanidine gum[J]. Chemical Engineering of Oil and Gas, 2022, 51 (1) : 125-131.
[6]	Chen Xinjian, Qu Chengtun, Li Yan, et al. Performance evaluation of silicone fracturing boron-containing return liquid[J]. Applied Chemical Industry, 2019, 48 (4) : 805-808.
[7]	Ding Yu, Wu Caihui, Gu Siman. Synthesis and evaluation of guar gum-poly(AM/AMPSNa) graft copolymer for fracturing fluid application[J]. Petrochemical Technology, 2020, 49 (10) : 985-991. doi: 10.3969/j.issn.1000-8144.2020.10.010
[8]	Wang Jian, Liu Weiwei. Evaluation of the performances of high-temperature-resistant organic zirconium linear-gel fracturing liquid[J]. Petroleum Geology & Oilfield Development in Daqing, 2020, 39 (4) : 101-105.
[9]	Liu Ximing, Ge Jijiang, Shi Xiaojuan, et al. Development and performance evaluation of foaming agent for air flooding in reservoirs with high temperature and dalinity[J]. Special Oil & Gas Reservoirs, 2022, 29 (3) : 118-123.
[10]	Mao Zheng, Li Ting, Liu Dehua, et al. Research progress on the application of nanomaterials in hydraulic fracturing[J]. Applied Chemical Industry, 2022, 51 (9) : 2681-2688.
[11]	Zhang Kaiyu, Hou Jirui, Li Zhuojing. Synthesis and evaluation of organic zirconium cross-linker used in acidicfracturing fluid[J]. Journal of Oil and Gas Technology, 2021, 38 (1) : 34-41.
[12]	Wang Siyu, Dai Caili, Zhao Guang, et al. Study on the organic zirconium gelled fracturing fluid[J]. Oilfield Chemistry, 2014, 31 (2) : 211-214.
[13]	Wu Lei, Cui Weixiang, Yan Jun, et al. Research of gel breaking technology for low damage gum fracturing fluid at low temperature[J]. Applied Chemical Industry, 2019, 48 (4) : 834-837.
[14]	Zhao Wanwei, Li Nianyin, Wang Chuan, et al. Comparative research on performances of acidic fracturing fluid[J]. Chemical Engineering of Oil and Gas, 2019, 48 (4) : 86-89.
[15]	Yan Jie, Zhang Han, Guo Zhijie, et al. Preparation of a high molecular weight polymer thickeningagent and Its use in fracturing fluids[J]. Drilling Fluid & Completion Fluid, 2022, 39 (1) : 107-113.

项目	40 ℃	60 ℃	90 ℃	行业标准
初滤失量/（m³/m²）	2.89×10^-3	8.70×10^-3	6.22×10^-3	≤5.0×10^-2
滤失系数/（m/min^1/2）	4.88×10^-4	5.16×10^-4	6.71×10^-4	≤1.0×10^-3

温度/℃	氧化剂质量分数/%	破胶时间/h	破胶液黏度/（mPa·s）
40	0.15	28.25	3.03
	0.40	11.77	2.23
	0.60	6.50	3.42
	0.80	4.08	2.57
	1.00	3.10	3.65
60	0.20	2.60	2.37
	0.40	2.33	2.91
	0.60	1.00	3.01
	0.80	0.85	2.87
90	0.05	1.50	3.42
	0.10	0.60	2.98
	0.20	0.55	3.43
	0.30	0.50	2.67
	0.40	0.35	2.69

压裂液类型	破胶剂质量分数/%	破胶时间/h	残渣含量/（mg/L）
有机锆冻胶压裂液	0.20	1.5	0
瓜胶压裂液	0.20	2.0	800

压裂液类型	原始渗透率/μm²	恢复渗透率/μm²	岩心伤害率/ %
有机锆冻胶压裂液	6.39×10^-3	5.067×10^-3	20.70
瓜胶压裂液	7.07×10^-3	4.91 ×10^-3	30.59

破胶液与地层水体积比	高矿化度地层水	低矿化度地层水
2∶1	无沉淀、无絮凝，配伍性较好	无沉淀、无絮凝，配伍性较好
1∶1	无沉淀、无絮凝，配伍性较好	无沉淀、无絮凝，配伍性较好
1∶2	无沉淀、无絮凝，配伍性较好	无沉淀、无絮凝，配伍性较好
