EGCG阳离子醇质体的制备及性能评价

doi:10.3969/j.issn.1001-1803.2021.02.003

摘要/Abstract

摘要：

采用乙醇注入法,同时引入阳离子表面活性剂双十八烷基二甲基氯化铵（TA-100）,制备了一种阳离子醇质体,并对其制备条件进行了优化。通过透射电镜和动态光散射技术对阳离子醇质体的形貌、粒径分布及Zeta电位等进行了表征。以表没食子儿茶素没食子酸酯（EGCG）为亲水性模型活性物质,探究了制备的阳离子醇质体对EGCG的包载性能,并对其体外释放特性及储存稳定性进行了研究。结果表明,醇质体中阳离子表面活性剂TA-100的引入不仅可有效提高醇质体自身的稳定性,而且可明显提升其对EGCG的包载能力。该阳离子醇质体稳定性良好,对活性物质的包载能力强,缓释性能优异,在医药、化妆品等领域具有广阔的应用前景。

关键词: 双十八烷基二甲基氯化铵, 阳离子醇质体, 表没食子儿茶素没食子酸酯

Abstract:

The cationic ethosomes were prepared by ethanol injection method which were added with the cationic surfactant dioctadecyl dimethyl ammonium chloride （TA-100）. The preparation conditions were optimized. The morphology, size distribution and Zeta potential of cationic ethosomes were determined by transmission electron microscopy and dynamic light scattering. Using epigallocatechin gallate （EGCG） as the hydrophilic model active substance, the encapsulation efficiency and in vitro release of EGCG loaded cationic ethosomes prepared with TA-100 were investigated, and their storage stability was also characterized. The results showed that the introduction of the cationic surfactant in ethosomes could not only effectively improve the stability of the ethosomes, but also significantly enhance the ability to encapsulate EGCG. The cationic ethosomes had good stability, high encapsulation capacity for active substances, and excellent slow release property, which showed good prospect for application in medicine, cosmetics and other fields.

Key words: dioctadecyl dimethyl ammonium chloride, cationic ethosome, epigallocatechin gallate

中图分类号:

TQ423

徐璞,张雷,尚亚卓,刘洪来. EGCG阳离子醇质体的制备及性能评价[J]. 日用化学工业, 2021, 51(2): 98-103.

XU Pu,ZHANG Lei,SHANG Ya-zhuo,LIU Hong-lai. Preparation and performance evaluation of EGCG loaded cationic ethosomes[J]. China Surfactant Detergent & Cosmetics, 2021, 51(2): 98-103.

图/表 8

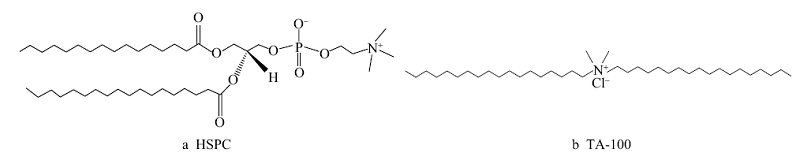

图1

表1

图 2

表2

图3

图4

图5

图 6

参考文献 35

[1]	Pattni B S, Chupin V V, Torchilin V P. New developments in liposomal drug delivery[J]. Chemical Reviews, 2015,115(19) : 10938-10966. pmid: 26010257
[2]	Touitou E, Dayan N, Bergelson L, et al. Ethosomes-novel vesicular carriers for enhanced delivery: characterization and skin penetration properties[J]. Journal of Controlled Release, 2000,65(3) : 403-418.
[3]	Godin B, Touitou E. Ethosomes: new prospects in transdermal delivery[J]. Critical Reviews in Therapeutic Drug Carrier Systems, 2003,20(1) : 63. doi: 10.1615/critrevtherdrugcarriersyst.v20.i1.20 pmid: 12911264
[4]	Cosco D, Celia C, Cilurzo F, et al. Colloidal carriers for the enhanced delivery through the skin[J]. Expert Opinion on Drug Delivery, 2008,5(7) : 737. doi: 10.1517/17425247.5.7.737 pmid: 18590459
[5]	Zhang Y, Ng W, Feng X, et al. Lipid vesicular nanocarrier: quick encapsulation efficiency determination and transcutaneous application[J]. International Journal of Pharmaceutics, 2016,516(1/2) : 225-230.
[6]	Fang Y P, Tsai Y H, Wu P C, et al. Comparison of 5-aminolevulinic acid-encapsulated liposome versus ethosome for skin delivery for photodynamic therapy[J]. International Journal of Pharmaceutics, 2008,356(1) : 144-152.
[7]	Dayan N, Touitou E. Carriers for skin delivery of trihexyphenidyl HCl: ethosomes vs. liposomes[J]. Biomaterials, 2000,21(18) : 1879-1885.
[8]	Chen J, Yan G, Hu R R, et al. Improved pharmacokinetics and reduced toxicity of brucine after encapsulation into stealth liposomes: role of phosphatidylcholine[J]. International Journal of Nanomedicine, 2012: 3567-3577. pmid: 22904620
[9]	Wu L, Zhang J, Watanabe W. Physical and chemical stability of drug nanoparticles[J]. Advanced Drug Delivery Reviews, 2011,63(6) : 456-469. pmid: 21315781
[10]	Peng H, Li W, Ning F, et al. Amphiphilic chitosan derivatives-based liposomes: synjournal, development, and properties as a carrier for sustained release of salidroside[J]. Journal of Agricultural & Food Chemistry, 2013,62(3) : 626-633. doi: 10.1021/jf4039925 pmid: 24372377
[11]	Liang X F, Wang H J, Hao L, et al. Characterization of novel multifunctional cationic polymeric liposomes formed from octadecyl quaternized carboxymethyl chitosan/cholesterol and drug encapsulation[J]. Langmuir, 24(14) : 7147-7153. pmid: 18564860
[12]	Jain S, Kumar D, Swarnakar N K, et al. Polyelectrolyte stabilized multilayered liposomes for oral delivery of paclitaxel[J]. Biomaterials, 2012,33(28) : 6758-6768.
[13]	Chen L, Liang R, Wang Y, et al. Characterizations on the stability and release properties of β-ionone loaded thermosensitive liposomes (TSLs)[J]. Journal of Agricutural ＆ Food Chemistry, 2018,66(31) : 8336-8345.
[14]	Wu L, Zhang J, Watanabe W. Physical and chemical stability of drug nanoparticles[J]. Advanced Drug Delivery Reviews, 2011,63(6) : 456-469. doi: 10.1016/j.addr.2011.02.001 pmid: 21315781
[15]	Zhang Z, Wo Y, Zhang Y, et al. In vitro study of ethosome penetration in human skin and hypertrophic scar tissue[J]. Nanomedicine Nanotechnology Biology & Medicine, 2012,8(6) : 1026-1033.
[16]	Malheiros P D S, Micheletto Y M S, Silveira N P D, et al. Development and characterization of phosphatidylcholine nanovesicles containing the antimicrobial peptide nisin[J]. Food Research International, 2010,43(4) : 1198-1203.
[17]	Sułkowski W W, Pentak D, Nowak K, et al. The influence of temperature, cholesterol content and pH on liposome stability[J]. Journal of Molecular Structure, 2005,744-747:737-747.
[18]	Lu Q, Li D C, Jiang G J. Preparation of a tea polyphenol nanoliposome system and its physicochemical properties[J]. Journal of Agricultural & Food Chemistry, 2011,59(24) : 13004. pmid: 22087534
[19]	Zhuang Y H, Zhang Z W, Han W, et al. Determination of entrapment efficiency of forsythosideliposome by ultrafiltration[J]. Chinese Journal of New Drugs, 2012,21(18) : 2209-2211, 2216.
[20]	Xing C, Li Q Z, Jing N, et al. The stability, sustained release and cellular antioxidant activity of curcumin nanoliposomes[J]. Molecules, 2015,20(8) : 14293-14311. doi: 10.3390/molecules200814293 pmid: 26251892
[21]	Zou L Q, Liu W, Liu W L, et al. Characterization and bioavailability of tea polyphenol nanoliposome prepared by combining an ethanol injection method with dynamic high-pressure microfluidization[J]. Journal of Agricultural & Food Chemistry, 2014,62(4) : 934-941. pmid: 24428744
[22]	Sun Hongsheng. Preparation and characterization of berberine hydrochloride and trimethoprim[D]. Chongqing: Chongqing University, 2017.
[23]	Zhang Chunyan, Xu Xiaoming, Wu Zhangfeng, et al. Investigation on the interaction between quaternary ammonium surfactants and lecithin vesicles[J]. Acta Chimica Sinica, 2005,63(6) : 450-454.
[24]	Elsayed M M, Abdallah O Y, Naggar V F, et al. Deformable liposomes and ethosomes: mechanism of enhanced skin delivery[J]. International Journal of Pharmaceutics, 2006,322(1) : 60-66.
[25]	Yin J, Becker E M, Andersen M L, et al. Green tea extract as food antioxidant. Synergism and antagonism with α-tocopherol in vegetable oils and their colloidal systems[J]. Food Chemistry, 2012,135(4) : 2195-2202. doi: 10.1016/j.foodchem.2012.07.025 pmid: 22980790
[26]	Holmstrm S C, Patil A J, Butler M, et al. Influence of polymer co-intercalation on guest release from aminopropyl-functionalized magnesium phyllosilicate mesolamellar nanocomposites[J]. Journal of Materials Chemistry, 2007,17(37) : 3894-3900.
[27]	Huang J, Liu Y, Wang X. Selective Adsorption of tannin from flavonoids by organically modified attapulgite clay[J]. Journal of Hazardous Materials, 2008,160(2/3):382-387.
[28]	Li Y M, Jiang T, Lv Yin, et al. Amphiphilic copolymers with pendent carboxyl groups for high-efficiency loading and controlled release of doxorubicin[J]. Colloids & Surfaces B: Biointerfaces, 2015,132:54-61. pmid: 26005931
[29]	Lee D H, Jin B H, Hwang Y, et al. Encapsulation of bromelain in liposome[J]. Preventive Nutrition & Food Science, 2000,5(2) : 81-85.
[30]	Ramadon D, Pramesti S S, Anwar E. Formulation, stability test, and in vitro penetration study of transethosomal gel containing green tea (Camellia sinensis L. Kuntze) leaves extract[J]. International Journal of Applied Pharmaceutics, 2017,9(5) : 91-96.
[31]	Zuo Xiaobo, Kong Junhao, Sun Xiaoqin, et al. Preparation of EGCG multilayer emulsion based on the self-assembly technology and its microencapsulation[J]. Science and Technology of Food Industry , 2019,40(9) : 38-43.
[32]	Huang Weichao, Liu Chunhua, Luo Xuguang, et al. Fabrication and formation mechanism of EGCG–loaded nanoparticles based on the self: assembly of sodium caseinate, EGCG and gum arabic[J]. Science and Technology of Food Industry, 2019,40(10) : 93-101, 108.
[33]	Zhang W H, Yang Y Y, Lv T, et al. Sucrose esters improve the colloidal stability of nanoethosomal suspensions of (-)-epigallocatechin gallate for enhancing the effectiveness against UVB-induced skin damage[J]. Journal of Biomedical Materials Research Part B: Applied Biomaterials, 2017,105(8) : 2416-2425. doi: 10.1002/jbm.b.33785 pmid: 27618624
[34]	Liang J, Cao L, Zhang L, Yu C H, et al. Preparation, characterization, and in vitro antitumor activity of folate conjugated chitosan coated EGCG nanoparticles[J]. Food Science and Biotechnology, 2014,23(2) : 569-575.
[35]	Hsieh D S, Lu H C, Chen C C, et al. The preparation and characterization of gold-conjugated polyphenol nanoparticles as a novel delivery system[J]. International Journal of Nanomedicine, 2012,7:1623-1633. doi: 10.2147/IJN.S30060 pmid: 22615529

TA-100 质量分数/%	d/nm	PDI	Zeta电位/mV
0	350.8 ±3.0	0.617±0.028	1.70±0.10
0.01	97.12±0.32	0.184±0.012	36.9 ±3.9
0.02	93.90±0.84	0.222±0.048	42.6 ±1.2
0.03	90.71±1.13	0.252±0.001	45.9 ±1.2
0.04	108.7 ±2.6	0.348±0.015	43.3 ±0.6
0.05	111.7 ±0.4	0.384±0.019	30.8 ±0.3

样品	d/nm	PDI	Zeta电位/mV	包封率/%
EGCG阳离子醇质体	129.3±1.9	0.224±0.004	39.9 ±0.9	68.09±2.92
EGCG醇质体	434.5±4.2	0.644±0.030	2.10±0.10	35.20±1.30
