日用化学工业 ›› 2020, Vol. 50 ›› Issue (7): 452-456.doi: 10.3969/j.issn.1001-1803.2020.07.004

• 开发与应用 • 上一篇    下一篇

旅大27-2油田稠油油藏采出液流动特性

刘义刚1(),刘建斌2,邹剑1,张华1,韩晓冬1,2,刘昊1

  1. 1. 中海石油(中国)有限公司 天津分公司,天津 300452
    2. 中国石油大学(北京),北京 102249
  • 收稿日期:2019-11-07 修回日期:2020-06-28 出版日期:2020-07-22 发布日期:2020-07-23
  • 作者简介:刘义刚(1969-),男,教授级高工,E-mail: liuyg@cnooc.com.cn
  • 基金资助:
    蒸汽吞吐中后期注热参数优化及增效工艺技术研究资助项目(合同编号:CCL2018TJTZLST0478)

Flow characteristics of production fluid in heavy oil reservoirs of LD-27-2 oilfield

LIU Yi-gang1(),LIU Jian-bin2,ZOU Jian1,ZHANG Hua1,HAN Xiao-dong1,2,LIU Hao1

  1. 1. Tianjin Branch, CNOOC, Tianjin 300452, China
    2. China University of Petroleum-Beijing, Beijing 102249, China
  • Received:2019-11-07 Revised:2020-06-28 Online:2020-07-22 Published:2020-07-23

摘要:

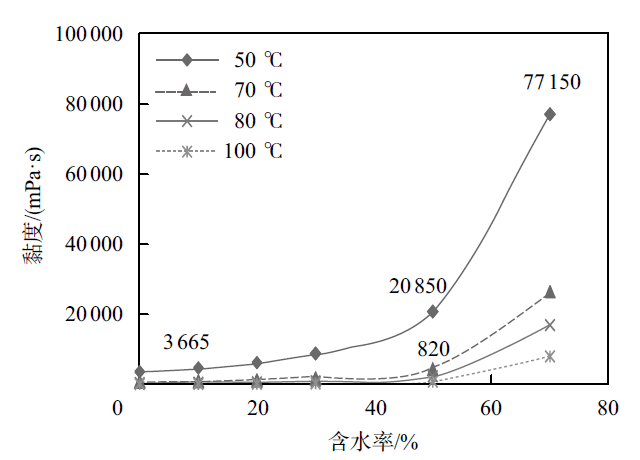

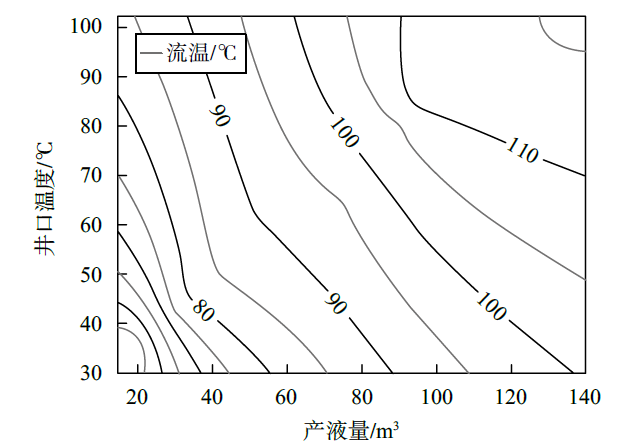

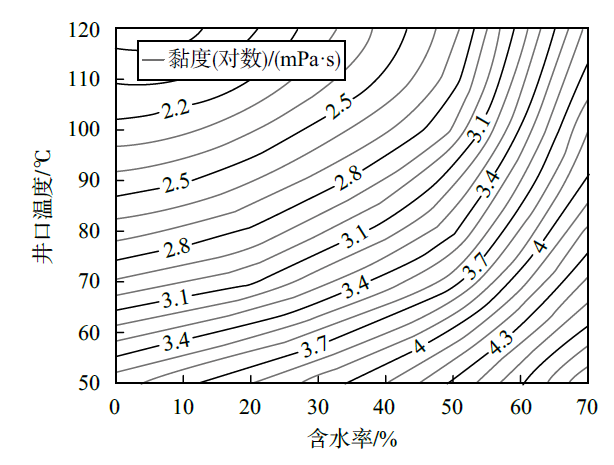

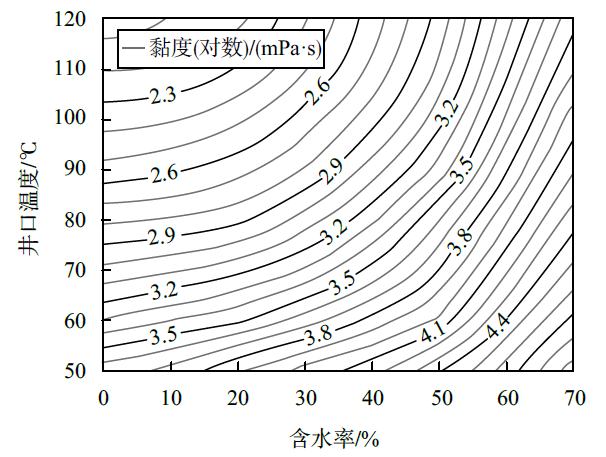

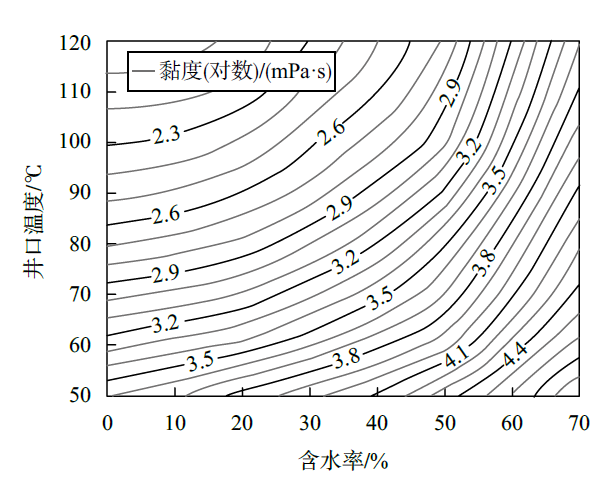

旅大27-2油田稠油油藏采用蒸汽吞吐的方式进行热采开发。在开发过程中,影响采出液黏度变化的主要因素有:稠油族组成、温度、含水率和产液速度。首先通过室内实验研究影响旅大27-2油田稠油黏度变化的影响因素。然后结合采油井井筒数据建立旅大27-2油田稠油油藏流体流动性模型。最后根据蒸汽吞吐参数和生产数据建立稠油油藏井底流温图版以及稠油油藏采出液黏度图版。根据建立的井底流温图版,可以计算出旅大27-2油田稠油蒸汽吞吐不同阶段采出液井底流温和相应的地层温度;结合采出液黏度图版,可以计算出不同流动阶段、蒸汽吞吐不同时期采出液黏度,为油田生产以及措施实施提供指导。

关键词: 稠油, 旅大27-2油田, 流动特性, 采出液, 图版

Abstract:

The thermal recovery development method adopted in the heavy oil reservoir of LD-27-2 oilfield is cycle steam stimulation. In the development process, the main factors affecting the viscosity change of the production fluid were heavy oil group composition, temperature, water content and liquid production rate. Firstly, the influencing factors affecting the viscosity change of heavy oil in LD-27-2 oilfield were studied through laboratory experiments. Then, the fluidity model of the heavy oil reservoir in the LD-27-2 oilfield was established in combination with the wellbore data of the production well. Finally, based on the cycle steam stimulation parameters and production data, the bottom-hole flow temperature chart of the heavy oil reservoir and the viscosity chart of theproduction fluid of the heavy oil reservoir were established. According to the established bottom-hole flow temperature chart, the bottom fluid temperature and corresponding formation temperature of the production fluid in different stages of heavy oil steam stimulation in the LD-27-2 oilfield could be calculated. Combined with the viscosity chart of the production fluid, the viscosity of the production fluid in different flow stages and steam stimulation stages could be calculated, which could provide a guidance for oilfield production and implementation of measures.

Key words: heavy oil, LD-27-2 oilfield, flow characteristics, production fluid, chart

中图分类号:

  • TE345
