基于溶剂热法制备Fe3O4微纳米功能材料及Cr（VI）污染物去除研究

doi:10.3969/j.issn.2097-2806.2026.07.004

Abstract

Abstract:

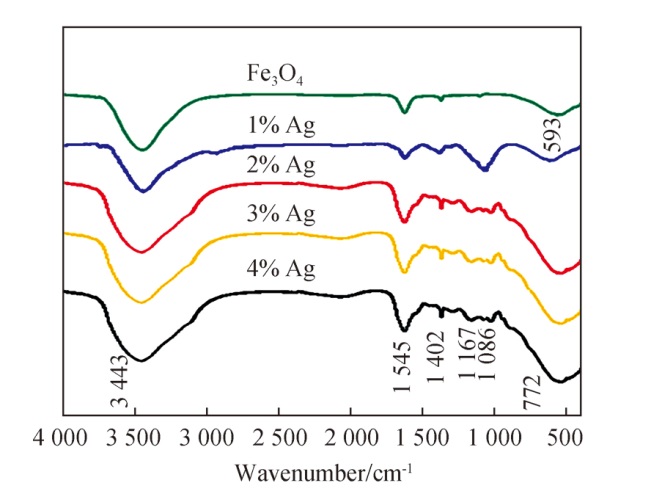

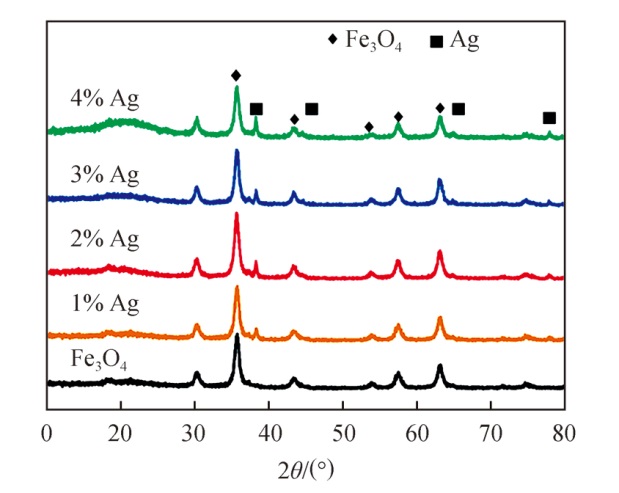

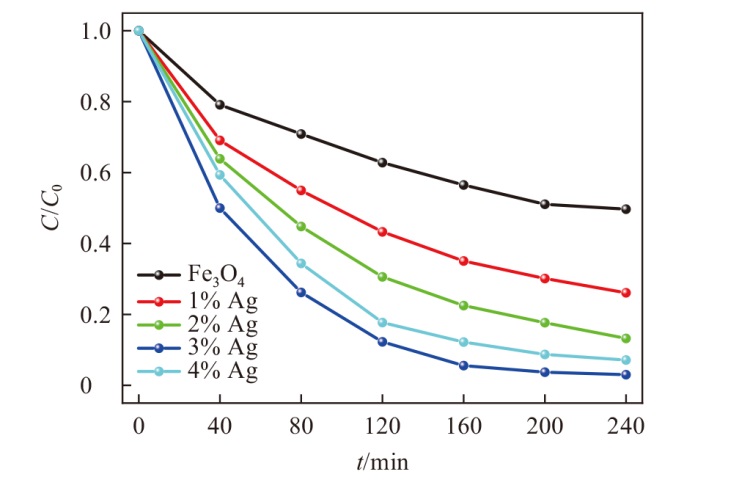

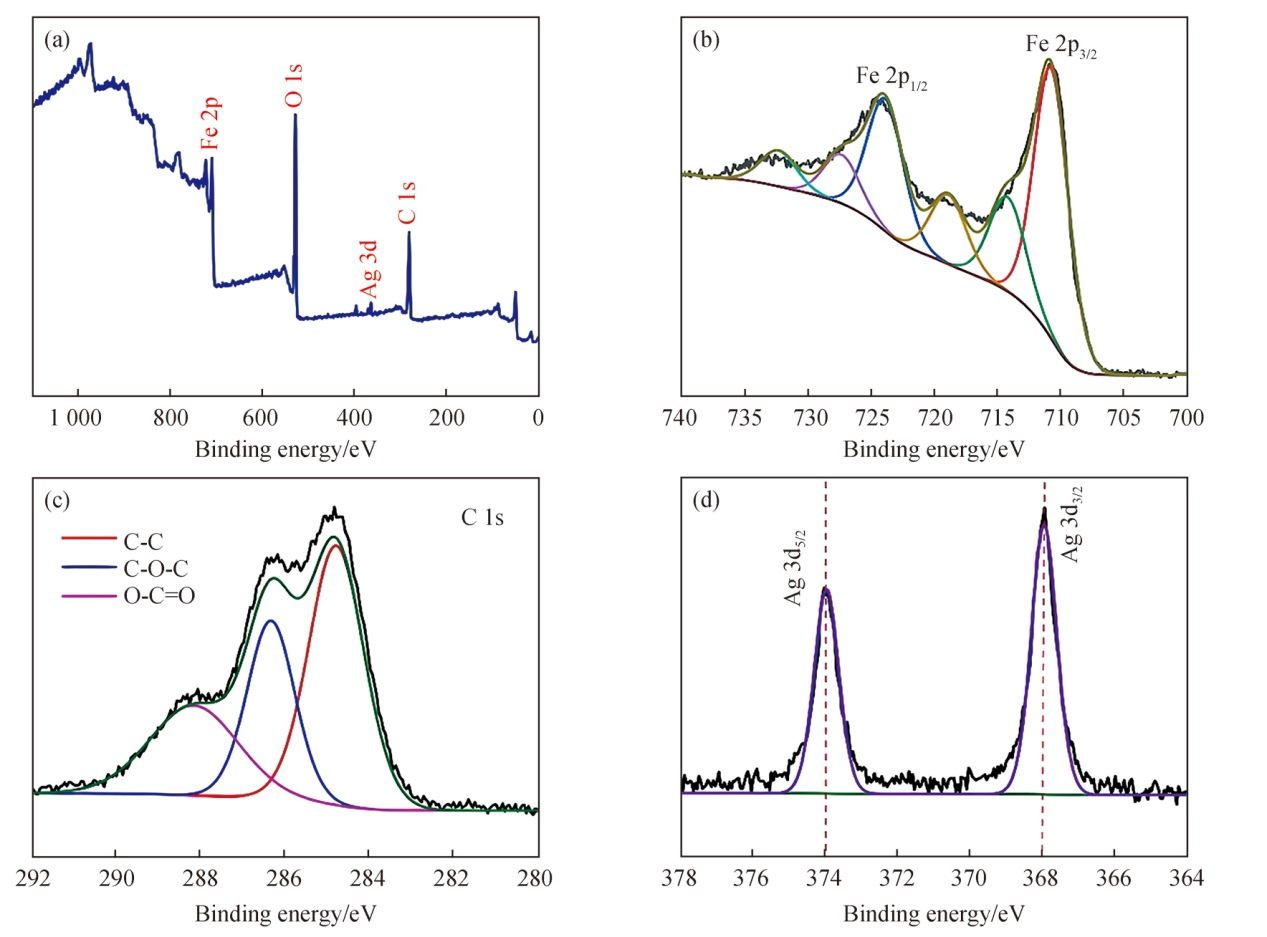

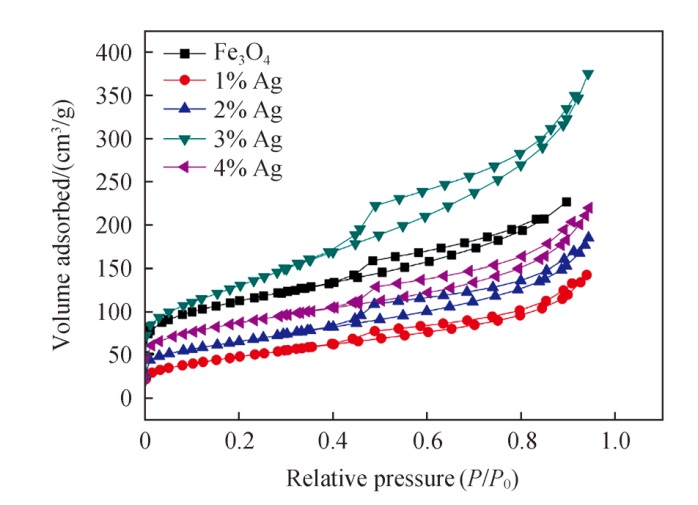

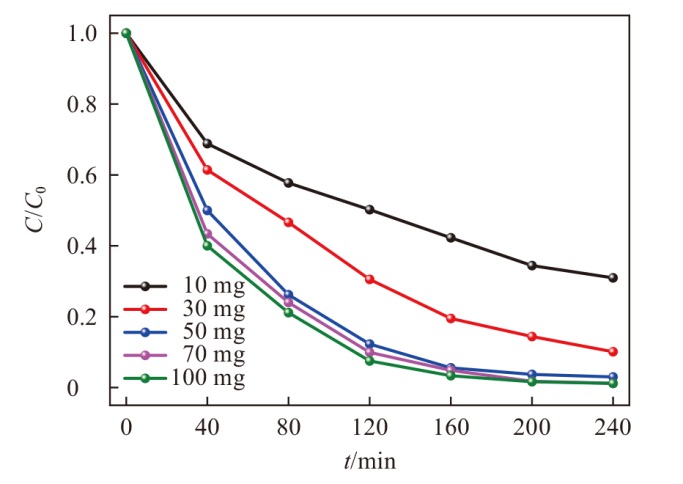

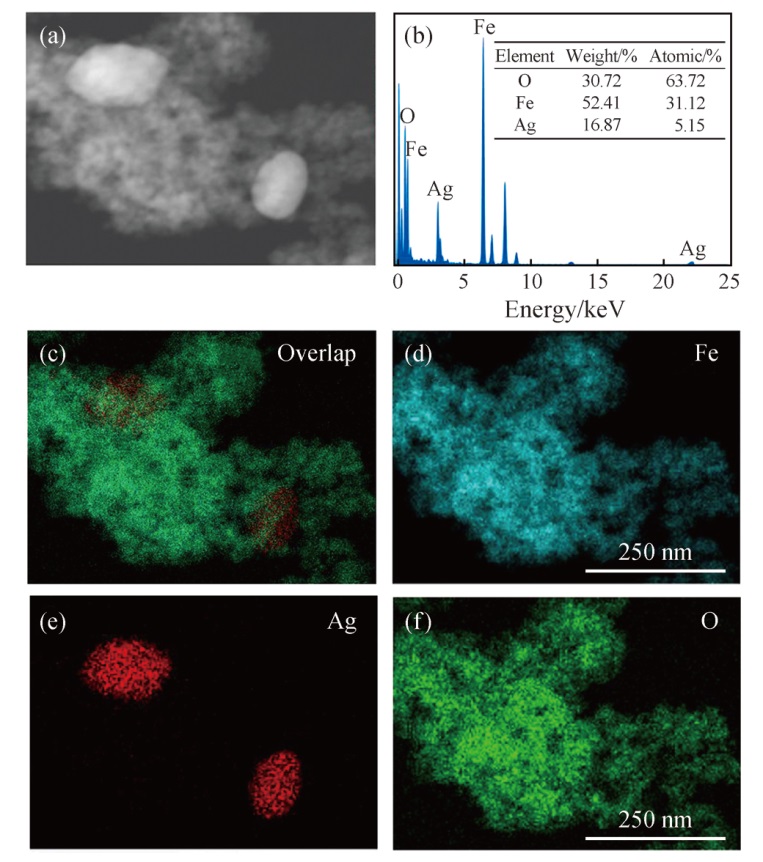

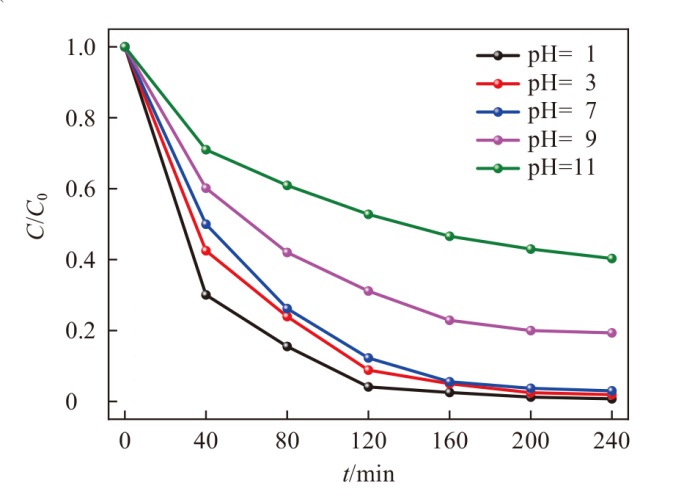

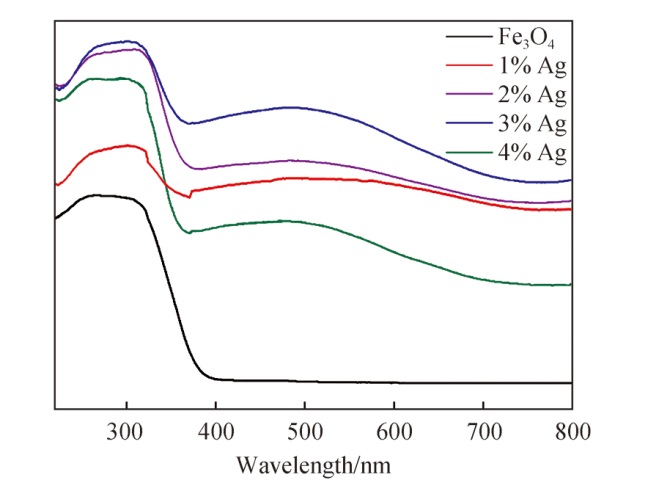

Ag-Fe₃O₄ functional nanomaterials were prepared by solvothermal method using AgNO₃ as raw material. The crystal structure, microstructure, spectral properties and pore characteristics of Ag-Fe₃O₄ nanomaterials were characterized by XRD, SEM, XPS, UV-vis, FTIR and nitrogen adsorption-desorption tests. Their adsorption performance for Cr（VI）in wastewater under different conditions was simulated. The results showed that the Ag-Fe₃O₄ nanomaterials prepared by solvothermal method hadanti-spinel structure and exhibitedhigh crystallinity. Ag had been successfully chemically loaded onto the surface of Fe₃O₄ through the interfacial Ag-O-Fe bonds, and the morphology was rough spherical particles. The sample loaded with 3% Ag exhibited the narrowest band gap of 2.77 eV and the longest absorption edge of 446 nm, with a maximum of specific surface area of 588.6 m²/g and a pore volume of 0.418 cm³/g. The loading of Ag significantly enhanced the performance of Fe₃O₄ nanomaterials for adsorbing Cr（VI）in wastewater. The sample containing 3% Ag achieved a Cr（VI）removal as high as 96.99% within 240 min, indicative of the most outstanding removal effect. With the increase of the dosage of functional nanomaterials, the adsorption effect was enhanced. The adsorption effect of the sample containing 3% Ag reached the maximum value of 99.24% at pH of 1, and theremoval of Cr（VI）could still maintain over 85% after 5 cycles, indicative of excellent cycling stability.

Key words: solvothermal method, Fe₃O₄, nano functional material, chromium, wastewater treatment

CLC Number:

O643.3

Siqi Wang, Xinyu Li. Research on the preparation of Fe₃O₄ micro-nano functional materials by solvothermal method and the removal of Cr（VI）pollutants[J].China Surfactant Detergent & Cosmetics, 2026, 56(7): 864-872.

Figures/Tables 13

Fig.1

Fig.2

Fig.3

Fig.4

Tab.1

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Fig.11

Fig.12

References 24

[1]	马英楠, 李希成, 张清雅, 等. 可见光驱动Z型异质结光催化剂处理染料废水的研究进展[J]. 环境化学, 2024, 43(11): 3830-3844.
[2]	靳亚斌, 徐甜甜, 周亮, 等. 复合钒酸盐材料在工业废水治理中的应用及机制研究[J]. 水处理技术, 2025, 51(4): 22-28, 41. doi: 10.16796/j.cnki.1000-3770.2025.04.004
[3]	王浩科, 胡晗, 叶正芳, 等. 固定化微生物强化废水处理工艺研究进展[J]. 应用化工, 2025, 54(4): 1020-1023, 1048.
[4]	宋杰枫, 李皓天, 聂子聪, 等. Fe₃O₄纳米材料在印染废水处理中的研究进展[J]. 复合材料学报, 2025, 42(6): 3054-3066.
[5]	Lu H, Wang J, Hao H, et al. Magnetically separable MoS₂/Fe₃O₄/nZVI nanocomposites for the treatment of wastewater containing Cr (VI) and 4-Chlorophenol[J]. Nanomaterials, 2017, 7(10): 303.
[6]	师嘉澳, 马占玲, 陈思佳, 等. 聚乙烯亚胺改性果胶-Fe₃O₄对亮绿废水的吸附性能研究[J]. 化工新型材料, 2022, 50(12): 146-150. doi: 10.19817/j.cnki.issn1006-3536.2022.12.028
[7]	Mohamed A, Yousef S, Ali S, et al. Highly efficient visible light photodegradation of Cr (VI) using electrospun MWCNTs-Fe₃O₄@PES nanofibers[J]. Catalysts, 2021, 11(7): 868.
[8]	易师, 沈言锦, 侯志华, 等. 磁性Fe₃O₄及其改性材料处理电镀含磷废水的研究[J]. 电镀与涂饰, 2025, 44(2): 133-139.
[9]	Ren L, Lin H, Meng F, et al. One-step solvothermal synthesis of Fe₃O₄@Carbon composites and their application in removing of Cr (VI) and Congo red[J]. Ceramics International, 2019, 45(7): 9646-9652. doi: 10.1016/j.ceramint.2018.11.132
[10]	张玥, 朱高峰, 葛明桥. Fe₃O₄/MWCNTs湿式催化降解PVA废水[J]. 塑料, 2022, 51(5): 141-146.
[11]	余彦岚. Fe₃O₄/埃洛石复合材料制备及其对铅锌选矿废水中有机物降解性能的研究[J]. 金属矿山, 2021(2): 215-220.
[12]	Krishna K A S, You J G, Tseng W B, et al. Magnetically separable nanospherical g-C₃N₄@Fe₃O₄ as a recyclable material for chromium adsorption and visible-light-driven catalytic reduction of aromatic nitro compounds[J]. ACS Sustainable Chemistry & Engineering, 2019, 7(7): 6662-6671.
[13]	李亚峰, 吕乐, 张富翔, 等. Fe₃O₄强化高铁酸盐体系处理刚果红废水的试验研究[J]. 环境科学与技术, 2024, 47(12): 51-59.
[14]	何睿, 许艳玲, 曾希野, 等. 氧化石墨烯/四氧化三铁磁性复合材料对Cr (VI) 的吸附研究[J]. 电镀与精饰, 2019, 41(9): 1-6.
[15]	范文娟. 磁性Fe₃O₄/活性炭对电镀废水中Cr (VI)吸附性能的研究[J]. 表面技术, 2018, 47(2): 48-54.
[16]	Lestari I, Ramadhanty Y, Marlinda L, et al. Preparation and characterization of magnetite Fe₃O₄-activated carbon composite as adsorbent Cr (VI) ion[J]. EKSAKTA: Berkala Ilmiah Bidang MIPA, 2021, 22(4): 238-247.
[17]	陈凤华, 梁娓娓, 石向东, 等. Ag@AgCl-Fe₃O₄/rGO复合材料对印染废水中染料和重金属离子的吸附和光催化降解性能[J]. 复合材料学报, 2021, 38(7): 2295-2304.
[18]	王百祥, 任慧敏, 王泽锋, 等. 玉米秸秆基纳米Fe₃O₄磁性油污吸附材料的制备及其性能研究[J]. 化工新型材料, 2024, 52(12): 257-262. doi: 10.19817/j.cnki.issn1006-3536.2024.12.028
[19]	高海荣, 李晚廷, 段淑雨, 等. Fe₃O₄/GO磁性纳米材料的合成及其对龙胆紫染料的吸附研究[J]. 化工新型材料, 2023, 51(11): 295-300. doi: 10.19817/j.cnki.issn1006-3536.2023.11.021
[20]	夏阁遥, 陈男, 胡伟武, 等. 磁性Fe₃O₄/Ag₃PO₄复合光催化剂催化降解染料废水中的孔雀石绿[J]. 环境工程学报, 2015, 9(8): 3821-3827.
[21]	李振兴, 赵爱武, 高倩, 等. 超顺磁性Fe₃O₄/Au@Ag复合材料的合成及其SERS性能研究[J]. 化学学报, 2015, 73(8): 847-850. doi: 10.6023/A15040262
[22]	张先盼, 罗秋霞, 严小琴, 等. Fe₃O₄@Ag₃PO₄/AgCl光催化剂的制备及光降解性能研究[J]. 工业水处理, 2021, 41(8): 81-86. doi: 10.19965/j.cnki.iwt.2020-1046
[23]	王子帅, 王耀强, 肖刚, 等. 磁性纳米Fe₃O₄@TiO₂可见光下光催化还原Cr (VI)[J]. 化工学报, 2019, 70(10): 4062-4071. doi: 10.11949/0438-1157.20190773
[24]	Du J, Jing C. Preparation of Fe₃O₄@Ag SERS substrate and its application in environmental Cr (VI) analysis[J]. Journal of Colloid and Interface Science, 2011, 358(1): 54-61. doi: 10.1016/j.jcis.2011.02.044

样品	比表面积/（m²/g）	孔容/（cm³/g）	孔径/nm
Fe₃O₄	366.2	0.185	4.9
1% Ag	422.4	0.212	5.1
2% Ag	484.6	0.336	4.7
3% Ag	588.6	0.418	5.0
4% Ag	492.1	0.397	5.3
